Default Starting problem

Well, I have this problem:
1) I have to give it a little throttle when cranking, otherwise it wont start.

2) When cold I need to crank for about 10 seconds before it starts firing.

3) Once it start firing if I don't accelerate it immediately shuts off. It starts and shuts down in a second.

I've messed with everything related to cranking and after start stuff but cant get it right, would you guys help me. Maybe post your cranking settings please.
I got to the point were everything else is almost good (ve table - afrs) and the car runs pretty good but the starting problems I just cant fix.
Thank you
90turboMX5 is offline   Reply With Quote
Old 03-22-2008, 11:46 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,323
Total Cats: 1,922
Default

Post an .MSQ file.

Also, check this window:

Joe Perez is online now   Reply With Quote
Old 03-22-2008, 02:24 PM   #3
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Indianapolis
Posts: 167
Total Cats: 0
Default

Yea, my fuel table looks the same as yours.
Here is an attachment of my MSQ
Attached Files
File Type: zip Shortcut to march20thafter cal.zip (685 Bytes, 37 views)
90turboMX5 is offline   Reply With Quote
Old 03-22-2008, 02:28 PM   #4
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Indianapolis
Posts: 167
Total Cats: 0
Default

I dont think that one worked try this
Attached Files
File Type: zip march20thafter cal.zip (5.5 KB, 39 views)
90turboMX5 is offline   Reply With Quote
Old 03-22-2008, 10:19 PM   #5
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

fast idle threshold: 200 F ???

granted you have a 1.6 vs my 1.8 but think your cranking pulsewidths, ASE, and warm up enrichments may be a lil off for 460s. mine are:



someone else with a 1.6 with 460's can chime in.

NOTE:
i didn't tune the cranking settings below 40F because i don't run that car when it's that cold so ignore those defaults
Attached Thumbnails

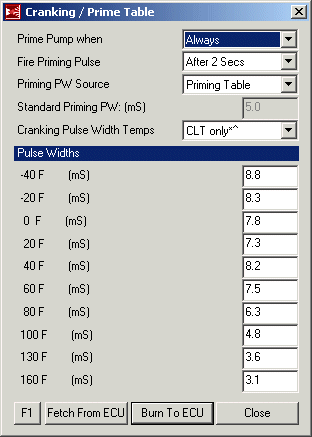

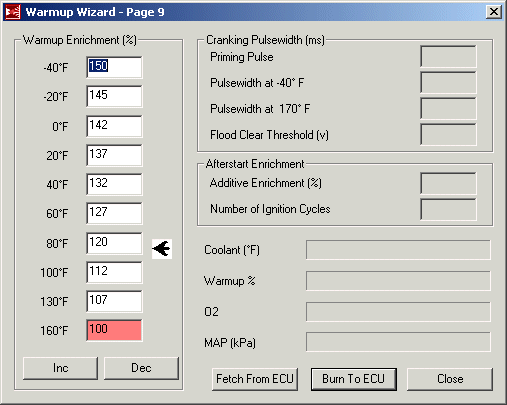

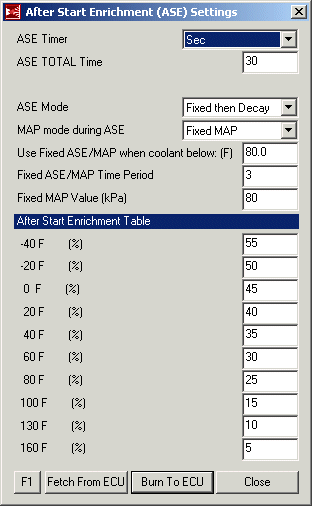

Starting problem-cranking.gif   Starting problem-ase.gif   Starting problem-warmupwiz.gif
paul is offline   Reply With Quote
Old 03-25-2008, 11:08 AM   #6
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Indianapolis
Posts: 167
Total Cats: 0
Default

Yea, FAST IDLE THRESHOLD is at 200F. Should I lower it to 185 or something like that?
90turboMX5 is offline   Reply With Quote
Old 03-25-2008, 11:09 AM   #7
Junior Member
Thread Starter

Join Date: Dec 2007
Location: Indianapolis
Posts: 167
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
fast idle threshold: 200 F ???

granted you have a 1.6 vs my 1.8 but think your cranking pulsewidths, ASE, and warm up enrichments may be a lil off for 460s. mine are:



someone else with a 1.6 with 460's can chime in.

NOTE:
i didn't tune the cranking settings below 40F because i don't run that car when it's that cold so ignore those defaults
Those values would flood my engine but thanks, are those the values that come with MSPNP? they look similar.
Paul, what's your fast idle threshold?
90turboMX5 is offline   Reply With Quote
Old 03-25-2008, 11:19 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,878
Total Cats: 1,790
Default

Quote:
Originally Posted by 90turboMX5 View Post
1) I have to give it a little throttle when cranking, otherwise it wont start.
too much cranking PWs.

Quote:
Originally Posted by 90turboMX5 View Post
2) When cold I need to crank for about 10 seconds before it starts firing.
cranking PWs.

Quote:
Originally Posted by 90turboMX5 View Post
3) Once it start firing if I don't accelerate it immediately shuts off. It starts and shuts down in a second.
ASE!
Braineack is online now   Reply With Quote
