Default Strange LC-1 problem

Hi all -

I've got a supercharged '93 with a MSPNP and an LC-1 wideband. Everything was working great for a while, but recently it's been running strangely and I plugged in TunerStudio to figure out why.

I was surprised to see that the AFR meter was pegged at full rich, no matter what driving I did. I didn't have time to deal with it at the time; I thought maybe I needed to upgrade TunerStudio since I just upgraded to Snow Leopard on my Mac. Today I upgraded everything, took the car for a spin, and discovered things were even weirder.

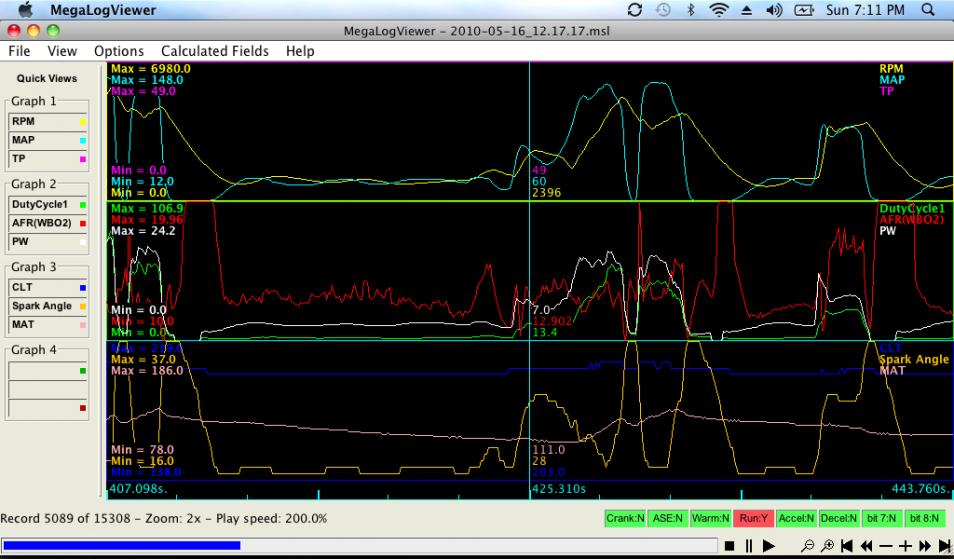

At first everything was working fine: AFR was reporting good values, as in the first attachment from below (all attachments are Megalog screenshots).

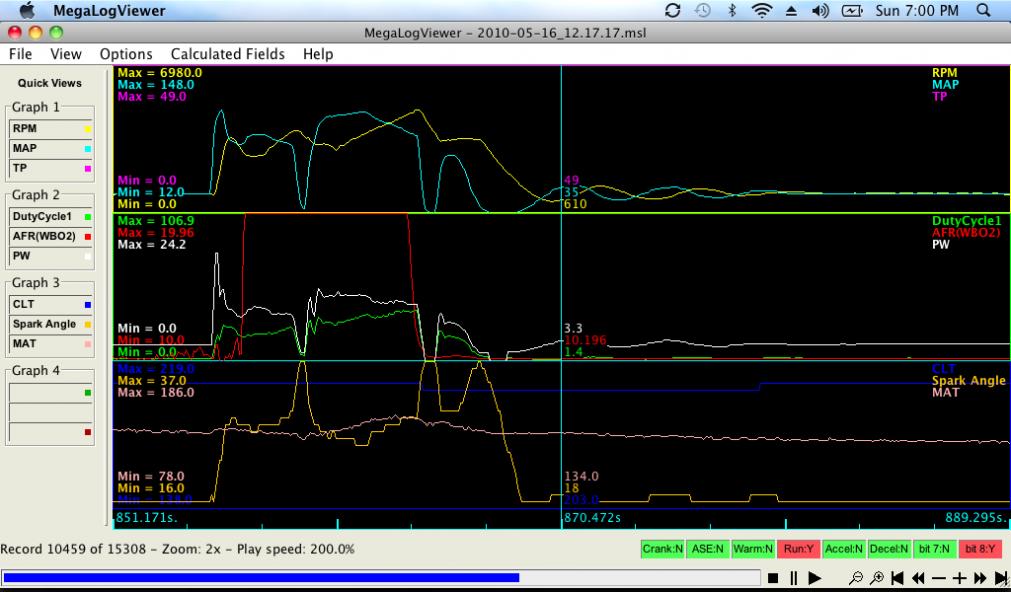

About 15 minutes into the drive, at the moment in the second log snapshot below, the AFR suddenly dropped to 10.286, and stayed within .2 of that value for the rest of the ride, no matter what happened to other inputs.

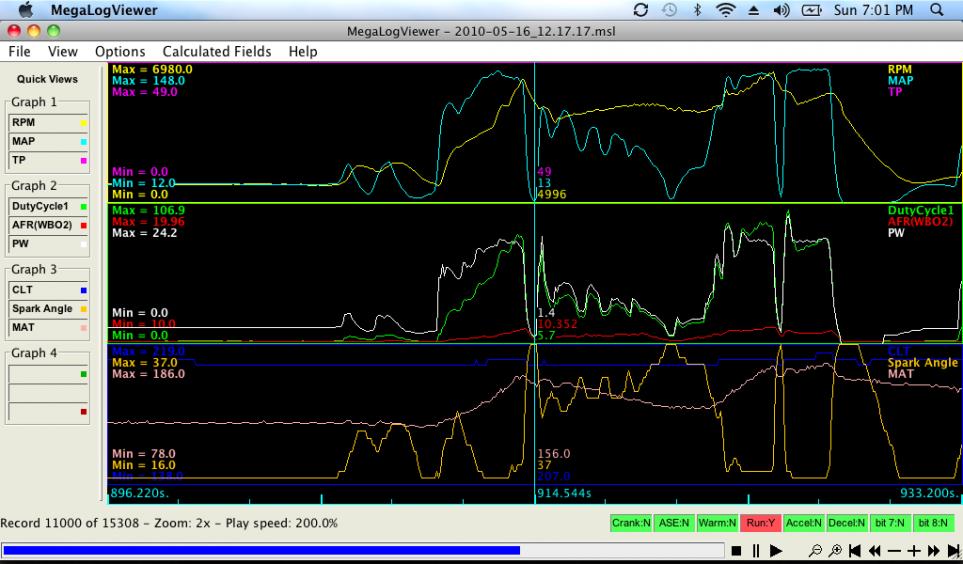

The rest of the drive looked like the third snapshot -- AFR dead rich, everything else looking fine.

I've checked connections on the LC-1 wires etc. Anyone got any other ideas?

Thanks ...

DJD
Attached Thumbnails
Strange LC-1 problem-screen-shot-2010-05-16-7.11.20-pm.jpg   Strange LC-1 problem-screen-shot-2010-05-16-7.00.29-pm.jpg   Strange LC-1 problem-screen-shot-2010-05-16-7.01.07-pm.jpg
djdevvydev is offline   Reply With Quote
Old 05-16-2010, 11:58 PM   #2
Senior Member
iTrader: (14)

Join Date: Aug 2008
Location: Tinley Park, IL
Posts: 1,488
Total Cats: 0
Default

Your AIT looks really high. Do you have you coolant corrected air density set on AIT correction. If so it may be enriching it because of air temp. Where is your AIT sensor mounted.
lordrigamus is offline   Reply With Quote
Old 05-17-2010, 01:14 AM   #3
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

I'm having a similar problem, but my AF ratio stays on the exact number. I don't have a laptop to log right now, but maybe we have similar issues.
jbrown7815 is offline   Reply With Quote
Old 05-17-2010, 05:56 AM   #4
Junior Member

Join Date: Oct 2008
Location: Manchester, UK
Posts: 274
Total Cats: 0
Default

Any error codes from the LED? (if you have it fitted)
CRAIGO is offline   Reply With Quote
Old 05-17-2010, 11:14 AM   #5
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

I have a red indicator light that blinks continuously. It's solid when it works. DJDEVV, I'm not trying to threadjack. LMK if you want me to leave.
jbrown7815 is offline   Reply With Quote
Old 05-17-2010, 11:56 AM   #6
Senior Member
iTrader: (1)

Join Date: Apr 2010
Location: Portales, NM
Posts: 837
Total Cats: 2
Default

I guess I should have looked at the manual for error codes. DOH
jbrown7815 is offline   Reply With Quote
Old 05-17-2010, 12:28 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

what is your total Gammae %?
Braineack is offline   Reply With Quote
