Default Strange Rich Region

Despite MLV wanting to lean out most of the table (which is correct) there are 3 or 4 cells that it has changed from 80ish to 120ish, which makes no sense to me.

I was running EGO controller authority at 10% and closed loop limit at 90 kPa
Attached Thumbnails

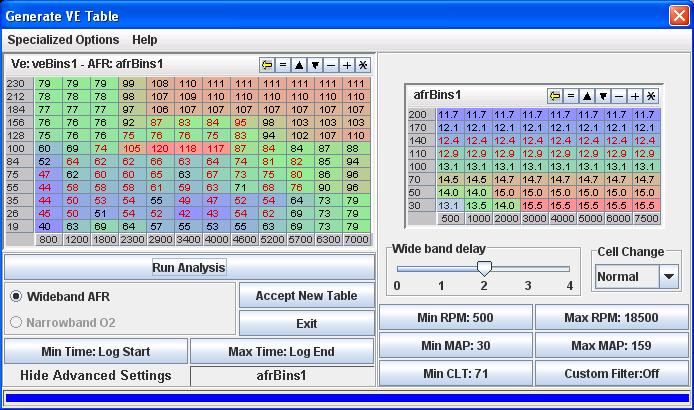

Strange Rich Region-richpatch.jpg
Attached Files
File Type: zip datalog200801280849.zip (430.2 KB, 46 views)
richard_ha is offline   Reply With Quote
Old 01-28-2008, 12:48 PM   #2
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Must have been something very funny with that log, seems ok with another.
richard_ha is offline   Reply With Quote
Old 01-28-2008, 12:49 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

just hand tune the row.
Braineack is offline   Reply With Quote
Old 01-28-2008, 01:00 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

When things like that take place, i revert to hand smoothing to make things jive. Thats something i find with MLV, if it doesn't hit all the cells then i will finish the rest increasing or decreasing fuel according to what I know will be ok.
cjernigan is offline   Reply With Quote
Old 01-28-2008, 01:02 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

fwiw, i also never let MLV tune below 1200. it always ***** my idle.
Braineack is offline   Reply With Quote
Old 01-28-2008, 01:10 PM   #6
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
fwiw, i also never let MLV tune below 1200. it always ***** my idle.
Same here, I have 9 points for the Idle and I always reset them.

I also find whilst MLV is awesome, it doesn't produce a smooth table. So i'll try to hand smooth it out.

I hand smooth it out in Megatunix tho, as the graphical display is far better than Megatunes. once done I revert back to MT tho, there's something about MTx I don't like...

fricking complicated, but it produced the nicest looking tables...
richyvrlimited is offline   Reply With Quote
Old 01-28-2008, 01:14 PM   #7
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by richard_ha View Post
Despite MLV wanting to lean out most of the table (which is correct) there are 3 or 4 cells that it has changed from 80ish to 120ish, which makes no sense to me.

I was running EGO controller authority at 10% and closed loop limit at 90 kPa
You should disable EGO correction, Accel Enrich, and Overun when you are logging.
Saml01 is offline   Reply With Quote
Old 01-28-2008, 01:30 PM   #8
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Quote:
Originally Posted by Saml01 View Post
You should disable EGO correction, Accel Enrich, and Overun when you are logging.
http://www.ideasandsolutions.biz/Meg...alysisFAQ.html
richard_ha is offline   Reply With Quote
Old 01-28-2008, 01:30 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Saml01 View Post
You should disable EGO correction, Accel Enrich, and Overun when you are logging.
only for autotune within MegaTune.

MLV knows about them and ignores them
richyvrlimited is offline   Reply With Quote
Old 01-28-2008, 03:16 PM   #10
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by richyvrlimited View Post
only for autotune within MegaTune.

MLV knows about them and ignores them
REALLY now.
Quote:
Originally Posted by richard_ha View Post
Saml01 is offline   Reply With Quote
Old 01-28-2008, 06:01 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by Saml01 View Post
REALLY now.


Do you enjoy creating controversy over stupid things? That link posted explains how MLV deals with those enrichments and 2 of the three are ignored while EGO is taken into account. You don't have to turn them off be MLV knows how to deal with EGO and doesn't care about the others. It does happen to be able to deal with the effects of AE and the rich mixture that is can create immediately after AE has worn off.
Either way, you can run with them on or off. It's personal preference because not everything always works the same for everyone. Some people swear that you should turn them off. Other's say it's unnecessary.
cjernigan is offline   Reply With Quote
Old 01-28-2008, 07:45 PM   #12
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by cjernigan View Post
Do you enjoy creating controversy over stupid things? That link posted explains how MLV deals with those enrichments and 2 of the three are ignored while EGO is taken into account. You don't have to turn them off be MLV knows how to deal with EGO and doesn't care about the others. It does happen to be able to deal with the effects of AE and the rich mixture that is can create immediately after AE has worn off.
Either way, you can run with them on or off. It's personal preference because not everything always works the same for everyone. Some people swear that you should turn them off. Other's say it's unnecessary.
I have been turning all that off when tuning, probably because I use both auto tune and MLV so I didnt want to go back and forth between the settings.

But hey, its good to know you know.
Saml01 is offline   Reply With Quote
Old 01-29-2008, 08:33 AM   #13
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Mine does the same thing but on the 20kpa absolute row. It had entries of 180 next to things like 30!
timk is offline   Reply With Quote
Old 01-29-2008, 09:17 AM   #14
Junior Member
Thread Starter

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

Quote:
Originally Posted by saboteur View Post
Mine does the same thing but on the 20kpa absolute row. It had entries of 180 next to things like 30!
Yup, mine does that to, so I just turned the map to filter anything below 30kPa
richard_ha is offline   Reply With Quote
