Default super miata 36-2 settings

Hi guys. I am just getting my miata up and running again. I installed a 36-2t trigger wheel from supermiata and have trouble setting it up at tunerstudio. In the ignition setting/wheel decoder manual, the miata 36-2t trigger wheel does not show. Do I need to update my firmware?

I have a 95 miata with vvt swap
rikaro is offline   Reply With Quote
Old 08-04-2017, 01:13 AM   #2
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

Post a copy of your tune file and a trigger log
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 01:24 AM   #3
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

I hope i'm uploading the right files.

I haven't cranked the car yet so I don't have the trigger log
Attached Files
File Type: msq PreFirmwareUpgrade_2017-08-03_22.18.15.msq (187.9 KB, 9 views)
File Type: msq CurrentTune.msq (187.9 KB, 12 views)
rikaro is offline   Reply With Quote
Old 08-04-2017, 01:27 AM   #4
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

Go to ignition option wheel decoder, then spark mode on the upper left of the box that pops up then you want Miata 36-2 it is the third one from the bottom of the list.

Let us know if it works
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 01:29 AM   #5
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

Just saw your firmware to v3.0.22 or whatever the newest is. i have the v3.0.22 and you should be golden after an update
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 01:32 AM   #6
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Quote:
Originally Posted by matrussell122 View Post
Just saw your firmware to v3.0.22 or whatever the newest is. i have the v3.0.22 and you should be golden after an update
I think my firmware is 1.2.3

Does that make any sense? It's not in the dropdown is because my firmware is too old i think. I tried to use the firmware update on the software but it doesn't let me auto update. It's asking me for a the megasquirt-3 file.
rikaro is offline   Reply With Quote
Old 08-04-2017, 01:33 AM   #7
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

what megasquirt are you currently running
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 01:34 AM   #8
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

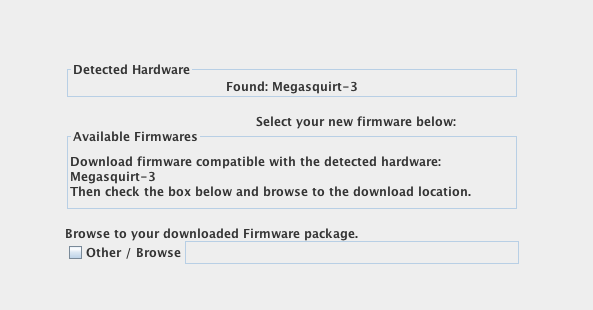

I have uploaded some screenshots of my version and where I am stuck with the update.
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-03-10.33.37-pm.png   super miata 36-2 settings-screen-shot-2017-08-03-10.33.58-pm.png
rikaro is offline   Reply With Quote
Old 08-04-2017, 01:36 AM   #9
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Quote:
Originally Posted by matrussell122 View Post
what megasquirt are you currently running
running ms3 basic by reverent
rikaro is offline   Reply With Quote
Old 08-04-2017, 01:41 AM   #10
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

so first i made a dump and put my tunerstudio version. go to link and download 1.5.0 then once downloaded move it to the desktop and when the box comes up browse to desktop and download. You might not have to move it to the desktop but sometimes my work computer wont let me use files in the download folder

Megasquirt Downloads Firmware and Software - Megasquirt EFI
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 02:02 AM   #11
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

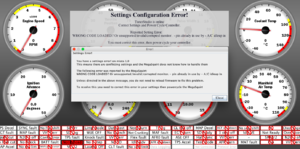

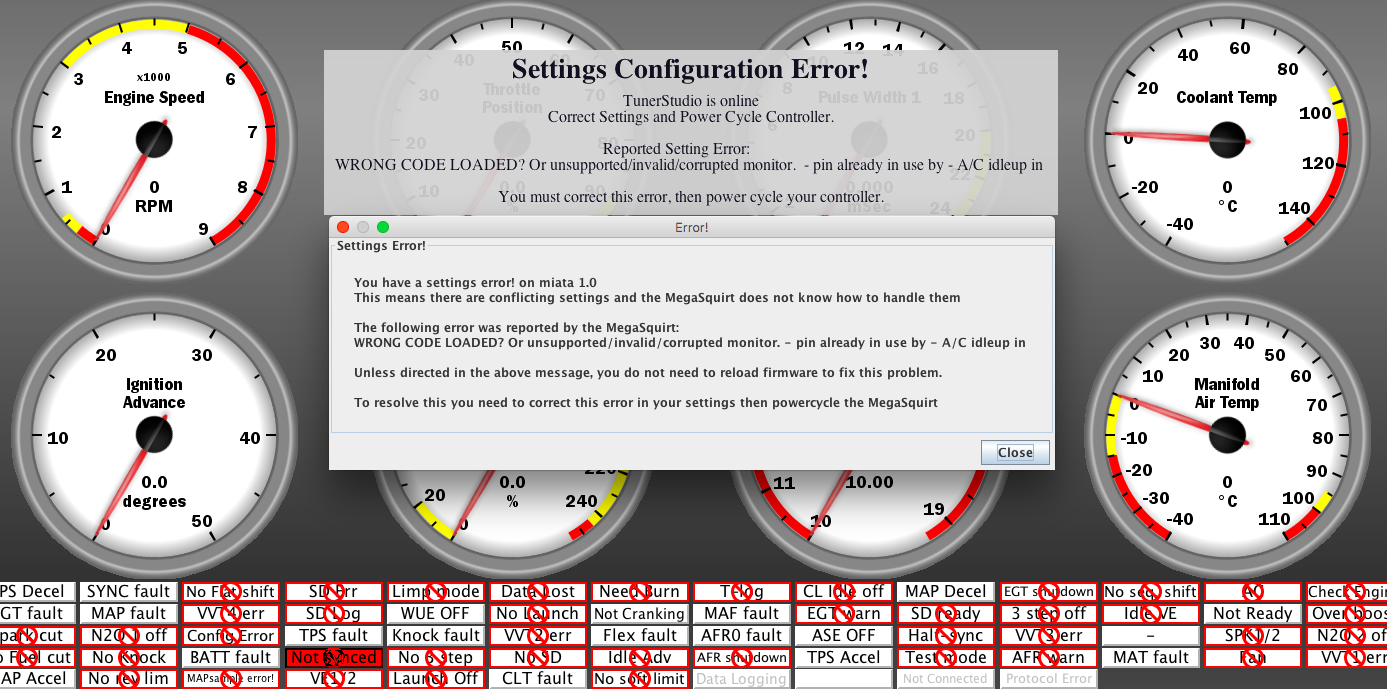

so this happened. trying to figure this out right now.
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-03-11.01.54-pm.png
rikaro is offline   Reply With Quote
Old 08-04-2017, 02:36 AM   #12
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

I just ran it with ecu definition from 1.4.0 and it cleared most of the errors away. However I think I do need v1.5.0 from reverent to clear all of the problems. I just send a PM to Dimitris so hopefully I can get a response from him soon
rikaro is offline   Reply With Quote
Old 08-04-2017, 06:10 AM   #13
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,456
Total Cats: 216
Default

The ini file you need is in the firmware zip file you downloaded.
Reverant is offline   Reply With Quote
Old 08-04-2017, 01:03 PM   #14
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
The ini file you need is in the firmware zip file you downloaded.
good to know. I'll try it again later today
rikaro is offline   Reply With Quote
Old 08-04-2017, 10:44 PM   #15
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

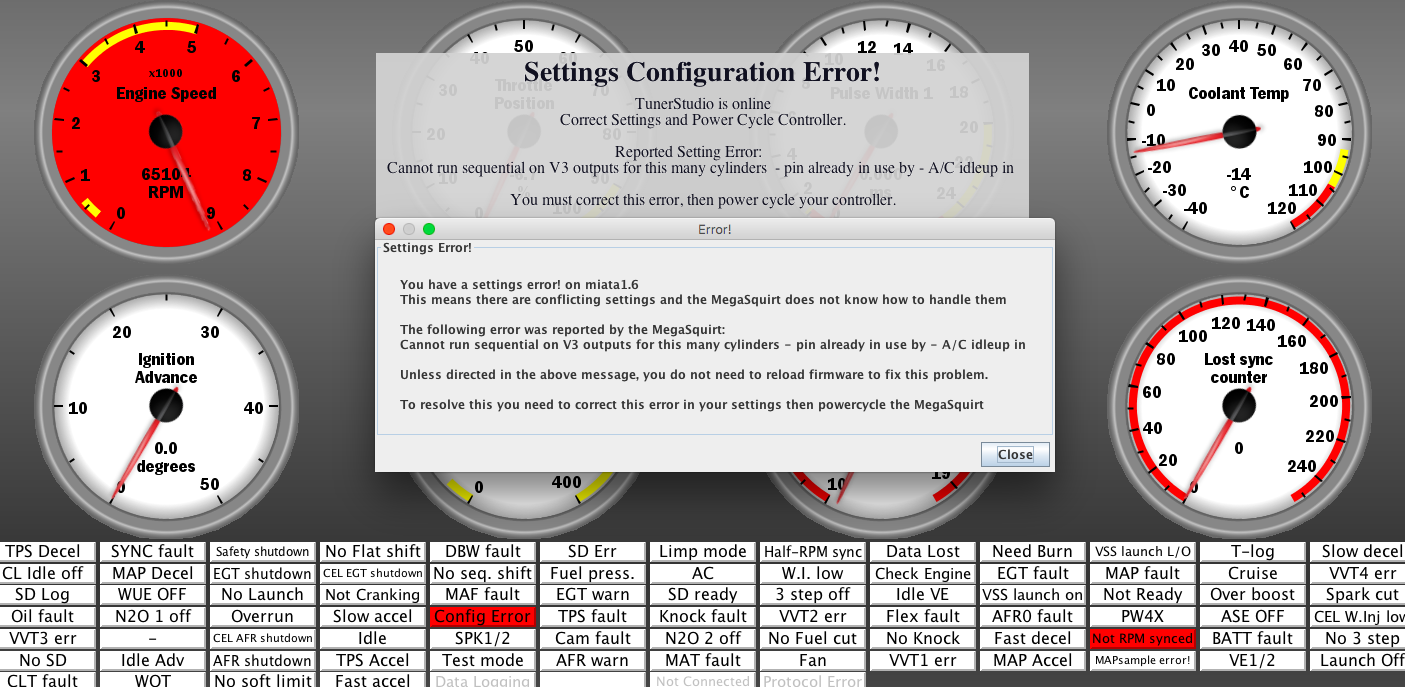

This is what I have so far. What did I do wrong?
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-04-7.43.37-pm.png
rikaro is offline   Reply With Quote
Old 08-04-2017, 11:07 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Quote:
Originally Posted by Reverant View Post
The ini file you need is in the firmware zip file you downloaded.

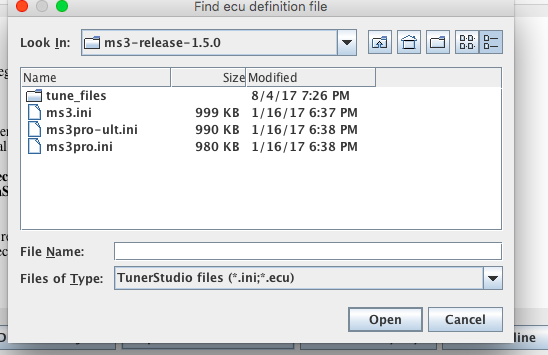

i have followed what you said but there are actually 3 different ecu definitions. Which one am i supposed to use?
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-04-8.05.37-pm.png
rikaro is offline   Reply With Quote
Old 08-04-2017, 11:25 PM   #17
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

Use the first ini file the others are for the pro
matrussell122 is offline   Reply With Quote
Old 08-04-2017, 11:46 PM   #18
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Here's an update. I reloaded to the 1.4.0 firmware with the rev's .ini found here:

https://trackspeedengineering.com/fi...20V3%20140.pdf

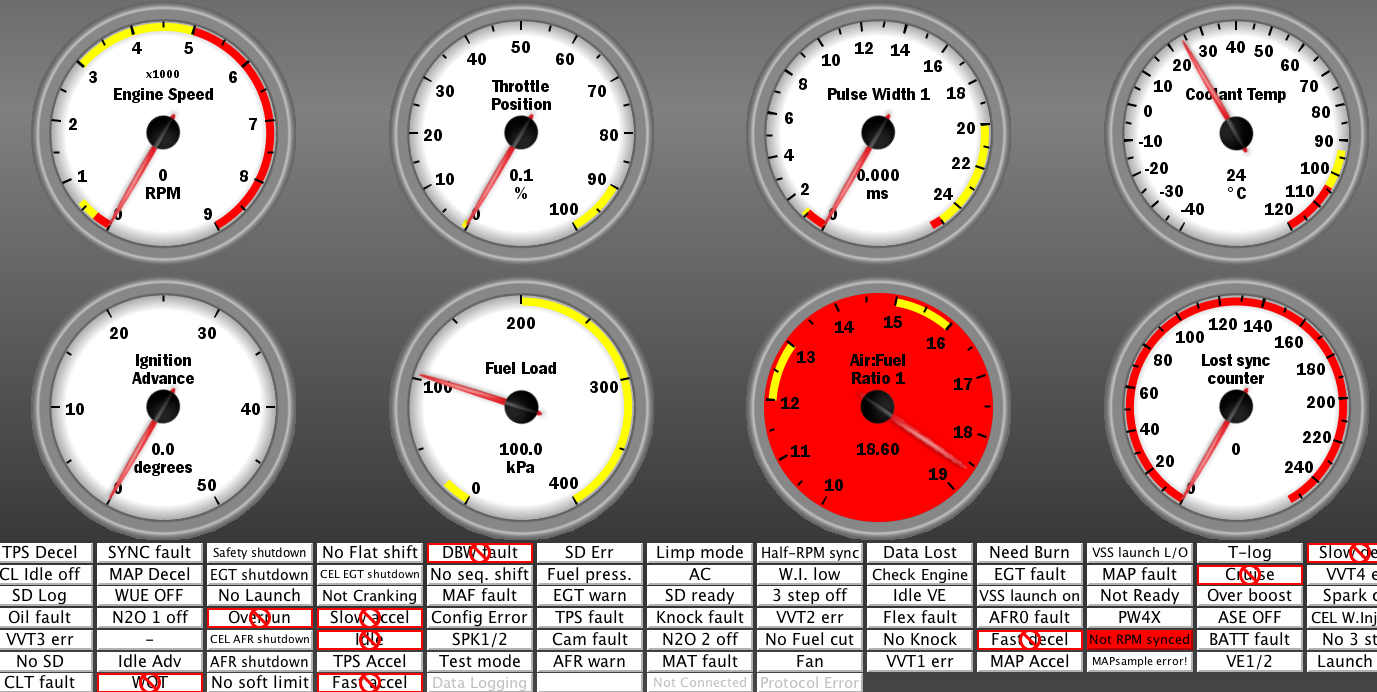

This is now the page I'm getting now. Does this look normal?
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-04-8.44.48-pm.png
rikaro is offline   Reply With Quote
Old 08-04-2017, 11:52 PM   #19
Senior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 690
Total Cats: 59
Default

Looks fine. Is the Miata 36-2 trigger wheel option available under the settings I said earlier
matrussell122 is offline   Reply With Quote
Old 08-05-2017, 12:00 AM   #20
Junior Member
Thread Starter

Join Date: Apr 2011
Location: vancouver, bc
Posts: 115
Total Cats: 3
Default

Quote:
Originally Posted by matrussell122 View Post
Looks fine. Is the Miata 36-2 trigger wheel option available under the settings I said earlier
It is already on 36-2 option already.

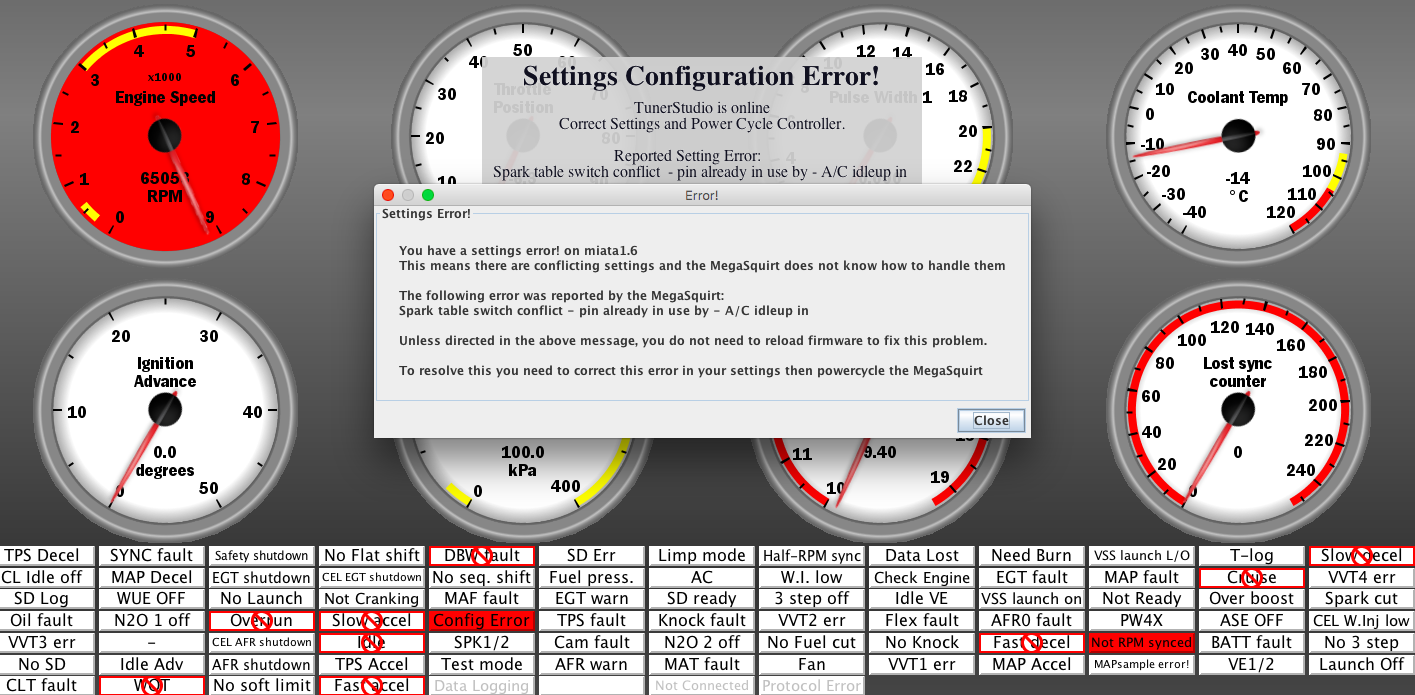

Just uploaded the screenshot. I'm still getting the error. Hopefully you guys can help!
Attached Thumbnails
super miata 36-2 settings-screen-shot-2017-08-04-8.58.36-pm.png
