******-a, Bubba!




So, the 9926 circuit just didn't cut it for you, then?

Man, I'd really love to get in there with an actual oscilloscope on one and figure out what was going wrong. So far, I've just been deliriously happy with that chip.
Joe Perez is offline   Reply With Quote
Old 12-12-2010, 01:58 PM   #42
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I dont know exactly what is the issue with the 9926. I haven't given up on it yet but I dont have an o-scope.

But for now it works so....
y8s is offline   Reply With Quote
Old 12-13-2010, 11:39 AM   #43
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Joe Perez View Post
So, the 9926 circuit just didn't cut it for you, then?

Man, I'd really love to get in there with an actual oscilloscope on one and figure out what was going wrong.
Me too.
Ben is offline   Reply With Quote
Old 12-13-2010, 11:41 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Maybe the Y8s should send his little 9926 board over to the Ben?
Braineack is offline   Reply With Quote
Old 12-13-2010, 11:46 AM   #45
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that ****'s installed. I'd rather just make another one.
y8s is offline   Reply With Quote
Old 12-13-2010, 11:48 AM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

oh you left it on the mainboard?
Braineack is offline   Reply With Quote
Old 12-13-2010, 11:49 AM   #47
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

yeah it's still there for future expansion. wired only to power. how un-green of me.
y8s is offline   Reply With Quote
Old 12-13-2010, 12:36 PM   #48
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by y8s View Post
yeah it's still there for future expansion. wired only to power. how un-green of me.
That extra load on the alternator is going to kill your economy man.

We should have one of Jean's 9926 boards around here. We've also got a new sequencer to test out. The hardest part will probably be the fabrication of a live sensor test rig.
Ben is offline   Reply With Quote
Old 12-13-2010, 01:23 PM   #49
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I used kday's 9926 reference circuit. super low component count.
y8s is offline   Reply With Quote
Old 03-16-2011, 01:34 PM   #50
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Matt, did you connect the VSS to the MS3? If so, what settings did you use?
Reverant is offline   Reply With Quote
Old 03-16-2011, 04:39 PM   #51
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

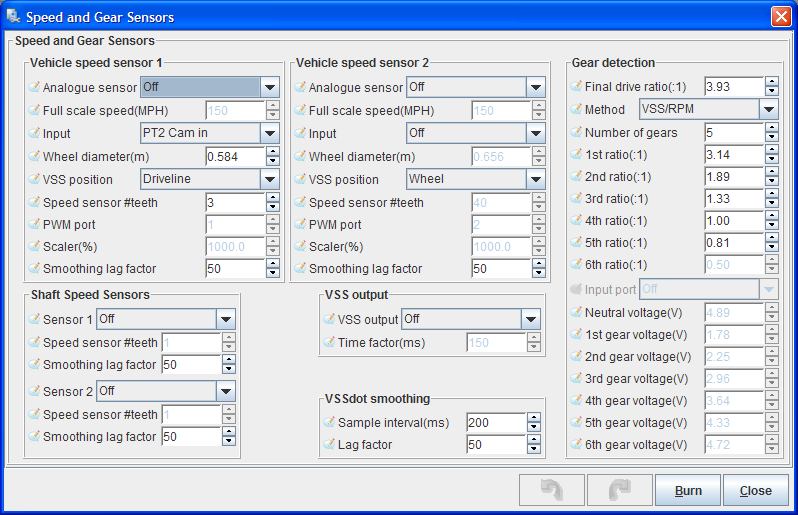

Yes, I ran VSS in to the xpander CAM input without any extra circuitry. I first tried PT4 but there was no pullup. It'd probably work on any of the inputs with a pullup.

http://www.msextra.com/doc/general/m...hems.html#ms3x
(for reference for the cam input)

edit: oh you said "settings"...


Attached Thumbnails
Syncs on stim, not on car.  2001 miata.-y8s_speed-gear.png
y8s is offline   Reply With Quote
Old 07-11-2011, 12:42 PM   #52
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Matt,

Did you get the max9926 based input circuit working on the car?

-Raj
redrider706 is offline   Reply With Quote
Old 07-11-2011, 12:51 PM   #53
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

he never did, he went with Abe's circuit.

Honestly, you dont even have to build that... should work on regular Opto input and the MS3x cam in.
Braineack is offline   Reply With Quote
Old 07-11-2011, 12:53 PM   #54
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Nope, never did get the 9926 input working.

If anyone wants the circuit to try, I can mail it to you for a buck or two to cover postage.
y8s is offline   Reply With Quote
Old 07-11-2011, 01:33 PM   #55
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
he never did, he went with Abe's circuit.

Honestly, you dont even have to build that... should work on regular Opto input and the MS3x cam in.
I recommend using the VR input with a pullup. Works fine and is easy.

Put a MAX9926 on a Toyota last week, worked fine. Haven't tried one on a Miata yet.
Ben is offline   Reply With Quote
Old 07-11-2011, 02:32 PM   #56
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by y8s View Post
Nope, never did get the 9926 input working.

If anyone wants the circuit to try, I can mail it to you for a buck or two to cover postage.
Hell yeah. I would love to play around with it. What is your paypal id?

Thanks.
-Raj
redrider706 is offline   Reply With Quote
Old 07-11-2011, 02:35 PM   #57
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
he never did, he went with Abe's circuit.

Honestly, you dont even have to build that... should work on regular Opto input and the MS3x cam in.
Quote:
Originally Posted by Ben View Post
I recommend using the VR input with a pullup. Works fine and is easy.

Put a MAX9926 on a Toyota last week, worked fine. Haven't tried one on a Miata yet.

Thanks for the info guys. I have Abe's circuit running as part of his pnp board. I was just looking at options for getting rid of that board.

-Raj
redrider706 is offline   Reply With Quote
Old 07-11-2011, 04:47 PM   #58
y8s
2 Props,3 Dildos,& 1 Cat
Thread Starter
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by redrider706 View Post
Hell yeah. I would love to play around with it. What is your paypal id?

Thanks.
-Raj
when I say "someone" I mean someone with at least an EE degree and an oscilloscope that can figure out why it doesn't work consistently with the NB sensors.

is that you?
y8s is offline   Reply With Quote
Old 07-11-2011, 04:56 PM   #59
Junior Member
iTrader: (4)

Join Date: May 2009
Location: Athens GA
Posts: 434
Total Cats: 3
Default

Well, background is chemical engineering/Physical chemistry and I have done a lot of instrument computer interfacing. I can give it a shot and see if I can figure it out.

-Raj
redrider706 is offline   Reply With Quote
