Default Take a look at my log

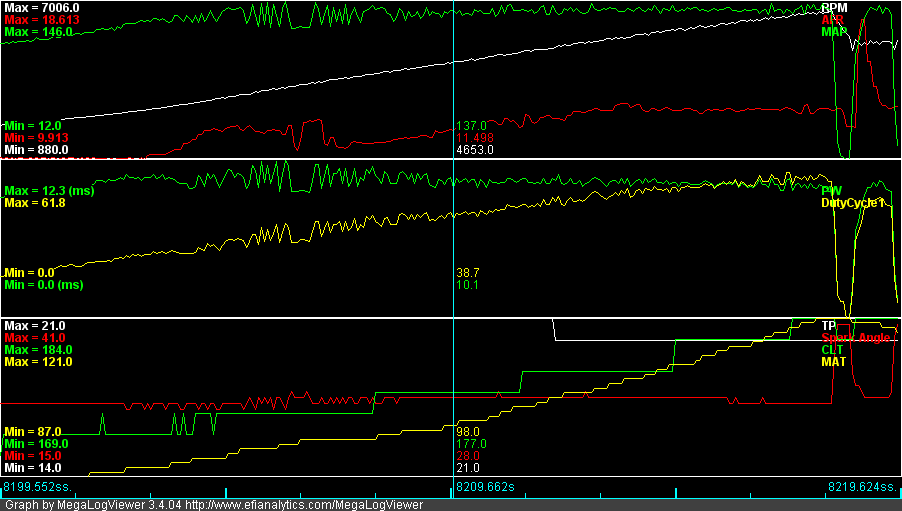

Here is a 4th gear pulls, seems too rich at low rpms and then too lean at higher rpms. Also if you look at the spark graph, are those fluctuations? (squiggly lines knock?) Who here uses Ve analyze live?
I can provide pics of my fuel and spark tables.

Setup is 1.6 t25, tial ewg 5.8psi spring no boost controller yet, RC550 injectors.

Top graph. Green=kpa, white=rpm, red=afr

Mid graph yellow=duty cycle

Bottom red=spark

Attached Thumbnails
Take a look at my log-miata10274thgear2_zps2bc4ec86.png

Last edited by btabor; 10-28-2014 at 01:02 PM.
btabor is offline   Reply With Quote
Old 10-28-2014, 12:33 PM   #2
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

There's no scale... Not sure what's going on there.
concealer404 is offline   Reply With Quote
Old 10-28-2014, 12:34 PM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Let me see if I can add the scale.
btabor is offline   Reply With Quote
Old 10-28-2014, 12:38 PM   #4
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

I think you can just straight up attach the log to this forum, actually.
concealer404 is offline   Reply With Quote
Old 10-28-2014, 01:17 PM   #5
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

Here is the log, starts at 8195s
Attached Files
File Type: msl 2014-10-27_19.10.18.msl (645.6 KB, 39 views)
btabor is offline   Reply With Quote
Old 10-28-2014, 01:22 PM   #6
Senior Member
Thread Starter
iTrader: (3)

Join Date: Oct 2008
Location: Indianapolis
Posts: 613
Total Cats: 12
Default

And the afr table, looks very crude to me. Any recommendations? I assume these values are x10, why is that?
Attached Files
File Type: table afrTable1Tbl_2014-10-28_12.20.31.table (1.6 KB, 33 views)
