Default Take a look at my plugs. (running rich)

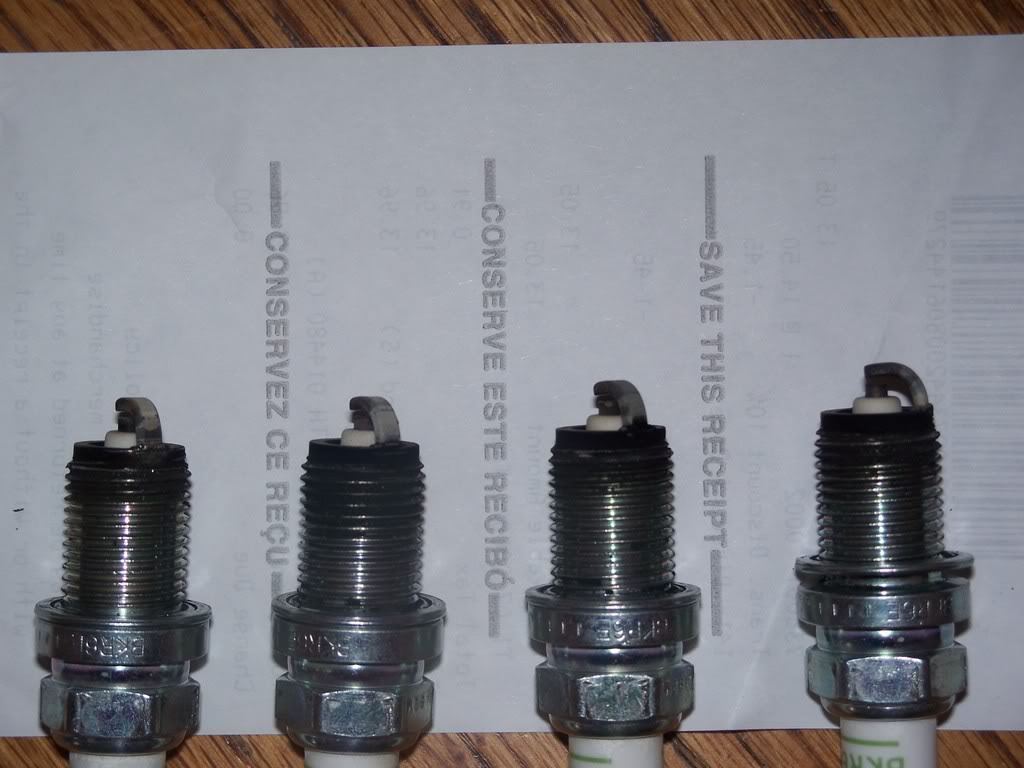

So, i thought i would be able to read my spark plugs and see what was going on. I guess not. Can anyone help me out? My car has been getting richer and richer (as indicated by my uego) I used to be running 12.5:1 from 0-5psi and then 11.5:1 from 5-14psi. Now, i am getting low 10's under boost. Cruise used to be around 18:1 and now its around 14:1. Idle used to be around 13:1 now it is high 10's/low 11's. Sometimes my idle afr just stays at 10.0:1. I would think that if the car was running this rich at idle, it would be sluggish to rev and you would smell gas in the exhaust. Neither is true. So, i am thinking maybe a problem with my uego. The sensor is at the end of the down pipe right before the flex piece. Here is a picture of my spark plugs.

Name:  100_9836.jpg
Views: 4
Size:  97.7 KB

(god i love macro function on cameras)

Last edited by wes65; 06-15-2008 at 03:43 PM.
wes65 is offline   Reply With Quote
Old 06-15-2008, 03:31 PM   #2
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Oh, this is after about 300 miles and some boost while passing or owning some douche on the interstate.
wes65 is offline   Reply With Quote
Old 06-15-2008, 04:03 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Why does it look like the first three plugs have an almost non-existent gap while the 4th has a large gap? Shadow?
Rich mixture at idle makes for good throttle response actually. 10:1 is a little over board but it does help some when compared to a much leaner 15:1 at idle. Atleast that's been my experience when accel enrichment isn't being used.
cjernigan is offline   Reply With Quote
Old 06-15-2008, 05:18 PM   #4
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

I just took a little cruise in the car and it is around 10:1 all the time. Much of the time, the uego is reading 10.0. Under full throttle, the car bucks, and burps, and struggles. Something has changed. I haven't messed with the car any. The car was running perfect. I put down 219whp a week ago and now this. I am a little confused.
wes65 is offline   Reply With Quote
Old 06-15-2008, 06:04 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Logggggggggggggggggggggggggggggggggggggggggggg.
Braineack is online now   Reply With Quote
Old 06-15-2008, 06:12 PM   #6
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
Logggggggggggggggggggggggggggggggggggggggggggg.
lollllllllllllllllllllllllllllllllll !
Rafa is offline   Reply With Quote
Old 06-15-2008, 06:29 PM   #7
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default


Because plug reading doesn't work unless you pull them right after a WOT run.
Bryce is offline   Reply With Quote
Old 06-15-2008, 06:30 PM   #8
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
Logggggggggggggggggggggggggggggggggggggggggggg.
yeah, yeah. I should've known you were going to say that.
wes65 is offline   Reply With Quote
Old 06-15-2008, 07:01 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

well then!

it rolls down stairs and over your neighbors' dog.
Braineack is online now   Reply With Quote
Old 06-15-2008, 07:46 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

uhh wess i am thinking your eugo is out of wak
Most Ms users have issues getting aem's to interface. I would recalibrate and then check the WB grounds to make sure you aren't getting voltage offsets.
magnamx-5 is offline   Reply With Quote
Old 06-15-2008, 08:45 PM   #11
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

well, i figured it out. The wire going to my AIT sensor was broken. I guess thats what i get for getting a connector from a junk yard and using the wires that were on it. I figured it out because i went into megatune and the manifold air temp said 43* now that i think about it, the car ran better at night when it was in the 50's and ran like **** today when it was around 90.

sorry for bad punctuation. I am on a 7" laptop.
wes65 is offline   Reply With Quote
Old 06-15-2008, 08:46 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

glad you found it!

win for you.
Braineack is online now   Reply With Quote
Old 06-15-2008, 08:54 PM   #13
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

and why are you running a 6 heat range? but they look great IMO, i dont see any detonation.
bryantaylor is offline   Reply With Quote
Old 06-15-2008, 09:09 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

Quote:
Originally Posted by bryantaylor View Post
and why are you running a 6 heat range? but they look great IMO, i dont see any detonation.
because a 6 heat range for a 1.8L is one step colder
Braineack is online now   Reply With Quote
Old 06-15-2008, 09:27 PM   #15
I'm Miserable!
iTrader: (5)

bryantaylor's Avatar

Join Date: Dec 2006
Location: jacksonville, fl
Posts: 1,720
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
because a 6 heat range for a 1.8L is one step colder
i see said the blind man
bryantaylor is offline   Reply With Quote
Old 06-15-2008, 11:57 PM   #16
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
because a 6 heat range for a 1.8L is one step colder
Yep, anybody have any input on whether 6 is cold enough? Should i go with 7?
wes65 is offline   Reply With Quote
Old 06-16-2008, 12:05 AM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

is a good plug to have.
Braineack is online now   Reply With Quote
Old 06-16-2008, 12:06 AM   #18
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Braineack View Post
is a good plug to have.
what is? the bkr6e?
wes65 is offline   Reply With Quote
Old 06-16-2008, 12:19 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

yeah, you technically want the hottest plug you can get away with.
Braineack is online now   Reply With Quote
Old 06-16-2008, 01:01 AM   #20
Senior Member
Thread Starter
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

I see, so in other words, since i have no knock with a heat range 6, there is no reason to go colder.
wes65 is offline   Reply With Quote
