Default TPS calibration woes

Installed a new tps today. *I still get the same issues as the previous TPS, which I though was a dud. *It calibrates well when key on, engine off. *When engine is on, I only get up to 50% tps at WOT.

Measured the 5v reference, it has no problems (measures 4.9-5v both at key on and while engine is running). *The ground wire seems ok. The signal wire though- something is pulling the voltage down when the engine is running! *

Engine off key on: *foot off- 0.1v; wot- 3.7v
Engine running: *foot off- 0.09v; wot- 2.55v

There is no pulldown resistor on the board (already removed it during the previous tps install attempt).

Ideas? Will post graphs and logs in a bit.

Greg
Greg G is offline   Reply With Quote
Old 06-08-2011, 05:36 AM   #2
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Calibration:
Name:  58tpscal.png
Views: 28
Size:  7.7 KB

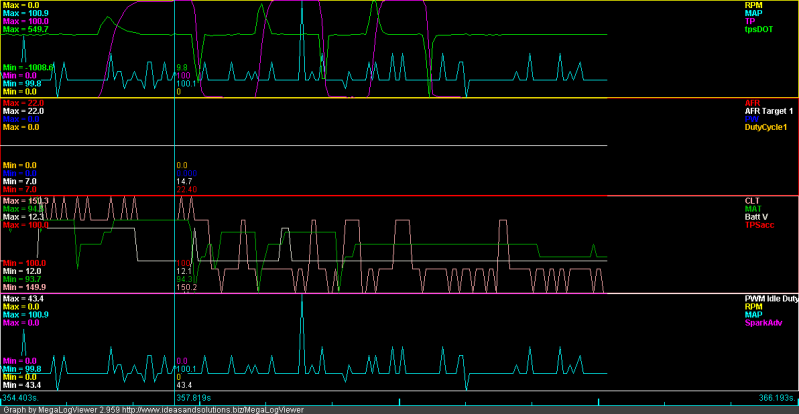

Key on: 100% TPS at WOT, nice smooth sweep
Name:  68tpskeyon.png
Views: 26
Size:  54.9 KB

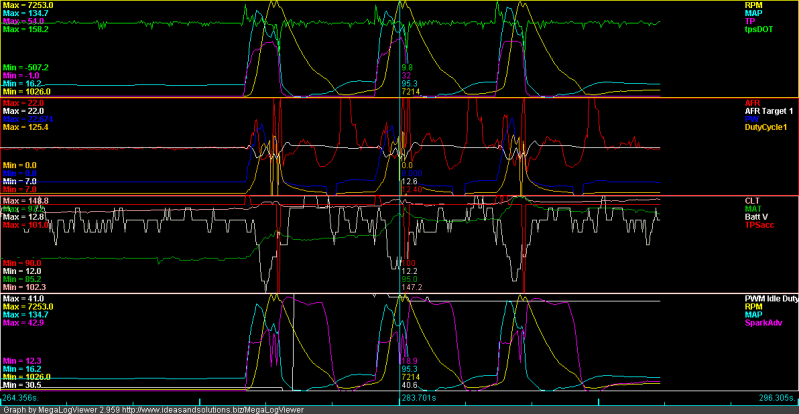

Engine running: ~50% TPS at WOT, nice smooth sweep
Name:  68tpsrunning.png
Views: 25
Size:  83.4 KB

Datalogs included. Um. Help?
Attached Files
File Type: msl 2011-06-08_08.28.15tps.msl (671.8 KB, 78 views)
File Type: msl 2011-06-08_08.31.54tpsengoff.msl (47.6 KB, 72 views)

Last edited by Greg G; 06-08-2011 at 05:49 AM.
Greg G is offline   Reply With Quote
Old 06-08-2011, 06:00 AM   #3
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

You normally drive with the engine on, right?
Just calibrate it that way
Laur3ns is offline   Reply With Quote
Old 06-09-2011, 05:36 AM   #4
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Well damn. It was the TPS wire! Must have some break in the insulation somewhere. I ran a new wire to check that possibility, and it worked!

Now that the TPS is working...uh what do you guys think of my acceleration enrichments? And yup I ran out of injector...
Name:  69tpsrewired.png
Views: 26
Size:  91.7 KB
Greg G is offline   Reply With Quote
Old 06-18-2011, 02:37 AM   #5
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

I got tired of looking for an automatic TPS/throttle body, or a BMW TPS. I figured someone must make a product that fits!

This is the TPS I used:



http://www.farnell.com/datasheets/26181.pdf

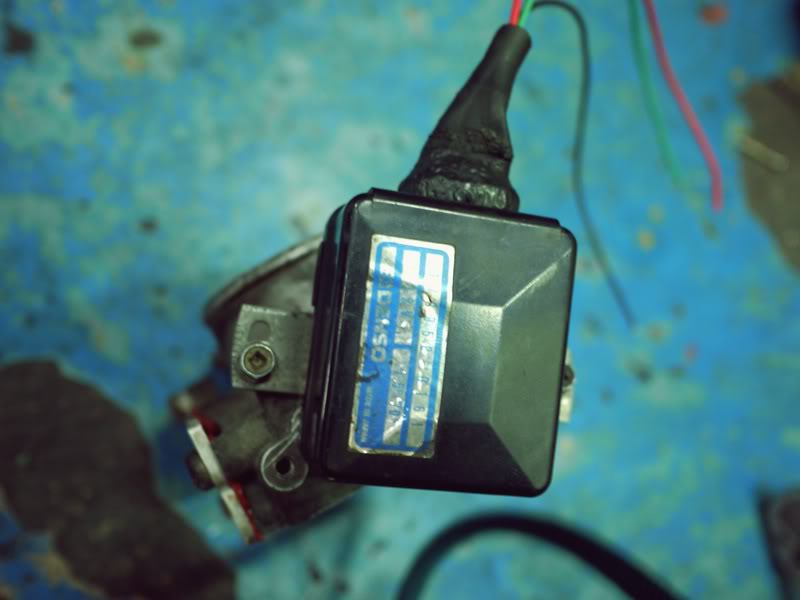

Fits right into the D shaft of the manual 1.6 throttle body. I dismantled the stock TPS and drilled holes into the plate:


Then used the cover for a stock look. Once testing is complete, you could even solder the wires to the stock connectors
Name:  P1130365.jpg
Views: 26
Size:  40.0 KB

Last edited by Greg G; 06-18-2011 at 02:48 AM.
Greg G is offline   Reply With Quote
Old 06-18-2011, 10:56 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

hey that's the one i have have. i could never figure out which is was. i looked through ever single Wells one to try to find it again, didn't think of farnell.

Braineack is offline   Reply With Quote
Old 06-18-2011, 11:16 AM   #7
Junior Member
Thread Starter

Join Date: Jun 2007
Posts: 411
Total Cats: 0
Default

Manufacturer is Vishay, but the potentiometer part has Wabash on it. Got it from RS Online.

Why does yours look like it got chewed up? Clearance for the wiring?
Greg G is offline   Reply With Quote
Old 06-18-2011, 12:01 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

shaved the tabs down.
Braineack is offline   Reply With Quote
