I'll take a picture of what components need to be where and you can double check the board for errors.
Reverant is online now   Reply With Quote
Old 08-02-2011, 01:33 PM   #22
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

Thanks Dimitris, I think that's what I need.
SleekBlackBeauty is offline   Reply With Quote
Old 08-04-2011, 07:46 PM   #23
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

I've adjusted afterstart enrichment a bit and it idles much more smoothly from cold (it had been stalling after a couple seconds) and using VE live to smooth out the running. It still bucks and stumbles some at low speed rpms, but less. Working on it.

Still would like to fix the fuel pump circuit.
SleekBlackBeauty is offline   Reply With Quote
Old 08-06-2011, 09:37 AM   #24
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Pm me your mailing address and I'll send you the components you need to change.
Reverant is online now   Reply With Quote
Old 08-22-2011, 01:07 AM   #25
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

I'm back from vacation.

Here's some photos of the MS2V3.

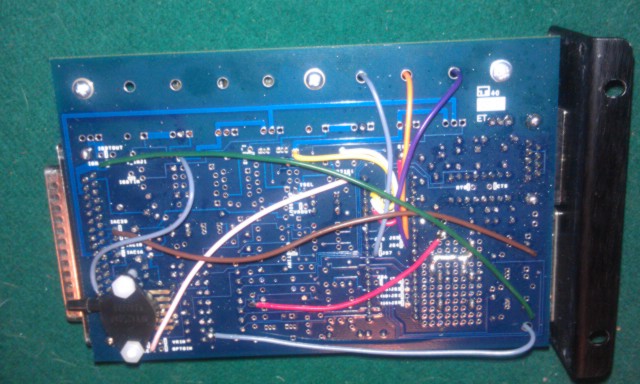

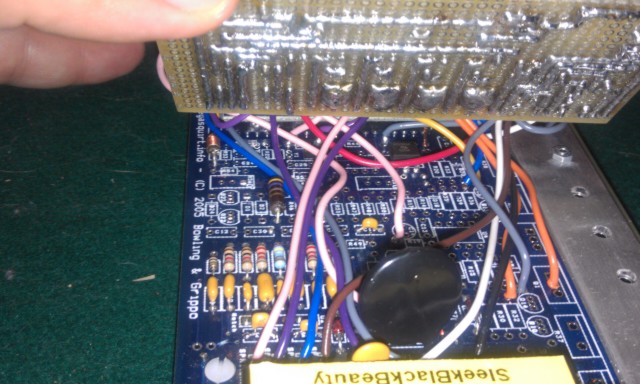

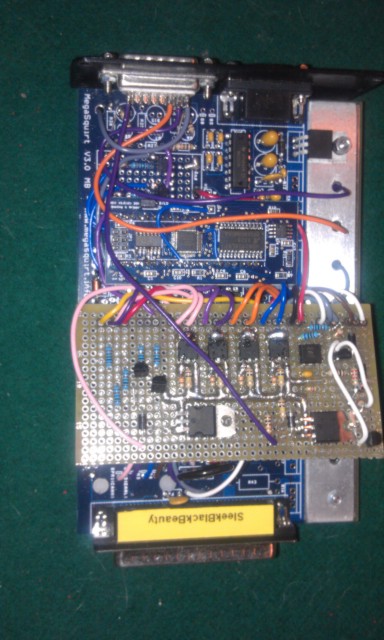

Perhaps you could point out anything amiss? Maybe point to the offending transistor? Not the greatest pictures, but I can take more if needed.
Attached Thumbnails
trying to get my car started with the new MS2-imag0110%5B1%5D.jpg   trying to get my car started with the new MS2-imag0111%5B1%5D.jpg   trying to get my car started with the new MS2-imag0113%5B1%5D.jpg
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 04:56 AM   #26
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

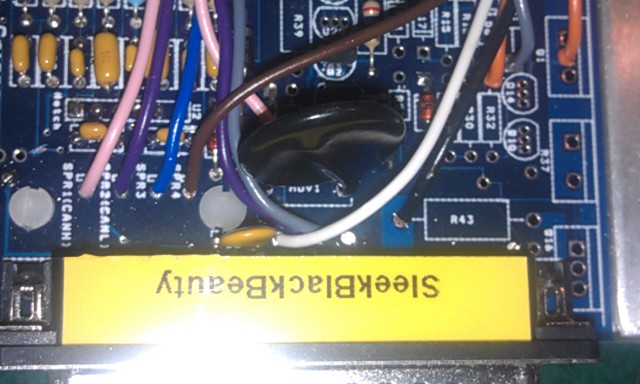

I need a better pic of the the area just behind the big black disc-like component on the second picture.
Reverant is online now   Reply With Quote
Old 08-22-2011, 12:10 PM   #27
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

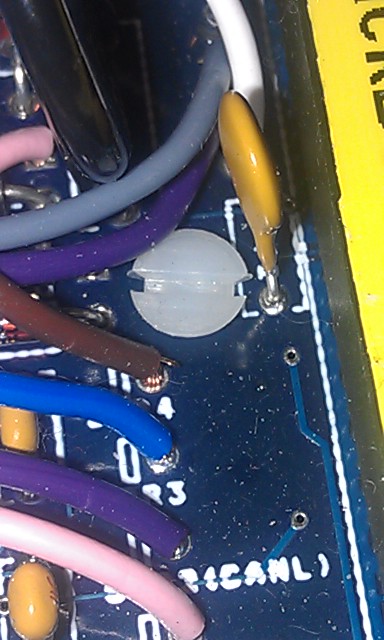

Moar:
Attached Thumbnails
trying to get my car started with the new MS2-imag0124%5B1%5D.jpg   trying to get my car started with the new MS2-imag0123%5B1%5D.jpg
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 12:34 PM   #28
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

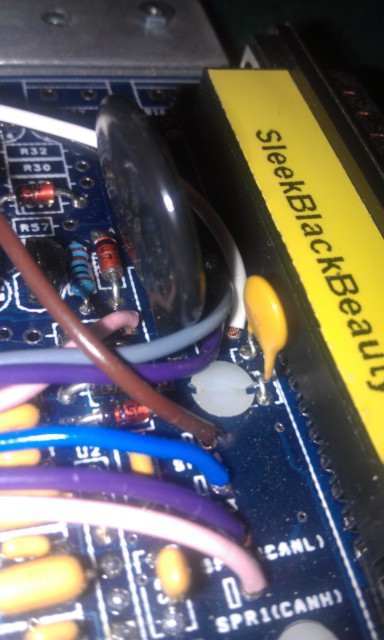

And:
Attached Thumbnails
trying to get my car started with the new MS2-imag0126%5B1%5D.jpg   trying to get my car started with the new MS2-imag0125%5B1%5D.jpg
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 12:45 PM   #29
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Everything seems to be in order...have a look at the two black transistors in there (labelled Q2 and Q19). Q2 should be a "ZTX450" and Q19 should be a "2N3904".
Reverant is online now   Reply With Quote
Old 08-22-2011, 12:55 PM   #30
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

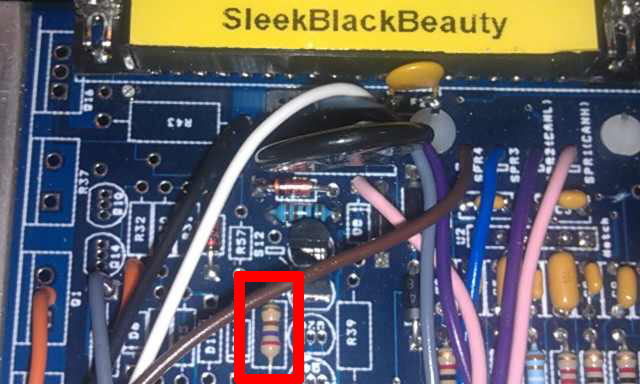

Oh wait...this resistor here is probably the culprit:



Replace it with a 1.0Ohm (one ohm), 1/2W resistor from Radio Shack (or temporarily remove it and replace it with a wire to test) and it should work.
Attached Thumbnails
trying to get my car started with the new MS2-imag0124%5B2%5D.jpg
Reverant is online now   Reply With Quote
Old 08-22-2011, 01:00 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

looks like 270 in there. why you trolling!
Braineack is offline   Reply With Quote
Old 08-22-2011, 01:02 PM   #32
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Which would explain why it would work on the stim (which as a 30-70R relay) but not in the actual car.
Reverant is online now   Reply With Quote
Old 08-22-2011, 02:44 PM   #33
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

OK!

So, how hard would it be to switch the coil outputs while I'm at it?
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 02:47 PM   #34
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

swap the green and brown wires on the bottom of the board. why would you need to?
Braineack is offline   Reply With Quote
Old 08-22-2011, 02:49 PM   #35
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

well...just so I don't get confused if I take off the new unit in the future and go back to stock. not important otherwise.
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 02:51 PM   #36
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

did you have to swap your coils to get running or something?
Braineack is offline   Reply With Quote
Old 08-22-2011, 03:16 PM   #37
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

Yes. Coil output is reversed on the megasquirt, and the fuel pump didn't run, so it took a while for me to get it right as I would work on it a little while off and on when I had time, then put the OEM computer back in as it's the DD, etc. I meant to get this going a long time ago, so it will wait until colder weather for me to start working on the turbo hardware--I just like to drive the Miata in good weather, and my daughter is driving my Acura until school starts anyway.
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 03:18 PM   #38
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,889
Total Cats: 1,792
Default

the MS outputs look okay, it must be reveresed on the harness if anything.
Braineack is offline   Reply With Quote
Old 08-22-2011, 05:44 PM   #39
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2011
Location: Ann Arbor, MI
Posts: 92
Total Cats: 0
Default

Is that 1k Ohm, 1/2 Watt or 1 Ohm 1/2 Watt Resistor?
SleekBlackBeauty is offline   Reply With Quote
Old 08-22-2011, 06:04 PM   #40
Junior Member
iTrader: (1)

Join Date: Feb 2011
Location: Minot, ND
Posts: 242
Total Cats: 21
Default

Good read. Good luck to getting all straight, there are some very knowledgable moderators up here
sickmiatabra is offline   Reply With Quote
