Old 09-24-2007, 03:09 AM   #41
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Overrun only cuts fuel upon deceleration. It's there to help with engine braking. How would it help if i'm accelerating to 7k out of boost (who does that?) and my afrs are 13-13.5 when they should be more like 14.5-14.7. I understand being safe but i've never seen 13-13.5 in non-boost cells before. Maybe he does that so autotune doesn't make him go dangerously lean in those areas.
cjernigan is offline   Reply With Quote
Old 09-24-2007, 03:10 AM   #42
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

My tables are set up for11.5-12.5 in boost, 14:1 at 100kpa, 15:1 @ 40-80kpa, and 16:1 below that aside from minor variations. Only hiccup I have seen is that the points above and to the right of Idle need to be tuned more rich to prevent poor off-throttle response. So far this has worked well for me and gets the same or slightly better gas mileage as my completely stock 97
akaryrye is offline   Reply With Quote
Old 09-24-2007, 03:18 AM   #43
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

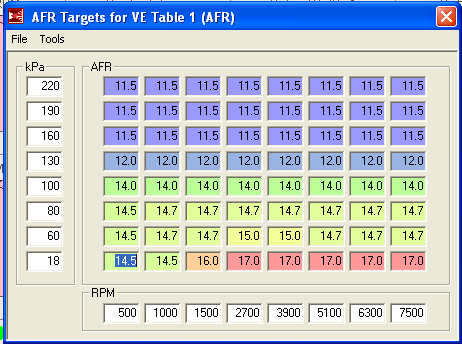

How about this?
Name:  Picture24.png
Views: 6
Size:  15.7 KB

All of my questioning comes from me really not knowing exactly what I should have. Especially when I see someone running tables very rich in comparison to my own.
cjernigan is offline   Reply With Quote
Old 09-24-2007, 12:13 PM   #44
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

yeah, how bout some expert opinions on this? I based my AFR targets on what I gathered from a post Jerry made and have this:



I think he was recommending a 13.3 at idle to avoid missing but i had better results a lil leaner at 14.0
paul is offline   Reply With Quote
Old 09-24-2007, 12:17 PM   #45
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

im never in those 13.5:1 cells anyways.


the stock ecu will take you to 12.0:1 at WOT with no boost, i figure if for some reason if im at 5600RPM out of boost i need a little fuel to prevent knock.
Braineack is offline   Reply With Quote
Old 09-24-2007, 06:26 PM   #46
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

i know this so newb of me, but i get more confeused the more i read about this ****...should i just not read the problems unless i am seeing some myself...should i just focus on all the positive **** and just learn how to get the car running NA before i get into all these problems that ya'll are having...**** it, its too late, i took the plunge
Zabac is offline   Reply With Quote
Old 09-24-2007, 08:49 PM   #47
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

It's not hard, we're not having problems, i just like bringing **** up all the time to **** people off.
Really though, it's not that hard.
cjernigan is offline   Reply With Quote
Old 09-24-2007, 09:03 PM   #48
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Yes these are not neccesscarily problem thread moreso they are dicussion threads where we all compare notes on what is working for us. I would note when you see problems discussed here on these forums. And try to focus on the positive until you get to where you feel comfortable with the MS system. And then if you can look in to any problems you might encounter with out being as discouraged.
magnamx-5 is offline   Reply With Quote
Old 09-27-2007, 09:11 PM   #49
Junior Member

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Are these good settings for the custom file autotune settings?

; Tuning block parameters
; Global limits on tuning, outside the box and nothing happens.
xLimits = 1000, 7000 ; RPM
yLimits = 40, 200 ; MAP
zLimits = 10, 200 ; VE
kylelind is offline   Reply With Quote
Old 09-27-2007, 10:32 PM   #50
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yep should be
magnamx-5 is offline   Reply With Quote
Old 09-27-2007, 10:48 PM   #51
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

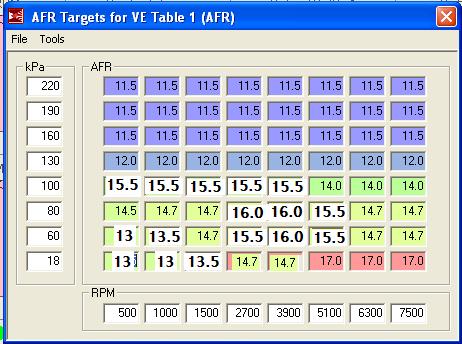

mine's more like this

you want it a little rich just off idle, otherwise it will jerk a little. bring your cruise ranges to 15.5-16.0. there are some zones you'll never hit, so they don't matter.
Attached Thumbnails
Tuning with autotune-targets.jpg
Ben is offline   Reply With Quote
