Default Tuning help

So, I've finally gotten the Miata to a point where I can start to really work on the tune (THANKS BRAINY!)

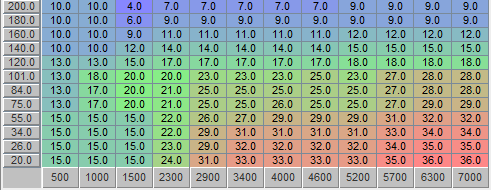

I was hoping to get some feedback primarily on my timing, but hey, spotting anything would be awesome. FuelVE is just freshly auto-tuned, but hasn't been touched beyond that.

Difficulty: I'd prefer to tune for 91 octane on a stock 1.8 engine (94 with 8.8 compression). 92 is the highest octane I can get around here, and some stations only sell 91. ------- hippies! Carrying around toluene has 0 interest for me unfortunately.

Thanks so much guys, it really is appreciated!
Attached Thumbnails
Tuning help-timing.png
Attached Files
File Type: msq 2012-08-09_19.57.55.msq (83.4 KB, 92 views)
blaen99 is offline   Reply With Quote
Old 08-10-2012, 10:05 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

see the timing maps hustler has for his, he tunes on 91.
Braineack is offline   Reply With Quote
Old 08-10-2012, 01:48 PM   #3
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Run Hustler's timing maps...when he has a low comp, built engine Brainy?
blaen99 is offline   Reply With Quote
Old 08-10-2012, 03:07 PM   #4
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

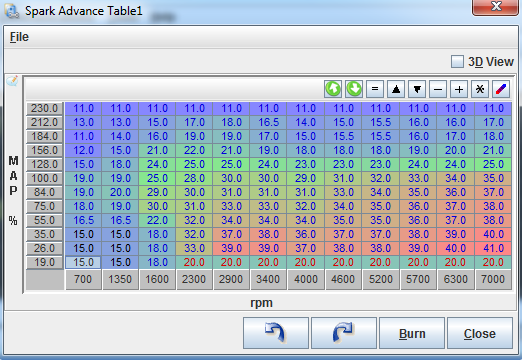

All right Brainy, start making fun of this map then.
Attached Thumbnails
Tuning help-timing2.png
blaen99 is offline   Reply With Quote
Old 08-10-2012, 03:20 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I like what you did in boost, but I would have kept your cruise area the same, maybe bumping hte timing in that area that hustler has found good mpg cruising gains in .
Braineack is offline   Reply With Quote
Old 08-10-2012, 03:23 PM   #6
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Roger, thanks Brainy. I'll pull timing under vac, thanks.
blaen99 is offline   Reply With Quote
Old 08-10-2012, 03:25 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you dont need more than 27-28 on your 100kPa row.

I run 16 at 200kPa on 93.


you now has benchmarks.
Braineack is offline   Reply With Quote
Old 08-10-2012, 03:30 PM   #8
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Oh shi...! Thanks again Brainy, benchmarks rock.
blaen99 is offline   Reply With Quote
Old 08-10-2012, 04:51 PM   #9
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Just one last question for you then, Brainy.

What kpa limit do you put on EGO control? Is it fine to do it to the max kpa you expect to hit, or no?
blaen99 is offline   Reply With Quote
Old 08-11-2012, 04:18 AM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

No, put 90 as max load for EGO.
Reverant is offline   Reply With Quote
Old 08-11-2012, 04:20 AM   #11
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Reverant View Post
No, put 90 as max load for EGO.
Okay, will do. Thanks Reverant! But...Why?
blaen99 is offline   Reply With Quote
Old 08-11-2012, 10:23 AM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by blaen99 View Post
Okay, will do. Thanks Reverant! But...Why?
Homogeneous exhaust flow and "danger zone" why closed-loop alterations don't make sense.
hustler is offline   Reply With Quote
Old 08-11-2012, 10:32 AM   #13
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by blaen99 View Post
All right Brainy, start making fun of this map then.

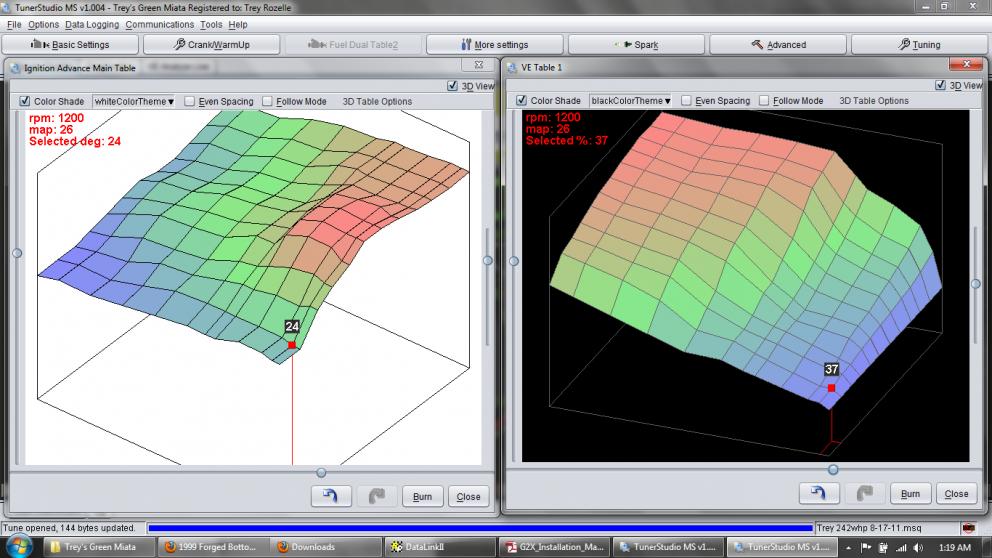

Look at my little "pad" where spark is advanced, everything is else dropped:


Do this. I don't know how your turbo changes things, but my 1994 at 9:1 compression made the lower PW with 15.4:1 AFR and 34* of spark angle. You're on your own for the rest. You can probably load-up my table and yank 5* above 101kpa and live to tell about it.
Attached Thumbnails
Tuning help-vfpgg.jpg
hustler is offline   Reply With Quote
Old 08-11-2012, 10:58 AM   #14
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Quote:
Originally Posted by blaen99 View Post
Okay, will do. Thanks Reverant! But...Why?
Suppose your wideband ages and starts reporting richer-than-actual mixture. The MS would pull fuel under boost. Boom.
Reverant is offline   Reply With Quote
Old 08-11-2012, 04:09 PM   #15
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Thanks Hustler! That helps a ton

Reverant, thank you. That explains a lot wrt EGO!

Now, time for a SERIOUS Hustler-esque question...

Guys, I can't get my ***** out of...err.

I mean. Today, I went to set timing. I noticed serious timing jitter at 10* - changed fixed timing to 8* in MS, set timing to 8*, and timing was rock solid at 8*. Should I worry about the timing jitter at 10*, or should it be perfectly fine as is?

(Edit) A bit more. I've been taught that if you have a well running car, you should be able to hold a piece of paper near a car's exhaust, and it won't flutter much. The paper is violently fluttering, and a few times a second you hear a noise that is different than the rest of the exhaust. This noise is roughly in synch with the timing jitter.

I've used several sets of spark plugs to try to eliminate it. However, going colder only makes the noise worse and makes the engine go from shaking the car to violently fighting the whole car. Giving the car more timing makes it feel less worse. I've replaced the old coils with COPs, and this behavior is still there, although it runs more smoothly with COPs.

It's almost like I have one cylinder occassionally not firing or not fully burning, or occassionally misfiring. I'm not really sure of how to describe it, I'm getting a video of the car running now. This is something I've been struggling with for months, and if I get close to fixing it, the issue just seems to come back later.

Last edited by blaen99; 08-11-2012 at 05:08 PM.
blaen99 is offline   Reply With Quote
Old 08-11-2012, 05:51 PM   #16
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default


WITH VIDEO AND SOUND! This is the least worst I can get it (Which is saying a lot, I can make it feel like the entire Miata is going to shake apart), and I cannot eliminate it entirely no matter what. So long as it does that random "popping", it's effing impossible to time at 10* - I get constant movement whenever it happens, not to mention AFRs going everywhere.
blaen99 is offline   Reply With Quote
Old 08-11-2012, 06:23 PM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Are you running sequential fuel?

I've heard that paper-trick too. It doesn't work unless you have a cat and multi-chambered muffler to smooth things out.

Just for the sake of ultimate clarity, are you setting the timing calibration value to 10* or the spark table to 10*?
hustler is offline   Reply With Quote
Old 08-11-2012, 06:29 PM   #18
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by hustler View Post
Are you running sequential fuel?
No, I'm on batch fuel.

Quote:
I've heard that paper-trick too. It doesn't work unless you have a cat and multi-chambered muffler to smooth things out.
Ah, I'm SOL then. Darn.

Quote:
Just for the sake of ultimate clarity, are you setting the timing calibration value to 10* or the spark table to 10*?
I'm setting it to fixed timing and working on setting the timing to 10*. The spark table is, I believe, untouched, so I guess I'm trying to set the timing calibration value?
blaen99 is offline   Reply With Quote
Old 08-11-2012, 06:32 PM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by blaen99 View Post
No, I'm on batch fuel.
I blame the rumble-idle to fuel on the walls. I can't help you with the dancing timing light. How does the car drive? Log spark angle and see what it looks like.
hustler is offline   Reply With Quote
Old 08-11-2012, 06:35 PM   #20
Elite Member
Thread Starter
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by hustler View Post
I blame the rumble-idle to fuel on the walls.
Isn't this a bad thing?

Quote:
I can't help you with the dancing timing light. How does the car drive? Log spark angle and see what it looks like.
Sure, I'll go get a log as soon as I'm done with lunch here.
blaen99 is offline   Reply With Quote
