Question Two Questions after DIYPNP assembly.

First post but not without plenty of googlizing and what not.

Car: 1990 NA 1.6 5spd USDM bone stock.

I have an assembled DIYPNP (I assembled it); wideband; EBC solenoid; GM IAT all from DIYautotune.

I followed these pinout instructions on Diyautotune's site:

1990-93

For the most part, the above will mirror my final setup (minus the coils but those are listed as *stock config* so I jumpered that way; and the injectors, of which, I'm running rx8 420cc yellows, so just a Reqfuel change in TS)

My questions:

Can I/Should I wire my Innovate MTX-L 3844 as I would with the factory ECU? Specifically, can I wire the yellow wideband wire straight into my existing factory o2 input wire or do I need to create a separate wideband jumper through db15 and on to my board?

For EBC; am I correct in understanding that all I need to do is jumper from PT6 to IN next to r7 and then from OUT to whichever pin on DB15 and then on to my solenoid?

I would love to get this jumpered and in the car before the turbo gear gets here so I can learn the ropes on an NA engine. If I wanted to leave the AFM in place until boost gets here, am I able to run and tune effectively using the MAP WITHOUT installing the GM IAT? As I mentioned previously, I jumpered everything identically to the 1990-93 writeup on DIY's page which calls for an installed GM IAT. If I have to rejumper or remove resistors etc.... then I'll figure something out along the lines of getting a piece of intake pipe to replace the AFM so that I can install the IAT.

Lastly; since the DIY example car has different coils (I am on stock coils) should I stick with the dwell times/type used etc?

Thanks
90pandomino is offline   Reply With Quote
Old 12-16-2015, 01:06 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

there's a few tiny things id do differently than their build docs:
  1. I would install R14 and then send 1Q to "input 1 IN", then "input 1 out" to PE1
  2. Then I'd run WLD to 1J. In software I'd make sure to use a/c idle-up using these seetings.
  3. I'd rock 1V to Input 2 IN, then Input 2 OUT to flex -- launch control
  4. for EBC I'd run Pa0 to Boost IN, then Boost OUT to one of the (15) pins on the db15 connector.
  5. For WBo2 IN, you can use the sotck wire, or send it in throught the same kinda like this:



the wire on pin 4 runs to O2.
Attached Thumbnails
Two Questions after DIYPNP assembly.-33393d1328392288-dlp-txrx-g-internal-usb-adapter-diypnp-dsc_0859.jpg

Last edited by Braineack; 12-16-2015 at 01:41 PM.
Braineack is offline   Reply With Quote
Old 12-16-2015, 02:02 PM   #3
Newb
Thread Starter

Join Date: Nov 2015
Posts: 9
Total Cats: 0
Thumbs up

Quote:
Originally Posted by Braineack View Post
there's a few tiny things id do differently than their build docs:
  1. I would install R14 and then send 1Q to "input 1 IN", then "input 1 out" to PE1
  2. Then I'd run WLD to 1J. In software I'd make sure to use a/c idle-up using these seetings.
  3. I'd rock 1V to Input 2 IN, then Input 2 OUT to flex -- launch control
  4. for EBC I'd run Pa0 to Boost IN, then Boost OUT to one of the (15) pins on the db15 connector.
  5. For WBo2 IN, you can use the sotck wire, or send it in throught the same kinda like this:



the wire on pin 4 runs to O2.
Brain,

Thanks for the response. I'm tracking. One thing I forgot to mention, I'm not going to have A/C so the 1Q>1J thing I omitted. With that being said, I'd like to be wired up in order to have the A/C fan run at the same time as the RAD fan if I can, without having to hack up the fan harness. I'm sure there's a way to do this with MS; I'll snoop around and find the answer. Unless you or someone else wants to be charitable

Any particular reason you'd use PA0 for boost?

And with the w02, am I correct in assuming you did it this way so that you could have ECU provided power and ground for your sensor/gauge?

Again thanks for the reply, I actually utilized your build writeup alongside DIY's when assembling.
90pandomino is offline   Reply With Quote
Old 12-16-2015, 02:07 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

do WLD to 1Q.

that will activate the a/c relay -- which will turn on the a/c fan, a/c compressor, and main cooling fan.


yeah, the ground is fine, but you dont want to take 12v that way. You could run a wire directly from 1B on the connector board to the Db15 pin, otherwise it's too much power draw on the circuit within the MS to wire from. Directly from the ECU harness is fine.
Braineack is offline   Reply With Quote
Old 12-16-2015, 09:31 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

oh yeah i also dont use the high side driver circuit for the fuel pump.

I simply run FP (fuel Pump) out to 4O on teh DIYPNP.

This sends it to the AFM connector, where I jump that pin to the normal fuel pump relay pin that the AFM activates mechincally.

Last edited by Braineack; 12-17-2015 at 10:16 AM.
Braineack is offline   Reply With Quote
Old 01-09-2016, 06:07 AM   #6
Newb
Thread Starter

Join Date: Nov 2015
Posts: 9
Total Cats: 0
Default

So I've hooked everything up accordingly. PA0 to In and Out to Pin 1 on DB15; WLD to 1Q; ALD to 1R; and 1V to Input 2 and Input 1 to FLX.

I've loaded firmware 3.4.0 and started with the base tune available (I believe it's 3.3.a) Got the errors and corrected everything as best as I could using STIM power.

My question is: Whenever I go to programmable on/off or I/O the only input/output I see available is the ALED. I cannot select FLX; WLED or PA0. I'm able to set parameters for ALED (Coolant > 190). Am I not able to select the others because I'm not connected to the vehicle or because those circuits are not functioning and I need to troubleshoot?
90pandomino is offline   Reply With Quote
Old 01-09-2016, 01:09 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

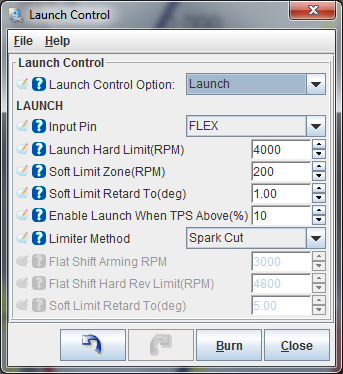

Flex is available under the launch control settings:

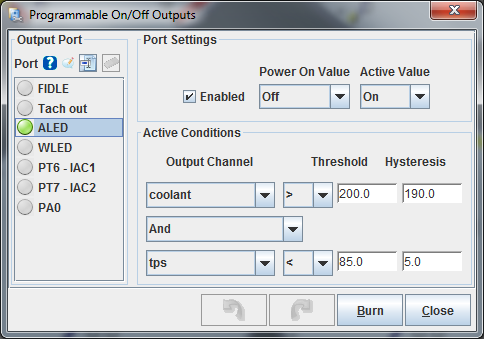

Setup fan like this:



turn it on at 200F like OEM and then off at 190 turning on at 190F is premature.




Now where I think you went wrong and didnt follow my instructions:

Quote:
PA0 to In and Out to Pin 1 on DB15
PA0 will be used for boost control.

So PA0 OUT needs to go to BOOST IN. That brings the signal form the MS into the PWM FET Driver.

then BOOST OUT, then goes to the DB15 connector. This sends the signal from PWM FET Driver out to the DB15 connector and then ultimately your boost solenoid.



you probably did this correct, but it's not clear from your post. IN and OUT of what?




Quote:
WLD to 1Q
1Q is an input. You have it tired to an output. This wont work. ever.

I wrote:
  1. I would install R14 and then send 1Q to "input 1 IN", then "input 1 out" to PE1
  2. Then I'd run WLD to 1J. In software I'd make sure to use a/c idle-up using these settings.

1J is the output. This is the wire the MS will ground to turn on the a/c compressor.

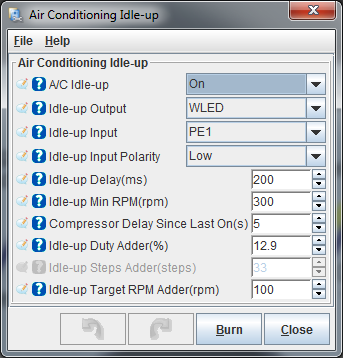

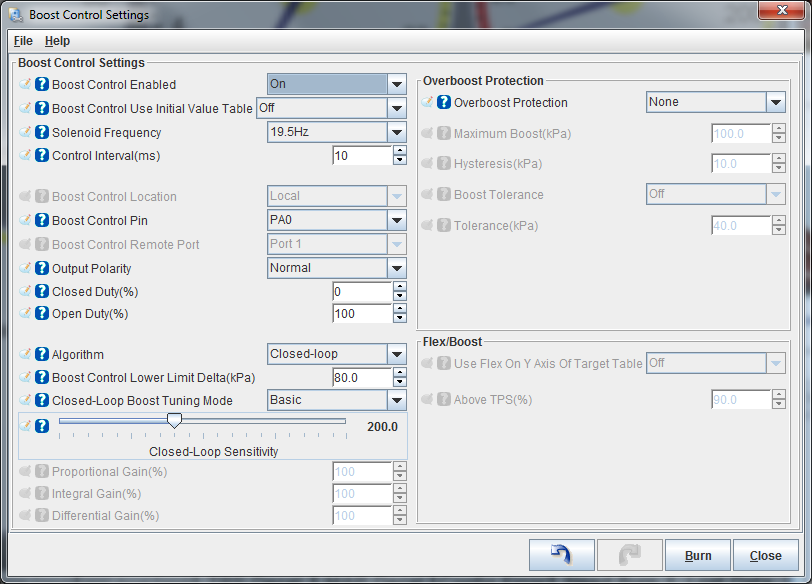

look at the settings below:



1Q goes to PE1 (through INPUT 1 Circuit) -- the idle up input.
WLED connects to 1J -- the a/c compressor output.


you must move you boost and a/c input/output wires around or itll never work as you have connected.
Attached Thumbnails
Two Questions after DIYPNP assembly.-80-undefined_e82c81b82dc0db2ae2b54837d6e8d4b1713624e9.png   Two Questions after DIYPNP assembly.-80-undefined_aa463cc005f8e4dc53f326ff9178f3e6cd6809fa.png   Two Questions after DIYPNP assembly.-80-undefined_5372cbaa17ccfd02e044e642151cf17ab51d0775.png   Two Questions after DIYPNP assembly.-80-undefined_32eec4a65140ce79adaebecc4f04374d577c34f2.png

Last edited by Braineack; 01-11-2016 at 09:38 AM.
Braineack is offline   Reply With Quote
Old 01-10-2016, 09:11 AM   #8
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 473
Total Cats: 23
Default

I'm already subbed to this topic but I wanted to say thanks Brain for explaining this in so much detail. If we had a wiki page dedicated to stuff like this things would be much easier. The search feature on this board kinda lacks in resolution.
90civichhb is offline   Reply With Quote
Old 01-10-2016, 04:04 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

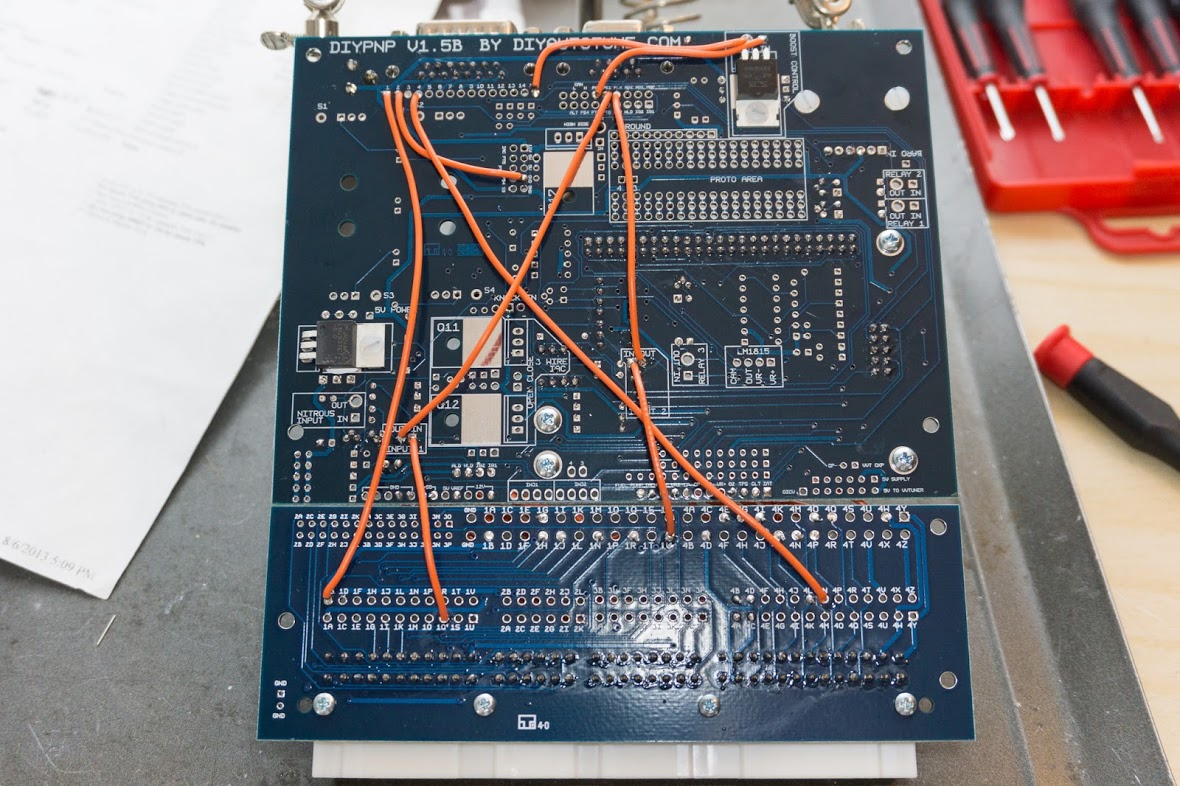

here, I just built one today:




Shows that I build it same way.


I also had help:

Attached Thumbnails
Two Questions after DIYPNP assembly.-80-undefined_deb70cd32a20646ce5a323a1dd82aa9e9d49825e.png

Last edited by Braineack; 01-11-2016 at 09:47 AM.
Braineack is offline   Reply With Quote
Old 01-11-2016, 03:36 AM   #10
Newb
Thread Starter

Join Date: Nov 2015
Posts: 9
Total Cats: 0
Default

Ok I'll recheck all of my connections when I get home. Looking at your photo above, I'm almost certain I hooked everything up correctly EXCEPT for the A/C where I just went straight to 1Q. I think I interpreted what you had posted in December, to mean WLED->1Q since I am not going to have A/C installed. I understand now, that I need to hook up as you instructed, there just won't be a compressor to turn on. As for the idle up settings, am I correct in assuming that I can zero out those rpm numbers so that my idle doesn't jump way up?

Last edited by 90pandomino; 01-11-2016 at 03:47 AM.
90pandomino is offline   Reply With Quote
Old 01-11-2016, 09:41 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,838
Total Cats: 1,787
Default

If you don't have a/c then don't populate things for a/c. You wouldn't hook anything to 1J or 1Q and simply disable a/c idle-up in software.




Just fwiw:

connecting WLED to 1Q just wont work for anything.

WLED is an output circuit. 1Q connects directly to the a/c switch on your console. When you press the a/c button, it grounds the signal wire.

Someone that wants the MS to run a/c idle up, would attach 1Q to an INPUT circuit (like i suggested) so the MS can see the input getting grounded, then using WLED as the output, The MS can then provide the ground signal out of 1J which will turn on the a/c relay.
Braineack is offline   Reply With Quote
