Default Upgraded to HiRes 10g

I just wanted to share my experiences.

Downloaded HiRes 10g and ran it through easytherm last night, copied my inc files over to TunerStudio and flashed. Funny enough, it was the first startup since Friday evening and I already noticed a difference! Checked a few things under the car then went for a 3 hour drive using TS 'autotune' feature. Still haven't replaced my fuel pump so my fuel table still sucks but the car has a ROCK SOLID 1000rpm idle @ ~ 14:1afr!

Since adding intercooler to the hotside M45 draw-through system I've had a good deal of trouble getting the car to idle for anything. I'm impressed and should have upgraded sooner.

Somehow I misunderstood something about the hires firmware, had the idea it was a 16x16 fuel table so was a little disappointed to see a 12x12. Guess we'll have to upgrade to MS3 soon.

elesjuan is offline   Reply With Quote
Old 03-23-2010, 11:33 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

The idea is a pulse width of x.xxx vs. x.x; lots more resolution.
Braineack is offline   Reply With Quote
Old 03-23-2010, 11:57 AM   #3
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Why didn't you upgrade to the latest MS1 Hi_res Firmware? 11 has been out ages!

Also as Brain says it's finer injector control, not more bins in the table. (16x16 is a ballache anyway, don't get your panties twisted over it, it's not the be-all).
richyvrlimited is offline   Reply With Quote
Old 03-23-2010, 12:15 PM   #4
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'm not twisted over no 16x16, it was a misunderstanding.

Uhm, There is a v11? The newest I could find on msextra site was 10g. Any substantial difference between 10g and 11?
elesjuan is offline   Reply With Quote
Old 03-23-2010, 12:27 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

The latest version, so far as I know, is 11d. Realistically, though, most of the changes that have occurred over the past couple years have been of no consequence to Miata owners. Just adding support for non-standard MAP sensors, odd wheel patterns, etc. I've run various builds from 10b all the way to 11c. Right now, I'm running 10d2, for no particular reason than it was what I had lying around the last time I did a major re-flash.
Joe Perez is offline   Reply With Quote
Old 03-23-2010, 12:38 PM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

I was not aware this existed.
So it goes from 12x12 to 16x16?
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-23-2010, 12:39 PM   #7
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by elesjuan View Post
Uhm, There is a v11? The newest I could find on msextra site was 10g. Any substantial difference between 10g and 11?
v11 can be downloaded here.

This is the readme that explains the changes. I've seen no reason to upgrade to v11 on my car. The next time I monkey around with MS will be to upgrade to MSII.
Quote:
Originally Posted by README
Notes for HiRes 11d

THe HiRes code has higher precison of PW calculation for injection. It has roughly 2.5 times the resolution of the LoRes code. The HiRes code as of HR_10g is feature compatible with the 029y4 with the exception of PWM control of Low Impedance (Lo-Z) injectors. If you want to run Lo-Z injectors you need to either run resistors or use a peak and hold board.

The HR_11d is a variant of the HiRes code. It adds a NGC Chrysler wheel (63-2+2), the ALS feature - Anti Lag System for turbos - Danger! and a feature to use a dwell capability for Saab DI whioch may also be useful to otehr CDI systems (pin pulled low at the spark event and held low for a time period determined by a table)

The ALS code is Baldur's turbo antilag code which was added to a variant of 025 in the past. This adds it to HR_10. This feature is highly untested and can do tremendous damage. Any questions should be directed to the forums. This feature addition caused the bugs found in 11c abd 11c1. These have been fixed in HR_11c2.

If there are any issues, problems or bugs, pelase report them to me on the msextra.com forum.

The initial intent of HR11 was to add % baro. This was removed from HR_11d because of incompatibilities with the nonstandars sensors. These incompatibilities were never resolved and eventually were removed from the code in the interest of functionality and consistency as there were some users trying the ALS code and we did not want this known bug out in code being used.

HR_11b has a one line fix for a flaky PW when running % Baro. Also cleaned up a number of indents.

HR_11c has the addition of the NGC Chrysler wheel to the generic wheel capabilities. (36-2+2)

HR_11C1 fixes an EGO problem introduced when ALS was added. Due to the logic of the test, If ALS was turned off, EGO correction of PW would always be bypassed. FIxed it for channel 1 and 2. This bug was in 11b and 11c.

HR_11c2 fixes a bug that showed up with the nonmissing wheel. Pin 10 was not being set at burn for ALS, but pin 11 was (2nd trigger).

HR_11c3 adds a 'dwell' for Saab DI cassette. It *must* be used with COP and the dwell must be set to 50% fixed before setting turning on the Saab DI settings.

HR_11d removes the % Baro code from HR11c3

KeithG
ScottFW is offline   Reply With Quote
Old 03-23-2010, 12:41 PM   #8
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I was not aware this existed.
So it goes from 12x12 to 16x16?
No. That's MSII, not v11.
ScottFW is offline   Reply With Quote
Old 03-23-2010, 12:43 PM   #9
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
I was not aware this existed.
So it goes from 12x12 to 16x16?
your reading comprehension = fail


No you don't get 16 x 16 tables with High_res MS1 firmware.
richyvrlimited is offline   Reply With Quote
Old 03-23-2010, 12:52 PM   #10
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by richyvrlimited View Post
your reading comprehension = fail


No you don't get 16 x 16 tables with High_res MS1 firmware.


yah well...

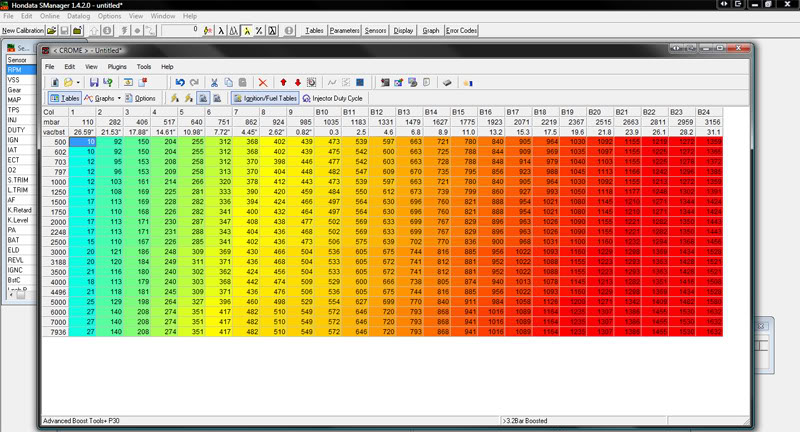

bask in the glory of massive tables
Name:  high_res.jpg
Views: 24
Size:  107.5 KB
haha, take that
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-23-2010, 12:55 PM   #11
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

That looks like the biggest ball ache....

Seriously I find a 16x16 table more of a pain to populate, and seeing as the numbers are all interpolated and the B6/BP motor is pretty linear with it's VE, I fail to see the point.

Is that for a Honda? It'd make a bit more sense due to the massive change in VE when VTEC switches over, still seems excessive to me though.
richyvrlimited is offline   Reply With Quote
Old 03-23-2010, 01:33 PM   #12
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Didn't know there was anything more recent than the 10g I've been running here either.

Quote:
Originally Posted by richyvrlimited View Post
Is that for a Honda?
It's Chrome, so I'd say so.
kotomile is offline   Reply With Quote
Old 03-23-2010, 01:33 PM   #13
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Quote:
Originally Posted by richyvrlimited View Post
Is that for a Honda? It'd make a bit more sense due to the massive change in VE when VTEC switches over, still seems excessive to me though.
Theres actually 2 fuel and 2 ignition maps, one for low-cam, and one for vtec. So the ECU changes maps when it switches into vtec. That way you can move around the vtec crossover without retuning (sorta)

But yah, for the most part the resolution isnt needed. But I wouldnt say it makes it hard, its easy to smooth out when looking at the 2D maps. And on the off chance that the resolution would be needed it can be very nice. Ive seen tunes that have very fine adjustments in them that require high resolution.
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-23-2010, 01:58 PM   #14
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by richyvrlimited View Post
Why didn't you upgrade to the latest MS1 Hi_res Firmware? 11 has been out ages!

Also as Brain says it's finer injector control, not more bins in the table. (16x16 is a ballache anyway, don't get your panties twisted over it, it's not the be-all).
because I haz to solder up my boardz.
hustler is offline   Reply With Quote
Old 03-23-2010, 01:59 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

I think even the biggest brute can handle adding a .1cap to a pcb.
Braineack is offline   Reply With Quote
Old 03-23-2010, 03:12 PM   #16
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by Braineack View Post
I think even the biggest brute can handle adding a .1cap to a pcb.
I understand that mod is for the PNP? Friend with one might want hi-res soon..
elesjuan is offline   Reply With Quote
Old 03-23-2010, 03:21 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

the .1uF cap is need to filter the second trigger input from the CAS for some reason on Hi_Res code it's needed else you have random misfires.

needed for PNP or not using Ms-I and hi_res
Braineack is offline   Reply With Quote
Old 03-23-2010, 04:10 PM   #18
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Ooooh..

I still have a sparse random misfire but I'm pretty sure its the plugs. When they were fresh it didn't happen but now they've got a few miles on 'em with my oil burnin motor..

Will add cap anyway.
elesjuan is offline   Reply With Quote
Old 03-23-2010, 04:23 PM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

dont you love how technical I just got?
Braineack is offline   Reply With Quote
Old 03-23-2010, 06:44 PM   #20
Elite Member
Thread Starter
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Always!
elesjuan is offline   Reply With Quote
