Default VE Anomaly

My VEs under boost show an interesting anomaly. It seems that between 4200rpm and 4400rpm the VE is lower than in the areas around it. Of course I don't have a data-point at 4300rpm in my VE table, so tuning it out with my current setup is not really possible. I have data points in my VE table at 4100rpm and 4600rpm.

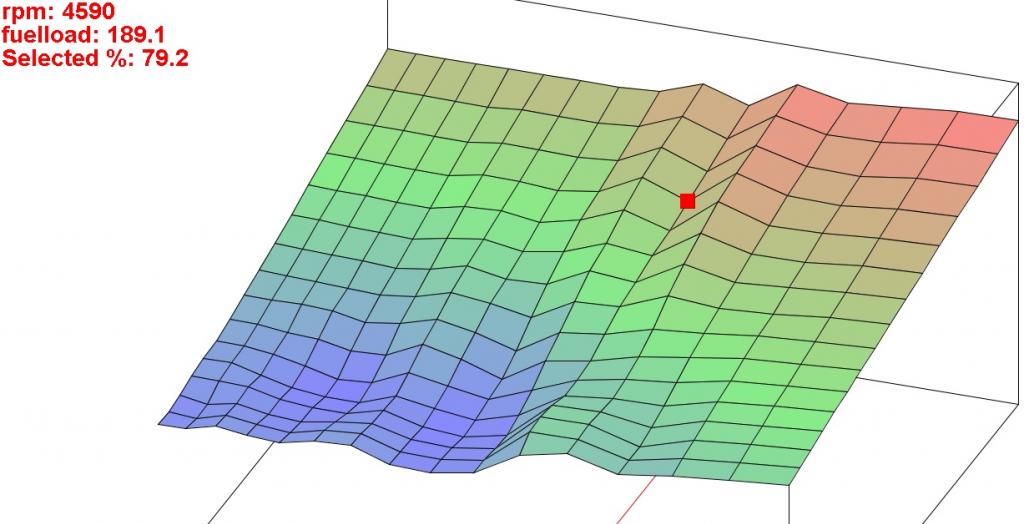

This leads to a rather funky looking VE table:

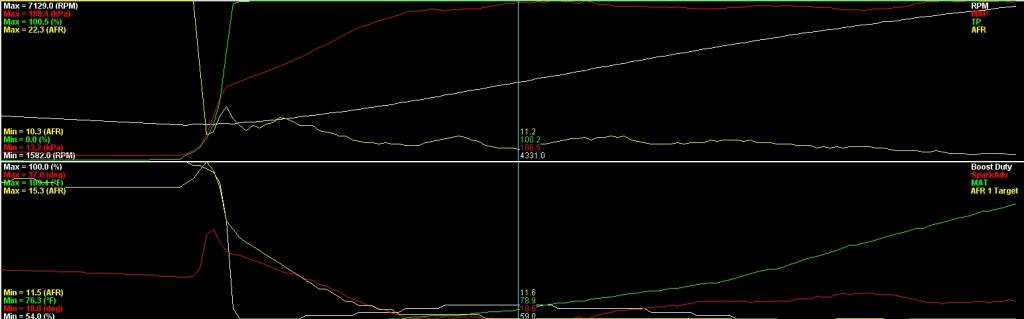

And I still get a dip in AFRs:

I can run under boost all day long and get the exact same result. Virtual Dyno really shows a beautiful overlay.

I know I can tune it out by changing my rpm-scaling. That's not the question here.

But does anybody else see this? Is it just my car, and if so, is there something wrong with it? Also Virtual Dyno reports 185hp at 12psi. I'm running an old T28, but I still think there should be more hp from 1.8l at 12psi.
Attached Thumbnails
VE Anomaly-ve_3d_2010830.jpg   VE Anomaly-ms_log_anomaly_20130830.jpg
stefanst is offline   Reply With Quote
Old 08-30-2013, 11:35 AM   #2
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Year/mods/other info?

Mine ('96) has a high plateau through that region with a dip on both sides but no dip in the middle, but a VICS/VVT or some other intake gadgetry could conceivably cause something like that.
sixshooter is offline   Reply With Quote
Old 08-30-2013, 11:38 AM   #3
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Details:
- 95 bottom end
- 99 head with +1mm valves
- VICS working and controlled by stock ECU (I believe it switches around 3000rpm)
- ancient FMII setup
stefanst is offline   Reply With Quote
Old 08-30-2013, 11:58 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

why are you switching vics at 3000rpm?

and why would a stock ecu be switching it there if youre running MS?
Braineack is offline   Reply With Quote
Old 08-30-2013, 12:08 PM   #5
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by Braineack View Post
why are you switching vics at 3000rpm?
I'm not switching VICS- I thought that's where the stock ECU switches it
Quote:
Originally Posted by Braineack View Post
and why would a stock ecu be switching it there if youre running MS?
Because lazy
stefanst is offline   Reply With Quote
Old 08-30-2013, 12:21 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

so you're running parallel?
Braineack is offline   Reply With Quote
Old 08-30-2013, 12:23 PM   #7
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Yupp. Need to pass stupid emissions. MS3(X) is running spark, fuel and controls boost. Stock ECU takes care of idle, AC, VICS, EGR...
stefanst is offline   Reply With Quote
Old 08-30-2013, 02:39 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

How does stock ECU control idle when the MS is controlling spark and fuel at idle?
sixshooter is offline   Reply With Quote
Old 08-30-2013, 02:46 PM   #9
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by sixshooter View Post
How does stock ECU control idle when the MS is controlling spark and fuel at idle?
Sorry- stock ECU is just controlling the idle valve.
stefanst is offline   Reply With Quote
Old 08-30-2013, 04:34 PM   #10
Boosting since 1984
Thread Starter
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

So VICS switches around 5,250rpm. Some say 5,500. No difference- it's not the VICS messing with my AFRs at 4300rpm.
Anybody else see this behavior?
stefanst is offline   Reply With Quote
Old 08-30-2013, 04:54 PM   #11
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

some other magical helmholtz phenomena?
