Old 08-22-2014, 04:59 PM   #21
Junior Member
iTrader: (1)

Join Date: Mar 2013
Posts: 49
Total Cats: -2
Default

Thanks for posting those, DNM. I may also give those settings a go and see if it helps my hot restart AFRs.
ahawks9er is offline   Reply With Quote
Old 08-23-2014, 04:20 AM   #22
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I am also very interested in the results of these settings, please post your findings...!
Zaphod is offline   Reply With Quote
Old 08-30-2014, 02:26 PM   #23
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

I posted about having the same issues with my NB2 engine swapped into a 97 chassis with a Reverant built MS3X (OEM NA return type fuel system including FPR, OEM NB2 injectors). I moved my intake to the cold side, switched to the fully plastic body GM IAT sensor, and added hood louvers... Mechanical fuel pressure gauge shows OEM NA FPR working as expected with vacuum reference. Net result is that it still goes lean on hot restarts.

Plastic bodied GM IAT sensor has greatly increased accuracy reading the actual IAT as I can see the temps go up/down in the logs much more quickly in response to changes in conditions (ex: idling vs driving). Cold side intake and louvers are worth a solid 10 deg reduction in IAT's under hot, summer time conditions with lot's of full throttle and high rpm running. IAT's go down quickly once the car starts moving. So lot's of goodness with these changes, but it didn't solve the lean hot restart issue.

Lowering the MAT compensation values at high temp points helps the lean condition on hot restarts, but then it idles/runs rich outside of the hot restart condition.

I will give these tuning suggestions a shot, but I may not have the car out again for a couple of weeks. If anyone tries them and they help this lean on hot restart issue, please post up the results and details of your settings/tables.
noname4me is offline   Reply With Quote
Old 12-25-2014, 02:14 PM   #24
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

So what were every ones results? Just run more ase at higher temps??
ScottyP3821 is offline   Reply With Quote
Old 12-26-2014, 11:40 AM   #25
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by noname4me View Post
switched to the fully plastic body GM IAT sensor
Quote:
Originally Posted by noname4me View Post
Plastic bodied GM IAT sensor has greatly increased accuracy reading the actual IAT as I can see the temps go up/down in the logs much more quickly in response to changes
I've seen this mentioned in the past, but never actually seen a part number. Is there a part number/manufacturer/source for this particular variation of the sensor?
EO2K is offline   Reply With Quote
Old 12-26-2014, 02:14 PM   #26
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Quote:
Originally Posted by EO2K View Post
I've seen this mentioned in the past, but never actually seen a part number. Is there a part number/manufacturer/source for this particular variation of the sensor?
You can also add fuel on start enrichment taper when the engine is hot and add longer taper time, that seemed to solve it for me.
Here is the sensor you need
http://www.diyautotune.com/catalog/gm-open-element-iat-sensor-with-pigtail-p-62.html?osCsid=6096b400ab7db1a708383b5590c2df15
HHammerly is offline   Reply With Quote
Old 12-26-2014, 02:25 PM   #27
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

That looks like the metal bodied one. Isn't there one where the brass section is made of plastic?
EO2K is offline   Reply With Quote
Old 12-26-2014, 03:28 PM   #28
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Let me add info re: my post 19. The long ASE at temp works well to let the EGO take over and keep the AFR in line. However, please ignore my cold start settings, as my cold start is really bad.
DNMakinson is offline   Reply With Quote
Old 12-26-2014, 03:38 PM   #29
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by DNMakinson View Post
Let me add info re: my post 19. The long ASE at temp works well to let the EGO take over and keep the AFR in line. However, please ignore my cold start settings, as my cold start is really bad.
Thanks David!
ScottyP3821 is offline   Reply With Quote
Old 12-26-2014, 03:43 PM   #30
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Quote:
Originally Posted by EO2K View Post
That looks like the metal bodied one. Isn't there one where the brass section is made of plastic?
That is the fast responce unit, it has a plastic shroud with holes and a low mass sensor in it that reacts very fast to temp changes i bave been using that sensor. Read the description, in my opinion you DO NOT WANT THE BRASS ONE.
HHammerly is offline   Reply With Quote
Old 12-26-2014, 03:56 PM   #31
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by HHammerly View Post
That is the fast responce unit, it has a plastic shroud with holes and a low mass sensor in it that reacts very fast to temp changes i bave been using that sensor. Read the description, in my opinion you DO NOT WANT THE BRASS ONE.
Isnt the Brass for water though? Everyone uses the caged one its the best cause air hits the sensor directly.
ScottyP3821 is offline   Reply With Quote
Old 12-26-2014, 04:14 PM   #32
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

There's open and closed element brass sensors, open responds much faster, but still has a brass housing. I have a GM closed brass element CLT sensor, but DIYautotune open air IAT, as an example.

Some GMs had totally plastic IAT sensors, like late 90's s10/blazers.



My lean restarts have nothing to do with IAT, and I use diyautotune brass housing open element one. You do want the brass one, I don't see how you'd ever seal a GM plastic one against boost.
deezums is offline   Reply With Quote
Old 12-26-2014, 04:53 PM   #33
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

With the last few firmwares. IAT heatsoak correction is what I am willing to say. Under control. I just would like to put I final say on whether or not it is boiling fuel or injectors causing the issues.
ScottyP3821 is offline   Reply With Quote
Old 12-26-2014, 05:00 PM   #34
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

I'd say the coils of the injectors might drift with heat, the kind they might see sitting directly next to the head with no fuel flow. More heat = higher resistance = less actual open time for the same PW? That's my take on it, at least.

I've managed to get mine under control by letting the motor rev high for a few seconds on a hot restart by using the cranking idle valve position, crank taper time, and a little foot manipulation. ~20-30 seconds of elevated idle, then my AFR settles down to 15.0 or so which is close enough for me.

I don't really know how it's possible, but I can rather smoothly idle 15-16.5+ or so AFRs at 850RPM or so. Quick throttle blips idling those AFRs are a little rough, they tend to bog the motor down below 850rpm but I still never stall. Seeing as how I don't stall, and how quick it goes away when I move, I don't really let it concern me any longer.
deezums is offline   Reply With Quote
Old 12-26-2014, 06:46 PM   #35
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,704
Total Cats: 269
Default

Use EGO. There has been consensus for some time that the issue is injector coil resistance increasing dead time. This is true both at MT and the MS forums. Although my method works, I don't like compensating for things that can be inherently fixed. How to fix? I see two approaches that can be applied singly or in combination: EV14 injectors, and return type fuel supply.
DNMakinson is offline   Reply With Quote
Old 12-26-2014, 08:02 PM   #36
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

On my old setup running rx7 460cc I used ego with it delayed for 19s which was when ase taper stopped. I would use tons of ego correcttion and it would blip into the 18s for a few sec and then settle around 16-15.7 till I started moving the car. It did idle fine. I'm thinking for my next go on the rx8 550s I'll add more ase above 130 cause Ive have it happen at that temp pretty regularly as the lowest temp.
ScottyP3821 is offline   Reply With Quote
Old 02-18-2016, 09:33 PM   #37
Junior Member

Join Date: Sep 2012
Location: Redmond, WA
Posts: 130
Total Cats: 0
Default

I know this is a bit of an old thread but I'm having the same lean AFRs on hot restart that the rest of you are describing.

I can see the WB O2 come online and then the AFRs hang out around 17 until they slowly converge to the expected value around stoich.

When I started troubleshooting this, it seemed reasonable to guess that the problem was caused by ASE not running long enough. I set my ASR taper the same as DMakinson suggested and the rest of my settings were pretty close already. I'm still seeing the problem even with the extended ASE times though.

Is this something we just have to live with because of the heat soak on the IAT sensor? In my case, MAT doesn't look that high in the beginning so I wouldn't expect the MS to lean things out because it's excessively hot. Also, I'm using the GM sensor that Rev sent along with my MS3 and that seems to be the one people like.

I'm attaching a small log file in case it'll help. Many thanks in advance...
Attached Files
File Type: zip 2016-02-18_16.54.58.zip (62.3 KB, 5 views)
aceswerling is offline   Reply With Quote
Old 02-18-2016, 09:44 PM   #38
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Extending the ASE time is not enough, you need to increase the ASE percentage as well.

Are your MATs really that high on a hot restart? I doubt they are, it's nearly always in the injectors. They're little solenoids, they react different when they're hot. They only get hot when the fuel stop flowing.

That's my take on it.
deezums is offline   Reply With Quote
Old 02-18-2016, 09:54 PM   #39
Junior Member

Join Date: Sep 2012
Location: Redmond, WA
Posts: 130
Total Cats: 0
Default

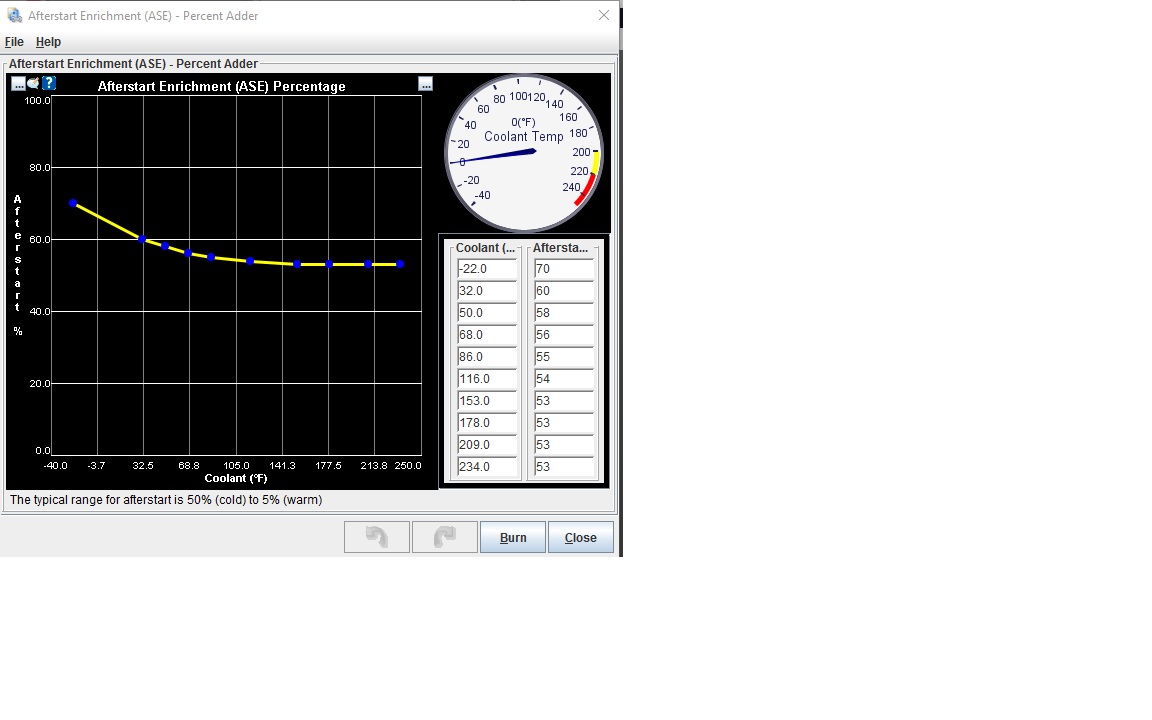

Thanks, Deezums. My ASE % was already higher than was suggested so I figured I was OK there. You can see my graph below.

I'm running the Flow Force injectors everybody likes so I was hoping they'd be OK in handling the heat.
Attached Thumbnails
Very lean on hot restarts-ase-percent.jpg
aceswerling is offline   Reply With Quote
Old 02-18-2016, 10:10 PM   #40
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

If you are having hot restart problems you're going to want that graph to look like the letter "u"

You shouldn't be having lean hot start problems from ev14's though, not anything like on old injectors. You could try adding some extra priming pulsewidth at high coolant temps, or even more cranking pulsewidth. You might also try and hold 1200 rpm for ten seconds after you start instead of 850, the extra rpm will increase pulsewidth and make the problem less noticeable.
deezums is offline   Reply With Quote
