Old 02-18-2016, 11:46 PM   #41
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

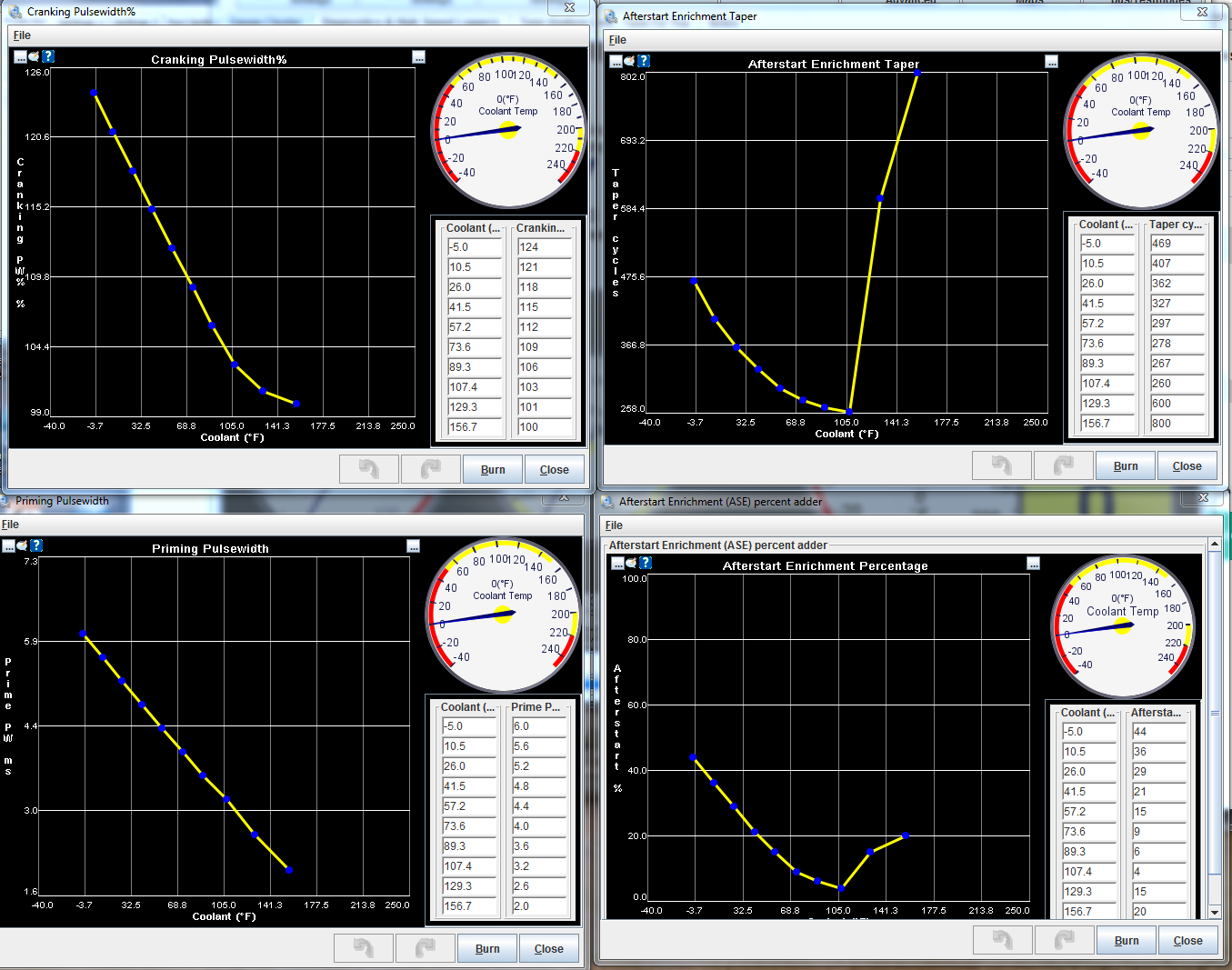

1.8's with the returnless fuel rail suffer the most because the fuel is trapped in the rail with nowhere to go, and nothing to do but to heat up the injectors until the hot fuel escapes into the engine.

I had to do this on my '99;



it ain't pretty, but it works (for me).
Attached Thumbnails
Very lean on hot restarts-80-startup_4fdbfc4f871a4ceb495a810e03dd942c3a0d6733.png
rwyatt365 is offline   Reply With Quote
Old 02-18-2016, 11:53 PM   #42
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Those style injectors (flow force, ID, etc), are the worse, I'm guessing because they're smaller and therefore more prone to heat soak? Not sure. But I've never had an issue with the NA sized injectors, or even the slightly older NB style.

There's a mat based or clt based option, switch to coolant based, since the injectors sit on the head, not in the intake. I believe the last car I tuned had this issue with ~40 MAT readings.

Tune it by watching the wideband once it starts. Really helps to wire directly to the battery. Then just choose a time, around 5-10 minutes, to keep the engine off while tuning. Personally, i shot for 12-13:1. My taper looked like the ones posted here, I just tuned ase percentage. Do this for every 5-15 degrees, however precise you wanna be, or follow your ase table temps.
curly is offline   Reply With Quote
Old 02-19-2016, 02:26 AM   #43
Junior Member

Join Date: Sep 2012
Location: Redmond, WA
Posts: 130
Total Cats: 0
Default

Hmmm...I'll play around with rwayatt's settings tomorrow. In the meantime, I wanted to share that I had the lean condition on startup after the engine had been sitting still for 4 hours in 45* air temps. The CLT was 70* and I figure the fuel couldn't have been any warmer than that. Shouldn't the injectors have been able to handle those temps?

And I'm not saying I disbelieve the problem is with hot fuel hitting the injectors, but I figure these things must be used in OEM installations all the time. I'm guessing that big car manufacturers wouldn't accept fuel injectors that cause lean conditions because the fuel is too hot. People who buy Fords and Chevys in Phoenix expect their cars to run correctly, right?
aceswerling is offline   Reply With Quote
Old 02-19-2016, 08:12 AM   #44
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by aceswerling View Post
I know this is a bit of an old thread but I'm having the same lean AFRs on hot restart that the rest of you are describing.

I can see the WB O2 come online and then the AFRs hang out around 17 until they slowly converge to the expected value around stoich.

When I started troubleshooting this, it seemed reasonable to guess that the problem was caused by ASE not running long enough. I set my ASR taper the same as DMakinson suggested and the rest of my settings were pretty close already. I'm still seeing the problem even with the extended ASE times though.

Is this something we just have to live with because of the heat soak on the IAT sensor? In my case, MAT doesn't look that high in the beginning so I wouldn't expect the MS to lean things out because it's excessively hot. Also, I'm using the GM sensor that Rev sent along with my MS3 and that seems to be the one people like.

I'm attaching a small log file in case it'll help. Many thanks in advance...
your AIT is not heatsoaked, and your engine is already warmed.

your fueling simplly does not change based on the engine demands.

As you idle and it drops from 17AFR to ~14AFR but the PW remains roughly the same -- in the low 2.0ms range. Youre idling at the same VE table % 57.7 throughout the log and you only have about 5% fuel enrichments from warmup, which as they reduce you actually richen.

So at 1,400-1,300RPM, after the car starts, you're asking for the exact same amount of fuel as 850RPM later in the log.

and why is your spark advance so high? is there any reason why you're idling at more spark advance than the car demands at WOT? Something is telling the MS to add 5 of spark above the already ridiculously high spark table number.

why does your log show 100%TPS during cranking?

why is your battery voltage so low?


I don't believe ASE is your issue. You dont really need it when your car is already warmed up. and it only should last 2-3 seconds.

You richen up as your RPM better matches the fuel that your injecting. So either lower your cranking idle table and targets so the idle duty starts running the car at 850rpm or tune your fuel map so you actually have the fuel required when idling 1200-1400RPM. and then fix your spark while youre at it before you melt your pistons.

Last edited by Braineack; 02-19-2016 at 08:26 AM.
Braineack is offline   Reply With Quote
Old 02-19-2016, 10:40 AM   #45
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Y'all are blaming the fuel a lot. Resistance goes up with temperature, injectors are just solenoids. Its more just the injectors heating up on the head and not being cooled until fuel starts pulsing through them. I'm sure the warmer fuel they get at first doesn't help though.
curly is offline   Reply With Quote
Old 02-19-2016, 10:43 AM   #46
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by curly View Post
Y'all are blaming the fuel a lot. Resistance goes up with temperature, injectors are just solenoids. Its more just the injectors heating up on the head and not being cooled until fuel starts pulsing through them. I'm sure the warmer fuel they get at first doesn't help though.
this is a legit issue for NB returnless guys.
Braineack is offline   Reply With Quote
Old 02-19-2016, 10:47 AM   #47
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Oh definitely. I'm just worried people will start suggesting fuel coolers.
curly is offline   Reply With Quote
Old 02-19-2016, 10:48 AM   #48
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Quote:
Originally Posted by curly View Post
Y'all are blaming the fuel a lot. Resistance goes up with temperature, injectors are just solenoids. Its more just the injectors heating up on the head and not being cooled until fuel starts pulsing through them. I'm sure the warmer fuel they get at first doesn't help though.
Yeah this ^^ is the root cause. The returnless system acerbates this because the heated fuel in the rail just sits there like a heater until it flushes out (unlike the full-return system).
rwyatt365 is offline   Reply With Quote
Old 02-19-2016, 11:50 AM   #49
Junior Member

Join Date: Sep 2012
Location: Redmond, WA
Posts: 130
Total Cats: 0
Default

Thanks, Brain. It looks like I've got some trouble in my tune that's goes beyond the fuel temp issues others are seeing. If we need to, I'll start a new thread to drill into my specific issues.

In the meantime, I can't comment on your PW and spark advance questions because I didn't tune those. I've sent an email to my tuner asking him to jump in with those answers. I can answer some of the questions though.

Quote:
Originally Posted by Braineack View Post
why does your log show 100%TPS during cranking?
I started and stopped the engine a few times and in this particular case the engine cranked but didn't want to start. I hit the throttle to put the MS in flood clear mode and the engine started.


Quote:
Originally Posted by Braineack View Post
why is your battery voltage so low?
Not sure about this one. The battery is pretty new. Voltage may have been a little low because of the multiple starts. Voltage looks OK to me once the engine is running.

Quote:
Originally Posted by Braineack View Post
I don't believe ASE is your issue. You dont really need it when your car is already warmed up. and it only should last 2-3 seconds.
Glad to hear that. I was trying to match the settings suggested on this thread but the numbers sure seemed strange. Maybe we'll fix the other issues and then dial in the ASE.

Quote:
Originally Posted by Braineack View Post
You richen up as your RPM better matches the fuel that your injecting. So either lower your cranking idle table and targets so the idle duty starts running the car at 850rpm or tune your fuel map so you actually have the fuel required when idling 1200-1400RPM. and then fix your spark while youre at it before you melt your pistons.
I'll let my tuner, Nate, comment on this. Totally agree that I don't want the mixture to be as lean as we're seeing.
aceswerling is offline   Reply With Quote
Old 02-19-2016, 09:13 PM   #50
Junior Member

Join Date: Sep 2012
Location: Redmond, WA
Posts: 130
Total Cats: 0
Default

I started a new thread at Warm restart and idle issues - Miata Turbo Forum -Boost cars, acquire cats. because I don't want to derail this thread about hot fuel injectors.
