Default What custom filters for VEanalyze live do you use?

Hi guys,

I just did the first rounds with the new VEanalyze live an it wqorks nicely.

Now I have the feeling that it cuts my lowest (20kPa-40kPa) rows way too much from 1500rpm to 5000 rpm.

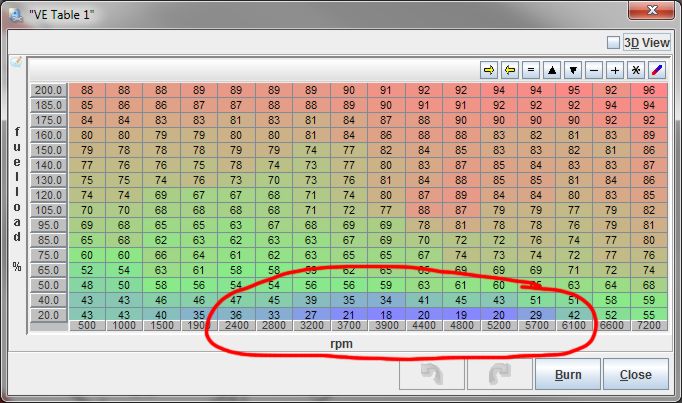

That is how the VEtable looks after this first hour of driving.



Should I filter the rows <40kPa anyway? What other filters would you set?

P.S.: I know there are some areas I haven't met at all...

Thanks, Greets
Zaphod is offline   Reply With Quote
Old 04-19-2010, 10:29 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Your fuel table looks terrible. You need to use VE analyzer to get the #'s close, then fine tune by hand and probably go back and forth between the tabular screen and 3d form to make linear adjustments. Whatever is going on from 4k-5k rpm is weird.
hustler is offline   Reply With Quote
Old 04-19-2010, 10:35 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

I do like 1500RPM, 35kPa, and > 5% TPS
Braineack is offline   Reply With Quote
Old 04-19-2010, 10:41 AM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

I noticed the same thing. It doesn't seem to ignore overrun fast enough so you get that dead spot at the bottom center. I use 1000rpm,20kpa.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-19-2010, 10:57 AM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Quote:
Originally Posted by hustler View Post
Your fuel table looks terrible. You need to use VE analyzer to get the #'s close, then fine tune by hand and probably go back and forth between the tabular screen and 3d form to make linear adjustments. Whatever is going on from 4k-5k rpm is weird.
As I said - I have a lot of point's I didn't meet at all. This is the raw map after driving with VEanalyze - I already gave the map some hand-smoothing.

@all- how would you fill the lower row? At the moment I interpolated between the 1500 and 6100rpm column.
Zaphod is offline   Reply With Quote
Old 04-20-2010, 12:14 AM   #6
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

I usually run it with around 30 kPa as the lower limit, and also a lower rpm limit of 1200 because I don't want it touching my idle. The only time you hit that bottom row is in overrun, but if you look at the MAP gauge during overrun, you'll actually be pulling vac down to ~16 kPa, or at least mine does. I don't think it spends enough time right at 20 kPa for the auto tuning to do any good. Whatever the reason, I basically tune that whole row by hand. Just see where your WBO2 is at before the overrun fuel cut kicks in and adjust it a point or two richer/leaner as necessary.

You also don't need to target a super lean AFR in that row. The throttle plate is closed so if you target 14.0 versus 16.0 it's not going to make a big difference in fuel economy, and it will help with driveability to not have it super lean if the car ever sees the kind of traffic where you might be getting on & off the throttle more frequently.
ScottFW is offline   Reply With Quote
Old 04-20-2010, 10:04 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

it will come to idle better if you try to maintain 14.0:1 before you come to idle as well.
Braineack is offline   Reply With Quote
Old 06-05-2010, 03:03 PM   #8
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

does the filter work backwords or anything? Entered map > 25 and it did just the opposite (only tune the lower row).
WestfieldMX5 is offline   Reply With Quote
