What is going on with my AFR

Thread Tools

Search this Thread

Old 01-20-2017, 01:39 PM
  #1
Newb
Thread Starter

Alex Naoumov's Avatar

Join Date: Mar 2016
Posts: 8
Total Cats: 0
Default What is going on with my AFR

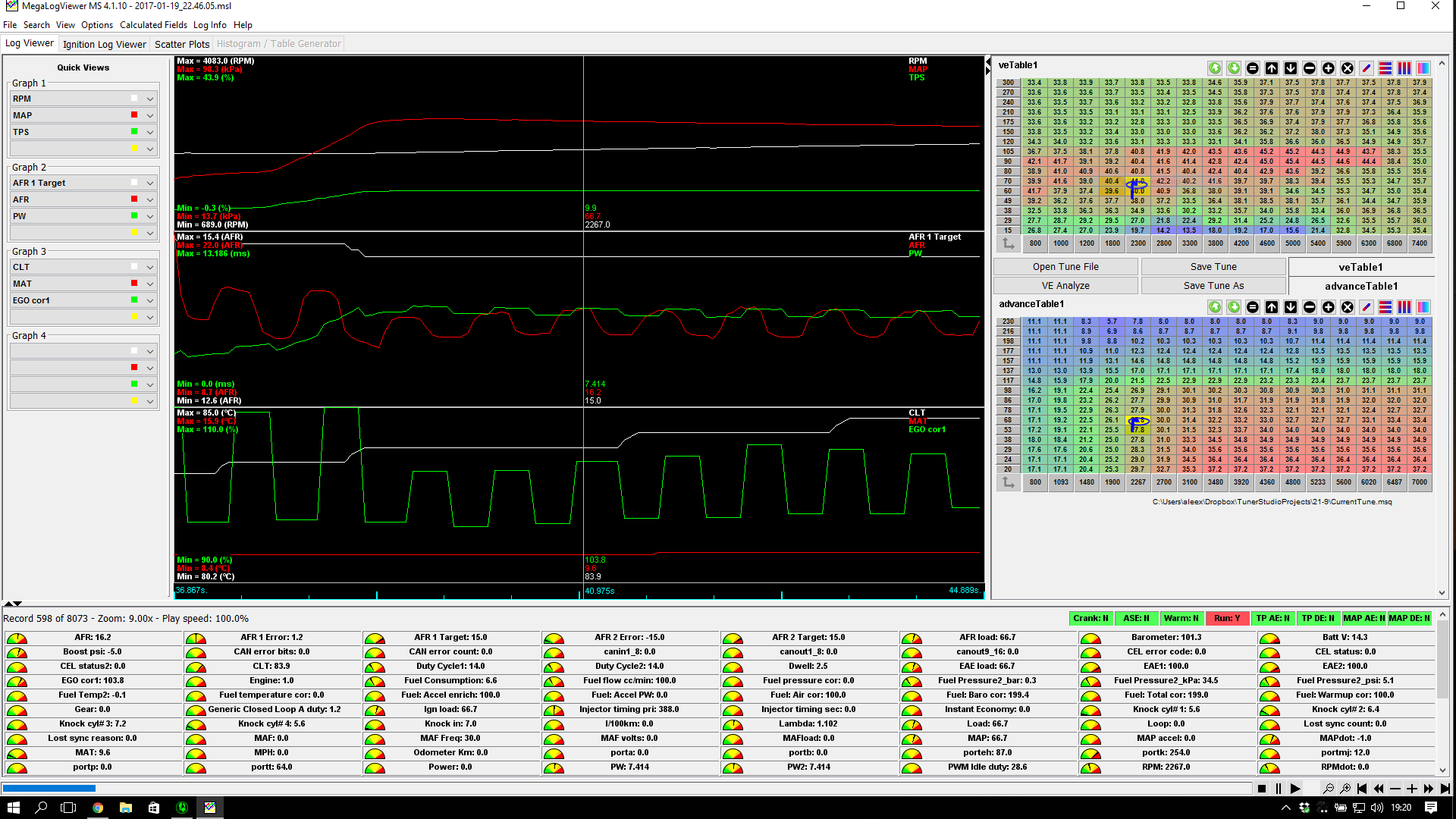

Suddenly this started to happen after I changed my idle to openloop en played with my air density table:

Name:  I6WH5gy.png
Views: 10
Size:  219.5 KB

I know the idle and air density settings shouldn't matter so could it be a defective wideband? It's a innovate mtx something with the LSU 4.9 sensor. Oh and btw, I ran a little too rich last week because of a major human error �� . That rich that there was a lot of unburned fuel in the exhaust and a huge cloud of black smoke. I calibrated the sensor yesterday so that couldn't be it..
Attached Files
File Type: msl
2017-01-19_22.46.05.msl (4.92 MB, 61 views)
File Type: msq
CurrentTune.msq (275.0 KB, 63 views)
Alex Naoumov is offline
Old 01-20-2017, 02:55 PM
  #2
Retired Mech Design Engr
iTrader: (3)

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 5,009
Total Cats: 856
Default

What I would suggest you try, based on the picture.

Turn off EGO and see if oscillation goes away. If it does, then that is your cause. I believe that it is.
DNMakinson is offline
Old 01-20-2017, 06:40 PM
  #3
Newb
Thread Starter

Alex Naoumov's Avatar

Join Date: Mar 2016
Posts: 8
Total Cats: 0
Default

Originally Posted by DNMakinson
What I would suggest you try, based on the picture.

Turn off EGO and see if oscillation goes away. If it does, then that is your cause. I believe that it is.
Thanks! I actually turned it off right after posting. The oscillation didnt occur anymore. But how can I fix the issue to use ego again? Turning it off is more of a temp fix.. what can you suggest? I sadly need to use the ego correction because I have to daily the car and the ve table is not great yet...
Alex Naoumov is offline
Old 01-20-2017, 06:58 PM
  #4
VladiTuned
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,821
Total Cats: 3,481
Default

your cl ego control is probably set to adjust too fast and too aggressive
18psi is offline
