Default What injectors?

What injectors should I be shopping for?

1.6 stock block, getting a MS soon and than turbo, maybe 12psi using a 190lph pump. I do want idle quality. So I guess the question is whats the biggest injectors I can use with out sacrificing the idle?
IcantDo55 is offline   Reply With Quote
Old 10-14-2007, 02:20 PM   #2
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

Check the DIY FAQs in the DIY section of the forum. There is a list of injectors that are plug-n-play with the Miata. With megasquirt, there are plenty of people here using up to 550cc injectors with good idle. I have a set of 430cc that I will be using.
jasonrobo02 is offline   Reply With Quote
Old 10-14-2007, 02:29 PM   #3
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Thanks!
IcantDo55 is offline   Reply With Quote
Old 10-14-2007, 03:31 PM   #4
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

You will probably run out of room by 700 or so cc/min My 550's work just fine. A set of 430's or 460's will probably give you all the fuel you want for a good while then when you are ready to turn it up find something bigger. What about your puny Differential or your 5 speed that doesn't like more than 250 lbft. Or the laughable stock clutch do you have those under control? The motor is by far the stoutest component in your car.
magnamx-5 is offline   Reply With Quote
Old 10-14-2007, 04:28 PM   #5
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by magnamx-5 View Post
You will probably run out of room by 700 or so cc/min My 550's work just fine. A set of 430's or 460's will probably give you all the fuel you want for a good while then when you are ready to turn it up find something bigger. What about your puny Differential or your 5 speed that doesn't like more than 250 lbft. Or the laughable stock clutch do you have those under control? The motor is by far the stoutest component in your car.
New guy here, so be easy.

Got MS coming soon. Thats 1st, than install injectors and get them running right. Install fuel pump. Upgrade the clutch and flywheel and keep a lookout for a used turbo kit. When the rear goes I'll replace it. I see there priced crazy high, so I'll keep and eye out for a good deal.

So thats the plan, what you think?

I have built many other projects over the years so I'm not new to them just Miatas. The 12psi estimate is at the high I just try to build thing right...once.


Currently for sale is a nice LT1 T-56 RX-7 TII. www.myspace.com/lt1rx7
IcantDo55 is offline   Reply With Quote
Old 10-14-2007, 04:34 PM   #6
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

It's all good man i just wanted to make sure you had a plan 12 psi is a decent power hit but no where near high you will be just fine.
magnamx-5 is offline   Reply With Quote
Old 10-14-2007, 04:43 PM   #7
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

you don't need a fuel pump. nice rx-7.
Al Hounos is offline   Reply With Quote
Old 10-14-2007, 04:45 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Well the 160 lph fuel pump we run stock could be weak by now but still even when healthy it will only support about 320 or so bhp.
magnamx-5 is offline   Reply With Quote
Old 10-14-2007, 04:55 PM   #9
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

gotta quick question, i was putting my turbo on but now im going to wait until winter because its to much work for now but i already put bigger injectors in 550cc ones and i turned my car on and the idles fucked, its jumpy, i have an AFPR should i put that on and adjust the fuel pressure and it will send more fuel?? or do i have to get an ECU to tune them so it idles, or should i just put the stock ones back on for now until i put my turbo back on with a MS??
miataz is offline   Reply With Quote
Old 10-14-2007, 05:06 PM   #10
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by magnamx-5 View Post
Well the 160 lph fuel pump we run stock could be weak by now but still even when healthy it will only support about 320 or so bhp.
Yea I figure the 15 year old pump is on its last leg, and I don't need it failing under boost.

As far as the rears go, there crazy expensive for stock replacement units. I can build a Ford rear for $500 that will support 1000hp! Kicker is I have two extra Rx-7 rears @ my house but there of off turbo cars and I hear they won't fit...sux.

PS: It heart I'm a Mustang guy and the fuel pump 5.0's came with was a 87lph pump. Why the hell does mazda use a 160? lol
IcantDo55 is offline   Reply With Quote
Old 10-14-2007, 05:11 PM   #11
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by miataz View Post
gotta quick question, i was putting my turbo on but now im going to wait until winter because its to much work for now but i already put bigger injectors in 550cc ones and i turned my car on and the idles fucked, its jumpy, i have an AFPR should i put that on and adjust the fuel pressure and it will send more fuel?? or do i have to get an ECU to tune them so it idles, or should i just put the stock ones back on for now until i put my turbo back on with a MS??
So you are trying to run 550's without a MS??? If so then that is your problem install the MS and run the 550's NA or, Reinstall the OE injectors. MS just needs to be tuned.
Icantdo55
We run a big ole FP cause we are the real HP department of Ford
magnamx-5 is offline   Reply With Quote
Old 10-14-2007, 05:20 PM   #12
I'm Miserable!
iTrader: (1)

Join Date: Oct 2007
Location: Niagara Falls, On, CANADA
Posts: 979
Total Cats: 0
Default

ahha k thanks now i gotta suck up for a Christmas present for around 800$ for a MS.
miataz is offline   Reply With Quote
Old 10-14-2007, 05:28 PM   #13
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by magnamx-5 View Post
Icantdo55
We run a big ole FP cause we are the real HP department of Ford

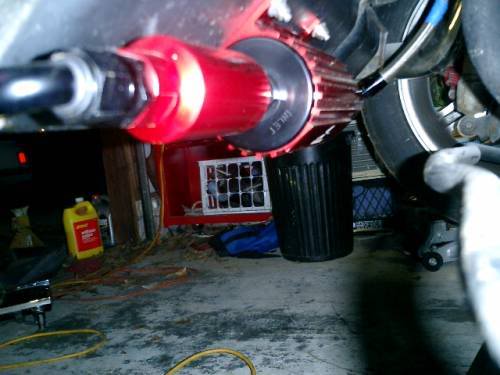

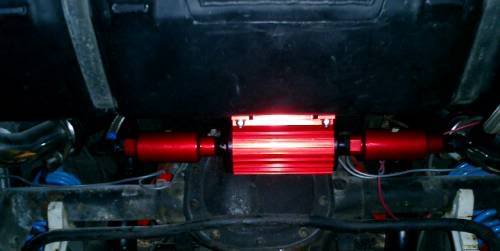

Want to see the fuel pump on the Mustang in my garage?

Yes thats AN-12 fuel lines (1/2" makes a garden hose look small).

Name:  pumpmount.jpg
Views: 1
Size:  28.0 KB
Name:  pumpback.jpg
Views: 3
Size:  14.9 KB

So some Fords use some fuel....
IcantDo55 is offline   Reply With Quote
Old 10-14-2007, 05:30 PM   #14
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

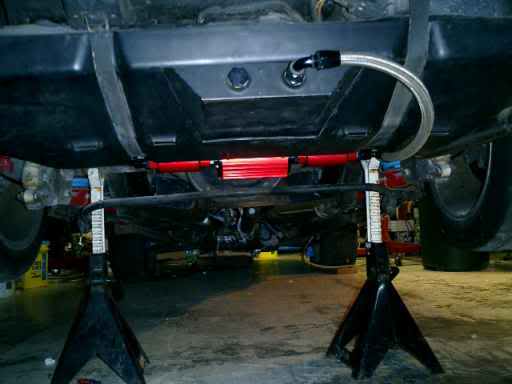

Here s pic from the *** end, what most people see.

Name:  fuelpump.jpg
Views: 1
Size:  46.2 KB
IcantDo55 is offline   Reply With Quote
Old 10-15-2007, 04:47 AM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by magnamx-5 View Post
Well the 160 lph fuel pump we run stock could be weak by now but still even when healthy it will only support about 320 or so bhp.
rewire the stock pump and it's fine for 350 no worries.

you don't need uprated fuel pumps, just size the injectors right. and seriously how many people are gonna hit 320?
richyvrlimited is offline   Reply With Quote
Old 10-15-2007, 06:13 AM   #16
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Well to be percise i started out wanting 180 or so and look at me now.
magnamx-5 is offline   Reply With Quote
Old 10-15-2007, 07:23 AM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by magnamx-5 View Post
Well to be percise i started out wanting 180 or so and look at me now.
Impressive tho it is your still quite a long way of maxing out the stock pump
richyvrlimited is offline   Reply With Quote
Old 10-15-2007, 08:35 AM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

At 18 psi i feel my choice of a 255 hp was a good choice.
magnamx-5 is offline   Reply With Quote
Old 10-15-2007, 10:39 AM   #19
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by magnamx-5 View Post
At 18 psi i feel my choice of a 255 hp was a good choice.
yeah fair enough it's your choice.

There's a guy in the UK, Steve Willington, he has an FM stroker and a disco Potato, he shot for and hit 400bhp.

stock fuel pump

and for the record this guys motto is buy cheap buy twice, so if he felt the car needed a stronger pump, he'd have bought one
richyvrlimited is offline   Reply With Quote
Old 10-15-2007, 10:48 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,857
Total Cats: 1,788
Default

Quote:
Originally Posted by IcantDo55 View Post
Yea I figure the 15 year old pump is on its last leg, and I don't need it failing under boost.

As far as the rears go, there crazy expensive for stock replacement units. I can build a Ford rear for $500 that will support 1000hp! Kicker is I have two extra Rx-7 rears @ my house but there of off turbo cars and I hear they won't fit...sux.

PS: It heart I'm a Mustang guy and the fuel pump 5.0's came with was a 87lph pump. Why the hell does mazda use a 160? lol

keep the stock pump for now. if you plan on replacing a 190lph is fine.

I think getting the smallest injector that will support your goal is best.

What rx-7 rears do you have?
