Default What is this Solenoid?

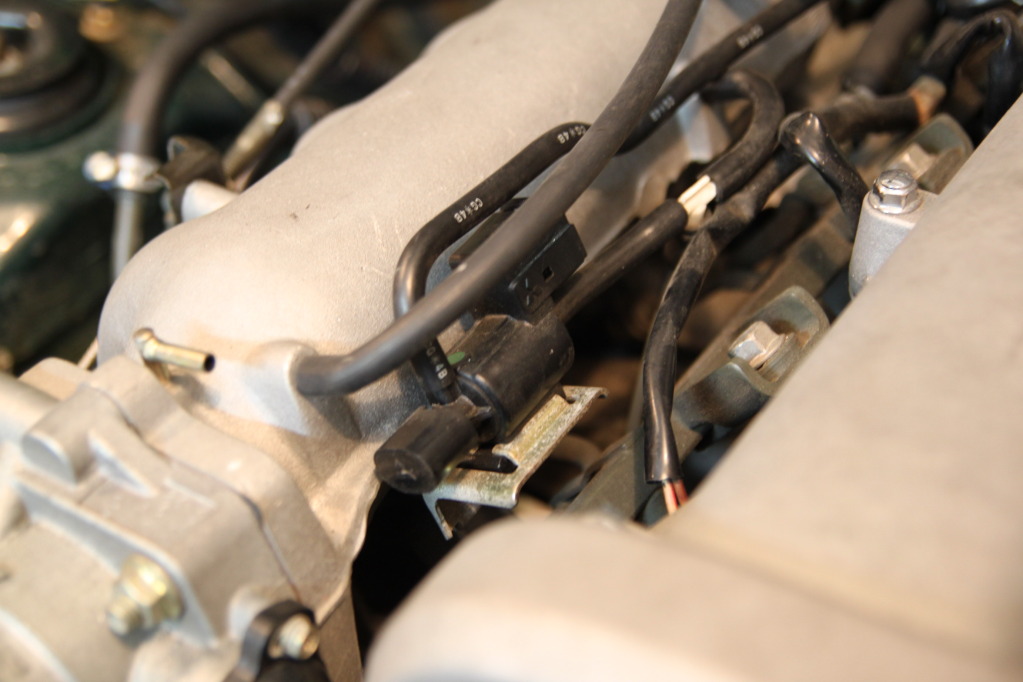

I am in the process of doing a wire tuck, and would like to know what this solenoid does. It is connected between the intake manifold and the FPR. My question, will megasquirt control this solenoid or can I get rid of it and it's connector? thanks

Attached Thumbnails
What is this Solenoid?-20-1.jpg
TurboTalon is offline   Reply With Quote
Old 07-16-2011, 06:14 AM   #2
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

I have a similar question posted on the "other" forum
Probably the same function but placed at another place (between FPR and manifold vacuum).
I know I don't control it with my DIYPNP, so it will work with it disconnected (or removed and direct connection from the FPR to the manifold).

But it might have a function for cold start or something (since the JDM don't have it on the same year, and they have/had other emission standards).
NiklasFalk is offline   Reply With Quote
Old 07-16-2011, 12:29 PM   #3
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

it's for the "Vacuum Constriction Device". the hose needs to lead to somewhere under your steering wheel for proper operation.
y8s is offline   Reply With Quote
Old 07-16-2011, 12:40 PM   #4
Newb
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Posts: 41
Total Cats: 0
Default

I was going to ask over at clubroadster in the 'wire tuck' thread, but thought I'd get more help over here since it's more Megasquirt related. Now it wouldn't seem that way, judging by the 2nd response.

Quote:
Originally Posted by NiklasFalk View Post
I have a similar question posted on the "other" forum
Probably the same function but placed at another place (between FPR and manifold vacuum).
I know I don't control it with my DIYPNP, so it will work with it disconnected (or removed and direct connection from the FPR to the manifold).

But it might have a function for cold start or something (since the JDM don't have it on the same year, and they have/had other emission standards).
TurboTalon is offline   Reply With Quote
Old 07-16-2011, 04:27 PM   #5
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

I removed if finally last week, still making 233rwhp so I suppose you can remove it Did it as I needed to retune fuel anyway.

I think it has something to do with idle control with the OEM ECU?
Laur3ns is offline   Reply With Quote
Old 07-17-2011, 11:05 AM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Quote:
Originally Posted by TurboTalon View Post
I was going to ask over at clubroadster in the 'wire tuck' thread, but thought I'd get more help over here since it's more Megasquirt related. Now it wouldn't seem that way, judging by the 2nd response.
would you mind adding the year of your car to your profile somewhere or at least telling us what it is? then anyone can just pull up a manual and answer your question.
y8s is offline   Reply With Quote
Old 07-17-2011, 11:39 AM   #7
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

I believe it is the Pressure regulator control solenoid. I pulled mine off when I went full standalone with MS3. I also believe that it can be used as a vics control solenoid.
shuiend is offline   Reply With Quote
Old 07-17-2011, 11:43 AM   #8
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

more than likely you could use is as a boost controller as well. Looks just like what the rx7 uses for boost control
Techsalvager is offline   Reply With Quote
Old 07-17-2011, 11:55 AM   #9
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,776
Total Cats: 1,106
Default

Quote:
Originally Posted by Techsalvager View Post
more than likely you could use is as a boost controller as well. Looks just like what the rx7 uses for boost control
That is very possible. I know when Braineack and I were trying to figure out what mine was, it did look a lot like a boost controller. Now we just need someone to try it.
shuiend is offline   Reply With Quote
Old 07-17-2011, 12:34 PM   #10
I'm Miserable!

Join Date: Jun 2009
Location: albany, ga
Posts: 1,869
Total Cats: 3
Default

if its like the rx7 one the top part is probably a cap
on the rx7 there is like 5 of these, soem are capped some aren't.
From research I think its 30hz for the rx7, have not tried it yet because I need the boost controller circuit pieces. but I will soon enough.
Techsalvager is offline   Reply With Quote
Old 07-20-2011, 12:37 PM   #11
Newb
Thread Starter
iTrader: (2)

Join Date: Jan 2008
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
would you mind adding the year of your car to your profile somewhere or at least telling us what it is? then anyone can just pull up a manual and answer your question.

Oh sorry, I actually do have "1994" in my sig, but I have no idea why it doesn't show up.

After emailing DIYautotune, they told me that it is not used by MS. And after more searching it does appear to be PRC solenoid, although I don't know how or why it is controlled by the stock ECU. Either way, I too am quite curious if this can be used as a boost control solenoid.
TurboTalon is offline   Reply With Quote
Old 07-23-2011, 04:32 PM   #12
Junior Member
iTrader: (2)

Join Date: Oct 2009
Location: Port Saint Lucie, FL
Posts: 96
Total Cats: 0
Default

I've been trying to figure this out as well.

With the Link ECU, the vac lines from mine are disconnected so it's just sucking air.

Went searching then found this


from M.net

The '96/7 PRC solenoid is intended to prevent fuel in the rail from boiling by keeping the pressure high in a hot restart situation. The solenoid admits atmospheric pressure to the FPR, instead of manifold vacuum, for long enough to get overheated fuel back to the tank. During this time the ECU leans the mixture a few percent to allow for the increased pressure difference across the injectors.

HTH
Rod

PS: for others who may be reading this ... on a boosted car with a parallel engine management system that is not aware of the stock ECU's PRC period, you can run into trouble because the normal fuel pressure increase (with boost) is absent during the active PRC period, making your fuel tables too lean ... so don't do a "quick get-away" on a hot-restarted engine. This can also apply to '96/7 + AFPR set-ups if the AFPR vacuum hose is tee'd-off after the solenoid.
mx-p5 is offline   Reply With Quote
Old 07-23-2011, 04:48 PM   #13
Elite AbsurdFlow Member

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

So the whole hot restart lean threads we see around here could very well not be related to IATs but boiling fuel in the rail?
Laur3ns is offline   Reply With Quote
Old 01-23-2014, 10:05 PM   #14
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Late late bump. What did everyone ever figure out from that last post. I have hot restart issues with my ms2 and it's not mat issues at all. I'm wondering if removing this we'll help or make it worse?
ScottyP3821 is offline   Reply With Quote
Old 01-23-2014, 10:07 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

Quote:
Originally Posted by shuiend View Post
That is very possible. I know when Braineack and I were trying to figure out what mine was, it did look a lot like a boost controller. Now we just need someone to try it.
I used it to control vics on eds motor.
Braineack is online now   Reply With Quote
Old 01-23-2014, 10:17 PM   #16
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

So can pull mine off of my 94 since the ms doesn't use it and I'm not running vics
ScottyP3821 is offline   Reply With Quote
Old 01-27-2014, 08:42 PM   #17
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Just to update this. Yes I could and did pull it off.
