Default Where to install a Reverant MS3 Basic in a 99

So the stock 99 ecu sits above the clutch and brake pedal. The MS3 basic is is more than twice the size of the stock ecu though... I don't see how it could fit anywhere near the drivers feet where the harness will reach. Has anyone installed an MS3 basic in a 99? If so where did you put it? At this point my only idea is to find the stock connecters and make an extension harness to put it behind the glove box.


Wut do?

Also I'll try to get some pics of the problem tonight I'm on my phone now.
thenuge26 is offline   Reply With Quote
Old 09-21-2013, 08:19 PM   #2
Elite Member
iTrader: (6)

Join Date: May 2011
Location: Lebanon, TN
Posts: 1,668
Total Cats: 63
Default

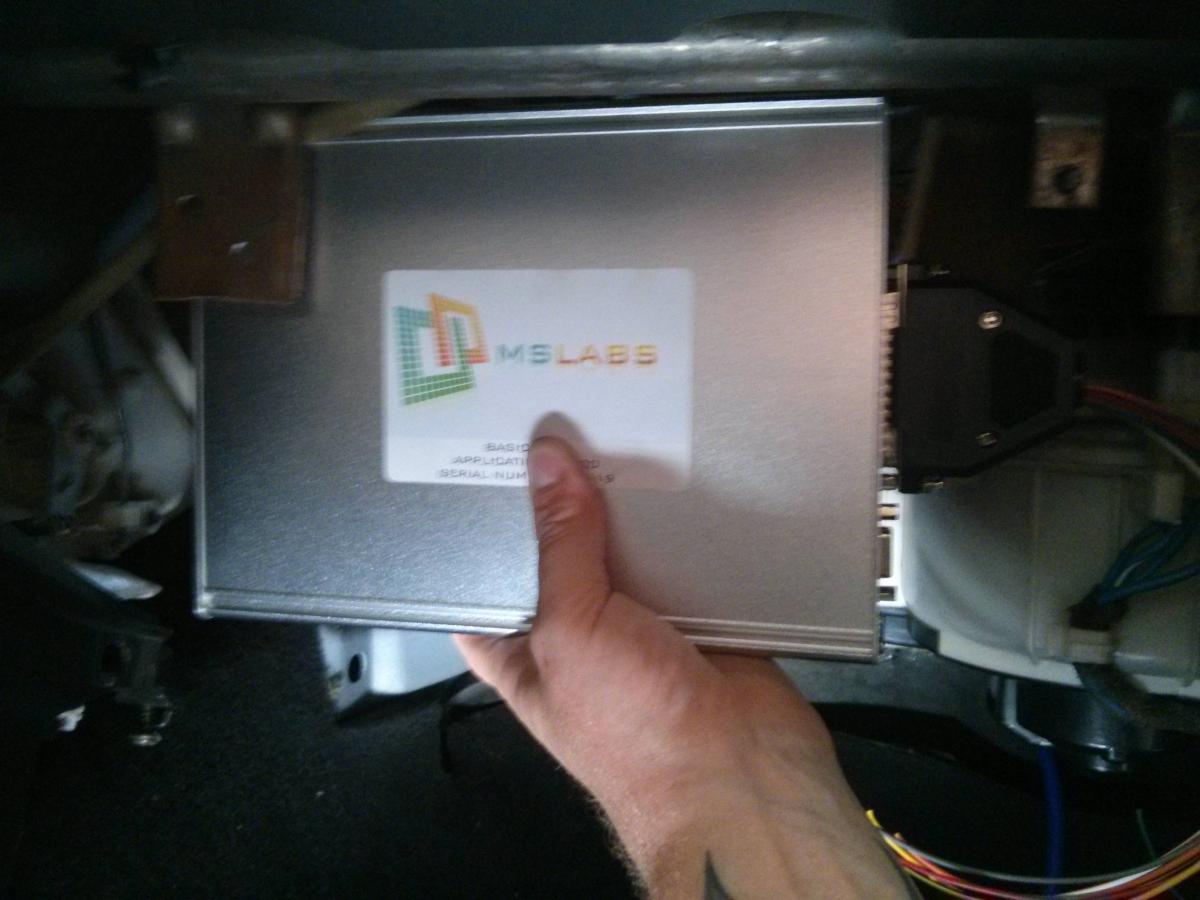

I'm going behind the glove box. Boomslang made me a extension harness for the one that isn't long enough. Mine is 48in and was about $100, but a 36in would work and be cheaper. I err'd on the long side since I think I'm the first going this route. The two green ecu connectors that are engine harness will route far enough to work.



Edit:

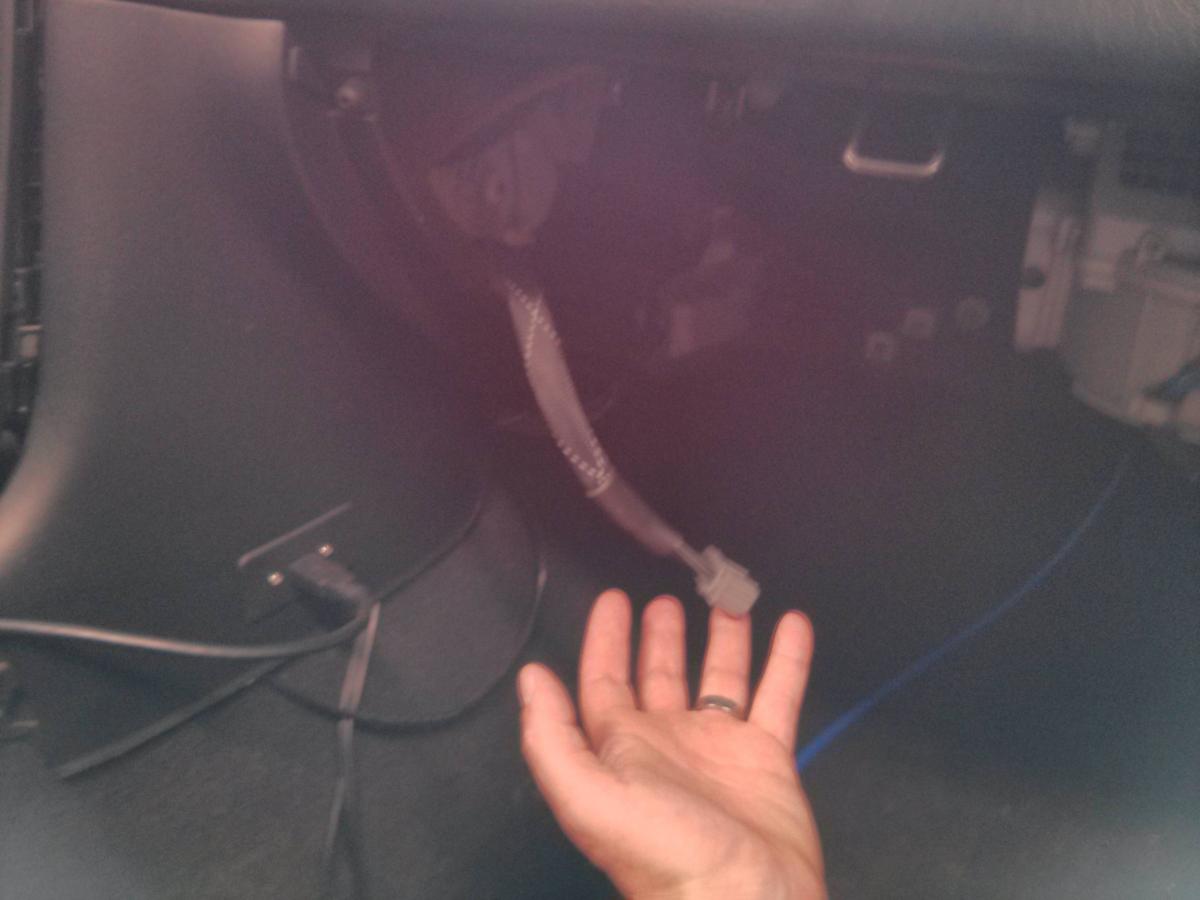

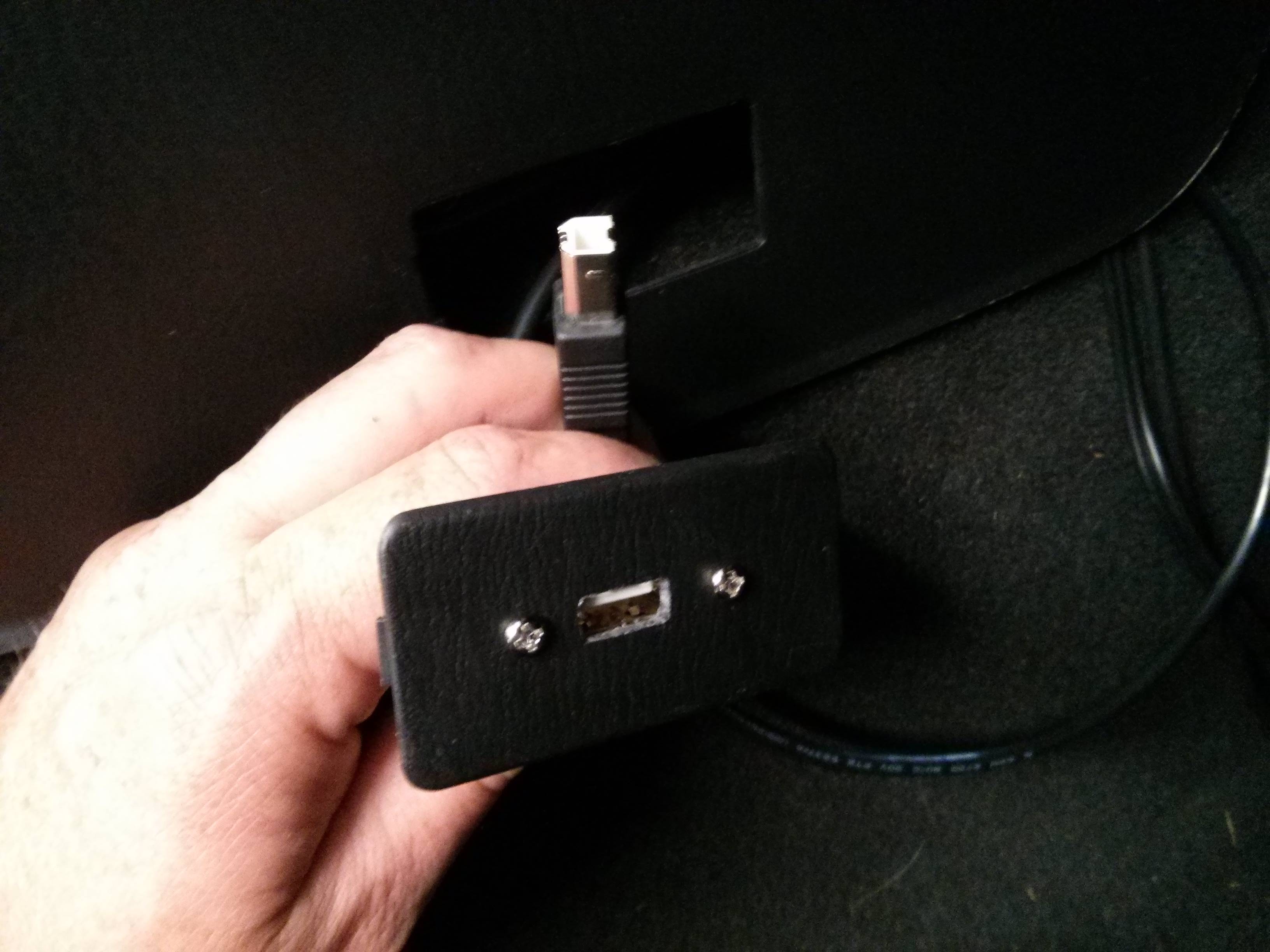

Found the pic of extension harness and second is the USB panel mount. Should eliminate the need to fiddle around with wired ecu connections.




Haven't done mounting yet. Semester started and mildly lost interest in my slow going project.
Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-tl2qjqu.jpg   Where to install a Reverant MS3 Basic in a 99-zvntif0.jpg   Where to install a Reverant MS3 Basic in a 99-zvntif0.jpg
TorqueZombie is offline   Reply With Quote
Old 09-21-2013, 08:41 PM   #3
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,808
Total Cats: 183
Default

My ms2 has a small harness cause it goes db37 to Miata stock harness. My ms2 is zip tied to the steering column kind of...
Ms3 looks way bigger, and I really dig the way you cut that hole in the side of the interior panel for the USB port. That is win all over.
thirdgen is online now   Reply With Quote
Old 09-21-2013, 09:28 PM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by TorqueZombie View Post
I'm going behind the glove box. Boomslang made me a extension harness for the one that isn't long enough. Mine is 48in and was about $100, but a 36in would work and be cheaper. I err'd on the long side since I think I'm the first going this route. The two green ecu connectors that are engine harness will route far enough to work.


Edit:
Found the pic of extension harness and second is the USB panel mount. Should eliminate the need to fiddle around with wired ecu connections.

Haven't done mounting yet. Semester started and mildly lost interest in my slow going project.
Awesome, I was actually over at Concealer404's place, and he said he needs to make a couple of harnesses for his crazy 90s bandaids, so that's probably what I'll do.

I found this m.net thread with the part numbers for the stock connectors, I'll look into if they are correct or not later. Right now it's time to drink my sorrows away.

Thanks again TZ, great pics.

Oh and thirdgen I think that cutout is already there isn't it?
thenuge26 is offline   Reply With Quote
Old 09-22-2013, 10:35 AM   #5
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

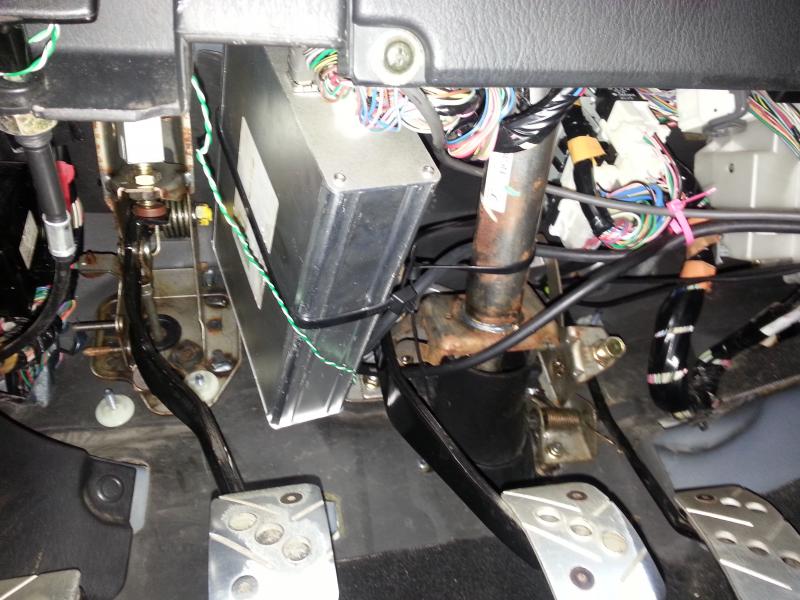

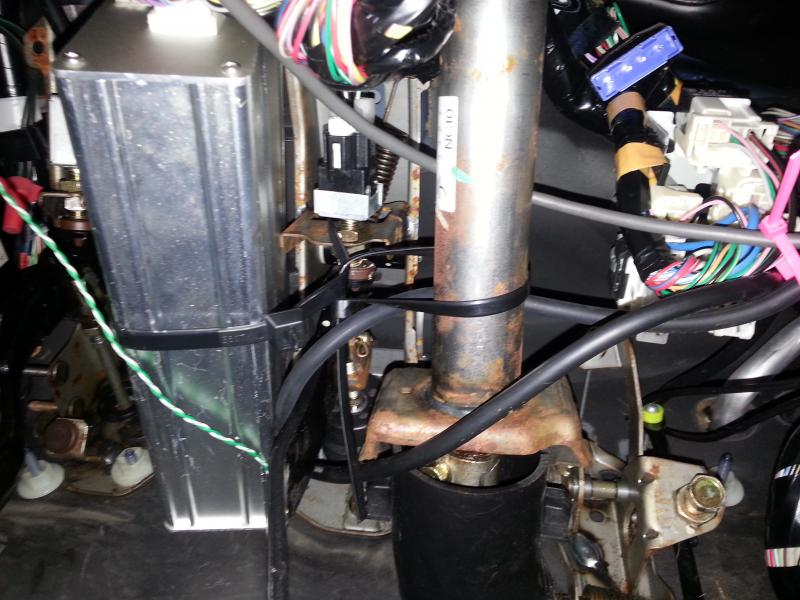

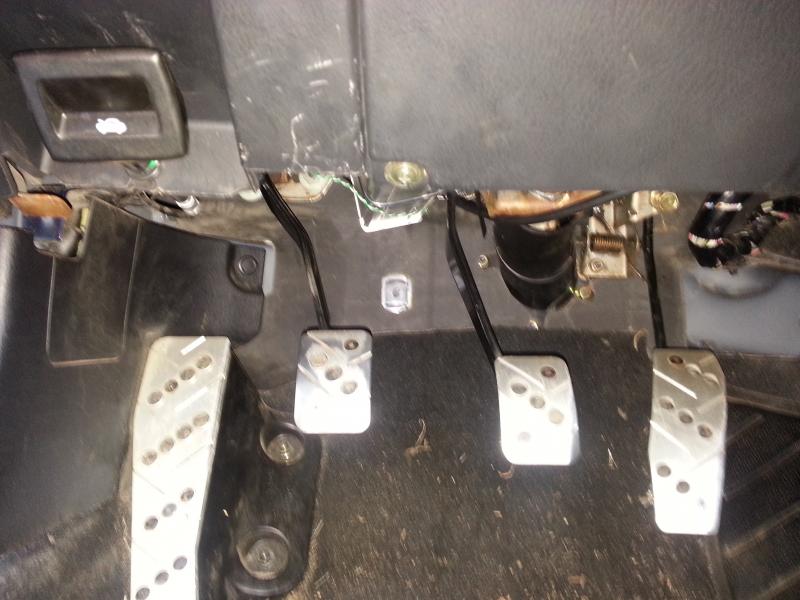

Reverant sent me a picture of one installed next to the steering column. Unfortunately, I did not save it. Perhaps he will post it here?
DNMakinson is offline   Reply With Quote
Old 09-22-2013, 12:43 PM   #6
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Yeah that cutout is already there. Never thought to use it as a USB jack, though, awesome idea! I need to do that for my NB.

As for the MS3... i dont think there's any GOOD way that this thing is fitting on the driver's side. It's HUGE. It really needs to be mounted Hydra-style with a patch harness.
concealer404 is offline   Reply With Quote
Old 09-22-2013, 01:36 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default





Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-20130710_184003_zps011604bf.jpg   Where to install a Reverant MS3 Basic in a 99-20130710_183932_zps5ac75fa6.jpg   Where to install a Reverant MS3 Basic in a 99-20130710_183922_zpsf03a0344.jpg
Reverant is offline   Reply With Quote
Old 09-22-2013, 01:53 PM   #8
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

He has the breakout harness on the other end, though. I shoved it up there but with engine harness on one side, breakout on the other, it wasn't going to work real well.
concealer404 is offline   Reply With Quote
Old 09-22-2013, 01:56 PM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

I'll bring everything back over after grabbing some food and we'll give it another shot. But we'll start with the ECU this time lol.
thenuge26 is offline   Reply With Quote
Old 09-22-2013, 03:06 PM   #10
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by Reverant View Post
pics
Thanks for the pics Reverant. Did that also have the DB-37 harness attached to it? It looked like it might have had a chance except for that expansion harness.
thenuge26 is offline   Reply With Quote
Old 09-22-2013, 03:43 PM   #11
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

He removed the black cover on the DB37 connector and insulated any bare contacts with electrical tape.
Reverant is offline   Reply With Quote
Old 09-22-2013, 04:27 PM   #12
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

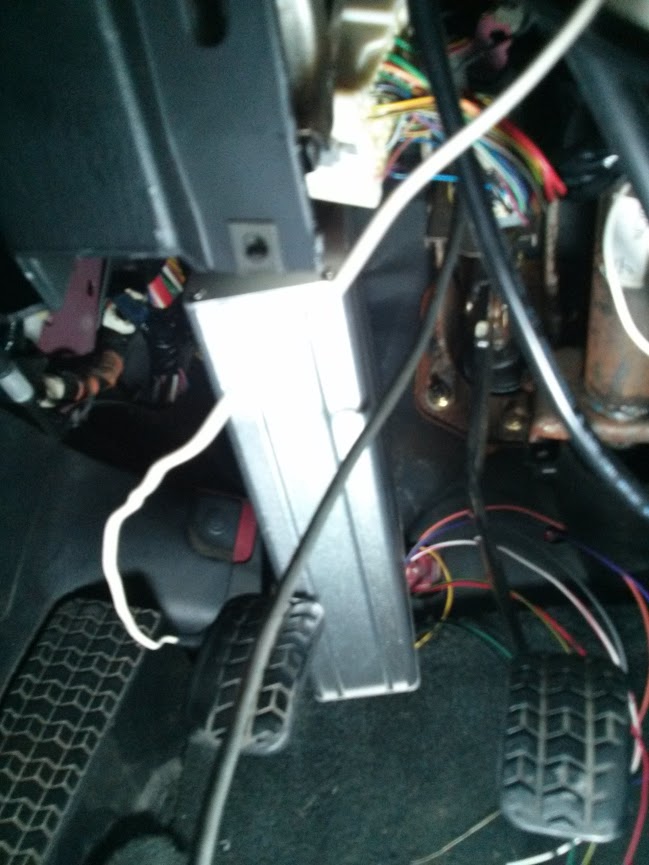

Awesome, I will try that, I could almost get it in that spot, but the DB37 was right up against the firewall.

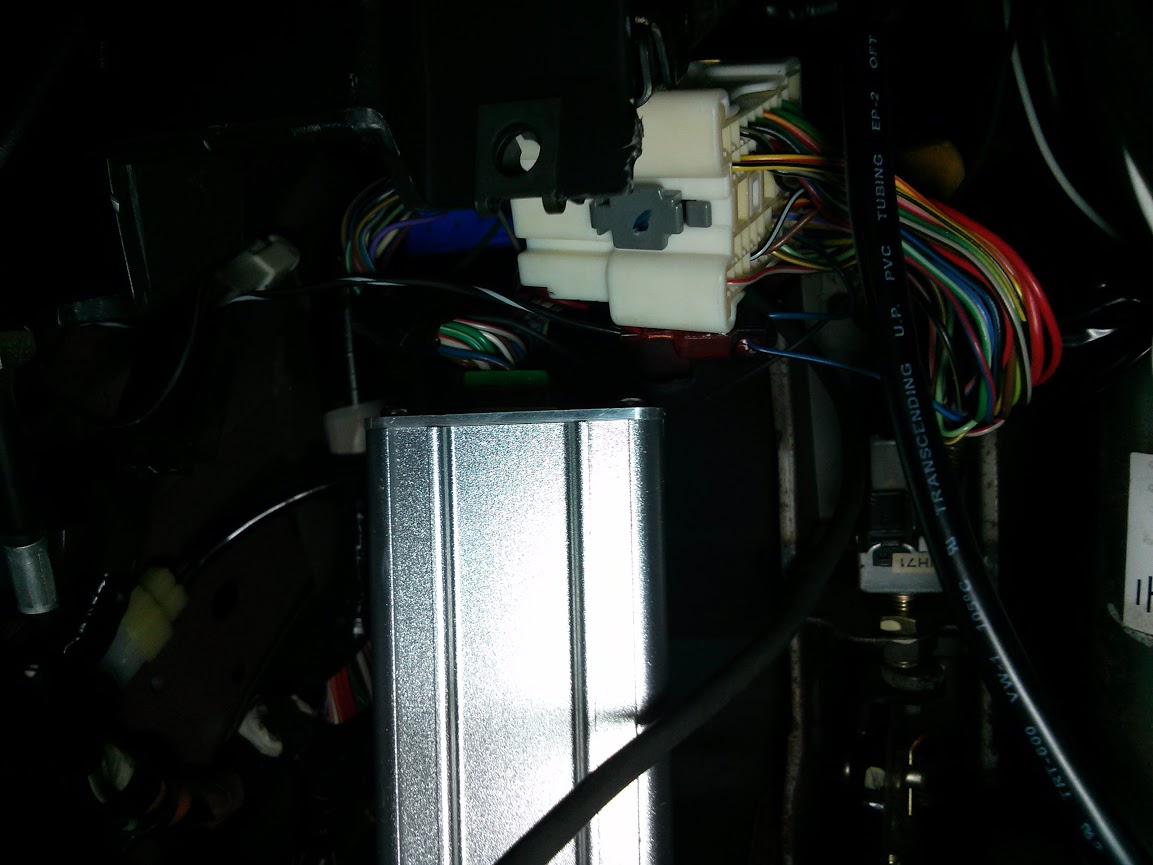

The main problem appears to be the white plug seen in picture 2.





Anyone know what that is? I guess I could have looked while I was under there. I might see how much room I have to move it out of the way.

I powered up the MS3 and calibrated my TPS at least.
Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-rf127si.jpg   Where to install a Reverant MS3 Basic in a 99-bijhm4n.jpg
thenuge26 is offline   Reply With Quote
Old 09-22-2013, 06:18 PM   #13
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,701
Total Cats: 269
Default

Might this help?



Where to install a Reverant MS3 Basic in a 99-screen-shot-2013-09-22-5.22.29-pm.jpg

Last edited by DNMakinson; 09-22-2013 at 06:25 PM. Reason: URL did not paste well.
DNMakinson is offline   Reply With Quote
Old 09-22-2013, 06:25 PM   #14
Senior Member
iTrader: (8)

Join Date: Jun 2010
Location: Navarre, FL
Posts: 1,127
Total Cats: 39
Default

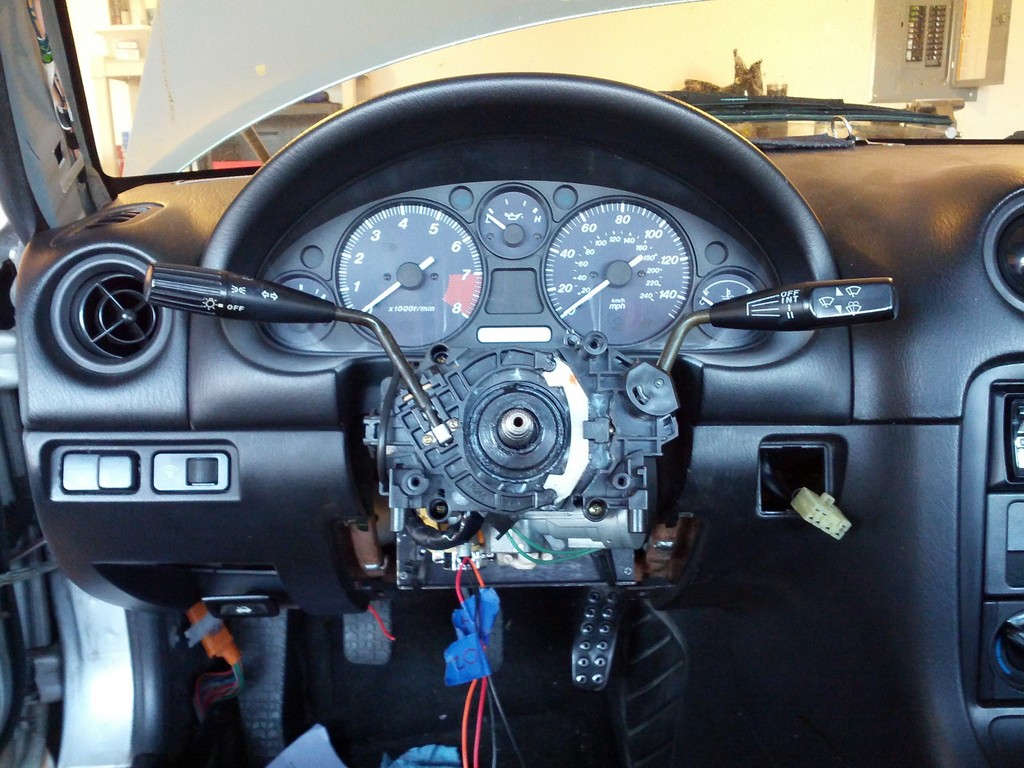

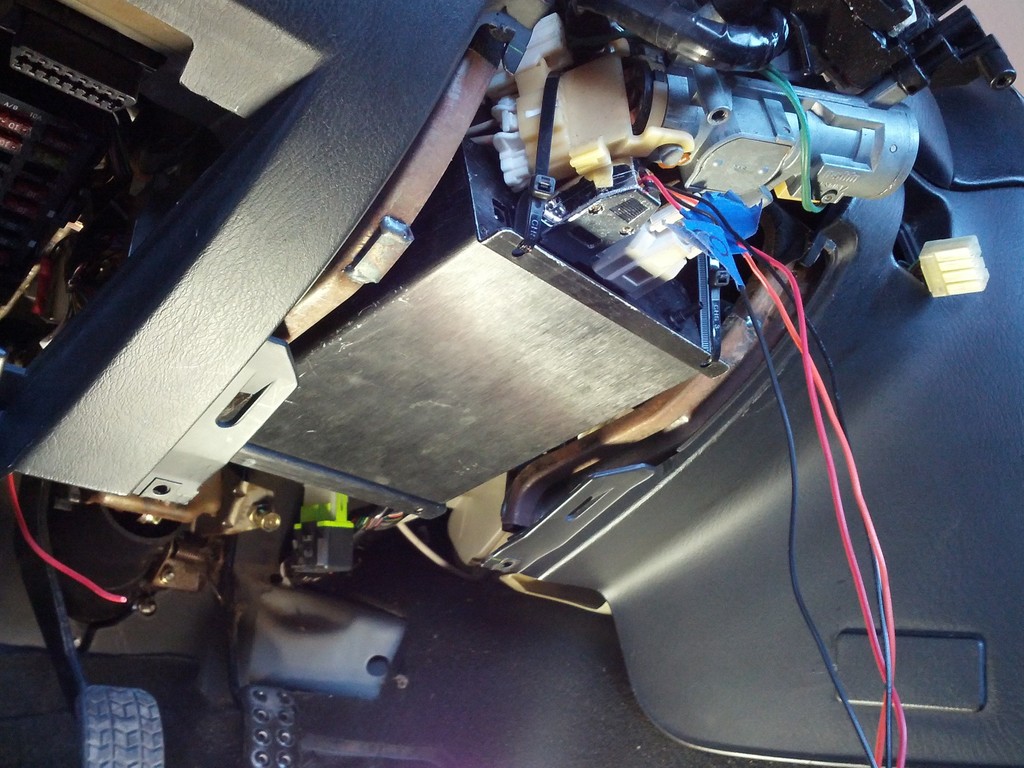

I have a DIYPNP, but that appears to be of similar size. I got tired of installing and pulling it from the clutch/brake location... here's what I did:



Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-img_20130118_163904.jpg   Where to install a Reverant MS3 Basic in a 99-img_20130118_163745.jpg
aaronc7 is offline   Reply With Quote
Old 09-23-2013, 01:22 AM   #15
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

The ms3 won't fit in that location.
concealer404 is offline   Reply With Quote
Old 09-23-2013, 02:40 AM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,187
Total Cats: 2,583
Default

diypnp is way way smaller aaron

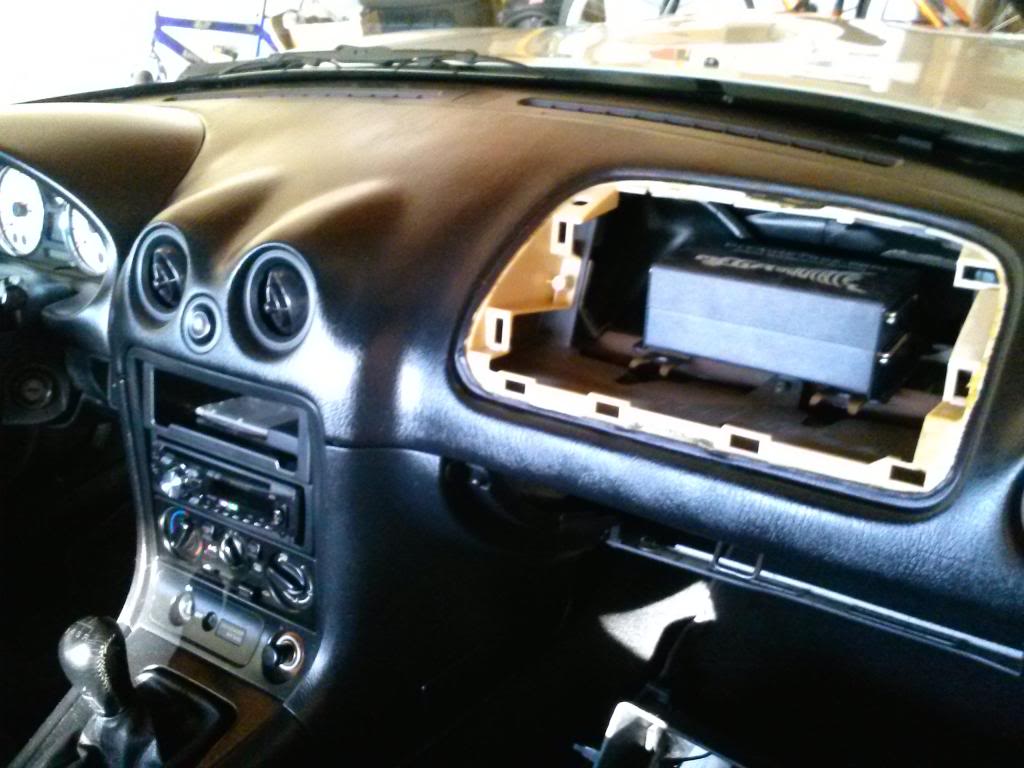

My solution might also be not relevant to thread

Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-cam00122.jpg
18psi is offline   Reply With Quote
Old 09-23-2013, 09:58 AM   #17
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

It's just too wide to fit in there Aaron. And don't think I didn't try, I'm quite good at fitting wide things into tight spaces
thenuge26 is offline   Reply With Quote
Old 09-23-2013, 10:11 AM   #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

For instance, the MS3 WILL fit in his anus. Really the hardest part about that install was figuring out how to feed the factory plugs up through the seat.
concealer404 is offline   Reply With Quote
Old 09-26-2013, 10:47 AM   #19
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

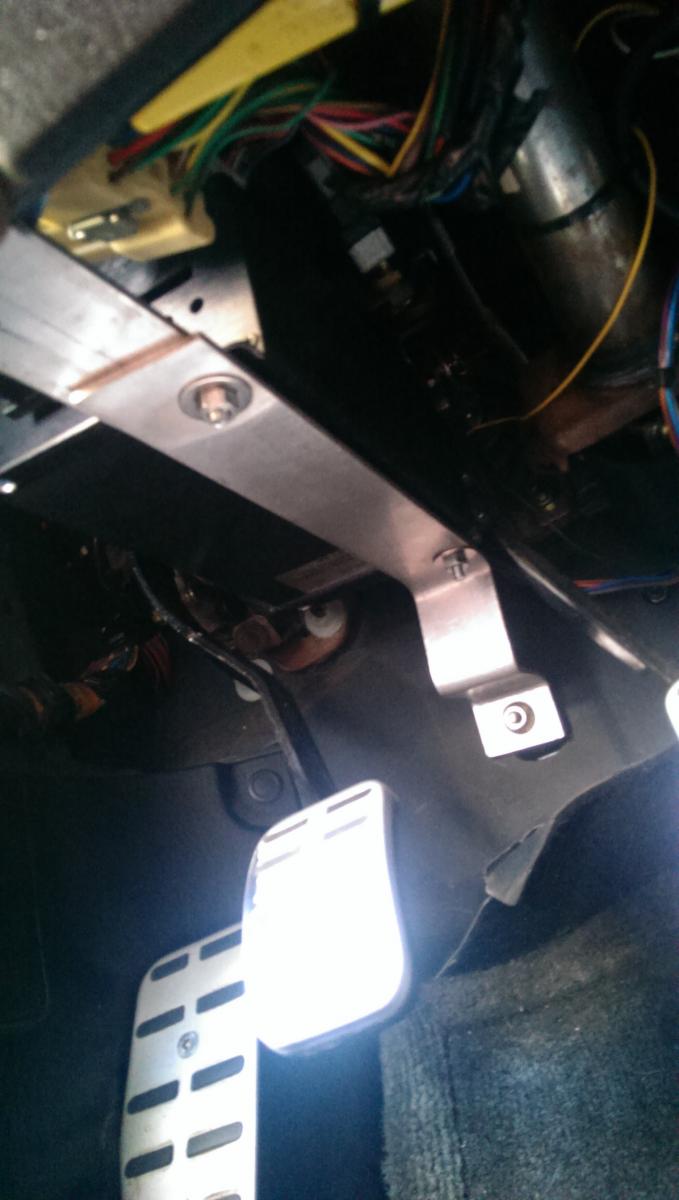

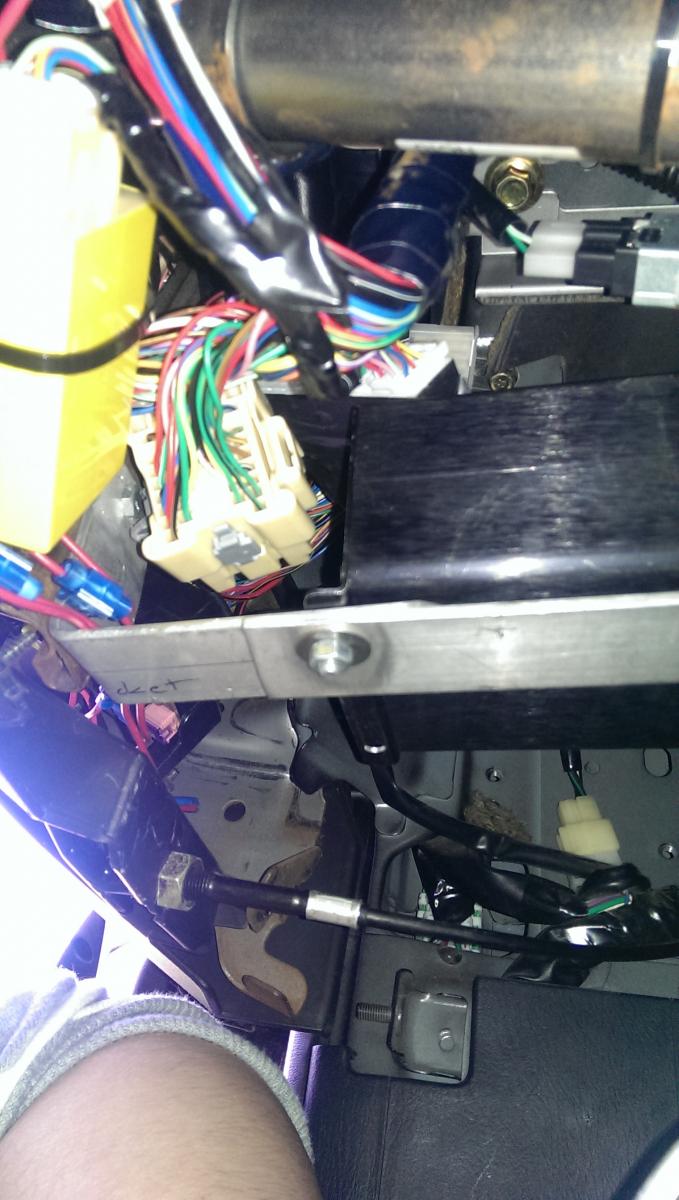

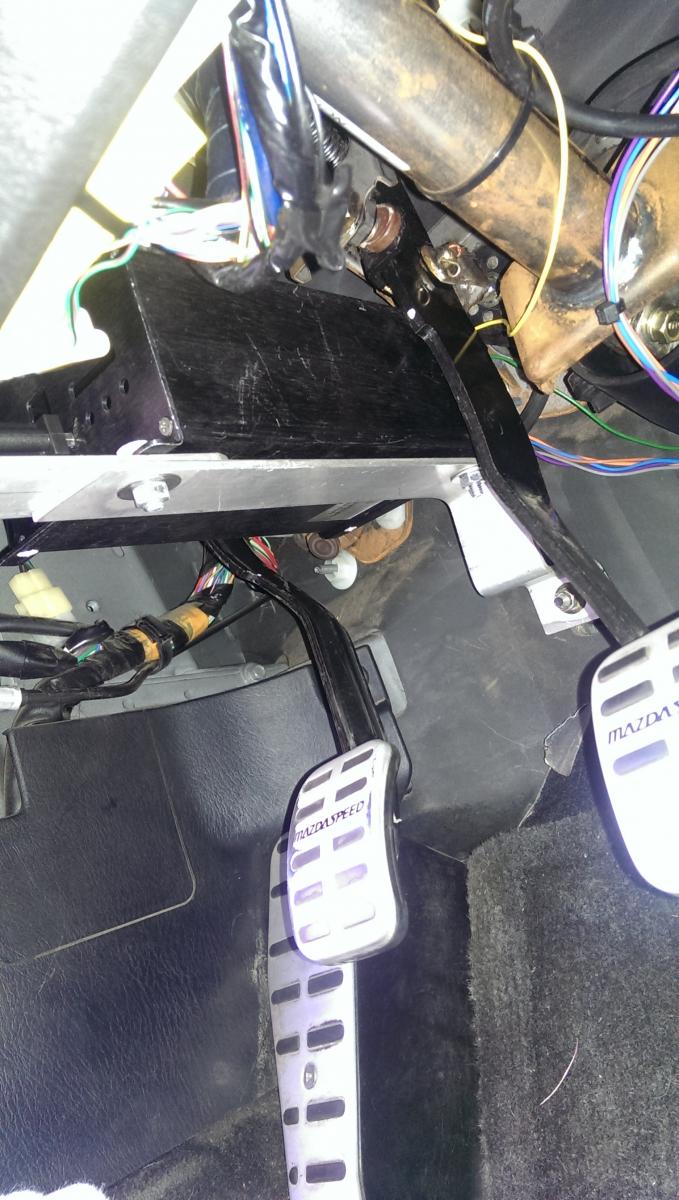

I already sent these photos to concealer but this is what I came up with to mount my ms2e.

Basically just made an aluminium bracket that bolts in to the oem ecu's bracket bolt and runs across to near the fuse box and the ms2 sits ontop. Then I just ran the serial cable out the fuse box.
Attached Thumbnails
Where to install a Reverant MS3 Basic in a 99-2013-09-21-16.43.17.jpg   Where to install a Reverant MS3 Basic in a 99-2013-09-21-16.43.44.jpg   Where to install a Reverant MS3 Basic in a 99-2013-09-21-16.43.53.jpg
Mazduh is offline   Reply With Quote
Old 09-26-2013, 10:50 AM   #20
Elite Member
Thread Starter
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If I wanted to not hack it together, I would have done something like that. For now I will save the nice mounting options until I put it behind the glovebox with an extension harness.

I'll take some pics of the hack job at lunch. We got it up there and installed.
thenuge26 is offline   Reply With Quote
