Default Why is my AFR so noisy?

Ths is a '95 with MS1 and an LC-1. I can't get a smooth AFR like many of the logs I've seen. I've messed with the grounds several times and tried different locations, leading me all to the same sort of logs like this one.

The only thing that I haven't been successful at is getting LM Programmer to stay configured to 0-5 10-20:1 like everyone else. I can connect *sometimes* to LM Programmer, then when I hit "Program" and play with the tabs, it resets to default settings. I've read one other thread on this problem, but I'm not successful at getting a fix. TS and my analog AFR gauge reads the same AFR though I'm confused by this because TS is set to 0-5 10-20:1 so I'm thinking it's not a configuration problem?


Here's a quick log at idle. The AFR fluctuated from 13.8-14.9 : /.
Attached Files
File Type: msq 2009-12-29_01.48.41.msq (32.2 KB, 69 views)
popopopop is offline   Reply With Quote
Old 01-12-2010, 02:03 AM   #2
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

Yea I had the same exact problems with my LC-1 then found out it was a bad sensor that was causing some b.s. short, So I switched to the AEM and will not turn back.
p51hellfire is offline   Reply With Quote
Old 01-12-2010, 02:29 AM   #3
Junior Member
Thread Starter

Join Date: Apr 2008
Location: Dallas metroplex
Posts: 142
Total Cats: -1
Default

I'm not happy being on my third USB/Serial cable also. I'm already reading the AEM install instructions and it looks way simple and less finicky.
popopopop is offline   Reply With Quote
Old 01-12-2010, 02:39 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,322
Default

Describe to me in vivid, vivid detail how your LC-1 is grounded.
Savington is offline   Reply With Quote
Old 01-12-2010, 02:53 AM   #5
Junior Member
Thread Starter

Join Date: Apr 2008
Location: Dallas metroplex
Posts: 142
Total Cats: -1
Default

I extended the wires with 18 gauge wires and I had each wire soldered into it's own lug and grounded it where the throttle body attaches to the intake manifold (4 bolts here). I've also tried the two bolts holding down the throttle cable. These were both suggested by Hustler, but it didn't work.

Right now I have all wires soldered into a single lug (best config. from the manual) into that ground to the right/under the throttle body.
popopopop is offline   Reply With Quote
Old 01-12-2010, 02:53 AM   #6
Junior Member
Thread Starter

Join Date: Apr 2008
Location: Dallas metroplex
Posts: 142
Total Cats: -1
Default

I extended the wires with 18 gauge wires and I had each wire soldered into it's own lug and grounded it where the throttle body attaches to the intake manifold (4 bolts here). I've also tried the two bolts holding down the throttle cable. These were both suggested by Hustler, but it didn't work.

Right now I have all wires soldered into a single lug (best config. from the manual) into that ground to the right/under the throttle body.
popopopop is offline   Reply With Quote
Old 01-12-2010, 04:36 AM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

On the 30kPa row, the first cell (800rpm) is 39 and the next (1200rpm) is 46, while the one below the 46 is 40. You won't get a steady afr like that.

Jim
Reverant is offline   Reply With Quote
Old 01-12-2010, 08:52 AM   #8
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Not to doubt Hustler but those don't sound like great grounds, aluminum isn't the best conductor. Try the body somewhere, see what happens.
curly is offline   Reply With Quote
Old 01-12-2010, 09:54 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

any reason your map sensor is brokenz?
Braineack is online now   Reply With Quote
Old 01-12-2010, 10:01 AM   #10
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

He's idling, it's only changing 2kpa.
TrickerZ is offline   Reply With Quote
Old 01-12-2010, 10:06 AM   #11
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

As far as the AFRs, you should try setting the VE table so all the surrounding cells are the same and see if it stays the same. If it does, then there's probably something wrong with the sensor like p51 said.

Also, you say the MS and LC-1 give the same readings, so I'm assuming they're grounded to the same spot? If not, they should be.
TrickerZ is offline   Reply With Quote
Old 01-12-2010, 10:13 AM   #12
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Your LC1 programming issue mimics one of the problems I was having before sending it to Innovate. They recommended to me to try reflashing the firmware before sending it in for service. In my case, reflashing did not do anything, but it's worth a try.

The range of oscillation in a/f you're experiencing at idle isn't that great. It's less than what the factory computer would go through in closed loop idle. It would get smoother if you hand tune for 14:1 and set your bottom-left 4 VE table cells much tighter (have very small changes between the numbers in those cells). 7 points is too large of a difference there and may cause lean-rich oscillations.

Your screen cap is scaled funny and you show AFR twice. I'd have rather seen TPS instead of AFR again. I can't tell what's up with the spikes in MAP.
Ben is offline   Reply With Quote
Old 01-12-2010, 12:19 PM   #13
Junior Member
Thread Starter

Join Date: Apr 2008
Location: Dallas metroplex
Posts: 142
Total Cats: -1
Default

Quote:
Originally Posted by Reverant View Post
On the 30kPa row, the first cell (800rpm) is 39 and the next (1200rpm) is 46, while the one below the 46 is 40. You won't get a steady afr like that.
Jim
Yeah, it as when I had idle issues and was idling in that cell. I'll change it.

Quote:
Originally Posted by TrickerZ View Post
As far as the AFRs, you should try setting the VE table so all the surrounding cells are the same and see if it stays the same. If it does, then there's probably something wrong with the sensor like p51 said.

Also, you say the MS and LC-1 give the same readings, so I'm assuming they're grounded to the same spot? If not, they should be.
I think I've done this, but I'll try it again too.

Quote:
Originally Posted by Ben View Post
Your LC1 programming issue mimics one of the problems I was having before sending it to Innovate. They recommended to me to try reflashing the firmware before sending it in for service. In my case, reflashing did not do anything, but it's worth a try.

The range of oscillation in a/f you're experiencing at idle isn't that great. It's less than what the factory computer would go through in closed loop idle. It would get smoother if you hand tune for 14:1 and set your bottom-left 4 VE table cells much tighter (have very small changes between the numbers in those cells). 7 points is too large of a difference there and may cause lean-rich oscillations.

Your screen cap is scaled funny and you show AFR twice. I'd have rather seen TPS instead of AFR again. I can't tell what's up with the spikes in MAP.
Some of the time when I try to hook up the LC-1 to my laptop, my AFR in TS and my AFR gauge actually gets suck until I cycle the ignition again. I'll try to see if I can connect again in a bit. It's just a bit discouraging when I see AFR logs like this one.

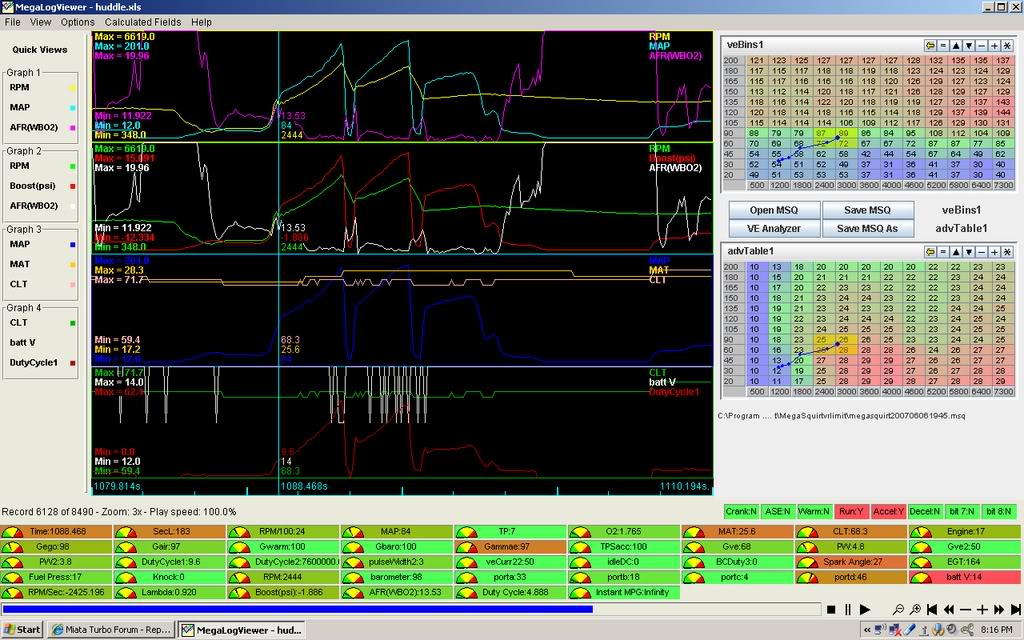

Name:  gears.jpg
Views: 5
Size:  167.5 KB
popopopop is offline   Reply With Quote
Old 01-12-2010, 12:28 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default




just rubbing it in...
Braineack is online now   Reply With Quote
Old 01-12-2010, 01:11 PM   #15
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

AFR line looks fine to me. It loks so jagged because the 'high' is a mere 14.8 and the low is 13.9

Try driing around aswell so you get a full range of AFR's that in it's self will smooth the graph out considerably.

Also echo Ben and Jim, keep the idle bins similar/exactly the same.
richyvrlimited is offline   Reply With Quote
Old 01-12-2010, 02:15 PM   #16
Junior Member
Thread Starter

Join Date: Apr 2008
Location: Dallas metroplex
Posts: 142
Total Cats: -1
Default

Alright alright. This looks much better. I guess I've been jaded by really even looking AFR like Braineack's. Thank you all for the fast inputs! I'll get to tweaking it later tonight.

popopopop is offline   Reply With Quote
Old 01-12-2010, 02:16 PM   #17
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by Ben View Post
Your LC1 programming issue mimics one of the problems I was having before sending it to Innovate. They recommended to me to try reflashing the firmware before sending it in for service. In my case, reflashing did not do anything, but it's worth a try.
On the programming issue, I also found that the values didn't like to "stick" when I programmed them as 10:1 or 20:1 AFR. So I did the math and input the numbers in LM Programmer as lambda values instead of AFR and now it works perfectly, first time every time.
It seems the software no habla AFR muy bien.

EDIT: Woot! 500th post! I am senior! LOL
ScottFW is offline   Reply With Quote
Old 01-12-2010, 02:30 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

I love the calibrate wide band feature in MSII.
Braineack is online now   Reply With Quote
Old 01-12-2010, 02:44 PM   #19
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Looks like you rescaled the table a little. What size are your injectors?
A little rich at and coming off idle will ride nicely. Lean spots will surge or buck. The fuel economy penalty for running a tad rich at light load will be very small.

It also looks like you allow autotune to affect changes in the idle area. I prefer to tune idle by hand and then restrict the autotune to not make changes in light load by setting up the filter on the VE analyze dialog box.
Ben is offline   Reply With Quote
Old 01-12-2010, 02:46 PM   #20
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by ScottFW View Post
On the programming issue, I also found that the values didn't like to "stick" when I programmed them as 10:1 or 20:1 AFR. So I did the math and input the numbers in LM Programmer as lambda values instead of AFR and now it works perfectly, first time every time.
It seems the software no habla AFR muy bien.

EDIT: Woot! 500th post! I am senior! LOL
Mine always walked by some extremely minimal amount, like .01:1. I assumed it was just rounding error from being converted back to lamda or something. Wasn't a big deal.

Really though, lambda values are so much simpler to deal with than a/f. I don't know why somebody decided that we needed to add an extra level of complexity. But it is what it is.
Ben is offline   Reply With Quote
