Wiring up an AEM AFR WBO2 to a 2000?


Old 09-17-2018, 06:40 AM
  #1
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default Wiring up an AEM AFR WBO2 to a 2000?

Sorry for the noob question, but I cannot find any concrete information about wiring up an AEM 30-0300 X-Series WBO2 UEGO, into any NB Miata? I can find plenty of info about an NA car, but none for the NB? I believe this is my 2nd post here. I'm usually just a lurker here, but I finally have a question.

I'm installing an MSPNP2 along with the WBO2. I'm deleting my NBO2's, as emissions aren't in Alabama.

I've been researching all day and I'm sure I'm overlooking and overthinking the whole process, but what I need to know is, which wire coming off the new WB harness do I need to splice into the stocks O2 plug harness? I have included pics of all the wire colors.

This is the 5 wire new WBO2 Sensor



This is the new WBO2 Harness



This is the stock harness O2 wire colors; Solid Blue, Black w/White stripe, Black w/Red stripe, Pink w/Yellow stripe.



No picture, but the stock O2 sensor wires are White, White, Black and Grey.
Mirage775 is offline
Old 09-17-2018, 10:12 AM
  #2
Junior Member

Join Date: Mar 2015
Posts: 159
Total Cats: 14
Default

You're better off wiring directly to the ECU
cpierr03 is offline
Old 09-17-2018, 10:46 AM
  #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,584
Total Cats: 241
Default

I also replied to miata.net but my reply there awaits moderation.

This won't work, you can't plug in a wideband sensor as-is to the Megasquirt, you need to get a gauge (controller) that will connect to the sensor, and the controller will output a single signal wire to the Megasquirt.
__________________
Originally Posted by ninerwfo View Post
The “into to megasquirt thread” mentions that the MS3 basic has 5 inputs with built in pull up resistors - and I was just wondering why it would have so many, while the MS3Pro PnP has just 2 (with no pull ups?)
MS Labs: Plug and Play Megasquirt ECUs for ANY 90-05 Miata (NA, NB1, NB2 w/VVT, MSM), including basemaps to get you started ASAP. PM me or email or details.
For support on MS Labs ECUs: Please email, be sure to include the unit's serial number and include a datalog and your current map.
Reverant is offline
Old 09-17-2018, 11:17 AM
  #4
Junior Member

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

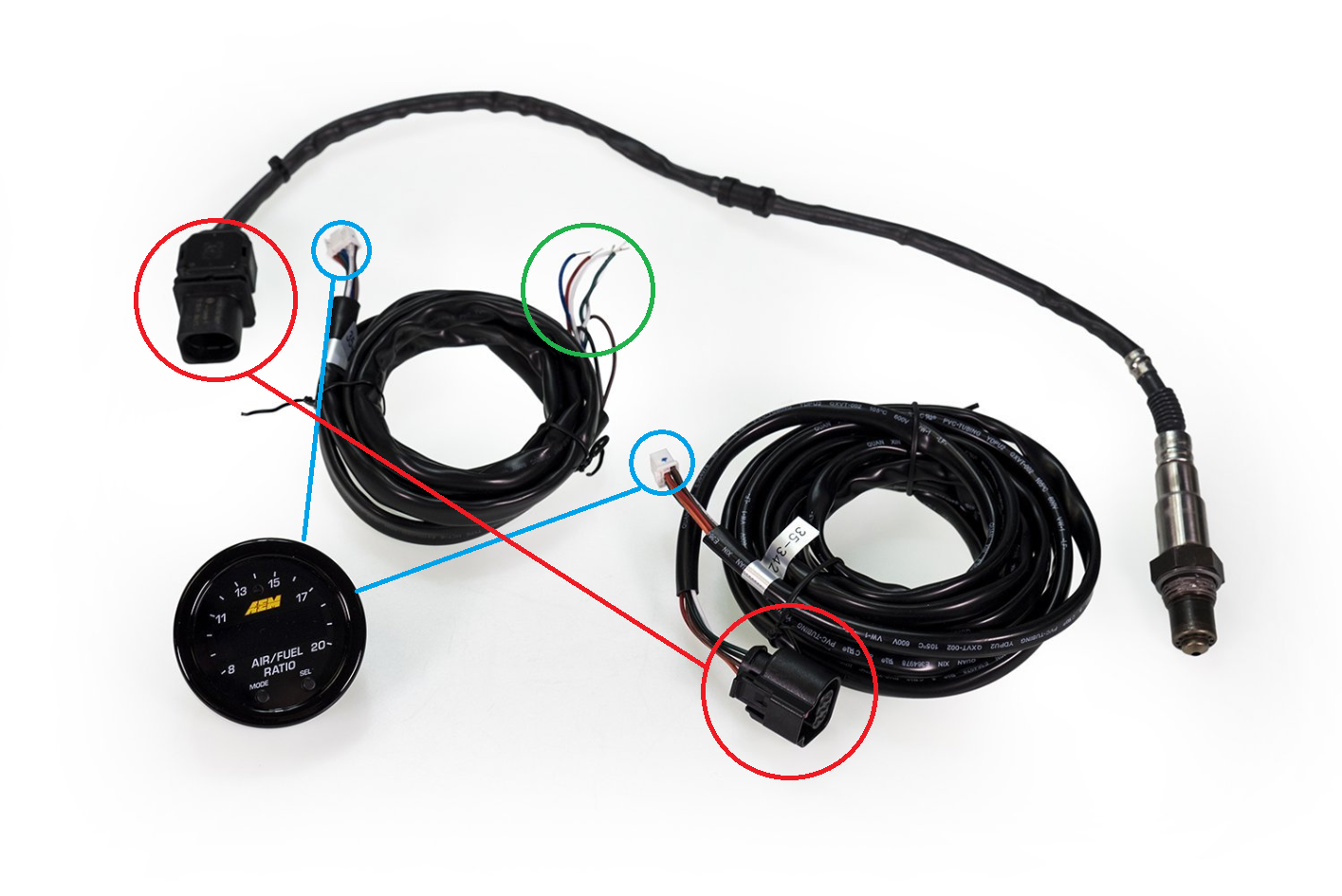

You shouldn't have to splice any wires of the WB harness. I'm not too familiar with your WB, but just glossing over the images, it looks like it should be wired up so:
  • 2 Connectors in Red connect to one another
  • 2 Connectors in Blue connect to WB Gauge
  • Wires in Green are your output signals that you would wire to the MS or O2 harness
HmoobDude is offline
Old 09-17-2018, 05:05 PM
  #5
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by cpierr03 View Post
You're better off wiring directly to the ECU
I wasn't sure if I could do that or not, but it would definitely be easier!

Originally Posted by Reverant View Post
I also replied to miata.net but my reply there awaits moderation.

This won't work, you can't plug in a wideband sensor as-is to the Megasquirt, you need to get a gauge (controller) that will connect to the sensor, and the controller will output a single signal wire to the Megasquirt.
I have the complete gauge/WBO2 kit.

Originally Posted by HmoobDude View Post
You shouldn't have to splice any wires of the WB harness. I'm not too familiar with your WB, but just glossing over the images, it looks like it should be wired up so:
  • 2 Connectors in Red connect to one another
  • 2 Connectors in Blue connect to WB Gauge
  • Wires in Green are your output signals that you would wire to the MS or O2 harness
That pic looks identical to my kit. So, for the wires in the Green circle above, I know red and black are power and ground. The rest of the wires say they're optional in the instructions? I'll post a pic of it next.
Mirage775 is offline
Old 09-17-2018, 05:28 PM
  #6
Junior Member

Join Date: Jul 2018
Location: Colorado
Posts: 86
Total Cats: 3
Default

Originally Posted by Mirage775 View Post
I wasn't sure if I could do that or not, but it would definitely be easier!
That pic looks identical to my kit. So, for the wires in the Green circle above, I know red and black are power and ground. The rest of the wires say they're optional in the instructions? I'll post a pic of it next.
Read the instructions? I can't tell from the pic, it looks like there are 4 wires. As you said, red and black are power and ground. I imagine the other 2 are your output signals and I would think one is for WB (0-5V) and Narrow Band (0-1V). Refer to your instructions for which is which.

Originally Posted by Mirage775 View Post
I wasn't sure if I could do that or not, but it would definitely be easier!
You can, refer to this page: MegaSquirtPNP by DIYAutoTune.com
HmoobDude is offline
Old 09-17-2018, 06:55 PM
  #7
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by HmoobDude View Post
Read the instructions? I can't tell from the pic, it looks like there are 4 wires. As you said, red and black are power and ground. I imagine the other 2 are your output signals and I would think one is for WB (0-5V) and Narrow Band (0-1V). Refer to your instructions for which is which.

You can, refer to this page: MegaSquirtPNP by DIYAutoTune.com
Yes, I read the instructions. I read the instructions for anything I buy. I'm just unsure if I want to mess with this. I'm old school, V8's, carbs, load pipes, etc. I bought the Miata for my wife and kinda started modifying it, LOL! This new era of tuning cars scares me a little and I don't want to mess up the car with something wired up wrong. All the videos I've watched said you had to splice the wires in the stock harness and the instructions don't say that, although they're pretty generic.

Instructions say:

Red - Switched 12v Power
Black - Power Ground
Green/Black - AEMnet-/CANL (Optional)
White/Black - AEMnet+/CANH (Optional)
Blue - Serial/RS=2323 Output (Optional)
White - 0-5V Analog Output Positive+ (Optional)
Brown - 0-5V Analog Output Negative- (Optional)

I'm usually good at wiring, but I'm just unsure which of the above wires (Excluding Red & Black) splice into the under dash wires?
Mirage775 is offline
Old 09-17-2018, 07:05 PM
  #8
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

None of them, on a stock ECU car.
concealer404 is offline
Old 09-17-2018, 07:07 PM
  #9
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
None of them, on a stock ECU car.
But I'm installing my MSPNP2 at the same time.
Mirage775 is offline
Old 09-17-2018, 07:09 PM
  #10
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

Then you'll need to run the white and/or brown wires to the appropriate inputs at the Megasquirt.
concealer404 is offline
Old 09-17-2018, 07:11 PM
  #11
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
Then you'll need to run the white and/or brown wires to the appropriate inputs at the Megasquirt.
So, I can't just splice into the main wires that plug into the MS/ECU? I have to buy that optional cable and wire it up to the MS that way?
Mirage775 is offline
Old 09-17-2018, 07:13 PM
  #12
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

You don't have to.... but if you can avoid splicing into your harness anywhere, that's usually advisable. Is there a plug for a secondary auxiliary harness on your Megasquirt? I haven't messed with anything that outdated in a long time.
concealer404 is offline
Old 09-17-2018, 07:16 PM
  #13
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
You don't have to.... but if you can avoid splicing into your harness anywhere, that's usually advisable. Is there a plug for a secondary auxiliary harness on your Megasquirt? I haven't messed with anything that outdated in a long time.
Yep, there's an "Options" plug, but you have to buy an additional harness and find what wire does what and splice them together. I thought this AFR gauge install was simple and the MS was PNP and that was it... I'm having doubts about this whole thing now...
Mirage775 is offline
Old 09-17-2018, 07:26 PM
  #14
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

Additional harness and options plug should have a pin diagram. Play a matching game with 2 wires. This is super simple stuff. That said, if this is hard, you're going to have a bad time tuning.
concealer404 is offline
Old 09-17-2018, 08:06 PM
  #15
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
Additional harness and options plug should have a pin diagram. Play a matching game with 2 wires. This is super simple stuff. That said, if this is hard, you're going to have a bad time tuning.
I watched a few of Greg's (CarPassionChannel) YouTube videos of the MS install and they looked simple, but they were also on an NA... I know it's simple and I'm overreacting about the whole thing. I actually don't plan to tinker much with the MS. I'll auto tune it and that may be all I do with it. There's nobody around here that messes with MS, that's why I chose the PNP one.
Mirage775 is offline
Old 09-17-2018, 08:08 PM
  #16
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

You're going to need to do way more than autotune it. That's about.... 10% of the actual tuning.

I wouldn't put a Megasquirt on an unopened stock motor NB1, period, personally.
concealer404 is offline
Old 09-17-2018, 08:15 PM
  #17
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
You're going to need to do way more than autotune it. That's about.... 10% of the actual tuning.

I wouldn't put a Megasquirt on an unopened stock motor NB1, period, personally.
I was just going to install it to my car, then the new engine will be going into it during the Winter. It's definitely not too late to change my build plans. Someone said I could use ITB's on my car without a standalone? Is that true?
Mirage775 is offline
Old 09-17-2018, 08:18 PM
  #18
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 10,266
Total Cats: 1,609
Default

Originally Posted by Mirage775 View Post
I was just going to install it to my car, then the new engine will be going into it during the Winter. It's definitely not too late to change my build plans. Someone said I could use ITB's on my car without a standalone? Is that true?
Sounds like some crap sjmarcy would post.

If you're planning on making much more than stock power, or changing the motor itself (Or installing ITBs), yes, you need a standalone. No, tuning isn't as easy as hitting the "autotune button."
concealer404 is offline
Old 09-17-2018, 08:35 PM
  #19
Newb
Thread Starter

Join Date: Jul 2017
Posts: 25
Total Cats: -2
Default

Originally Posted by concealer404 View Post
Sounds like some crap sjmarcy would post.

If you're planning on making much more than stock power, or changing the motor itself (Or installing ITBs), yes, you need a standalone. No, tuning isn't as easy as hitting the "autotune button."
Thanks a lot!
Mirage775 is offline
Old 09-17-2018, 11:18 PM
  #20
Junior Member

Join Date: Apr 2016
Location: Houston, TX
Posts: 259
Total Cats: 21
Default

You should go with something a local tuner supports or see if you can get somebody here to remote tune for you if you don't plan on learning pass autotune.
skylinecalvin is offline
