Default Yet another MS3 + VVT in a 1990 that won't start

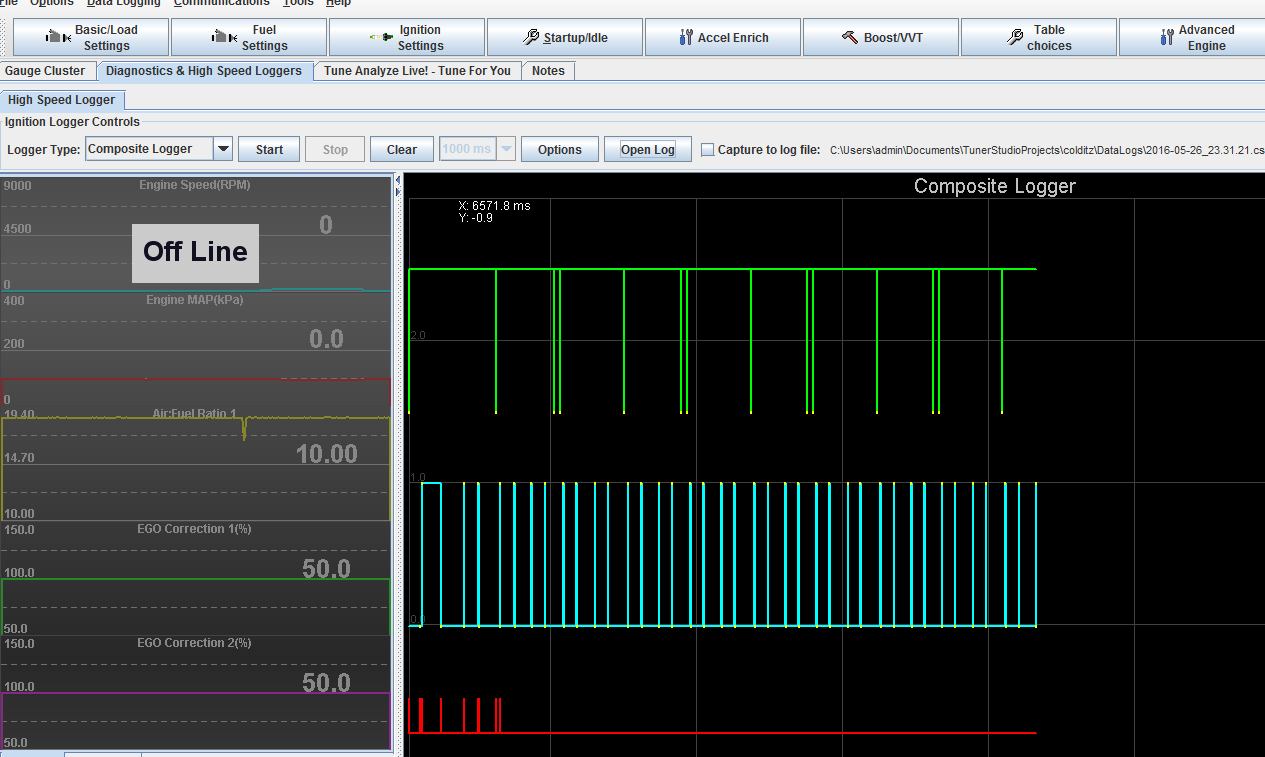

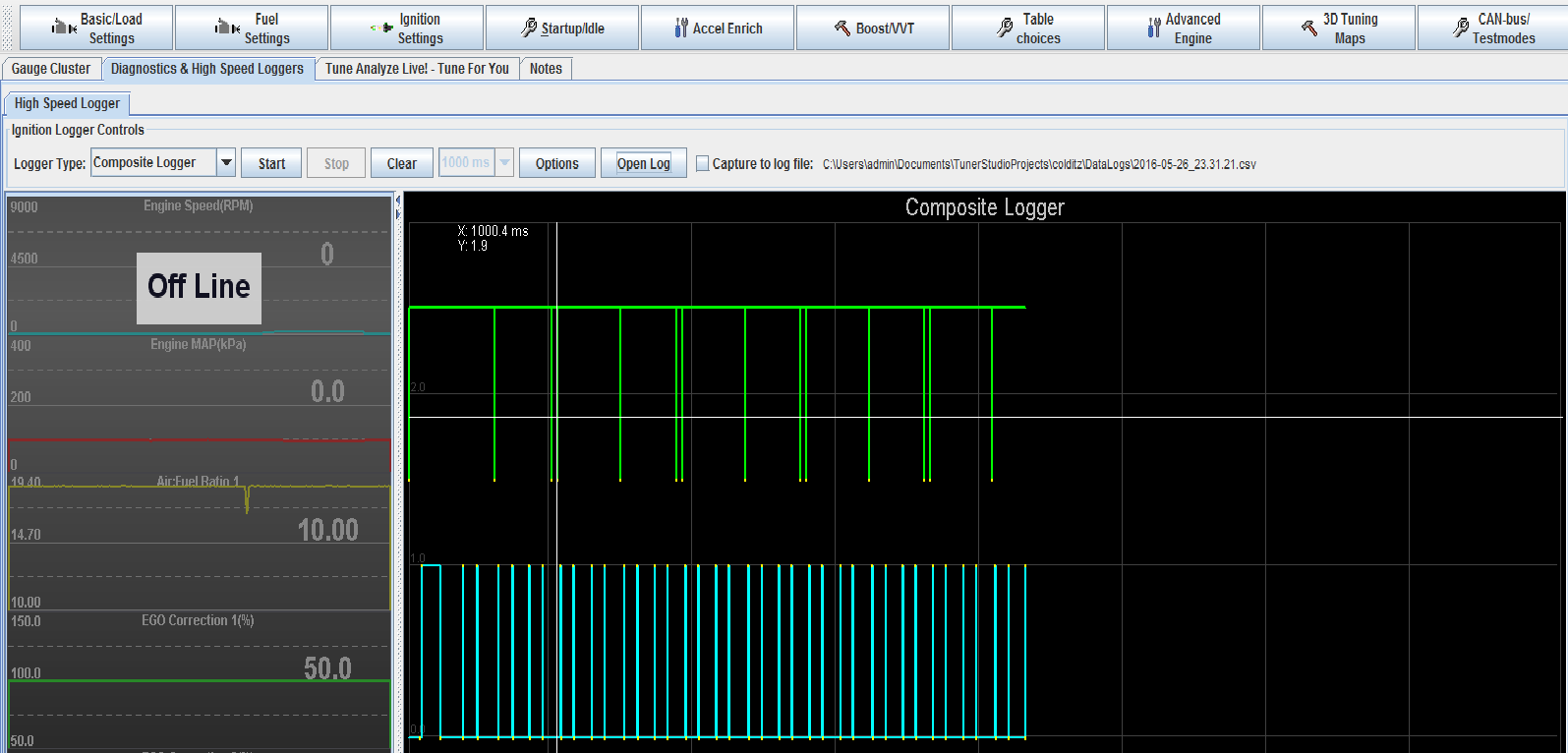

Threw the ECU in yesterday, finally filled it with fluids and having issues getting the thing started. Took a log of cranking which is pictured below. Is my cam signal inverted? Looks like I am getting sync, however.



Log & MSQ attached as well, although it should be relatively boring as it is just a MS3 basemap with sequential injection enabled.

Thanks!!

edit: my spark settings are currently "falling edge" & "going high", which jives with the logs?
Attached Thumbnails
Yet another MS3 + VVT in a 1990 that won't start-9kt16py.png   Yet another MS3 + VVT in a 1990 that won't start-cealnj6.png
Attached Files
File Type: msq 2016-05-27_00.16.03.msq (242.6 KB, 33 views)
File Type: csv 2016-05-26_23.31.21.csv (10.1 KB, 25 views)

Last edited by albumleaf; 05-27-2016 at 10:14 AM.
albumleaf is offline   Reply With Quote
Old 05-27-2016, 07:11 AM   #2
Junior Member

Join Date: May 2014
Location: Columbia, MD
Posts: 140
Total Cats: 8
Default

Should be rising edge, unless it should be falling...

Last edited by gjsmith66; 05-27-2016 at 09:16 AM.
gjsmith66 is offline   Reply With Quote
Old 05-27-2016, 09:07 AM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Basic MS3s with a board version V3.2 or higher (such as this particular unit) use falling edge for the 99-05 and rising edge for the 90-97 (CAS).
Reverant is offline   Reply With Quote
Old 05-27-2016, 11:48 AM   #4
Senior Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Hmm, so if you guys think the log is good and I am getting sync, should I move on to checking spark&fuel?
albumleaf is offline   Reply With Quote
Old 05-27-2016, 05:15 PM   #5
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

Most definitely.
Reverant is offline   Reply With Quote
Old 05-27-2016, 08:38 PM   #6
Senior Member
Thread Starter
iTrader: (6)

Join Date: Sep 2007
Posts: 1,086
Total Cats: 30
Default

Quote:
Originally Posted by Reverant View Post
Most definitely.
I had the fuel supply and return backwards. I also forgot to ground the coil packs. Car started right up just in time for the event on Sunday!!

Thanks so much everyone! And thank you Dimitris, for dealing with my barrage of emails earlier.
albumleaf is offline   Reply With Quote
