Default Water/Methanol Injection Logs and Dyno sheets

Post up any logs or dyno sheets you have while using water injection. Give a brief descprition of they system you are using as well as the specs of your engine/turbo setup. I'll start it off. Not a Miata but still shows what sort of gains can be made.

Audi S4 2.7 Bi-Turbo K04/RS6 Hybrid Turbos, 22 psi, 91 octane, 5000ft above sea level. Devils Own Progressive Controller with dual 5 gph nozzles. All pulls made in 3rd gear. Ambient temps around 65 degrees.

Blue is the latest results after more tuning.
Dark Purple is with a little tuning
Pink is the from the earlier posted logs. 0 tuning.
Red is no water injection

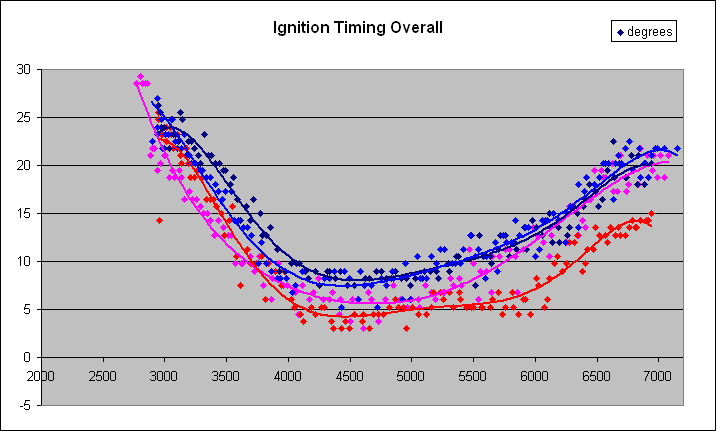

Name:  IgnTimingOverall.gif
Views: 115
Size:  12.5 KB

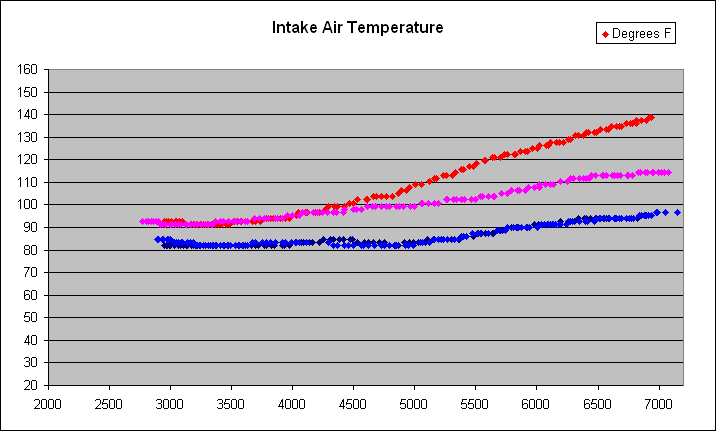

Name:  IAT.gif
Views: 95
Size:  8.8 KB

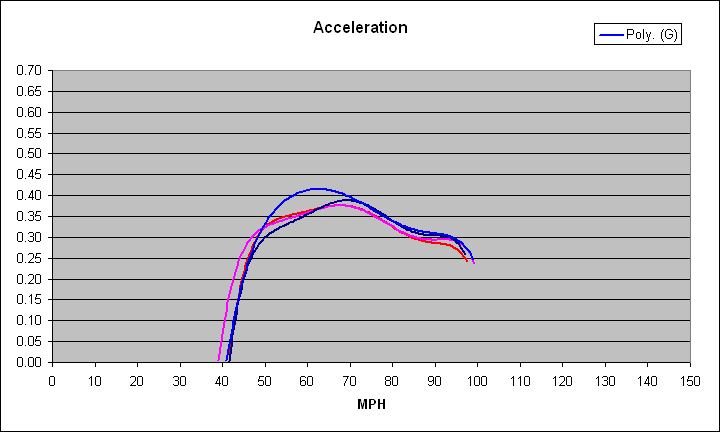

Name:  Accel.gif
Views: 89
Size:  7.1 KB
Kelly is offline   Reply With Quote
Old 12-04-2006, 12:49 AM   #2
Elite Member

Philip's Avatar

Join Date: Dec 2004
Posts: 3,270
Total Cats: -4
Default

nobody here cares about your VAG trash.
Philip is offline   Reply With Quote
Old 12-04-2006, 04:16 AM   #3
I'm Miserable!

Join Date: Dec 2006
Posts: 5
Total Cats: 0
Default

Quote:
Originally Posted by Philip View Post
nobody here cares about your VAG trash.
Thats not very nice.
roccosrock is offline   Reply With Quote
Old 01-20-2007, 11:38 PM   #4
Junior Member

Join Date: Oct 2006
Location: Edmond, OK
Posts: 473
Total Cats: 0
Default

ewww vag trash
Rage_Kage is offline   Reply With Quote
Old 01-20-2007, 11:42 PM   #5
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Nice results!!
kotomile is offline   Reply With Quote
Old 01-21-2007, 08:37 AM   #6
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

anyone got any results on a miata please?

before I go ahead with buying a suitbale kit...i wann see some PROOF of gains on a MIATA/MX5
tabs604 is offline   Reply With Quote
Old 01-21-2007, 01:43 PM   #7
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

what makes you think it'll be any different on a Miata, tabs?
kotomile is offline   Reply With Quote
Old 01-21-2007, 02:19 PM   #8
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

our results should be proof enough it works and it works quite well when done correctly. plain and simple
magnamx-5 is offline   Reply With Quote
Old 01-21-2007, 02:45 PM   #9
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

just some peeps in the Uk recon it will only reduce intake temps marginally.
tabs604 is offline   Reply With Quote
Old 01-21-2007, 03:31 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

only if done half assed i have been pleasently surprised with my shadetree tunning and but dyno trials
magnamx-5 is offline   Reply With Quote
Old 01-22-2007, 08:53 AM   #11
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

In my experience, the best intercoolers don't even come close to what a little water and/or methanol injected into the engine can do.

Be skeptical all you want, but you don't know what you're missing
kotomile is offline   Reply With Quote
Old 01-23-2007, 12:02 PM   #12
Junior Member

Join Date: Jan 2005
Location: United Kingdom
Posts: 255
Total Cats: 0
Default

cool guys.

so anyone got any before and after dyno prints of a miata.
tabs604 is offline   Reply With Quote
Old 01-24-2007, 01:33 AM   #13
Senior Member
Thread Starter
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

I would advise you to keep your "peeps" away from your car.
Kelly is offline   Reply With Quote
Old 01-24-2007, 11:24 PM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I don't know of any dyno plots before/after for a Miata, but I'll make a point to do that when I get around to dyno my car. I'm also very curious about the results before/after a freer-flowing DP and exhaust vs. my present stock greddy + mufflerless stock piping setup.
kotomile is offline   Reply With Quote
Old 01-25-2007, 12:11 AM   #15
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I will be making before and after dyno plots this saturday at a dyno day. Both runs will have the WI running, BUTTTTTTT one run will be with the regular safe timing from the sticky in the MS forum that Al Hunos made. The second one will have my timing increases with the WI.

Its a dyno day so I wont really get to do any tuning, ill just be switching premade maps. All the timing tuning I have done thus far is street tuning. I just added 3* at 6psi and up since I got my mbc today. The butt dyno says HOLY ****! I wish I wasnt still running stock exhaust :-P
neogenesis2004 is offline   Reply With Quote
Old 02-02-2008, 06:26 PM   #16
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Hey so do you have any dyno results? I would like to see them, seriously.
ZX-Tex is offline   Reply With Quote
Old 05-15-2008, 01:41 PM   #17
Newb

Join Date: May 2008
Posts: 15
Total Cats: 0
Default

The results won't be any different on the Miata as any other car.. They all work the same!
cavell is offline   Reply With Quote
Old 05-16-2008, 01:09 AM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by cavell View Post
The results won't be any different on the Miata as any other car.. They all work the same!
Wow i am impressed a newb who actualy knows there **** this is historic for sure.
magnamx-5 is offline   Reply With Quote
Old 09-02-2008, 11:07 PM   #19
Junior Member

Join Date: Sep 2008
Location: ATL GA
Posts: 290
Total Cats: -217
Default

i installed a AIS kit in my car and it was 105 deg out side, i have not tuned the kit but i have a 3gph nozzle set to turn on at 10 psi at the full 150psi pump pressure and it makes a big difference it feels like my car was running on a cool 70 deg day it just pulled hard all the way to red like from 0 - 100 and i had no knock shown in my link. then i turned the boost up to 15 psi and again my car pulled hard all the way to red line in all 4 gears with no knock. on the same set up with the meth off i would get knock at 12 psi and my car would feel weak. i will be going to the dyno soon to re tune my car to get the most out of the meth system.
locomonkeyboricua is offline   Reply With Quote
Old 09-03-2008, 12:57 AM   #20
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by locomonkeyboricua View Post
i installed a AIS kit in my car and it was 105 deg out side, i have not tuned the kit but i have a 3gph nozzle set to turn on at 10 psi at the full 150psi pump pressure and it makes a big difference it feels like my car was running on a cool 70 deg day it just pulled hard all the way to red like from 0 - 100 and i had no knock shown in my link. then i turned the boost up to 15 psi and again my car pulled hard all the way to red line in all 4 gears with no knock. on the same set up with the meth off i would get knock at 12 psi and my car would feel weak. i will be going to the dyno soon to re tune my car to get the most out of the meth system.
Are u running A fmic What AIT's are you getting the 3gph nozzle at 150 psi suports about 230 or so whp with out an IC. Knowing your limits or wether u are spraying to much depends on this, becouse if the FMIC is doing a good job before u can back that stuff off and gain alil hp.
magnamx-5 is offline   Reply With Quote
