Old 11-29-2008, 09:42 PM   #1
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default 1.6 manual throttle body with custom variable TPS

Found while going through a box of parts I was storing in my dad's garage! I have a complete 1.6 manual throttle body including idle valve with a mazda oem variable tps installed via a custom waterjet aluminum bracket. Very slick piece! It's ready to bolt on.

Considering it's a fully complete throttle body with idle control valve and a custom tps, I'd think $70 including paypal fees and shipping to lower 48 is a pretty good deal.
Ben is offline   Reply With Quote
Old 11-29-2008, 11:57 PM   #2
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

so...no wiring issues or anything? just unplug, plug in, set TPS in MS, start car?
miatamania is offline   Reply With Quote
Old 11-30-2008, 10:38 AM   #3
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The OEM vari TPS is a 4 pin connector, where the 1.6 manual TPS is a 3 pin connector. Not a big deal, there's a ton of ways to deal with it. You still only need 3 of the 4 pins, so it's easiest to hijack the stock pigtail and crimp spade connectors on it. Another possibility could be to source the 4 pin TPS connector from an auto or 1.8 car and replace yours.

The hard part is getting the vari TPS on the manual TB, which is already done for you. What would a machine shop charge for the bracket? I'd bet more than $70.
Ben is offline   Reply With Quote
Old 11-30-2008, 10:54 AM   #4
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

I wish i had the money for this, would be perfect for when i get MS. Too bad good luck selling it.
92Miata is offline   Reply With Quote
Old 11-30-2008, 08:41 PM   #5
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by Ben View Post
The OEM vari TPS is a 4 pin connector, where the 1.6 manual TPS is a 3 pin connector. Not a big deal, there's a ton of ways to deal with it. You still only need 3 of the 4 pins, so it's easiest to hijack the stock pigtail and crimp spade connectors on it. Another possibility could be to source the 4 pin TPS connector from an auto or 1.8 car and replace yours.

The hard part is getting the vari TPS on the manual TB, which is already done for you. What would a machine shop charge for the bracket? I'd bet more than $70.
Let me see how fucked my turbo is, I really want this though, depends on how much I have to spend on my turbo...either the kit or have someone else rebuild it.
miatamania is offline   Reply With Quote
Old 11-30-2008, 09:17 PM   #6
Ben
Supporting Vendor
Thread Starter
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

pics
Attached Thumbnails

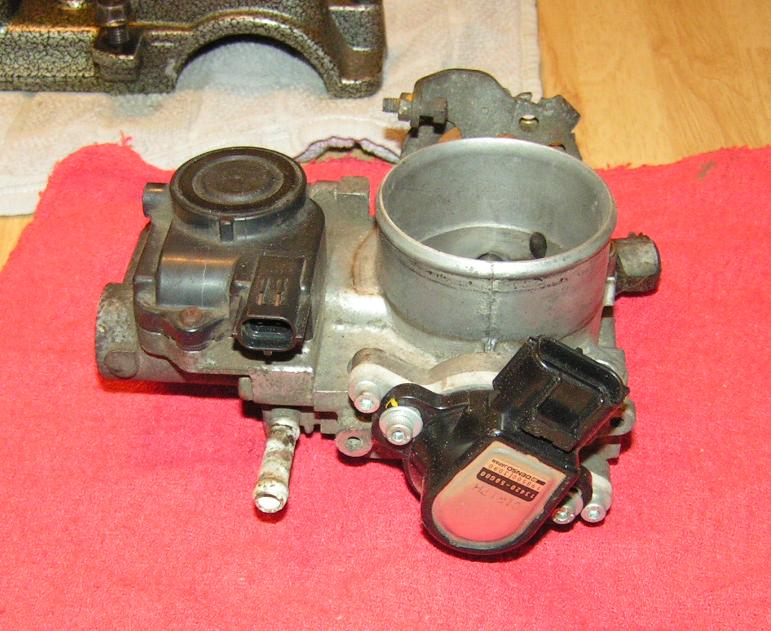

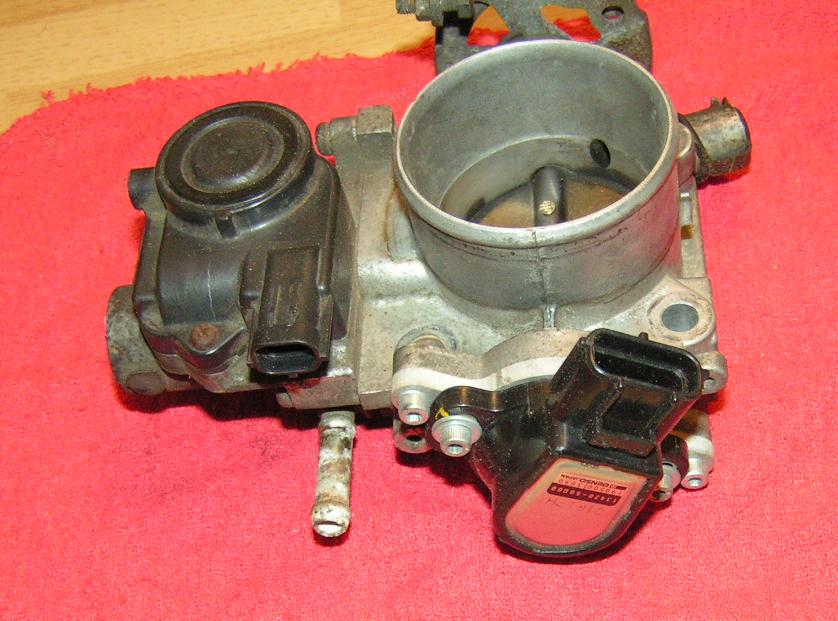

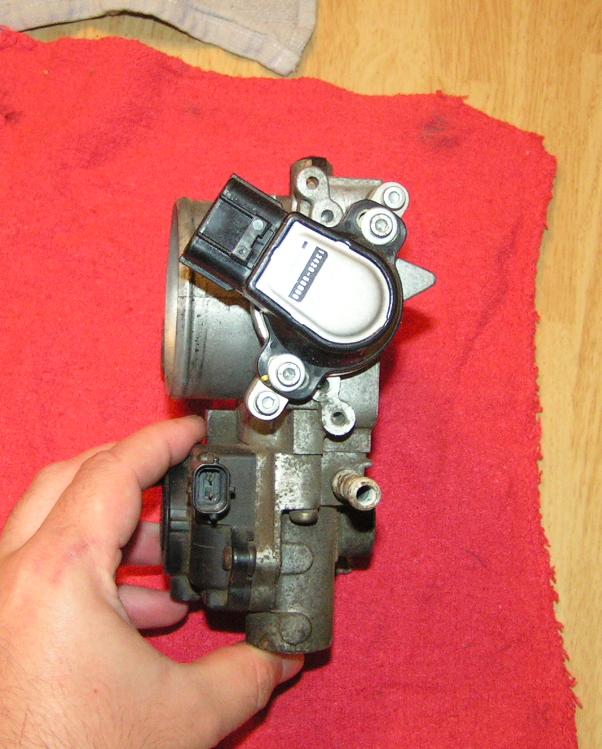

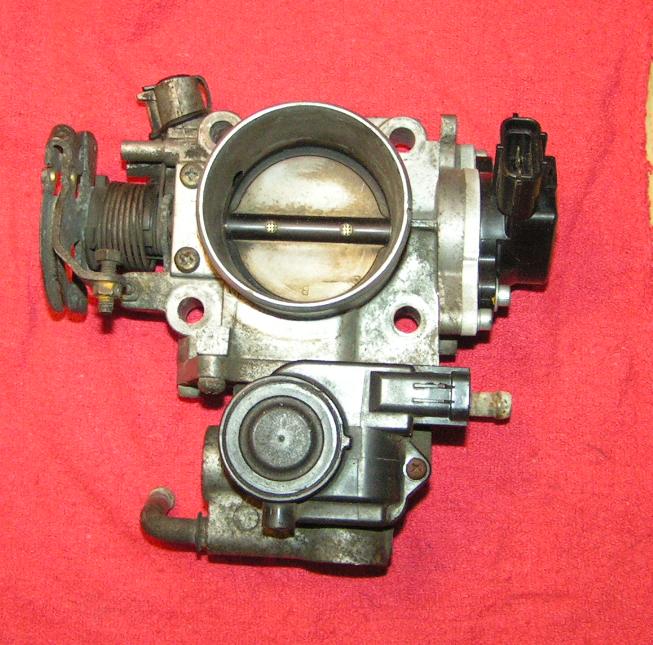

1.6 manual throttle body with custom variable TPS-tb1.jpg   1.6 manual throttle body with custom variable TPS-tb2.jpg   1.6 manual throttle body with custom variable TPS-tb3.jpg   1.6 manual throttle body with custom variable TPS-tb4.jpg
Ben is offline   Reply With Quote
Old 12-01-2008, 07:21 PM   #7
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Looks strangely familiar....

I used this during my 1.6 days.

Good luck with the sale Ben.

TPS was from either one of Paul's cars or my dad's Swift GT. I used whichever one had the idle circuit that the Link ECU needs to be happy.
TurboTim is offline   Reply With Quote
