Default 1.6 Toyota COPs with bracket

I'm switching over to GM coils, so I'll no longer need this setup.

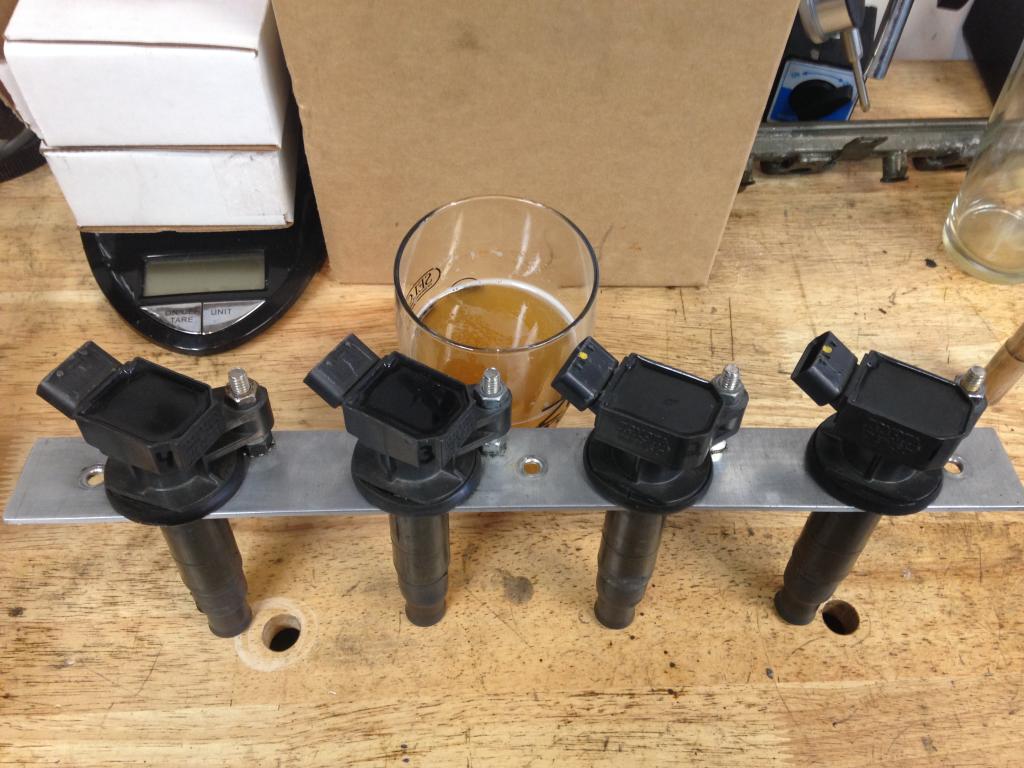

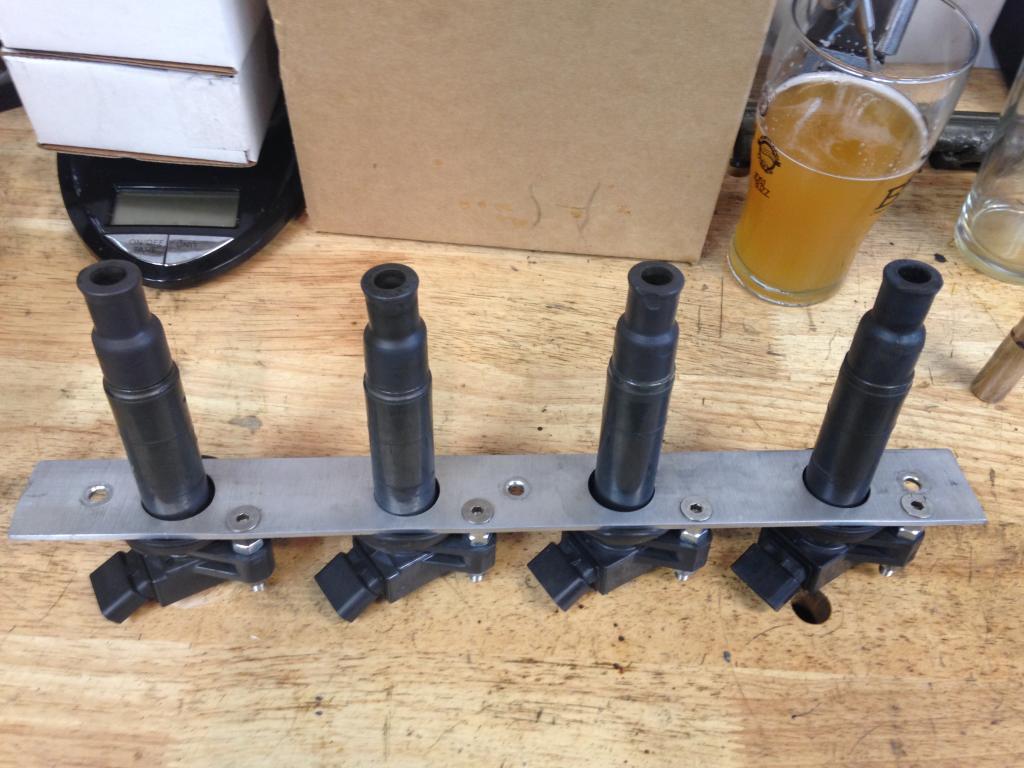

I made the bracket myself out of 1/8" aluminum bar. Tappered allen screws were counter sunk into the bracket for a completely flush mounting on the bottom. The #1 stud is a little close to the valve cover bolt, and the standard 10mm chrome bolt will not fit. I replaced it with a 8mm bolt, which will be included. Beer not included.



Studs were locked into the top with nuts, and a 2nd nut added as a stop for the coils themselves.



All four coils were marked by myself as 1, 2, 3, and 4, just to keep them straight. They were also marked by the original seller (off ebay) as being off an '01 Corolla.

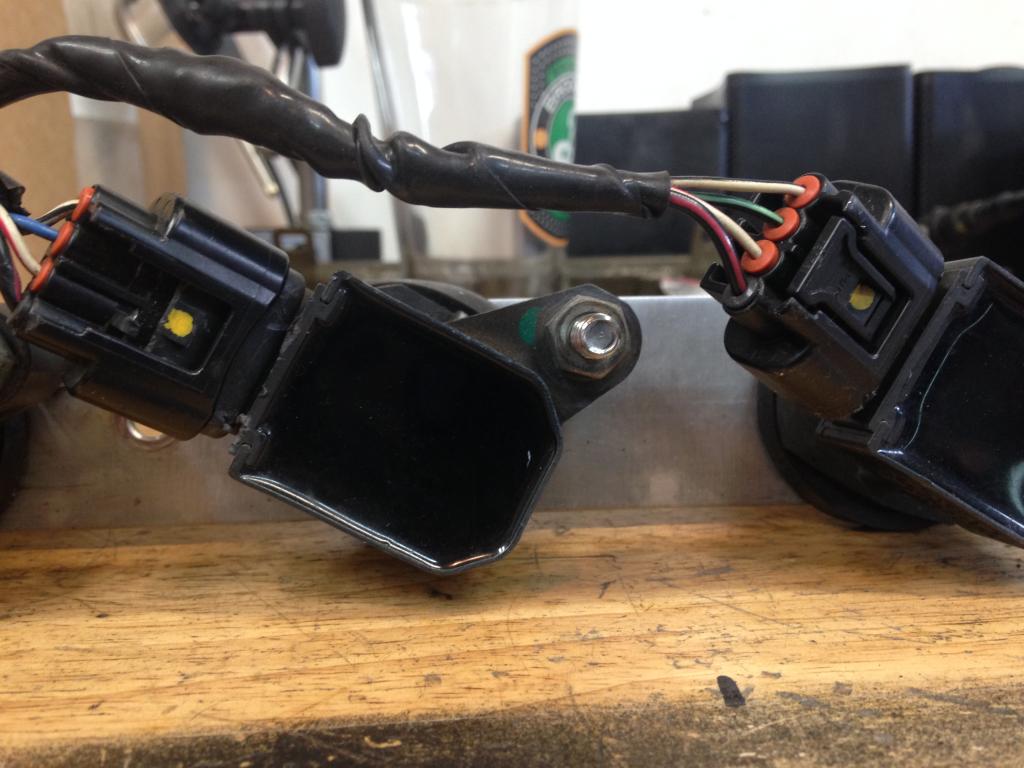

OEM pigtails were purchased off ebay and soldered into the harness. 3/4 are perfect, the #2 coil has the clip snapped off. I've driven and tuned like this in numerous track days and dyno sessions, I don't doubt it's integrity at all. However, I bought 4 replacement clips, lost one, and will include the remaining 3 if you'd like to unpin the #2 clip and clip in the new one.



The harness is wrapped from the pigtails to ~8" past the back of the valve cover with self-adhesive silicone wrap, the impressive specs of which can be read here:

Robot Check Robot Check

Highlights include a 500F melting point, tensile strength of 700psi, and a resistance of 400v/mm.

The rest of the harness was wrapped in standard electrical tape.

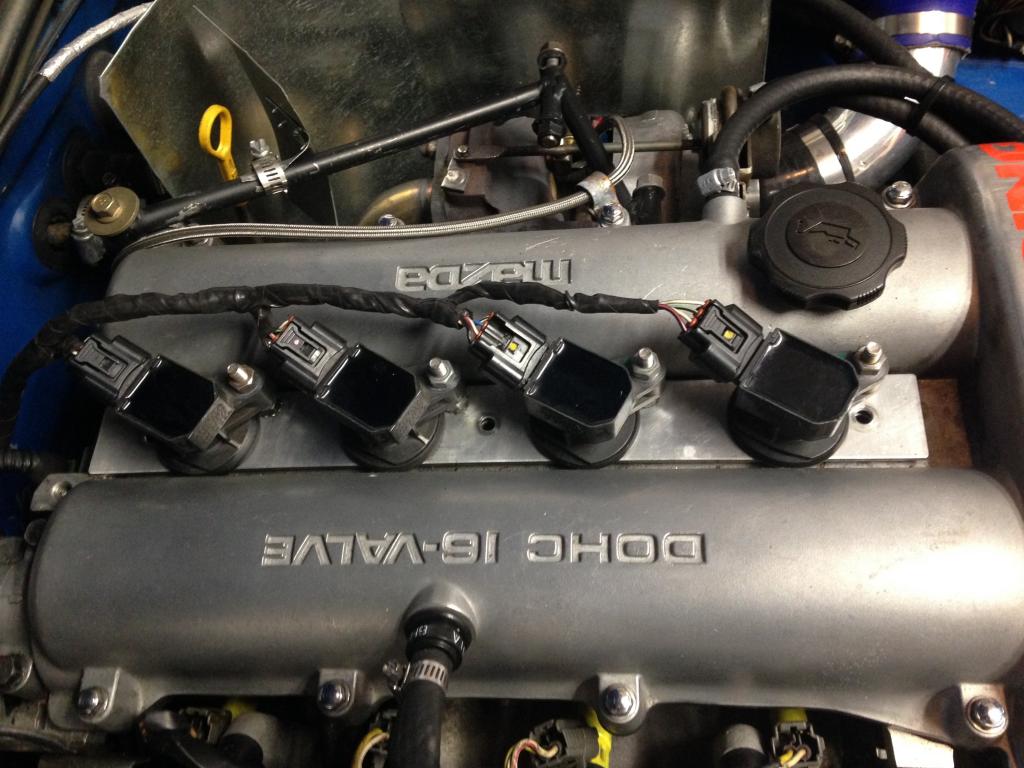

The coils themselves will bolt directly on to a 1.6 valve cover, however you'll have to wire them in. I included ~1/4" of my car's wiring harness so you don't have to search around for the proper wiring.

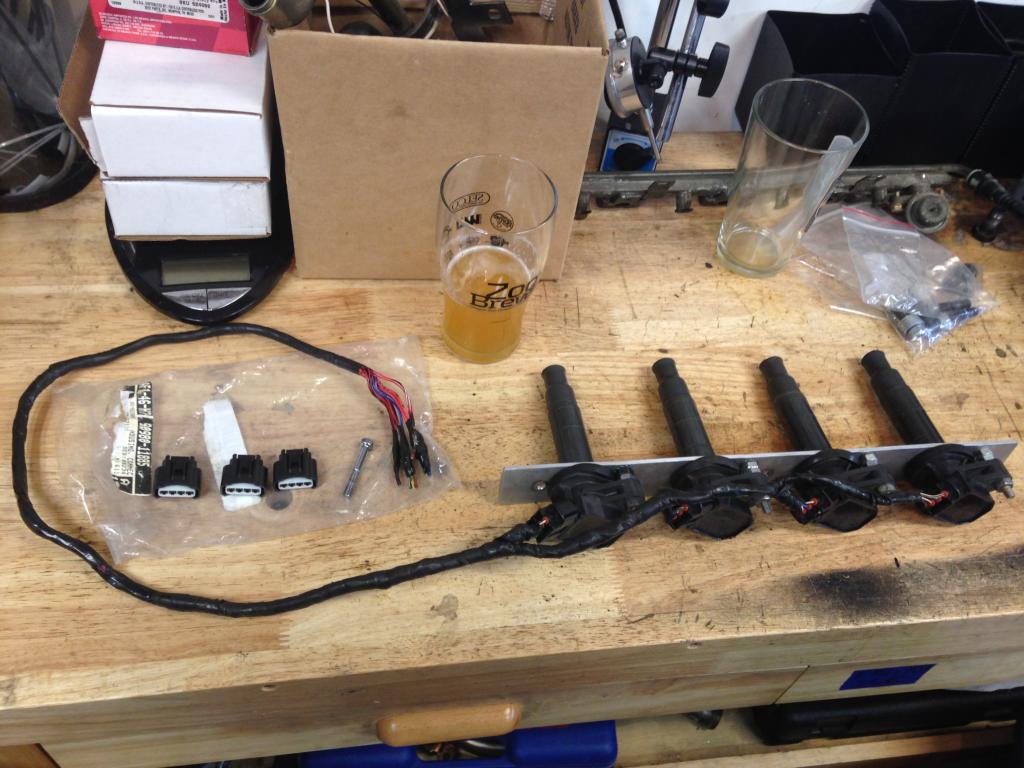

Here's everything that will be included, again minus the beer.



Price is $175 shipped.
Attached Thumbnails
1.6 Toyota COPs with bracket-16bed020-04e6-47be-8746-0c6e962443d0_zpszh1t98ld.jpg   1.6 Toyota COPs with bracket-2aefa279-21d9-4d2e-a0d8-fe969d02039f_zps8twdb668.jpg   1.6 Toyota COPs with bracket-e5fa3301-11a9-4821-bb59-8486a7281695_zpse2l7thcf.jpg   1.6 Toyota COPs with bracket-55d0ec22-04e1-44c6-bba0-613e07cc7698_zpsyp3uaigw.jpg   1.6 Toyota COPs with bracket-4ecf06a5-d095-4a5b-8929-bb0aaf219a1b_zpsmikawfts.jpg

1.6 Toyota COPs with bracket-16bed020-04e6-47be-8746-0c6e962443d0_zpszh1t98ld.jpg   1.6 Toyota COPs with bracket-2aefa279-21d9-4d2e-a0d8-fe969d02039f_zps8twdb668.jpg   1.6 Toyota COPs with bracket-4ecf06a5-d095-4a5b-8929-bb0aaf219a1b_zpsmikawfts.jpg   1.6 Toyota COPs with bracket-e5fa3301-11a9-4821-bb59-8486a7281695_zpse2l7thcf.jpg   1.6 Toyota COPs with bracket-55d0ec22-04e1-44c6-bba0-613e07cc7698_zpsyp3uaigw.jpg


Last edited by curly; 01-24-2015 at 12:26 PM.
curly is offline
Old 01-21-2015, 02:21 PM   #2
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Bump! Price is obo I think, let me know if you're interested!
curly is offline
Old 01-24-2015, 12:27 PM   #3
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Saturday morning bump for you Saturday morning shoppers.

Price lowered to $175 shipped!
curly is offline
Old 01-27-2015, 01:58 PM   #4
Junior Member

Join Date: Jun 2014
Posts: 48
Total Cats: 0
Default

Hey just curious, what's the advantage to the current cop setup vs the gm method?

I'm running a stock 1.6 (91) on a pretty good HP turbo set up and have been considering upgrading my ignition option. I have mspnp v1 (fully upgraded firmware with the better board to swap in a ms2/3 daughter board when I find one).

This just spliced into the 4 main coil wires? I haven't torn it down yet to inspect
BRGSEinTX is offline
Old 01-27-2015, 03:33 PM   #5
Cpt. Slow
Thread Starter
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Bump. Picked up a spare ignitor, so these will soon be PNP.

Quote:
Originally Posted by BRGSEinTX View Post
Hey just curious, what's the advantage to the current cop setup vs the gm method?
These are not as powerful as the GM coils, however you will not need spark plug wires ever again with these coils, unlike stock and GM coils. Also, since they're individual coils, you can (if your ecu is capable) run sequential ignition, just like GM setups. They also free up a lot of space behind the head for reroutes and such, unlike most GM coil setups. They also have a tach output pin, for the ECUs without a tachoutput pin. GM coils do not do this.


Quote:
Originally Posted by BRGSEinTX View Post
This just spliced into the 4 main coil wires? I haven't torn it down yet to inspect
Currently, you cut your ignitor plug off, and solder or crimp this COP harness into the factory harness. However as stated above I will be gutting an ignitor and soldering it onto the COP harness, so they'll be plug-and-play.
curly is offline
