Default 1.6 Turbo Setup

Hello All,

Up for sale is the turbo kit that I assembled and installed on my Miata in July of 2010. Since then, I've put less than 2,000 miles on the car, but everything performed extremely well. I am selling because I've returned the car back to stock condition and recently sold it. You can see all of the details, photos, dyno results, etc. in my build thread or you can see the various stages broken down by date/topic on my website.

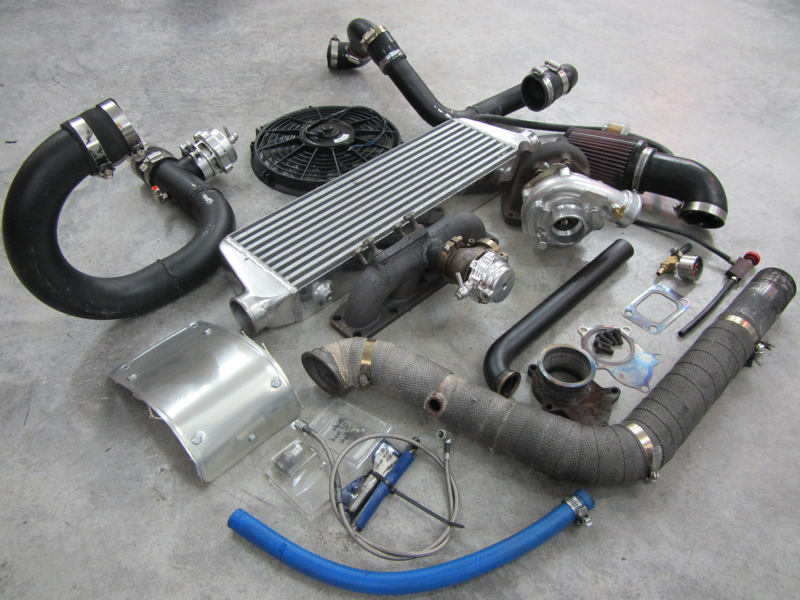

Includes the following items

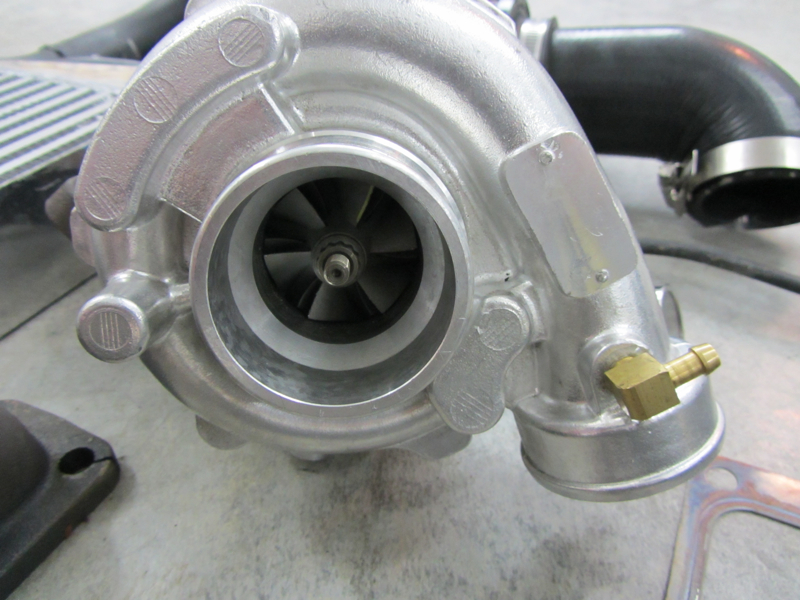

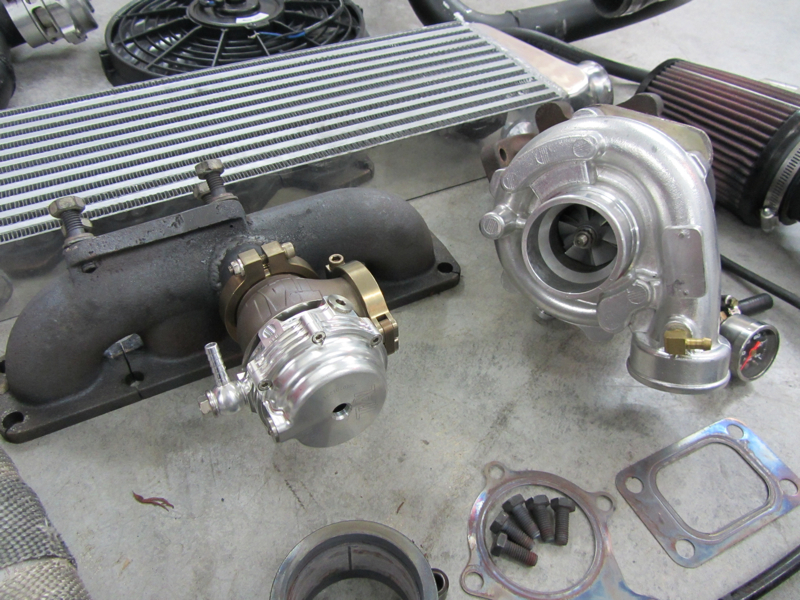

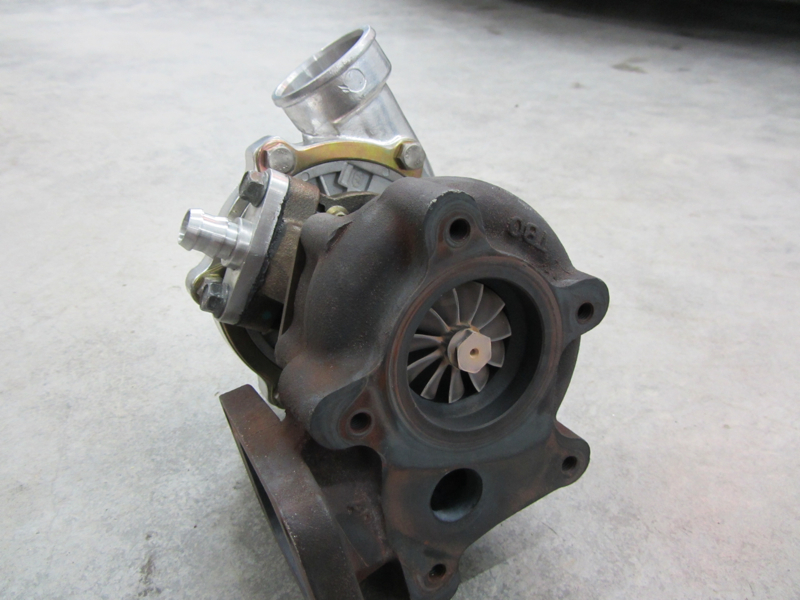

  • Godspeed/Ebay T3 turbocharger- 50 trim, .48 A/R with Earl's -3AN oil feed fitting and Ebay 5/8" oil drain fitting
  • Ebay cast iron turbo manifold. Modified with relief cuts and a Tial v-band external wastegate flange
  • Tial 38mm MVS v-band external wastegate
  • Steel T3 inlet gasket
  • V-band wastegate atmosphere dump tube
  • ATP Turbo 5 bolt T3 turbo exhaust flange to 2.5" v-band adapter. Includes bolts and steel gasket
  • 2.5" v-band downpipe with a slip fit exit and heat wrapped. Includes O2 sensor fitting. Pipe is welded steel mandrel bends
  • Autogauge fuel pressure gauge and fittings for installing inline with stock Miata fuel line
  • CXRacing/Ebay Intercooler - 28x7x2.5 with 2.5" inlets and outlets
  • 2" hot side intercooler piping with silicone connectors/reducers and clamps. Pipes are welded steel mandrel bends
  • 2.5" cold side intercooler piping with silicone/rubber connectors and clamps. Flanged for a Tial 50mm blowoff valve
  • Tial 50mm blowoff valve
  • CoolingMist alcohol injection nozzle mounted in cold side pipe. The nozzle part was stuck, so I left it in the pipe.
  • Ebay Slim radiator fan- allows easy installation of hot side intercooler piping
  • Rubber turbo intake elbow with K&N Filter & rubber line with an inline filter for valve cover venting
  • Paragon Performance M10 x 1.5 to -3AN oil feed fitting
  • Earl's 36" -3AN oil feed line
  • NAPA 5/8" Oil pan turbo oil drain fitting
  • Drill bit and tap for installing oil pan drain fitting
  • ATP Turbo high temp silicone 5/8" oil drain hose
  • Extreme Motorsports Manual Boost Controller (old, but works great)

Click here for a supersize picture of the setup









A couple notes:
-You will need to purchase one 2.5" v-band clamp. The one that connects to the downpipe broke when I removed it. You can find them on Ebay, just use some high temp anti-seize on the bolt threads when installing.

-The cold side pipe will need to be extended a few inches at its exit in order to mate up to the stock Miata throttle body. This may be accomplished with a silicone connector, but one way or another it will need done. Not a big deal, if you choose to have it welded on any exhaust or fab shop could do this quickly.

-Pricing is always tricky for something like this, but according to my (as conservative and realistic as possible) calculations, it would cost around $1,500 to recreate this setup. Asking $1200 plus shipping or $1100 to anyone willing to meet in Knoxville, TN.

Thanks for reading and let me know if you have any questions!

-Tom
Attached Thumbnails
1.6 Turbo Setup-turbo_setup2_med.jpg   1.6 Turbo Setup-turbo_setup_close1_med.jpg   1.6 Turbo Setup-turbo_setup_turboclose1.jpg   1.6 Turbo Setup-turbo_setup_turboclose2.jpg
underdog is offline
Old 08-14-2012, 01:56 PM   #2
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

i cant pm just yet but email me at [email protected] or text/call me at 360.441.3059. very interested in this setup
Evergreen is offline
Old 08-14-2012, 02:06 PM   #3
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,073
Total Cats: 253
Default

This setup is worth every penny he's asking for it.

Tempted to buy it just so I can hang it on my wall.
viperormiata is offline
Old 08-14-2012, 07:06 PM   #4
Junior Member
iTrader: (1)

Join Date: Aug 2009
Location: Hawaii
Posts: 82
Total Cats: -1
Default

im interested!! please PM me Tom if you are still selling!
Or please email me @ [email protected]

I got PayPal ready!

Last edited by thejman808; 08-14-2012 at 07:52 PM.
thejman808 is offline
Old 08-14-2012, 08:17 PM   #5
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2007
Location: Tennessee
Posts: 203
Total Cats: 12
Default

Quote:
Originally Posted by viperormiata View Post
This setup is worth every penny he's asking for it.

Tempted to buy it just so I can hang it on my wall.
Thanks man, I appreciate that!
underdog is offline
Old 08-14-2012, 08:21 PM   #6
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2007
Location: Tennessee
Posts: 203
Total Cats: 12
Default

Quote:
Originally Posted by thejman808 View Post
im interested!! please PM me Tom if you are still selling!
Or please email me @ [email protected]

I got PayPal ready!
Thanks thejman, I'm waiting to hear back from Evergreen at the moment. If I don't hear anything or he passes on it, I'll let you know.

-Tom
underdog is offline
Old 08-14-2012, 08:23 PM   #7
Junior Member
iTrader: (1)

Join Date: Aug 2009
Location: Hawaii
Posts: 82
Total Cats: -1
Default

Thank you thank you! I hope he passes on it.
Btw, love ur YouTube vids and ur car, it's awesome!
thejman808 is offline
Old 08-14-2012, 08:48 PM   #8
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2007
Location: Tennessee
Posts: 203
Total Cats: 12
Default

Quote:
Originally Posted by thejman808 View Post
Thank you thank you! I hope he passes on it.
Btw, love ur YouTube vids and ur car, it's awesome!
No problem and thank you for the kind words!
underdog is offline
Old 08-14-2012, 08:49 PM   #9
Junior Member
Thread Starter
iTrader: (6)

Join Date: May 2007
Location: Tennessee
Posts: 203
Total Cats: 12
Default

Update- this is pending sale!
