Old 01-08-2016, 08:19 PM   #1
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default 1.6L Custom Turbo Kit

I ran this turbo kit for 4 years until the engine decided to be a quitter. I need to sell it to buy a new mattress, growing up sucks.

My car made 242whp and 207 ft lbs of torque at 15 psi.

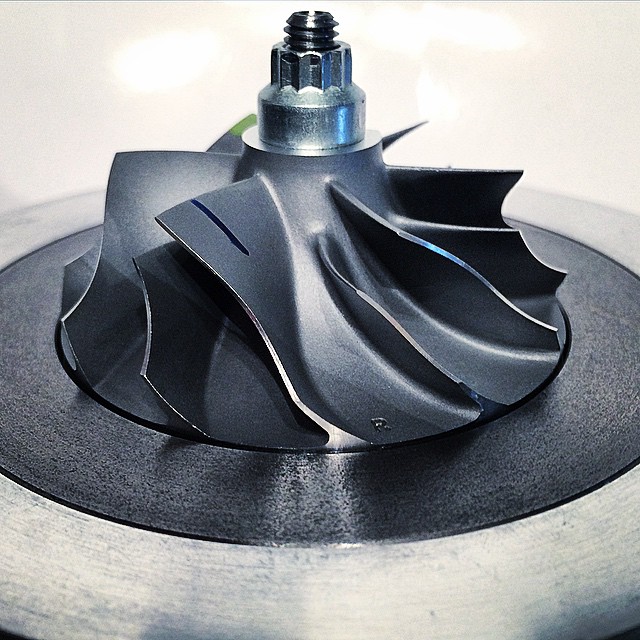

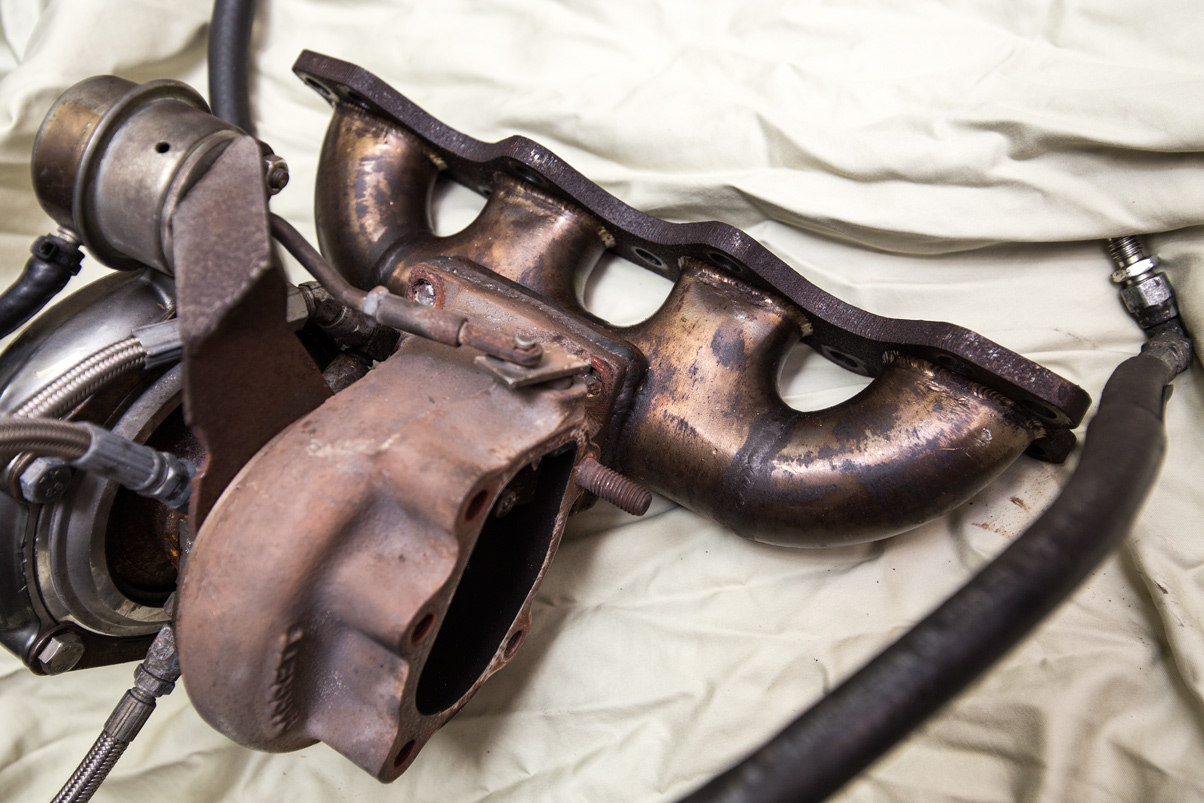

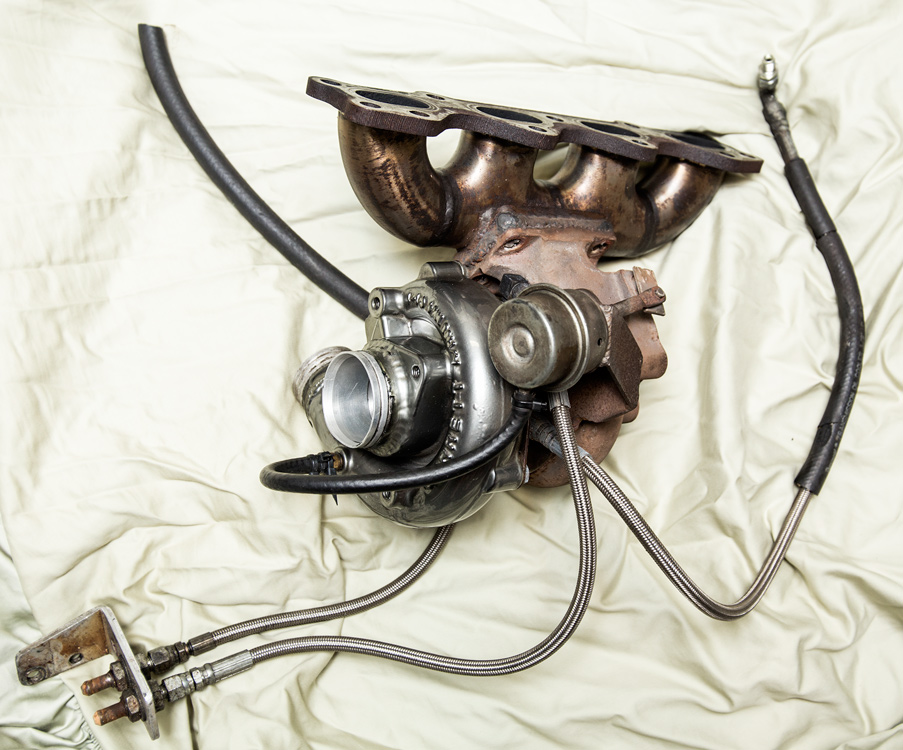

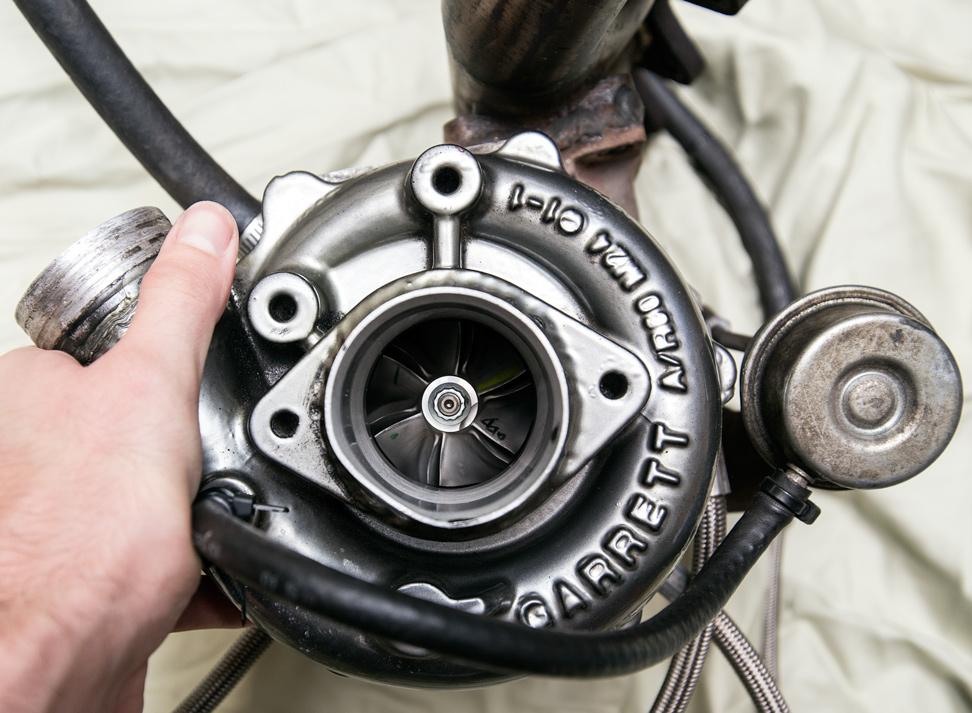

GT2560R with housings from BEGI turbo kit. The CHRA is basically brand new with less than 300 miles on it, ordered from ATP Turbo. The hot side housing is welded to the manifold because I got tired of it falling off; that's how I solved that problem.

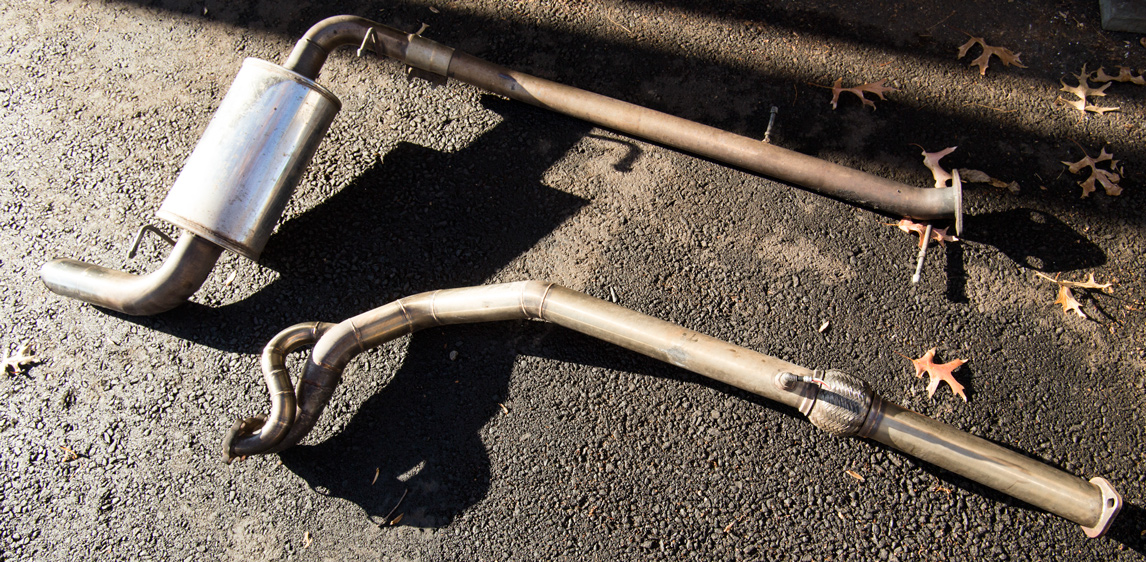

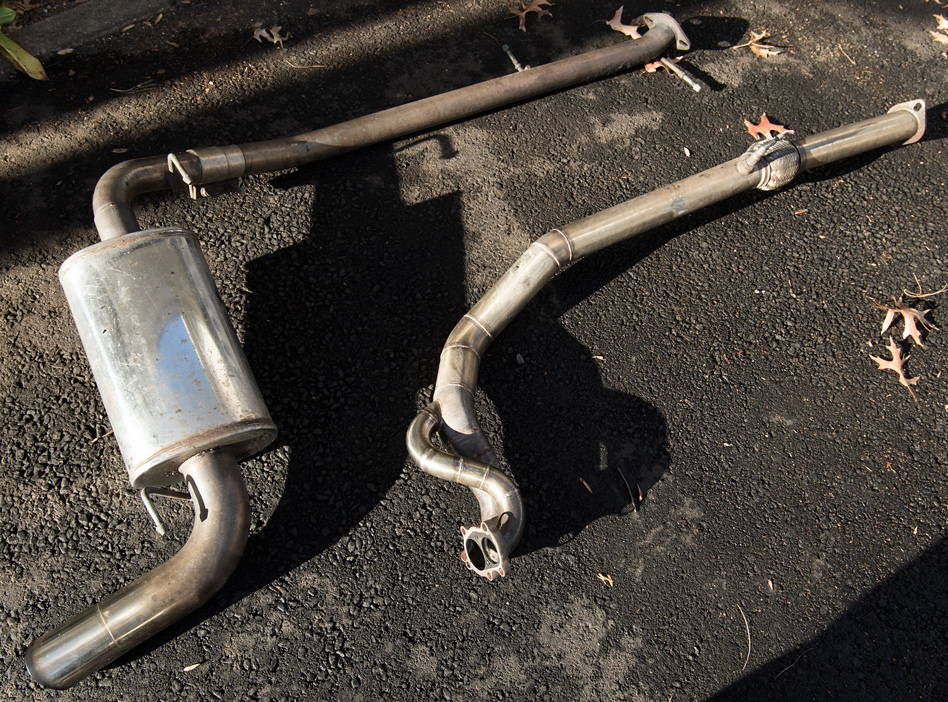

ARTech top mount stainless manifold and 2.5" downpipe. The downpipe extends directly to the catback, bypassing the test pipe. I don't know the name of the exhaust, but it is 2.5". I cut the exhaust open and removed some material. It sounds incredible. One of the hangers ripped off the tailpipe section leaving a hole. There is a hairline crack in the manifold which will be repaired.

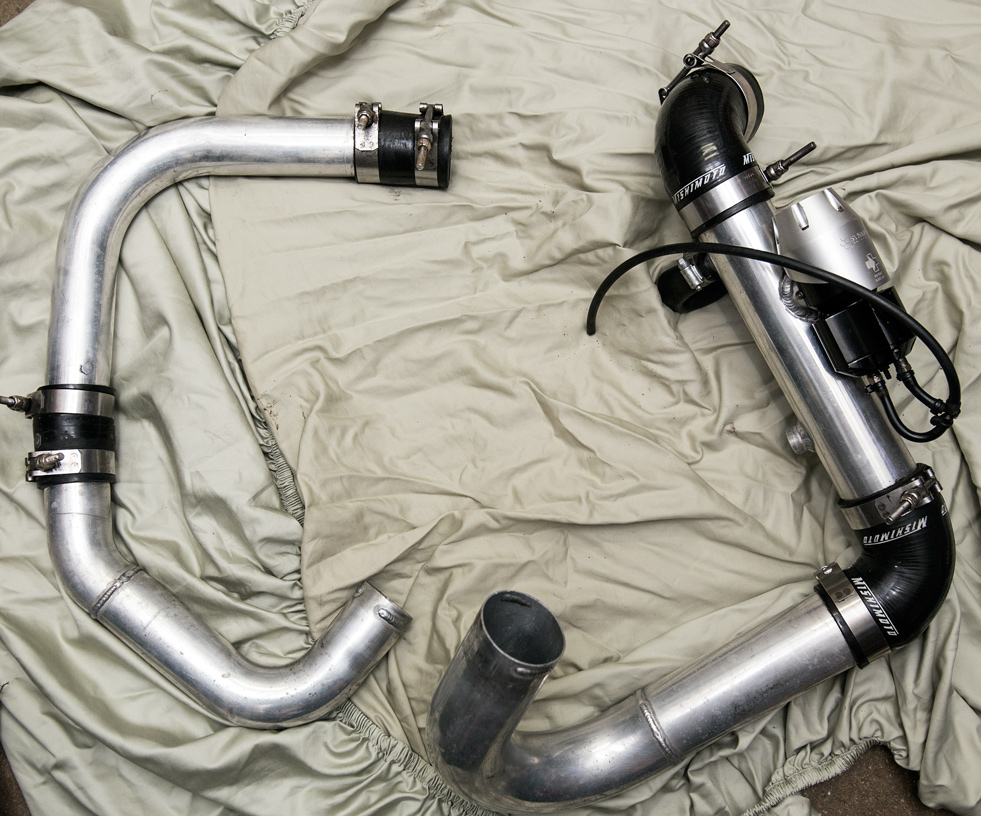

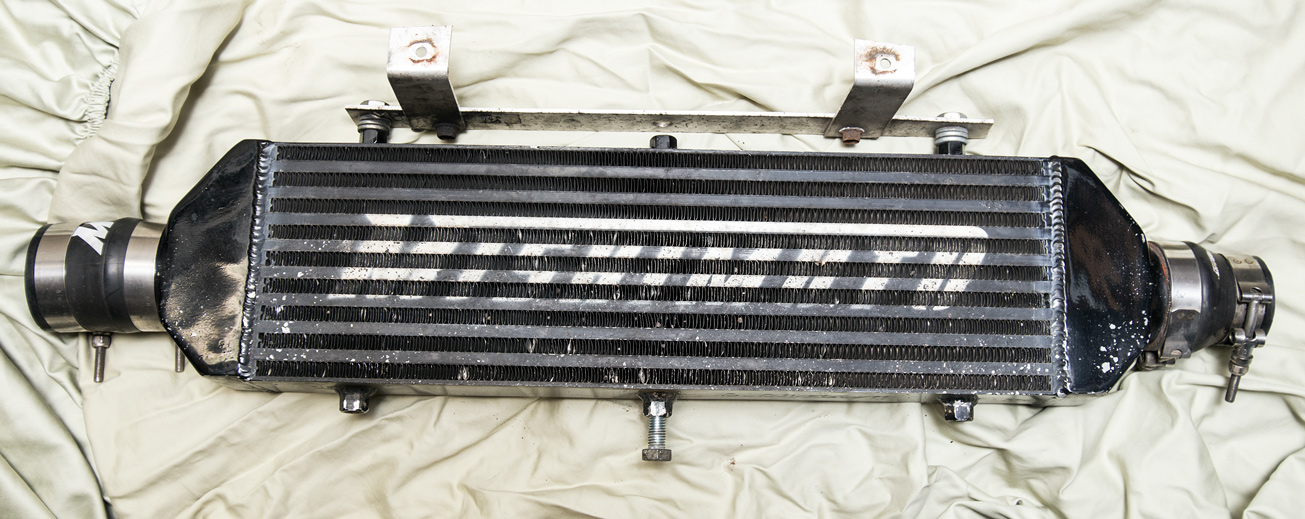

I made the intercooler piping. It includes a Synapse BOV, bung for IAT sensor, and provisions for the IACV hose. All hardware is included. Mishimoto intercooler with mounting bracket cools the air well.

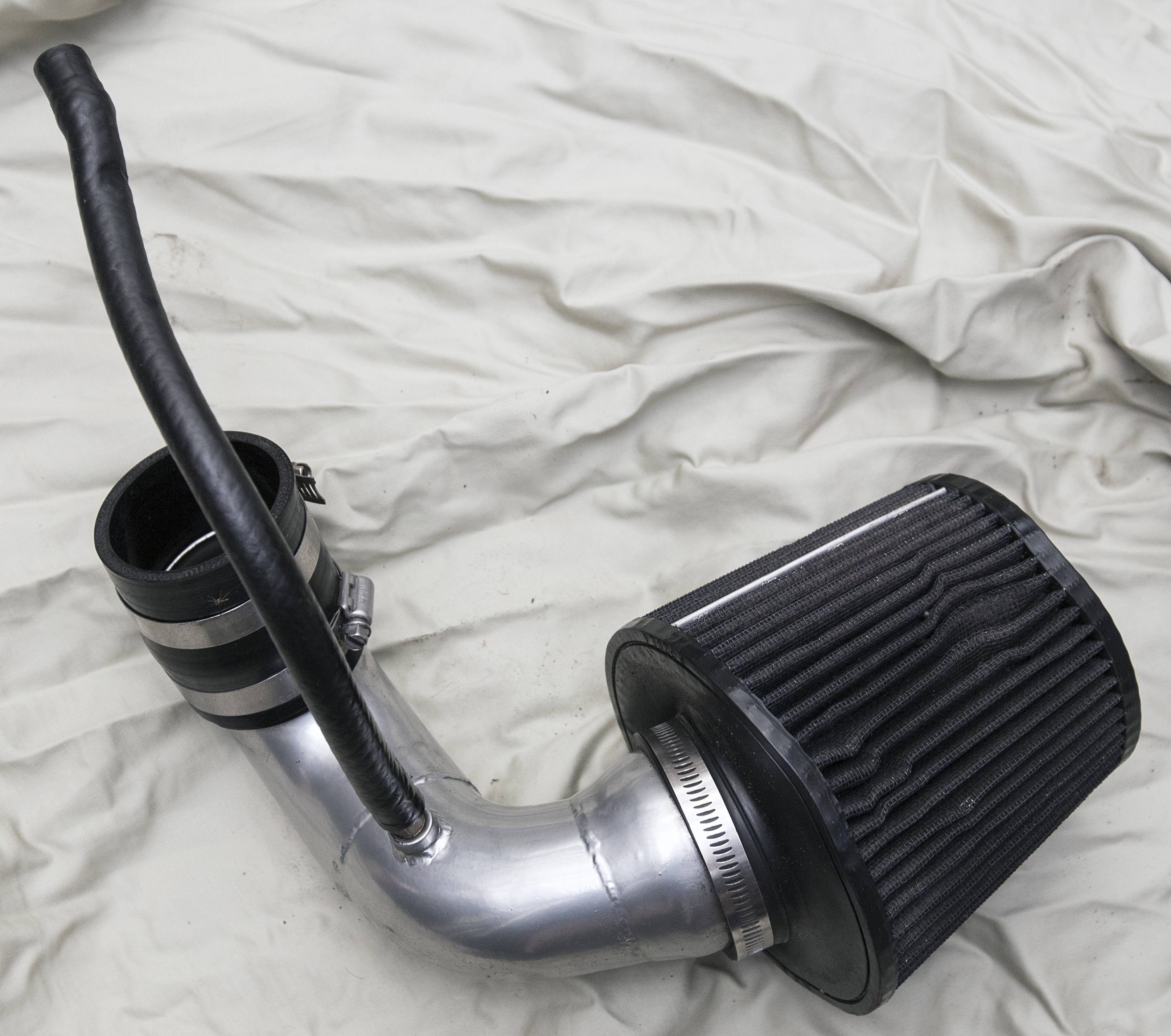

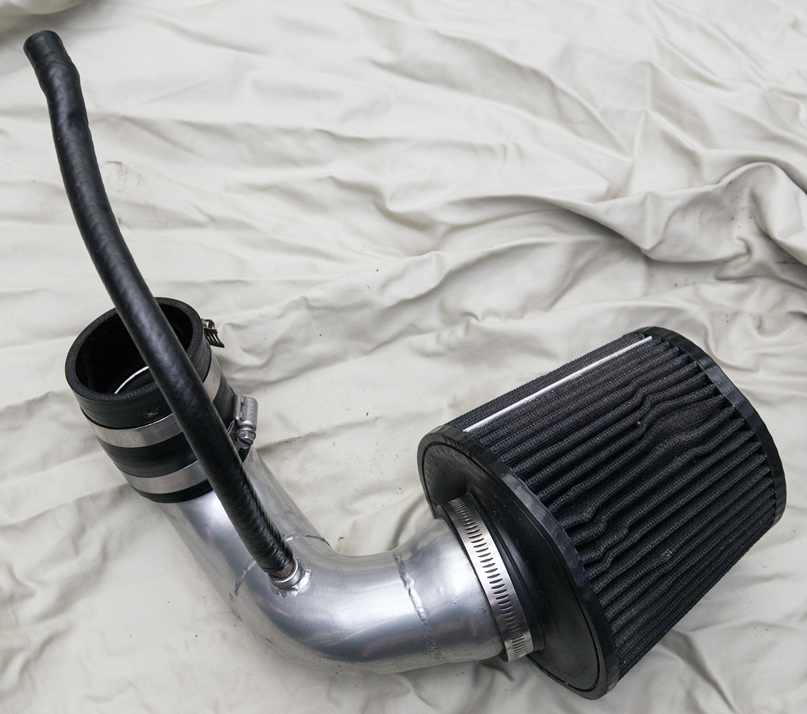

Intake with K&N air filter which needs a cleaning. The intake falls off sometimes, that is an area which needs to be addressed.

Hallman Pro RX booster controller included.

ISSUES: Car boosts to 12psi, yet has 7psi spring, wastegate actuator must be faulty. It is incredibly hard to get the downpipe bolts on, one stud may have to be cut short due to the extreme angle of the piping.

$1400 for turbo kit with full 2.5" exhaust. LOCAL PICKUP ONLY, NOT SHIPPING EXHAUST
$1340 for turbo kit without 2.5" exhaust.
Add $30 for Greddy catch can
Shipping extra, US only



Attached Thumbnails
1.6L Custom Turbo Kit-11326268_1431011927205429_1007588365_n.jpg   1.6L Custom Turbo Kit-img_1877.jpg   1.6L Custom Turbo Kit-img_1699x.jpg   1.6L Custom Turbo Kit-img_1701x.jpg   1.6L Custom Turbo Kit-img_1868x.jpg

1.6L Custom Turbo Kit-img_1869x.jpg   1.6L Custom Turbo Kit-img_1870x.jpg   1.6L Custom Turbo Kit-img_1871x.jpg   1.6L Custom Turbo Kit-img_1873x.jpg   1.6L Custom Turbo Kit-img_1877x.jpg

1.6L Custom Turbo Kit-img_1878x.jpg

Last edited by Spocknasty; 01-09-2016 at 05:47 PM.
Spocknasty is offline
Old 01-09-2016, 01:04 PM   #2
Newb

Join Date: Mar 2015
Posts: 1
Total Cats: 0
Default

Pm'd
mgaloppa is offline
Old 01-10-2016, 03:25 PM   #3
Junior Member

Join Date: Sep 2013
Location: Milford, CT
Posts: 119
Total Cats: 3
Default

selling that sexy tombstone?
JStoops is offline
Old 01-10-2016, 09:15 PM   #4
Junior Member
iTrader: (1)

Join Date: Oct 2015
Location: Metro Detroit, MI
Posts: 263
Total Cats: 19
Default

Willing to sell the kit without the turbo?
Goingnowherefast is online now
Old 01-10-2016, 11:29 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Quote:
Originally Posted by JStoops View Post
selling that sexy tombstone?
Sold.

Quote:
Originally Posted by Goingnowherefast View Post
Willing to sell the kit without the turbo?
Yes, but realize the hotside is welded to the manifold.... PM me an offer.
Spocknasty is offline
Old 01-18-2016, 11:16 PM   #6
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Your non turbo Miata:


Your Miata with my turbo kit:
Attached Thumbnails
1.6L Custom Turbo Kit-80-ku_xlarge_ff149f1d927df1f5522ebf8ba06dfe6dd6274a2b.jpg   1.6L Custom Turbo Kit-80-d5b6644cf3078f59ba4d0fca180ba54c_0a32f321721193de9197e920573056ea01c6ce1f.jpg
Spocknasty is offline
Old 01-19-2016, 12:21 AM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,990
Total Cats: 1,457
Default

Quote:
Originally Posted by Spocknasty View Post
Yes, but realize the hotside is welded to the manifold.... PM me an offer.
lololol. No way, someone actually did this?

aidandj is offline
Old 01-19-2016, 12:29 AM   #8
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Quote:
Originally Posted by aidandj View Post
lololol. No way, someone actually did this?

I tried Stage 8 fasteners, inconel studs, tack welds, you name it, all failed. I'll tell you what, it's not ******* falling off now!
Spocknasty is offline
Old 01-26-2016, 10:27 PM   #9
Newb

Join Date: Jan 2016
Location: Brooklyn ny
Posts: 1
Total Cats: 0
Default

Pm'ed .. Still available?
BKmiataCo is offline
Old 01-27-2016, 11:50 AM   #10
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Quote:
Originally Posted by BKmiataCo View Post
Pm'ed .. Still available?
Still available.
Spocknasty is offline
Old 01-27-2016, 02:33 PM   #11
Newb

Join Date: Jan 2016
Posts: 1
Total Cats: 0
Default

GLWS
FMT28Miata is offline
Old 01-28-2016, 02:06 AM   #12
Newb

Join Date: Sep 2015
Posts: 9
Total Cats: -1
Default

I pm'ed you
Eric Cannon is offline
Old 01-28-2016, 11:53 AM   #13
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Quote:
Originally Posted by Eric Cannon View Post
I pm'ed you
You left a visitor message, PM me please.
Spocknasty is offline
Old 01-29-2016, 03:47 PM   #14
Newb

Join Date: Jan 2016
Posts: 1
Total Cats: 0
Default

Is it still available ??
Mmiata90 is offline
Old 01-29-2016, 04:07 PM   #15
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Philadelphia, PA
Posts: 60
Total Cats: 1
Default

Quote:
Originally Posted by Mmiata90 View Post
Is it still available ??
Yes.
Spocknasty is offline
Old 01-30-2016, 02:09 PM   #16
Newb

Join Date: Nov 2015
Posts: 17
Total Cats: 7
Default

Pm sent
justin_l_ is offline
