Old 10-10-2014, 01:36 AM   #1
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default 1996-97 FM II Hydra turbo system

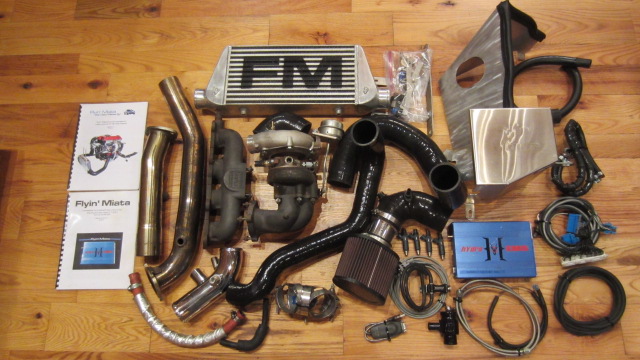

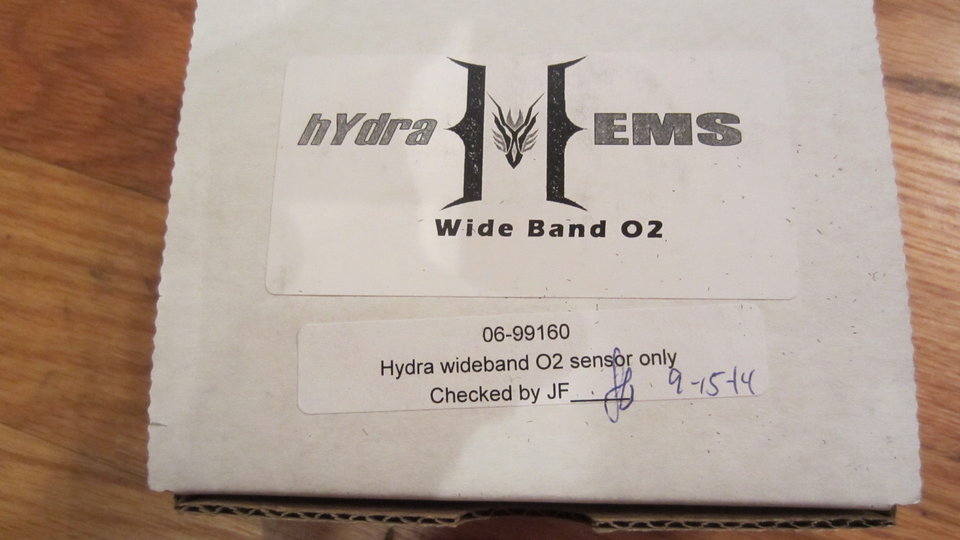

Selling an FM II turbo system for 1.8 NA Miatas. This particular kit has a plug and play harness for 96-97 cars, can be installed on 94-95 cars with a different harness. This is a current spec kit in excellent condition, ~15k miles use. About the only wear item on these kits is the Hydra WB02 sensor, I am including a brand new sensor purchased from Flyin Miata.

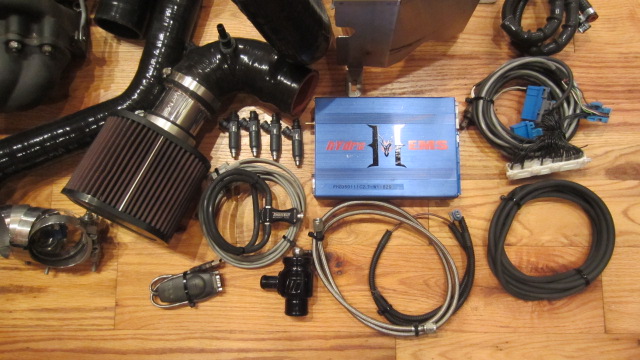

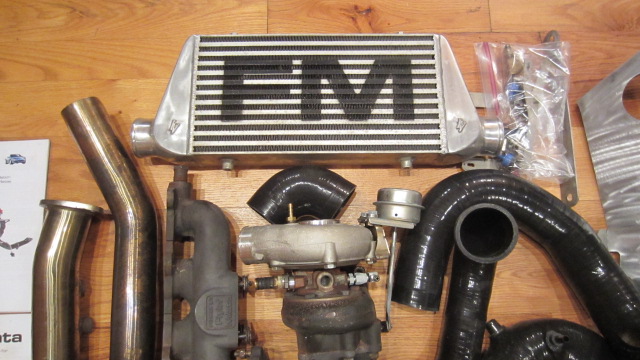

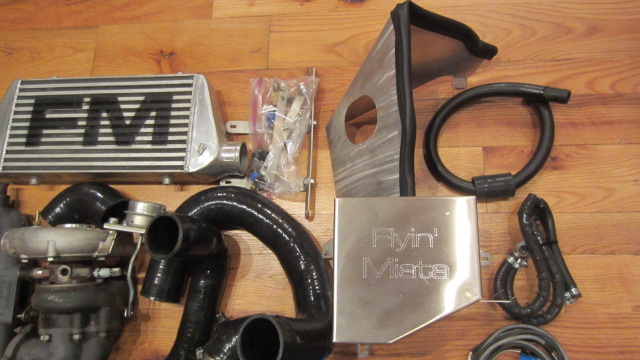

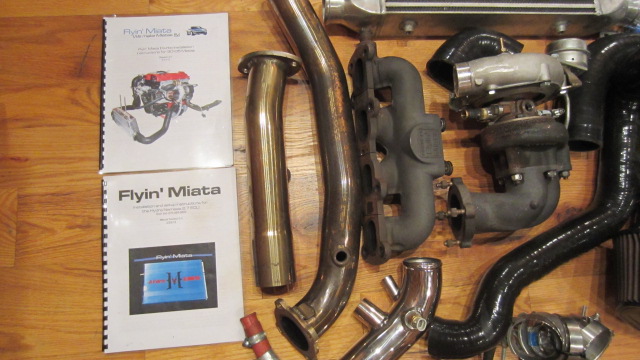

Features Hydra 2.7 ECU, GT2560R turbo, Inconel studs with Stage 8 locking hardware, serial to USB convertor. Includes all hardware, hoses, valves, clamps, injectors, sensors and instructions. PM with questions or if you want pictures of specific parts. Sorry, not interested in selling parts separately.

$3,500 in central Ohio; I have a FedEx account and can likely ship ground anywhere in the lower 48 for around $60.

See larger pictures here:[NA] 1996-97 FM II Hydra turbo system - MX-5 Miata Forum
Attached Thumbnails
1996-97 FM II Hydra turbo system-fm2.1.jpg   1996-97 FM II Hydra turbo system-fm2.2.jpg   1996-97 FM II Hydra turbo system-fm2.3.jpg   1996-97 FM II Hydra turbo system-fm2.4.jpg   1996-97 FM II Hydra turbo system-fm2.5.jpg

1996-97 FM II Hydra turbo system-rsz_sensor1.jpg
JTod is offline
Old 10-10-2014, 03:01 AM   #2
Junior Member
iTrader: (1)

Join Date: Mar 2014
Location: Baku, Azerbaijan
Posts: 53
Total Cats: -5
Default

Ammmm, is this kit`s hardware compatible with 2004 Miata?
axmed518 is offline
Old 10-10-2014, 08:54 AM   #3
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,133
Total Cats: 188
Default

Crap - it almost makes me wish I had another Miata to build. GLWS.
fooger03 is offline
Old 10-10-2014, 10:13 AM   #4
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,791
Total Cats: 130
Default

Quote:
Originally Posted by axmed518 View Post
Ammmm, is this kit`s hardware compatible with 2004 Miata?
Having moved stuff between NA/NB's in the past...

The majority of the kit can be made to work but I wouldn't say it's compatible. The manifold, turbo, downpipe physically fit. The downpipe won't mate to your exhaust. You might be able to make the intercooler piping and intercooler work, but it won't be a direct fit. The injectors work. The heatshield around the turbo can be made to work and possibly the airbox but it'll look stupid won't be as effective. The electronics won't work.
pdexta is offline
Old 10-10-2014, 10:15 AM   #5
Junior Member
iTrader: (1)

Join Date: Mar 2014
Location: Baku, Azerbaijan
Posts: 53
Total Cats: -5
Default

Quote:
Originally Posted by pdexta View Post
Having moved stuff between NA/NB's in the past...

The majority of the kit can be made to work but I wouldn't say it's compatible. The manifold, turbo, downpipe physically fit. The downpipe won't mate to your exhaust. You might be able to make the intercooler piping and intercooler work, but it won't be a direct fit. The injectors work. The heatshield around the turbo can be made to work and possibly the airbox but it'll look stupid won't be as effective. The electronics won't work.
thanks mate
axmed518 is offline
Old 10-10-2014, 11:26 AM   #6
Junior Member
iTrader: (3)

Join Date: Jan 2014
Posts: 105
Total Cats: -3
Default

I doubt this will last long, but if for whatever reason this is still lying around in a few months when I have the cash I'd happily pick it up. I'm from cleveland.
festersays is offline
Old 10-10-2014, 12:00 PM   #7
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Dibs pending questions. Will PM in a few.
cardriverx is offline
Old 10-10-2014, 01:39 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

pdexta - Thanks for the info, I was going to ask FM so you saved me a call.

cardriverx - PM responded to
JTod is offline
Old 10-10-2014, 01:44 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Quote:
Originally Posted by fooger03 View Post
Crap - it almost makes me wish I had another Miata to build. GLWS.
Thanks!
JTod is offline
Old 10-10-2014, 01:45 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Quote:
Originally Posted by festersays View Post
I doubt this will last long, but if for whatever reason this is still lying around in a few months when I have the cash I'd happily pick it up. I'm from cleveland.
Go Browns!
JTod is offline
Old 10-10-2014, 02:22 PM   #11
Newb

Join Date: Jul 2014
Posts: 12
Total Cats: -2
Default

Hi,

I am interested and have cash in hand. Is there any endplay in the turbo shaft?

Thanks,
Dave

[email protected]
djcarr is offline
Old 10-10-2014, 02:46 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Quote:
Originally Posted by djcarr View Post
Hi,

I am interested and have cash in hand. Is there any endplay in the turbo shaft?

Thanks,
Dave

[email protected]
No end play. Email sent
JTod is offline
Old 10-10-2014, 03:14 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Quote:
Originally Posted by JTod View Post
No end play.
I should say, no more than is intended:

Q. How much shaft play should my dual ball bearing turbo have?

A. The Garrett full ball-bearing turbo is designed to have clearance between the bearing cartridge and center housing for hydrodynamic damping in addition to the internal clearances of the bearing cartridge itself. Hydrodynamic damping uses the incompressible properties of a liquid (oil in this case) and the space around the bearing cartridge to dampen the shaft motion of the rotating assembly. When the turbo is new, or has not operated for a long period of time allowing most of the oil to drain out, the rotating assembly will move more in the radial direction than a typical journal-bearing turbo because there is no oil in the center housing. This condition is normal. As long as the shaft wheel spins freely and the wheels don't contact their respective housings, the assembly will function properly.

https://www.turbobygarrett.com/turbo..._bearing_turbo
JTod is offline
Old 10-10-2014, 06:21 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Sale pending to cardriverx
JTod is offline
Old 10-11-2014, 06:48 PM   #15
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

I need to bow out for family reasons. Apologies to all.
cardriverx is offline
Old 10-11-2014, 06:59 PM   #16
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

Ah man, I was getting excited for you.

GLWS OP, seems like a great buy.
turbofan is offline
Old 10-11-2014, 07:37 PM   #17
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Yup, back on the market.
JTod is offline
Old 10-11-2014, 08:45 PM   #18
I'm Miserable!
iTrader: (3)

Join Date: Dec 2013
Location: Central Texas
Posts: 245
Total Cats: 0
Default

I would have bought this but the buyer of my sc kit had buyers remorse, so no more funds. For future reference would you be willing to sell the kit and hydra separate? If so, how much just for the turbo kit?
Greasemonkey2000 is offline
Old 10-11-2014, 10:08 PM   #19
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

Quote:
Originally Posted by turbofan View Post
Ah man, I was getting excited for you.

GLWS OP, seems like a great buy.
Yeah funds are less than I thought I was going to have to spend. At this point I think I will refresh the questionable engine I have and work my way up to turbocharging it, hopefully within 6-9 months.

JTod was great to deal with. Whoever is thinking of buying just do it lol.
cardriverx is offline
Old 10-11-2014, 10:31 PM   #20
Junior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Columbus, Ohio
Posts: 73
Total Cats: -3
Default

Quote:
Originally Posted by Greasemonkey2000 View Post
I would have bought this but the buyer of my sc kit had buyers remorse, so no more funds. For future reference would you be willing to sell the kit and hydra separate? If so, how much just for the turbo kit?
My preference is not to separate any parts so I haven't given any thought to pricing that way.

djcarr was the second person in line and it looks like he may buy the kit. I will update the thread with status.
JTod is offline
