Default 3.9 R&P

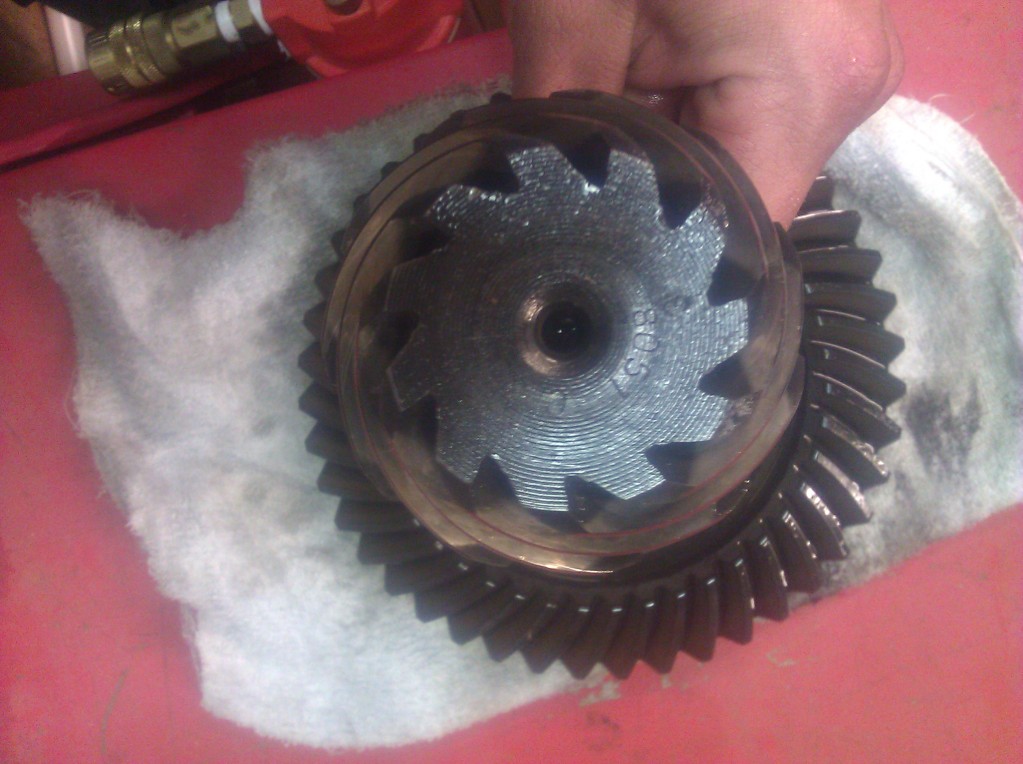

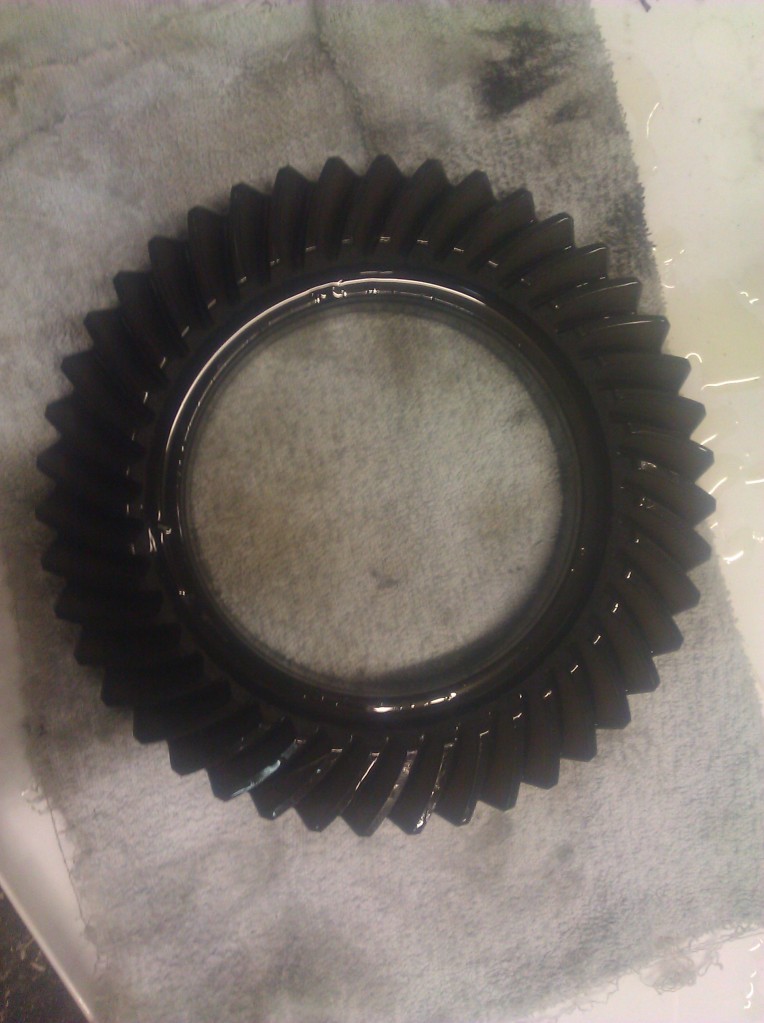

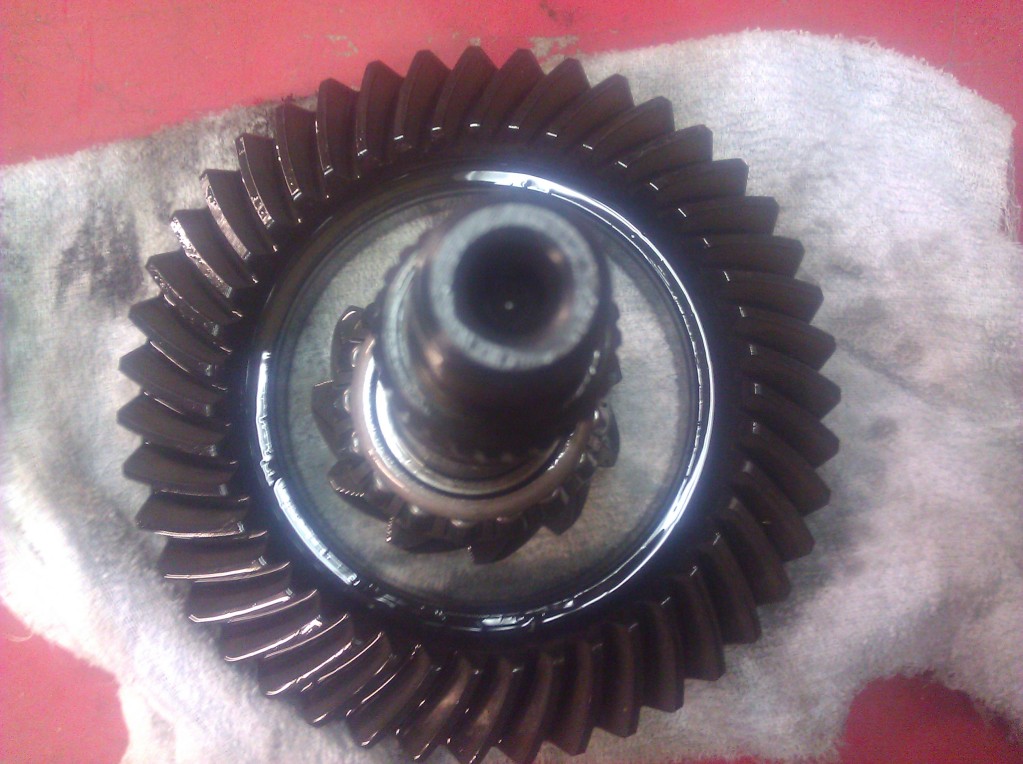

3.909 Ring and Pinion (43/11) for 7" differentials (94-05).
$200 shipped without a bearing on the pinion.
Located in Fredericksburg, VA for local pickup



Attached Thumbnails
3.9 R&P-img_20130506_214150_zps7983fe24.jpg   3.9 R&P-img_20130506_214130_zpseff3dc3e.jpg   3.9 R&P-img_20130506_213856_zpsb0d33b9a.jpg

Last edited by Grantofhell; 05-23-2013 at 11:37 PM.
Grantofhell is offline   Reply With Quote
Old 05-16-2013, 09:05 PM   #2
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 943
Total Cats: 394
Default

We vouch for these.. Built 3.9 and 3.6 cars.. if anyone has 4.30 this is a huge improvement...
FAB is offline   Reply With Quote
Old 05-16-2013, 11:06 PM   #3
Newb

Join Date: Dec 2008
Posts: 25
Total Cats: 0
Default

I can just swap this into my 4.30? What is the condition? Dont want to buy an entire differential if this can fit right in!! Shipping to 78109?
birdzofprey is offline   Reply With Quote
Old 05-16-2013, 11:37 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Grantofhell's Avatar

Join Date: Jul 2012
Location: Fredericksburg, VA
Posts: 80
Total Cats: 1
Default

Yes and no. They are direct fit, but swapping them in requires a dial indicator with magnetic base and a 7-8 inch micrometer. It CAN be done without these tools but I highly advise against it.

I'll PM you a quote.

For all interested, I can swap these in for you if you're local or you are willing to ship your diff (without carrier) to and from me at your cost.
Grantofhell is offline   Reply With Quote
Old 05-16-2013, 11:41 PM   #5
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Clarification:

They are a direct fit for the 4.30 R&Ps that shipped in some of the '99 and later cars.

They will NOT interchange with the 4.30 gears that came in all '90-'93 cars; that differential is completely different (no pun intended), and can be interchanged with the '94+ parts only as a complete assembly including carrier, axles and propshaft.
Joe Perez is offline   Reply With Quote
Old 05-17-2013, 12:01 AM   #6
Junior Member
Thread Starter
iTrader: (4)

Grantofhell's Avatar

Join Date: Jul 2012
Location: Fredericksburg, VA
Posts: 80
Total Cats: 1
Default

Yes, those (factory 90-93) are 6" diffs and will not fit a 7" R&P.

Thank you, I forgot to include that information.
Grantofhell is offline   Reply With Quote
Old 05-17-2013, 12:19 AM   #7
Junior Member

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
Clarification:

They are a direct fit for the 4.30 R&Ps that shipped in some of the '99 and later cars.

They will NOT interchange with the 4.30 gears that came in all '90-'93 cars; that differential is completely different (no pun intended), and can be interchanged with the '94+ parts only as a complete assembly including carrier, axles and propshaft.
Is the pinion gear a different length on the 94+?
pitobread is offline   Reply With Quote
Old 05-17-2013, 12:26 AM   #8
Junior Member
Thread Starter
iTrader: (4)

Grantofhell's Avatar

Join Date: Jul 2012
Location: Fredericksburg, VA
Posts: 80
Total Cats: 1
Default

Quote:
Originally Posted by pitobread View Post
Is the pinion gear a different length on the 94+?
I'll measure the pinion and post the result. If anyone else has 1.6 specs to compare. I'm pretty sure even if the length is the same, the teeth wouldn't quite work together with any 7" ring gear.
Grantofhell is offline   Reply With Quote
Old 05-17-2013, 02:59 AM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by pitobread View Post
Is the pinion gear a different length on the 94+?
The ring gear is a different diameter, the pinion gear is therefore also a different length.

In general, there is zero interchangeability between individual components in the '90-'93 vs. '94-'05 drivetrains aft of the transmission. Different propshafts, different differentials, different R&P gears, different housing & carriers, different axles. It's not until you get out to the hubs that parts start becoming interchangeable again.

You can swap the *entire* propulsion train (propshaft, diff, carrier and axles) from a '94+ into a '90-'93, but the individual components are not at all interchangeable.
Joe Perez is offline   Reply With Quote
Old 05-17-2013, 03:07 AM   #10
Junior Member

Join Date: Sep 2012
Posts: 73
Total Cats: 0
Default

I see, I misread what you said at first Joe and thought you were saying this 7" R&P was different and would only work in a later housing. My mistake.
pitobread is offline   Reply With Quote
Old 05-17-2013, 03:15 AM   #11
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

Quote:
Originally Posted by pitobread View Post
I see, I misread what you said at first Joe and thought you were saying this 7" R&P was different and would only work in a later housing. My mistake.
It will work only in a '94+ housing, along with a '94+ diff, a '94+ carrier, '94+ axles and a '94+ propshaft.
Joe Perez is offline   Reply With Quote
Old 05-22-2013, 06:46 PM   #12
Junior Member
iTrader: (1)

Join Date: Jul 2012
Location: long island NY
Posts: 66
Total Cats: -1
Default

$200 shipped to 11566?
cheezitnation697 is offline   Reply With Quote
