Default Air Research Garret T3/T4 turbo

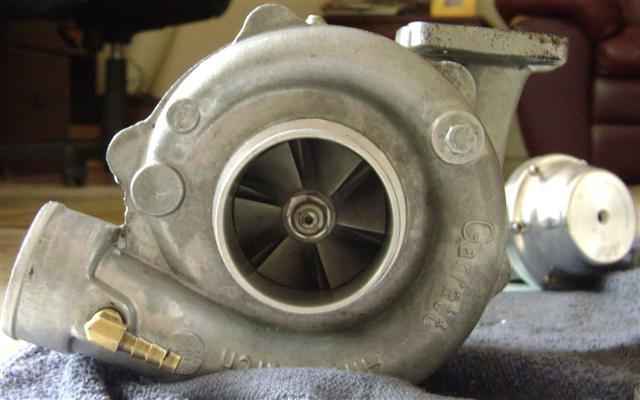

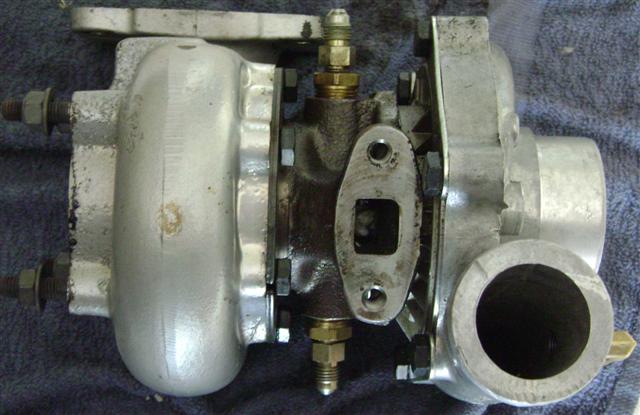

For sale: 1 Air Research Garret T3 Super.60 turbo. Itís a ball bearing water and oil cooled turbo.

This particular turbo is a $400 option on the Begi S5 system.

Mike (the previous owner) sent me this explanation when I bought his kit: ďThe turbo is a T3 (Compressor side and Turbine Side). Corky just installed a T04E Compressor wheel in there which makes it act kind of like a T3 Super 60, just a little hotter. I think it would peak out around 350whp. But, it works in it's peak efficiency island from 240whp to 310whp.Ē

It has been used for 3,500 miles. No shaft play whatsoever.

Iíll sell it for $600.00 shipped in the Continental US
Attached Thumbnails
Air Research Garret T3/T4 turbo-turbo-turbine-small-.jpg   Air Research Garret T3/T4 turbo-turbo-ii-small-.jpg
Rafa is offline
Old 07-23-2008, 03:43 PM   #2
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I want!!!
But no can have right now....Good luck with the sale Rafa!!!
Zabac is offline
Old 07-23-2008, 03:44 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,184
Total Cats: 2,582
Default

beautiful turbo....out of my price range :(
18psi is offline
Old 07-23-2008, 03:54 PM   #4
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Zabac View Post
I want!!!
But no can have right now....Good luck with the sale Rafa!!!
Thanks Dan. BTW, when I'm going to pay you for the blanket?
Rafa is offline
Old 07-23-2008, 04:01 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Rafa, this is a t3/t4 turbo now.... have any clue what trim? A t04e 40 or 46 trim would be close to a S60 T3 wheel...a 57 trim wheel is not

what a/r is stamped on the turbine inlet?
Braineack is online now
Old 07-23-2008, 04:04 PM   #6
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by Rafa View Post
Thanks Dan. BTW, when I'm going to pay you for the blanket?
Pay me in Turbo form, one ballbearing oil/water cooled T3 with a to4e compressor wheel will do...


It appears to have a Ceramic coating on the hotside....nice
Zabac is offline
Old 07-23-2008, 04:06 PM   #7
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by Braineack View Post
Rafa, this is a t3/t4 turbo now.... have any clue what trim? A t04e 40 or 46 trim would be close to a S60 T3 wheel...a 57 trim wheel is not

what a/r is stamped on the turbine inlet?
I think it's a .46 but I'm not sure.
Do want!!! Must have!!! Man this sucks, your timing is off Rafa, bad, list this 3 months from now hahaha
Zabac is offline
Old 07-23-2008, 04:08 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

a 46trim to4e would be a nice little turbo hopefully the turbine is a standard .48 Stage I. I would expect to be able to support 350rwhp with it.
Braineack is online now
Old 07-23-2008, 04:09 PM   #9
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
Rafa, this is a t3/t4 turbo now.... have any clue what trim? A t04e 40 or 46 trim would be close to a S60 T3 wheel...a 57 trim wheel is not

what a/r is stamped on the turbine inlet?
I don't know. I sent Mike an email asking him. I'm waiting for his reply.

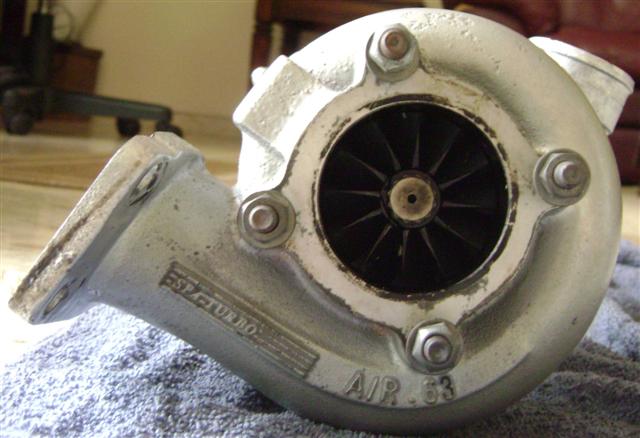

FWIW, it says: A/R .63

Just in case, here's a pic:
Attached Thumbnails
Air Research Garret T3/T4 turbo-turbo-iii-small-.jpg
Rafa is offline
Old 07-23-2008, 04:12 PM   #10
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Zabac View Post
I think it's a .46 but I'm not sure.
Do want!!! Must have!!! Man this sucks, your timing is off Rafa, bad, list this 3 months from now hahaha
You always have credit with me!

I've got a local RX-7 owner hounding me.

BTW, I get a sense it's larger than .46. Let's see if Mike reads this thread.
Rafa is offline
Old 07-23-2008, 04:21 PM   #11
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Quote:
Originally Posted by Rafa View Post
You always have credit with me!

I've got a local RX-7 owner hounding me.

BTW, I get a sense it's larger than .46. Let's see if Mike reads this thread.
Not gonna do that Rafa, things happen for a reason, and if I can't have it now, hopefully something similar will come by at another time when I can splurge.
The .63 a/r is also perfect for me...dammit!!!
As I said, good luck with the sale Rafa, I am sure it won't last long.
I hope Urbansoot buys it, cause he would sell it 2-4 months later and I could get it haha.
Zabac is offline
Old 07-23-2008, 04:25 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

ok.... to clear things up:

This is a T3/T4.
The turbine housing is .63 A/R
The turbine is a Stage II or III wheel
EWG only, unless you replace the housing
The compressor is a T04e 46 trim.
Braineack is online now
Old 07-23-2008, 04:30 PM   #13
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,240
Total Cats: 290
Default

That's a deal IF it's really a bb chra.
m2cupcar is offline
Old 07-23-2008, 04:39 PM   #14
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by m2cupcar View Post
That's a deal IF it's really a bb chra.
Trust me; it is
Rafa is offline
Old 07-23-2008, 04:45 PM   #15
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
ok.... to clear things up:

This is a T3/T4.
The turbine housing is .63 A/R
The turbine is a Stage II or III wheel
EWG only, unless you replace the housing
The compressor is a T04e 46 trim.
We have to wait for Mike to confirm the specs I don't have. As I stated before; I sent Mike an email last night. When he gets back to me I'll post any additional info he may have since he was the one who originally asked Corky to modify it.

BTW, I have an external WG indeed.
Rafa is offline
Old 07-23-2008, 06:22 PM   #16
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

You can see the Tial in the background, I have the same one haha

Hey Rafa, you know that if it don't sell for some reason just in case, I will buy it several months from now...just to give you peace of mind, it is practically sold, just not yet haha.
Zabac is offline
Old 07-23-2008, 06:57 PM   #17
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Zabac View Post
You can see the Tial in the background, I have the same one haha

Hey Rafa, you know that if it don't sell for some reason just in case, I will buy it several months from now...just to give you peace of mind, it is practically sold, just not yet haha.
I wouldn't have a problem with that. Don't worry, it will be out of the car and kept safely on my locker!

BTW, I already got a smaller T3 and a T28. I'll be doing some comparisons in the future
Rafa is offline
Old 07-23-2008, 06:59 PM   #18
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

haha..what are you looking for powerwise? Just something more responsive?
Zabac is offline
Old 07-23-2008, 07:08 PM   #19
Elite Member
Thread Starter
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Zabac View Post
haha..what are you looking for powerwise? Just something more responsive?
More responsive is the key in my case. The new T3 is smaller. You're dead on!

I'm starting to look for a T2 manifold also.
Rafa is offline
Old 07-23-2008, 10:13 PM   #20
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by Rafa View Post
More responsive is the key in my case. The new T3 is smaller. You're dead on!

I'm starting to look for a T2 manifold also.
If you want response toss a .48 AR turbine onto that thing... a stage 2 .63AR is really going to kill your spool on a 1.8L
