Default Baller racecar tubular heim-jointed suspension

Can't believe I'm doing this but if there is a serious buyer I am selling my tubular suspension! Included are all heim joints, front and rear a-arms, modified rear knuckles, front knuckles, front ball joints!
These will require spacers to be made for the heim joints in the factory subframe! Front upper will need 1/2-20 nuts welded onto the factory subframe!

These are not direct bolt in a-arms. These are for you crazy racecar guys.
I have lots of money into these and will let everything go for $2500 obo will sell for less minus heims! Serious offers only, don't waste my time!
Will trade for leightweight doors,trunk (carbon) or some 15x10 wheels!



Attached Thumbnails

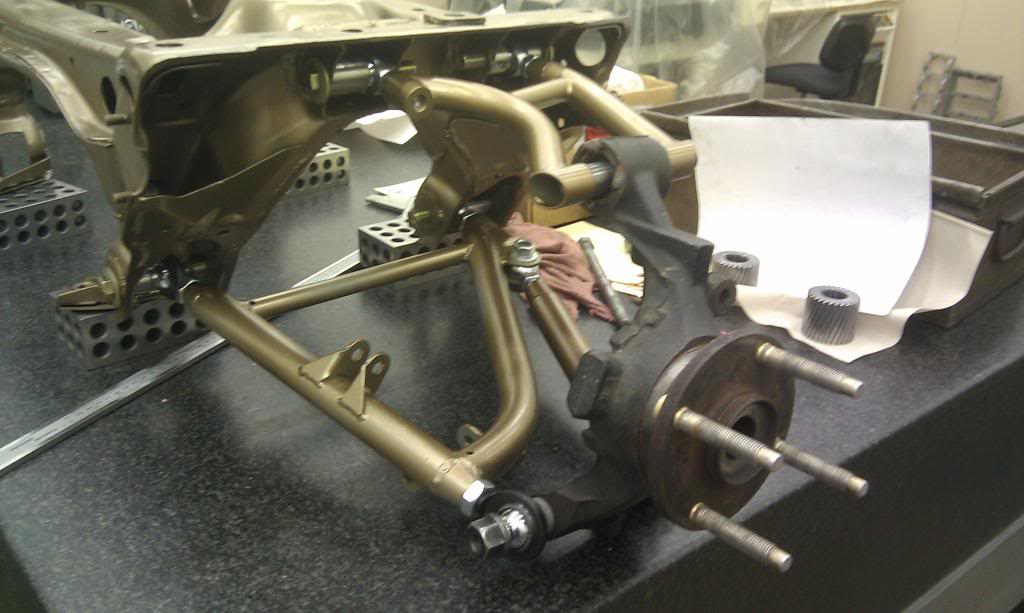

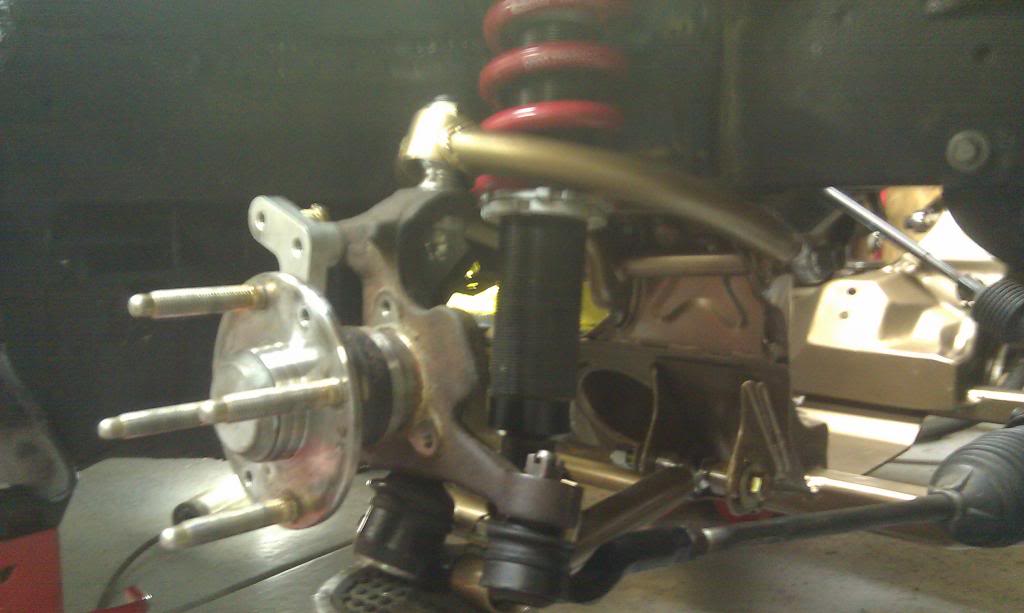

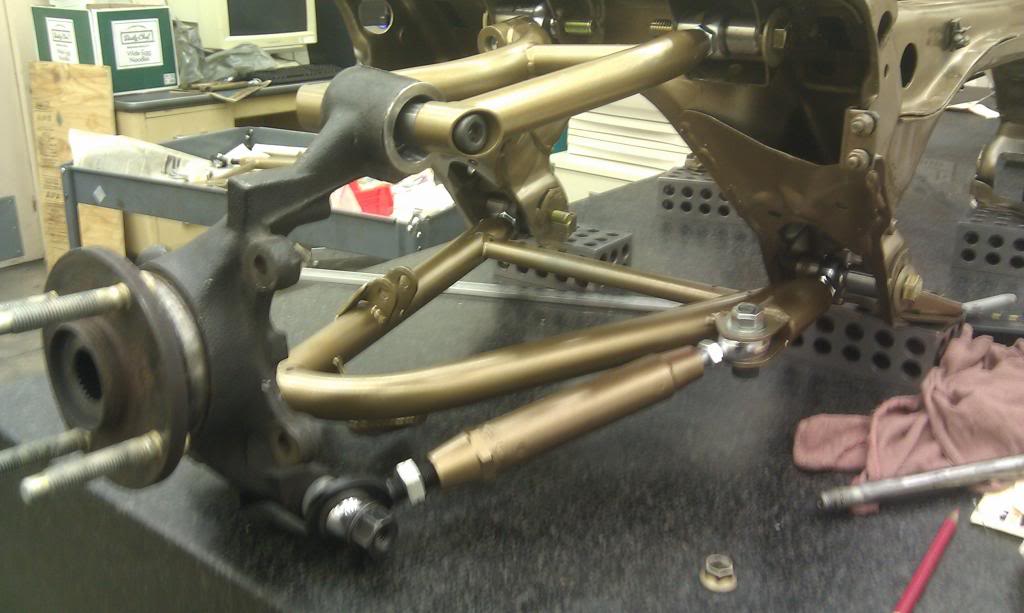

Baller racecar tubular heim-jointed suspension-imag0643_zps8fbcdde5.jpg   Baller racecar tubular heim-jointed suspension-imag0645_zps51476404.jpg   Baller racecar tubular heim-jointed suspension-imag0799_zps8cf8bdf9.jpg
1BAD96 is offline   Reply With Quote
Old 06-24-2014, 12:22 PM   #2
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Can even include my modified rear subframe!
1BAD96 is offline   Reply With Quote
Old 06-24-2014, 01:41 PM   #3
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,480
Total Cats: 248
Default

Looks pretty! But I thought heim joints in bending was bad?
TurboTim is online now   Reply With Quote
Old 06-24-2014, 03:56 PM   #4
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by TurboTim View Post
Looks pretty! But I thought heim joints in bending was bad?
Confused as to what your asking.
1BAD96 is offline   Reply With Quote
Old 06-24-2014, 04:03 PM   #5
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 870
Total Cats: 93
Default

Quote:
Originally Posted by TurboTim View Post
Looks pretty! But I thought heim joints in bending was bad?
Rod ends in bending are a compromise. By using staked in spherical bearings, or some other form of bearing that doesn't load the threads in bending, you can make a lighter design. Since you don't want the threads to deform, you must oversize the rod end quite a bit, over what they could be. Assuming that the rod ends used in these control arms are oversized enough that plastic deformation won't ever occur, they are fine. To put it simple, a little bit of weight is sacrificed for easy adjustment.
acedeuce802 is offline   Reply With Quote
Old 06-24-2014, 06:33 PM   #6
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

To add to this, rod ends are rated for side load. I imagine that 1/2" rod ends are rated 5 times higher than any load that they'll see in this application.
vehicular is offline   Reply With Quote
Old 06-24-2014, 07:13 PM   #7
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by vehicular View Post
To add to this, rod ends are rated for side load. I imagine that 1/2" rod ends are rated 5 times higher than any load that they'll see in this application.
Depends on the brand. I was considering going up to 5/8" sphericals on the FLCAs because the Aurora ComC 1/2" ones only had like a factor of safety just over 2 and I didnt want to have to keep replacing them once a season. Then I discovered the NHBB ones. Either way, rod ends in bending is bad juju, and most of them are in those arms. And its just lazy design, I know a guy who makes spherical kits for hondas and such that will cut custom weld in bearing cups for about the price difference between sphericals and rod ends, so it aint for the cost savings and he's not exactly the cheapest guy to work with.

I was really hoping I could have been the first one to make miata rear lower control arms with the toe link like that.

*Edit, didnt realize we were shitting up a for sale thread. To make you feel better, the control arms I priced out are like $1500 in just material, $1200 of that being just the bearings, their bearing cups, and the spacers.
Leafy is offline   Reply With Quote
Old 06-25-2014, 07:51 AM   #8
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by Leafy View Post
Depends on the brand. I was considering going up to 5/8" sphericals on the FLCAs because the Aurora ComC 1/2" ones only had like a factor of safety just over 2 and I didnt want to have to keep replacing them once a season. Then I discovered the NHBB ones. Either way, rod ends in bending is bad juju, and most of them are in those arms. And its just lazy design, I know a guy who makes spherical kits for hondas and such that will cut custom weld in bearing cups for about the price difference between sphericals and rod ends, so it aint for the cost savings and he's not exactly the cheapest guy to work with.

I was really hoping I could have been the first one to make miata rear lower control arms with the toe link like that.

*Edit, didnt realize we were shitting up a for sale thread. To make you feel better, the control arms I priced out are like $1500 in just material, $1200 of that being just the bearings, their bearing cups, and the spacers.
These arms have a mix of 5/8" heims as well as 1/2"! These are the same as a multi national champion SCCA EP car. These are no way near a cheap setup and were designed and built to be reliable and used on a racecar!
1BAD96 is offline   Reply With Quote
Old 06-25-2014, 09:30 PM   #9
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Bump for $2000 minus heims!
1BAD96 is offline   Reply With Quote
Old 06-26-2014, 11:57 AM   #10
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,399
Total Cats: 200
Default

The arms look very similar to what most off road race cars and trucks use, which take much more abuse than a street car will ever see. What material are they made from?
ryansmoneypit is offline   Reply With Quote
Old 07-02-2014, 01:02 PM   #11
Newb

Join Date: Oct 2013
Location: Chicago
Posts: 38
Total Cats: 2
Default

May I ask: Why are you selling?
Frankie4Fingers is offline   Reply With Quote
Old 07-02-2014, 01:37 PM   #12
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by Frankie4Fingers View Post
May I ask: Why are you selling?
Could use the money instead!
1BAD96 is offline   Reply With Quote
Old 01-26-2015, 09:38 AM   #13
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Bumping this because I need these gone!
Whats included:
Rear upper and lower control arms
Front upper and lower control arms
Front lower ball joint, front upper ball joint
Front and Rear Spindles with hubs and extended wheel studs.

You will need to source your own heim joints!
Looking for $1500 shipped. This is a steal for these arms at that price.
Any serious racer/autocrosser, anyone building a SCCA EP car.
1BAD96 is offline   Reply With Quote
Old 01-26-2015, 05:10 PM   #14
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

This suspension never saw track time, is that correct?
guttedmiata is offline   Reply With Quote
Old 01-27-2015, 03:01 PM   #15
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by guttedmiata View Post
This suspension never saw track time, is that correct?
Sadly you are correct!
1BAD96 is offline   Reply With Quote
Old 01-28-2015, 04:44 PM   #16
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Yeah, that's kind of what I thought. Not really willing to drop that kind of cash on unproven parts. Those front LCAs in particular look scary to me.
guttedmiata is offline   Reply With Quote
Old 01-29-2015, 10:11 AM   #17
Junior Member
Thread Starter
iTrader: (5)

Join Date: Feb 2010
Location: Hubertus, WI
Posts: 189
Total Cats: 45
Default

Quote:
Originally Posted by guttedmiata View Post
Yeah, that's kind of what I thought. Not really willing to drop that kind of cash on unproven parts. Those front LCAs in particular look scary to me.
These are built and proven by Jon Brakke.
Multiple SCCA EP National Championships!

My arms are new, design is proven and tested!

I don't know how the LCA's look scary!

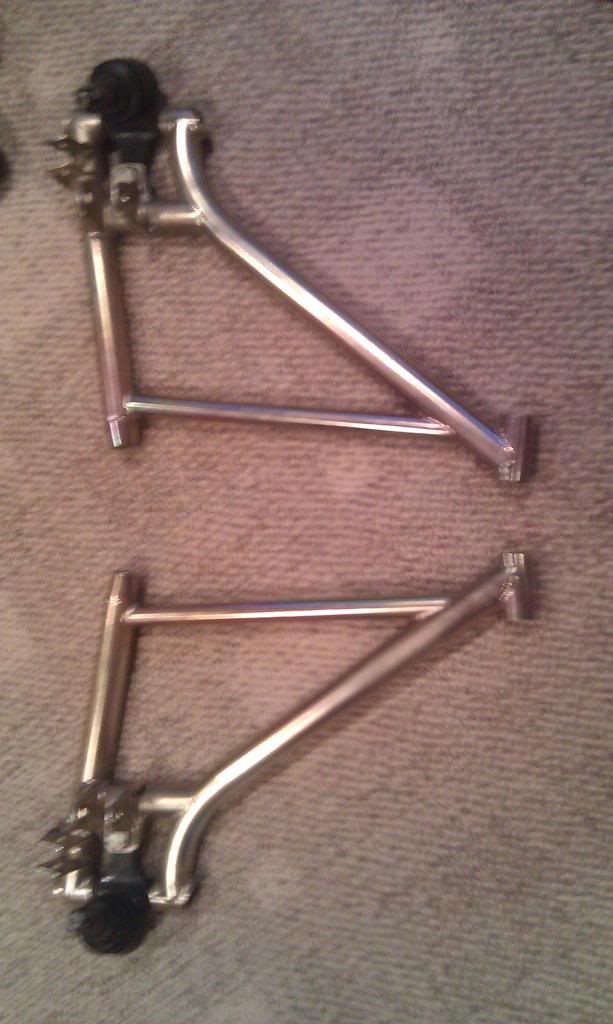

Attached Thumbnails
Baller racecar tubular heim-jointed suspension-imag0507_zpscfbb05f5.jpg
1BAD96 is offline   Reply With Quote
Old 01-29-2015, 09:38 PM   #18
Junior Member

guttedmiata's Avatar

Join Date: Sep 2012
Posts: 438
Total Cats: -3
Default

Is that bar or tubing? What diameter? If it's tubing, do you know the wall thickness?

It looks scary, because it doesn't look strong enough to hold up to the forces of my slicks on an autocross course. It substantially smaller tubing than v8 roadster and they're on their 6th or 7th design trying to come up with arms that don't fail.

Do you know what those weigh?

Last edited by guttedmiata; 01-29-2015 at 10:46 PM.
