Arrow Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!

These are bolt on intercoolers for the NA and NB Miata. I bought one initially for my build and figured I could save you guys some money by knocking out a few of these all at once.

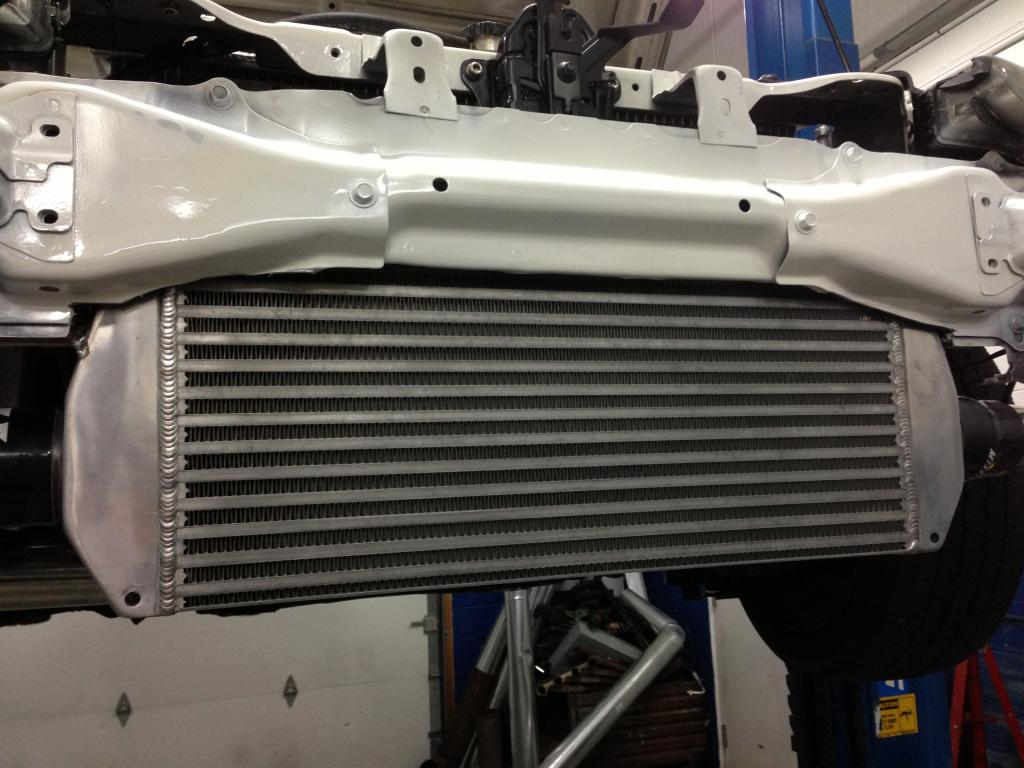

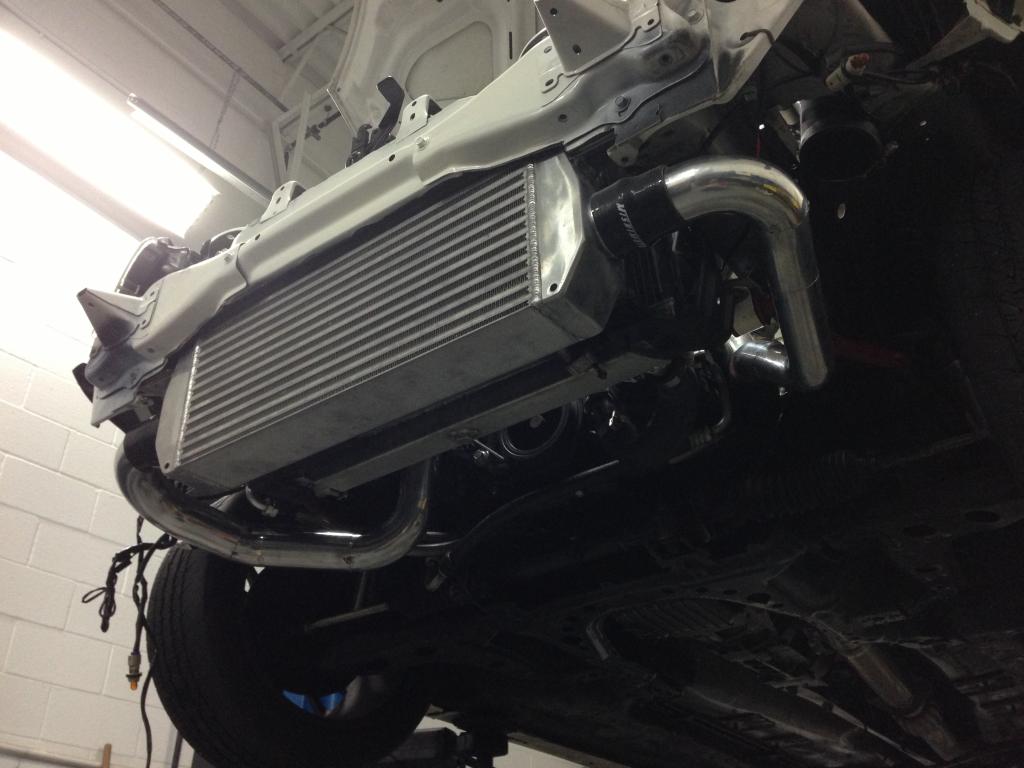

These intercoolers are direct bolt on! Material needs to be trimmed from the core support as shown below but can be installed in about 1 hour. They bolt up using factory mounting points already on the car. I really only recommend this size core if you are making over 250 at the wheels.

With the use of couplers to accept the 2.5” inlet and outlet, hey are compatible with the Flyin Miata and the BEGi intercooler pipes.

Covering the basics:
-CORE INTENDED TO SUPPORT 550HP
-Bolts to factory mounting points
-Compatible with BEGi and FM ic pipe
-Compatible with NA and NB Miata. NB with AC has been tested and it fits. Unknown if NA with AC will work but my assumption says yes.
-Recommended for 250hp+
-Requires you to remove a small amount of material from your core support.
-Fits with factory bumper unmodified.

Intercooler specifications:
Approx. Flow Rate for this intercooler: 725 CFM at 1.5PSi pressure drop
Approx. HP Rating for this intercooler: 550 HP

Core Width: 24" (Overall Width with End Tanks: 30")
Core Height: 9.25"
Core Thickness: 3.25"
Inlet Diameter: 2.50"
Outlet Diameter: 2.50"
Inlet/Outlet Neck Location: Offset

Big boy core that really says “I’m not flucking around”:

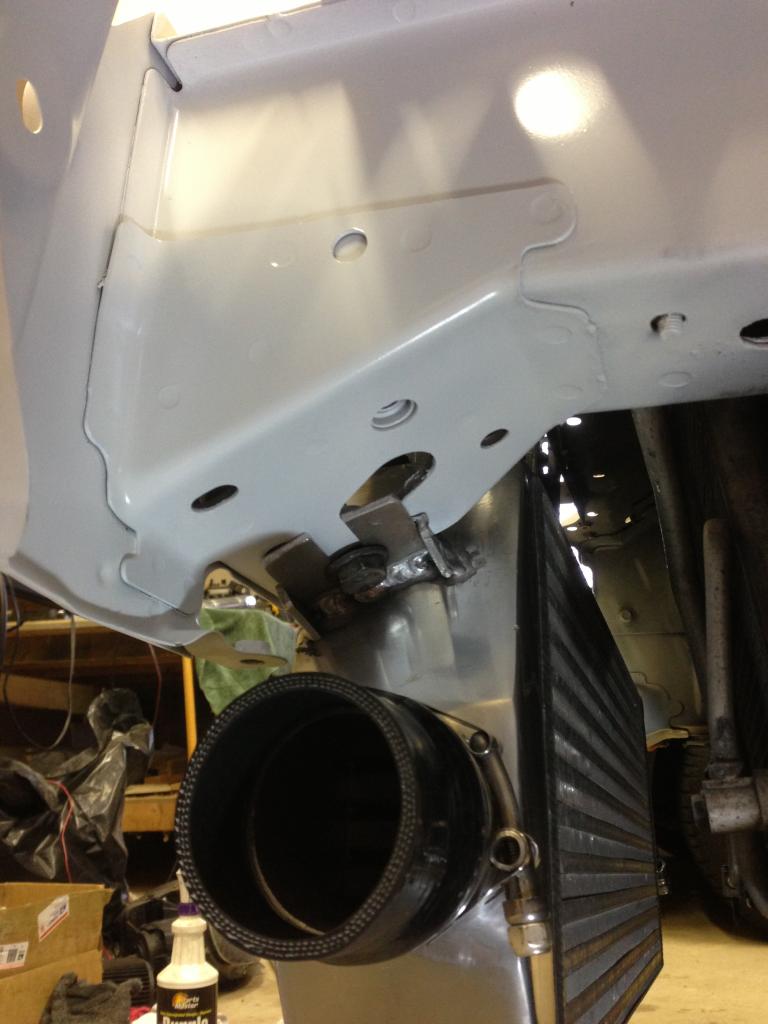

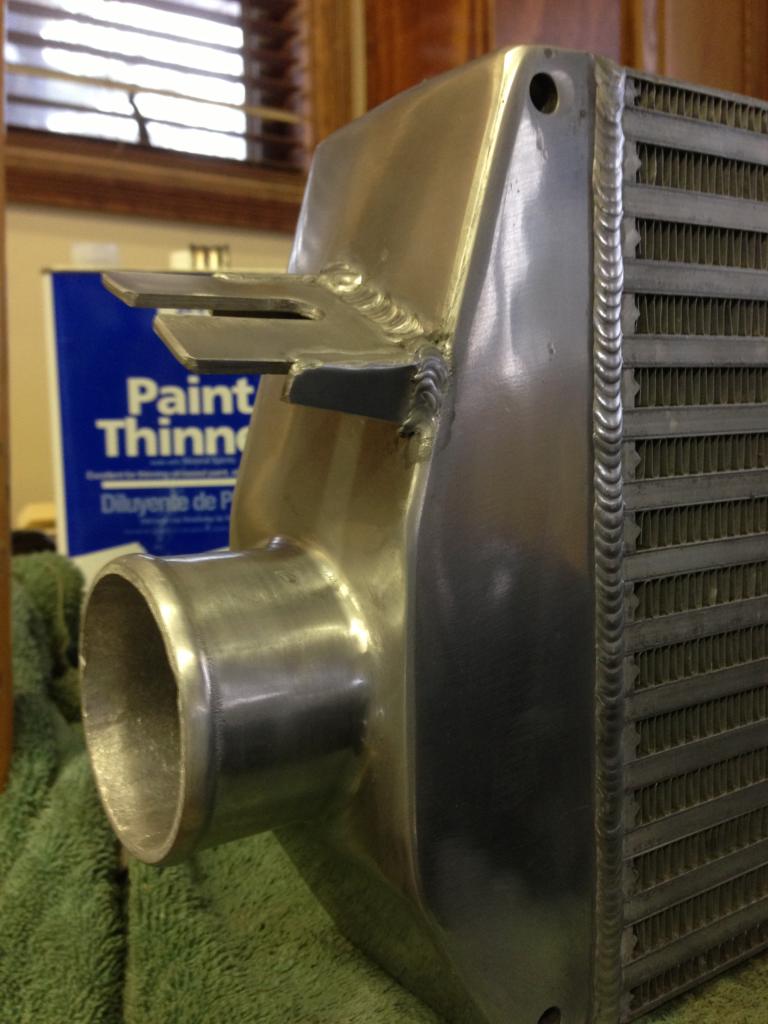

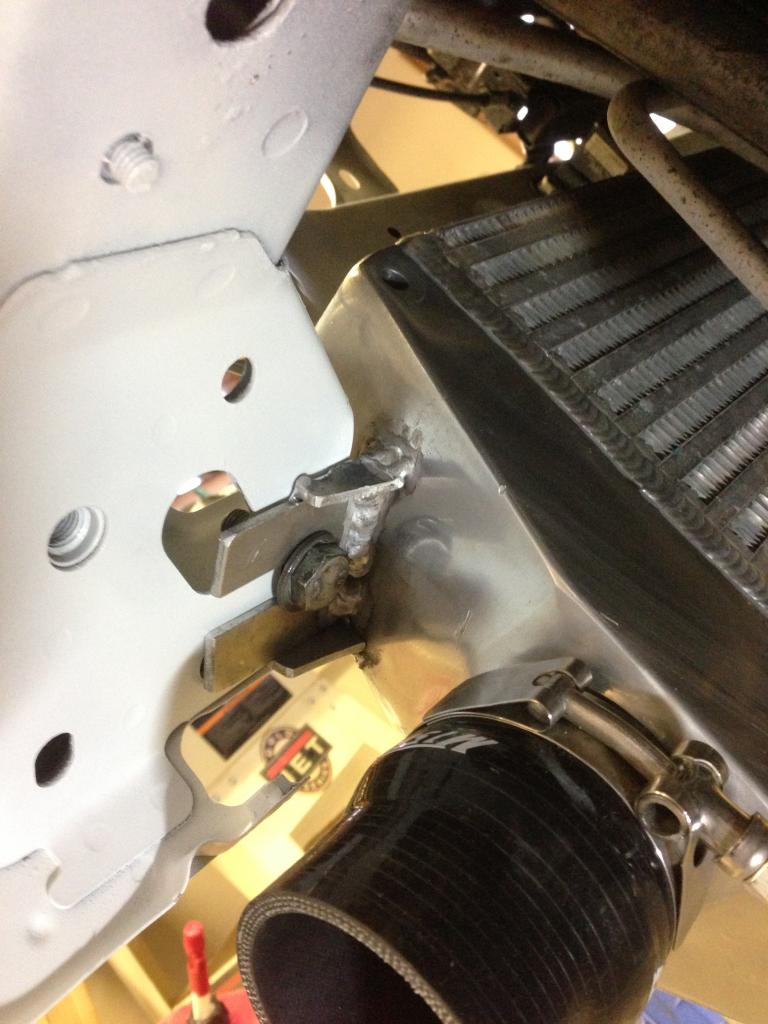

Reinforced mounting points. Once bolted up you can really feel how solid the mounting is. This setup is ready for some abuse.







Price 300 shipped within the US. Please PM me for details.
Attached Thumbnails
Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-picture021_zpsf79fe706.jpg   Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-picture020_zps03506b33.jpg   Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-image_zps9915753a.jpeg   Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-image_7_zpsff5df45b.jpeg   Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-image_8_zps8e8ec588.jpeg


Last edited by miatauser123; 02-08-2013 at 11:53 PM.
miatauser123 is offline
Old 02-05-2013, 09:32 AM   #2
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

4 gone and one left.
miatauser123 is offline
Old 02-05-2013, 11:55 PM   #3
Newb

Join Date: Oct 2011
Location: good old NJ
Posts: 37
Total Cats: 0
Default

i can't wait till this baby shows up at my door!!!!!
weak_sauce is offline
Old 02-06-2013, 04:27 AM   #4
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

Payment sent. I can't pass up this opportunity.

I'm probably going to end up working during the weekend, but you're not far away. Text me and i'll drive up there.
Erat is offline
Old 02-06-2013, 02:37 PM   #5
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

These look great. Hope they'll be around when I'm ready.
Taifighter is offline
Old 02-07-2013, 11:19 AM   #6
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

One more of these is now available. I'm actually working on a smaller version for a guy who decided to switch it up. So one more available guys!
miatauser123 is offline
Old 02-08-2013, 05:16 PM   #7
Junior Member
iTrader: (1)

Join Date: Mar 2012
Location: Northwest Indiana
Posts: 111
Total Cats: 0
Default

Got the last one still?
I'm ready.
Taifighter is offline
Old 02-08-2013, 09:29 PM   #8
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Any interest in a 350hp version that requires no cutting?
miatauser123 is offline
Old 02-08-2013, 11:06 PM   #9
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Why would the 300 be without cutting but this one requires cutting? I might be but not now.
Dot3 is offline
Old 02-08-2013, 11:55 PM   #10
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Dot3 View Post
Why would the 300 be without cutting but this one requires cutting? I might be but not now.
This core will support 550hp and the 350hp version is smaller.

350 = 20in CORE
550 = 26in CORE
miatauser123 is offline
Old 02-08-2013, 11:59 PM   #11
Junior Member
iTrader: (1)

Join Date: Oct 2011
Location: Albuquerque, NM
Posts: 381
Total Cats: -13
Default

Oh sorry missed that. Yeah but if you have this when I start my build I might.
Dot3 is offline
Old 02-09-2013, 10:51 AM   #12
Newb
iTrader: (1)

Join Date: Aug 2012
Location: MSP Metrozone
Posts: 11
Total Cats: 0
Default

I'd be interested in the tree-fiddy core.

edit: first post!
MacGuffin is offline
Old 02-09-2013, 02:58 PM   #13
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

Quote:
Originally Posted by Dem768 View Post
Any interest in a 350hp version that requires no cutting?
Yes I would interested in the 350 hp version for sure.
Chilicharger665 is offline
Old 02-10-2013, 01:52 AM   #14
Newb

Join Date: Feb 2012
Posts: 12
Total Cats: 0
Default

Any details on the smaller version? Thanks
bubb is offline
Old 02-10-2013, 11:16 AM   #15
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by bubb View Post
Any details on the smaller version? Thanks
Core Width: 20" Width with End Tanks is 26
Core Height: 6.5
Core Thickness: 3.25
Inlet Diameter: 2.5"
Outlet Diameter: 2.5"
Inlet/Outlet Location: Center

Approx. Flow Rate for this intercooler: 520 CFM at 1.5PSi pressure drop
Approx. HP Rating for this intercooler: 350 HP
miatauser123 is offline
Old 02-11-2013, 09:51 AM   #16
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

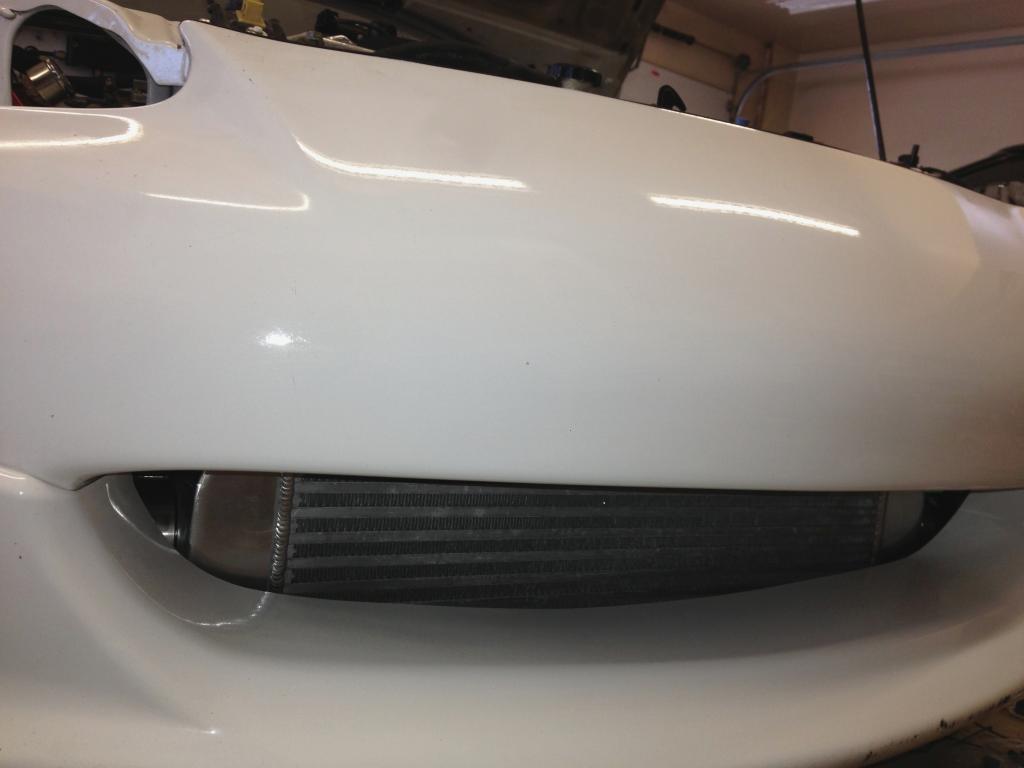

Alright guys – Snapped a picture of the bumper installed. I’ll grab some better pictures when my car is actually rolling again but this really gives you the idea on how well this IC really fills the grill. This is one of the 550HP cores btw.

Attached Thumbnails
Bolt in BIG BOY intercoolers - NA and NB Vibrant Cores! AFFORDABLE!-picture004_zps43647163.jpg
miatauser123 is offline
Old 02-11-2013, 11:11 AM   #17
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

That looks good, looks clean with wall to wall intercooler.
Landrew is offline
Old 02-11-2013, 12:25 PM   #18
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,198
Total Cats: 260
Default

You get my PM? I think this site has been having PM problems lately.
Erat is offline
Old 02-11-2013, 01:51 PM   #19
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by Erat View Post
You get my PM? I think this site has been having PM problems lately.
Just sent you a follow up. I think there have been problems with PM too - Let me know if that made it through.
miatauser123 is offline
Old 02-11-2013, 02:04 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,185
Total Cats: 2,582
Default

Is the 1 still left or are they all gone?
