Default Brain built MS2

Selling this Braineack built MS2, PNP for 94-95 cars. I am the second owner of this unit. It has been fiddled, fondled, caressed, massaged, and violated.

Brain uses orange wires, i used green, so that means someone else used yellow.

I never did get EBC to work and could never figure out if it was the ECU's fault or not. Most likely not...
Other than that, the ECU works perfectly fine. It will come with my old tune on it.
$500






Do i need pictures of the case? It looks fine externally.
Attached Thumbnails

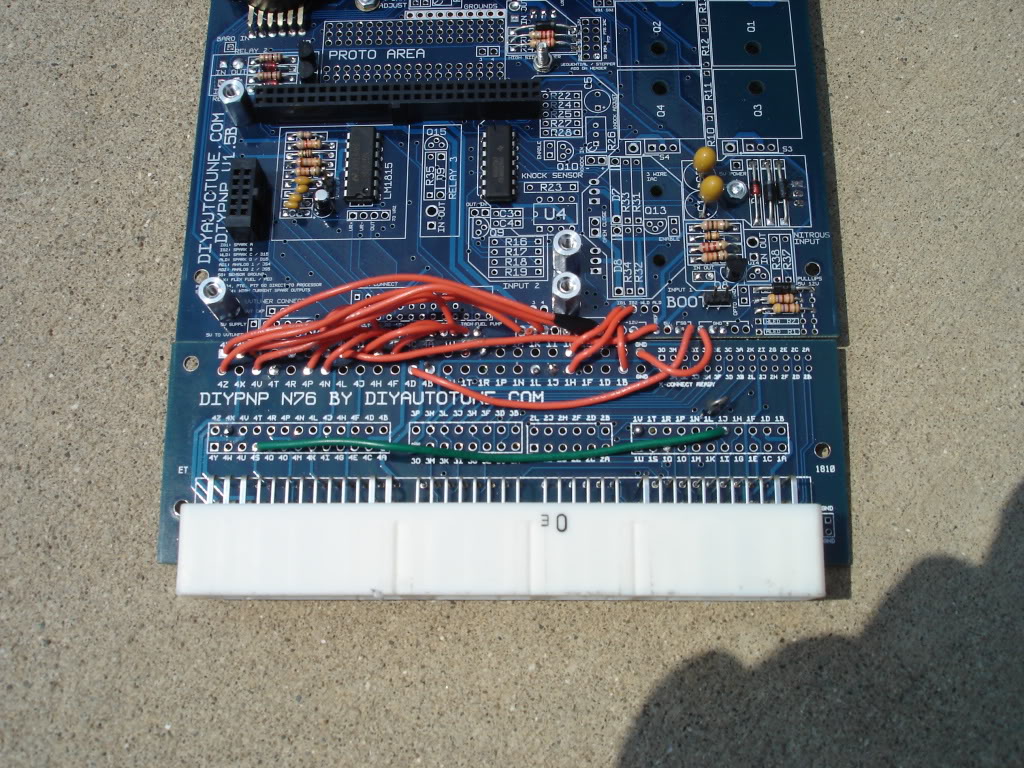

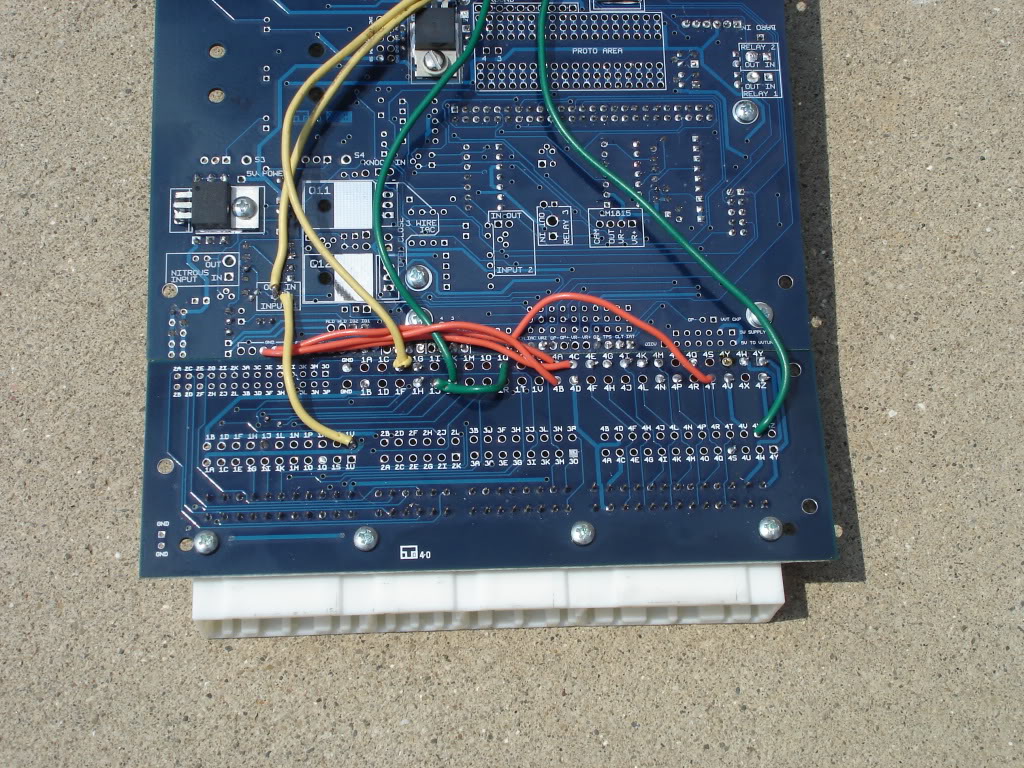

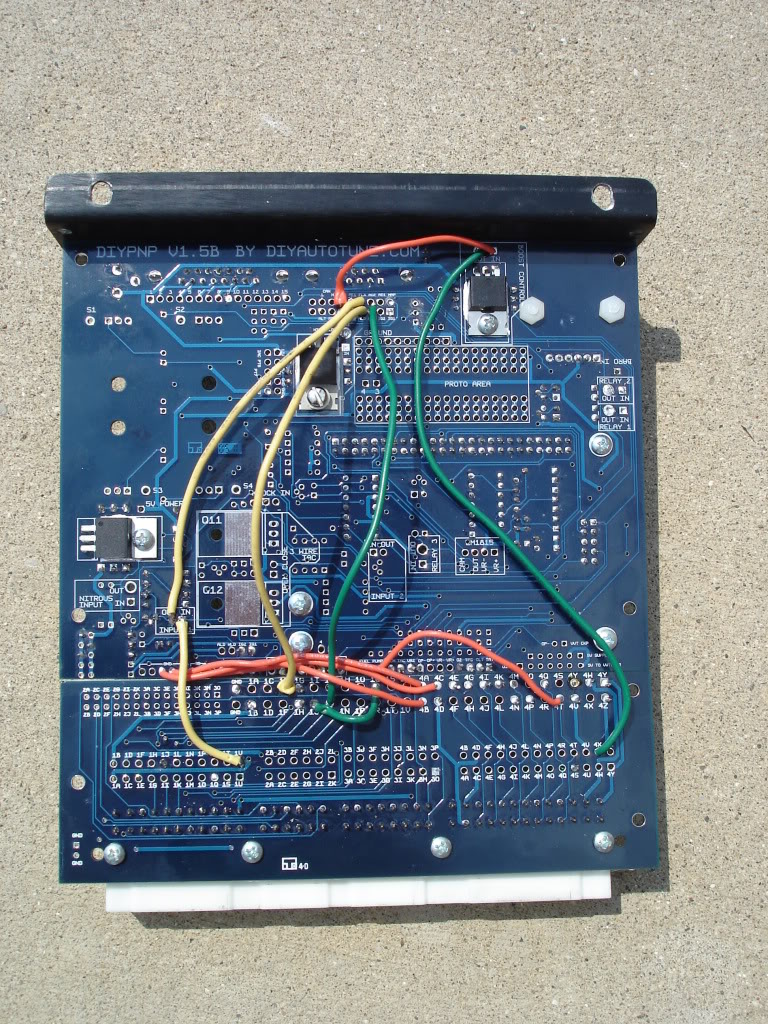

Brain built MS2-dsc04405.jpg   Brain built MS2-dsc04402.jpg   Brain built MS2-dsc04403.jpg
Erat is offline   Reply With Quote
Old 10-27-2014, 10:51 AM   #2
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

It doesnt look like it was ever wired for EBC judging by there are no outputs wred to the DB15 except one which was probably for the WB02
ScottyP3821 is offline   Reply With Quote
Old 10-27-2014, 10:58 AM   #3
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 871
Total Cats: 93
Default

The EBC is wired into the main harness. Looks like it used a wire not otherwise used by megasquirt, in the stock harness. 4X on the DIYPNP board, which seems to correlate to 2X on the 94-95 harness as the evap canister valve.
acedeuce802 is offline   Reply With Quote
Old 10-27-2014, 11:03 AM   #4
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Yeah, i tried to wire it into the evap solenoid valve as i had already deleted that. That way i could keep it clean in the harness. But it didn't work.
Erat is offline   Reply With Quote
Old 10-30-2014, 08:35 PM   #5
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Just to be clear, this ECU is working perfectly fine. I just never got EBC to work on it.

If you don't feel the price if fair, i'm open to offers too.
Erat is offline   Reply With Quote
Old 10-30-2014, 09:05 PM   #6
Junior Member
iTrader: (1)

Join Date: Apr 2013
Location: Roseville, CA
Posts: 56
Total Cats: -3
Default

you have PM thanks
mx54life is offline   Reply With Quote
Old 11-08-2014, 07:12 PM   #7
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,191
Total Cats: 260
Default

Still for sale.
