Default BRP M45 Coldside Manifold

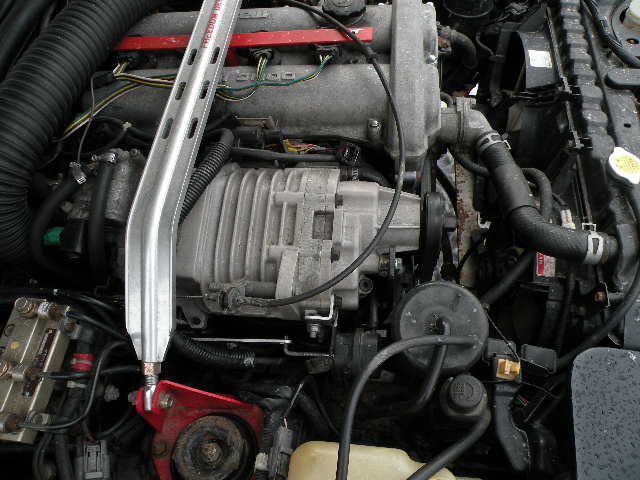

If you have an M45 and are looking for throttle response... THIS IS the manifold to have. I'm running 10+psi- and it's an absolute blast. I will include my custom pulley set up (the original was a POS) My custom one has been on the car with the same belt for 30K miles- it has a VW style adjuster, uses one less idler pulley then the BRP one.

This is a 4Rib Belt set up.

I'm asking $350 for the manifold (+ shipping)- BRP M45 Coldside Manifold --
Includes: Manifold
MAF relocation mount and (the 3" vacuum Cleaner hose thing)

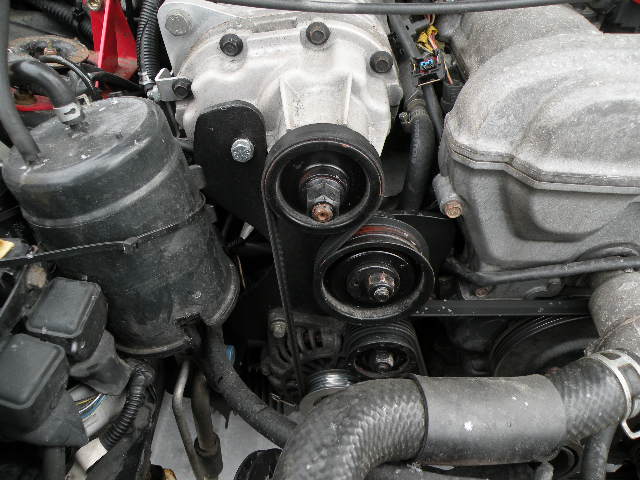

Custom Pulley set up ( 1/4" plate AL w/ VW pulley)
Misc TB Bracket/ adaptor
Original BRP install instructions
I may have an extra belt (IF -I do I'll throw it in)

After 50K miles my SC is dead- and I don't plan on rebuilding my SC every two years- so another Turbo set up is in motion...

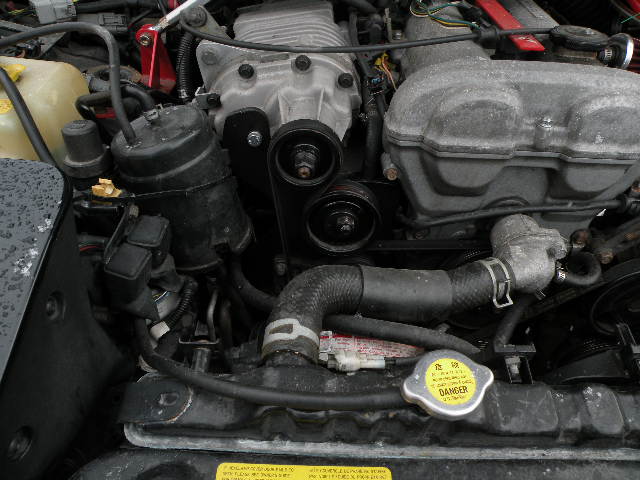

P.S. The dandruff looking stuff on the belt is SNOW... This is still on the car- I will be removing after the holidays...
Attached Thumbnails
BRP M45 Coldside Manifold-dscn3193.jpg   BRP M45 Coldside Manifold-dscn3194.jpg   BRP M45 Coldside Manifold-dscn3195.jpg
Jefe is offline
Old 12-20-2010, 01:48 PM   #2
Junior Member
iTrader: (4)

Join Date: Jan 2008
Location: South Carolina
Posts: 262
Total Cats: 0
Default

Damn I like this.
Shame I am putting down my miata endeavors. Hope it sells quick for ya.
localtech is offline
Old 12-20-2010, 09:33 PM   #3
Newb
iTrader: (1)

Join Date: Dec 2009
Location: Minneola, FL
Posts: 28
Total Cats: 0
Default

Forgive me if this is a dumb question, but will a M45 from a hotside JSRC kit bolt up to this manifold?
sil80redtop is offline
Old 12-20-2010, 09:34 PM   #4
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Quote:
Originally Posted by sil80redtop View Post
Forgive me if this is a dumb question, but will a M45 from a hotside JSRC kit bolt up to this manifold?
yep
Stealth97 is offline
Old 12-20-2010, 11:37 PM   #5
Senior Member
Thread Starter
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by sil80redtop View Post
Forgive me if this is a dumb question, but will a M45 from a hotside JSRC kit bolt up to this manifold?
That's the beauty-- BRP designed this as an "upgrade" to the Hotside JRSC- the original instructions included the JRSC Hotside, and a supplement guide for the coldside . Basically- I am selling "The Kit" to make your M45 JRSC hotside a coldside.

For those BRP history Buffs--I bought the car with the M45 already installed--The car was originally from CT- this kit was installed by "BADBOB"- And turns out one of the very first by BRP-- And the car is now running Bob's old Link ECU.
Jefe is offline
Old 12-21-2010, 06:41 PM   #6
Junior Member
iTrader: (5)

Join Date: Dec 2010
Posts: 142
Total Cats: 2
Default

Any idea if this will work on a NB (2000 if that would matter)?
chiefmg is offline
Old 12-21-2010, 09:21 PM   #7
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

what happens to the alternator?
where is the S/C outlet [for plumbing to an existing A/W IC, located in the crossover pipe from the hotside to the dummy throttle body]?
does it use the old alternator drive pulley on the crank?
does your car have either PS or A/C?
mx594m is offline
Old 12-21-2010, 09:44 PM   #8
I'm Miserable!

Join Date: Jan 2010
Location: Chattanooga, TN
Posts: 52
Total Cats: 0
Default

Chiefmg
This manifold will not work on a NB. The heads are different.

MX594m
1 The alternator stays where it already is
2 You will not use or need the A/W IC for this set up. That is the beuaty of the coldside. The outlet of the S/C goes directly into an intake plenum.
3 Yes
4 It does not matter with the cold side as it uses the Alt water pump belt rather than the PS AC Belt.

This is a HELL of a deal.

If it doesn't sale in a couple week I might pick it up and pair it with a fresh M45 I have on the workbench to make a complete kit and try to re-sell it that way.
eunos735 is offline
Old 12-21-2010, 10:04 PM   #9
Newb

Join Date: May 2010
Location: Nashville, TN
Posts: 13
Total Cats: 0
Default

Gahh, I want this so bad! I wish I had cash, I just had to dump money in my water pump/timing belt change.

Hopefully it still will be around later
bdp07 is offline
Old 12-21-2010, 10:30 PM   #10
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

Quote:
Originally Posted by eunos735 View Post
Chiefmg
...
2 You will not use or need the A/W IC for this set up. That is the beuaty of the coldside. The outlet of the S/C goes directly into an intake plenum.
...
no provisions for cooling the charge? or is an IC build in? or ????

with an M-45 the temperature of the air being compressed is raised [nominal 18 degrees F per pound of boost], how is that mitigated? I can think of only three choices, cool the air, add extra fuel, retard advance, or [a fourth, drop cylinder compression]
mx594m is offline
Old 12-21-2010, 11:16 PM   #11
Junior Member
iTrader: (4)

Join Date: Jan 2008
Location: South Carolina
Posts: 262
Total Cats: 0
Default

No cooling. Just a better placement for the blower. I mean it is cooler than sitting over the header. But other than that.
localtech is offline
Old 12-22-2010, 01:04 AM   #12
Junior Member
iTrader: (1)

Join Date: Jan 2009
Posts: 107
Total Cats: 0
Default

If I didn't just put a ton of money into my turbo kit I would have bought this in a second...
TheMcCoy14 is offline
Old 12-22-2010, 07:25 AM   #13
Senior Member
Thread Starter
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Quote:
Originally Posted by mx594m View Post
what happens to the alternator?
where is the S/C outlet [for plumbing to an existing A/W IC, located in the crossover pipe from the hotside to the dummy throttle body]?
does it use the old alternator drive pulley on the crank?
does your car have either PS or A/C?
Looks like ???'s answered (lots of M45 knowledge here)
This is on my DD (including snow ). My car is a 1994 it has PS, AC, ABS and a five trumpet Dixie horn. It doesn't matter--- PS and AC remains in stock location.

Ideally on a car without ABS you could reroute the intake along the rightside (pass) as well. (and take the air from a turnsignal intake) (With ABS you can go under the manifold- but then need to place the air cleaner in some really dirty locations. For additional cooling WI would be the way to go. There is plenty of area on the underside to tap into the manifold.

IIRC I posted my MS timing map around here few years back -it was very close to the intercooled turbo's. (I don't have that laptop anymore with the maps)
Jefe is offline
Old 12-22-2010, 02:21 PM   #14
Junior Member
iTrader: (5)

Join Date: Aug 2008
Location: Northbrook IL
Posts: 105
Total Cats: 0
Default

Are you selling the M45?
dima88 is offline
Old 12-22-2010, 02:28 PM   #15
I'm Miserable!

Join Date: Jan 2010
Location: Chattanooga, TN
Posts: 52
Total Cats: 0
Default

^^^ If he isn't I have one that has been extensively worked over by the High Speed Lab. Would make one hell of a kit along with what the OP is selling.
eunos735 is offline
Old 02-11-2011, 10:32 AM   #16
Newb

Join Date: Feb 2011
Posts: 16
Total Cats: 0
Default

Please let me know if you still have this for sale, and I have the following questions:

Will it fit the 1.6?
What else is needed other than the M45 supercharger?
Will this work with the stock fuel setup?
Thanks!

Mark
mzellers is offline
Old 02-11-2011, 10:58 AM   #17
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by mzellers View Post
Please let me know if you still have this for sale, and I have the following questions:

Will it fit the 1.6?
What else is needed other than the M45 supercharger?
Will this work with the stock fuel setup?
Thanks!

Mark

1) No
2) Some form of engine management to control fuelling and timing i.e. MegaSquirt, eManage etc.
3) Yes, just about.
richyvrlimited is offline
Old 02-12-2011, 02:21 PM   #18
Newb

Join Date: Jan 2011
Posts: 2
Total Cats: 0
Default

If you run it at low boost like 6 psi will it require anything other than fpr?
94RLaguna is offline
Old 02-12-2011, 07:01 PM   #19
Newb

Join Date: Apr 2009
Posts: 44
Total Cats: 0
Default

Please PM me back im thinking i might go ahead and get this. do you still have the actual supercharger that would need a rebuild?
scooby steve33 is offline
Old 02-17-2011, 02:01 PM   #20
Senior Member
Thread Starter
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

Sorry I haven't been around--
Been busy at work...

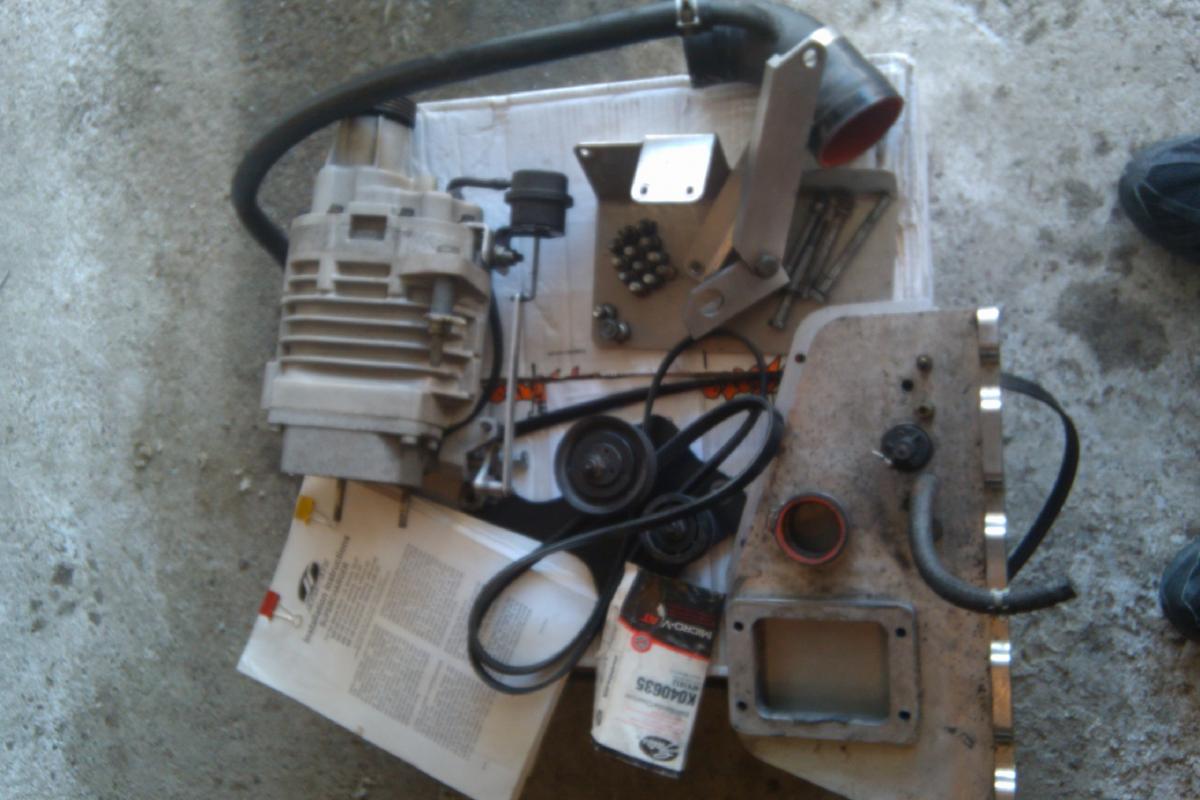

Here's a pic-- as you can see it's uninstalled and ready to ship not shown is the 3" vac hose for the air intake I forgot to include it in the pic...

"I think" to get this installed all you will need is...

Cone Air filter
An 1/8 npt fittings for YOUR vac/boost gauge (most gauge kits come with)
A couple of feet of 1/8" vac lines
There is a hobb pressure switch on the manifold I HAVE NO IDEA WHAT IT'S FOR (I use a link ECU) - so it just fills the hole--lol...
You'll re-use a few things like the MAF mounting bolts, and one of the Alternator bracket mounting bolt (the 14mm that goes into the engine block)
Blue RTV
OH yeah a better working SC

The manifold is a two piece design (you'll need some RTV to seal it)- I found it easiest to remove the starter/Oil pressure sender/Alternator before trying to fit it in. It's not difficult to install - just time consuming.

For the price of shipping you can have the SC...
Attached Thumbnails
BRP M45 Coldside Manifold-imag0005.jpg
Jefe is offline
