Default Electronic speedo gear for 6-speed

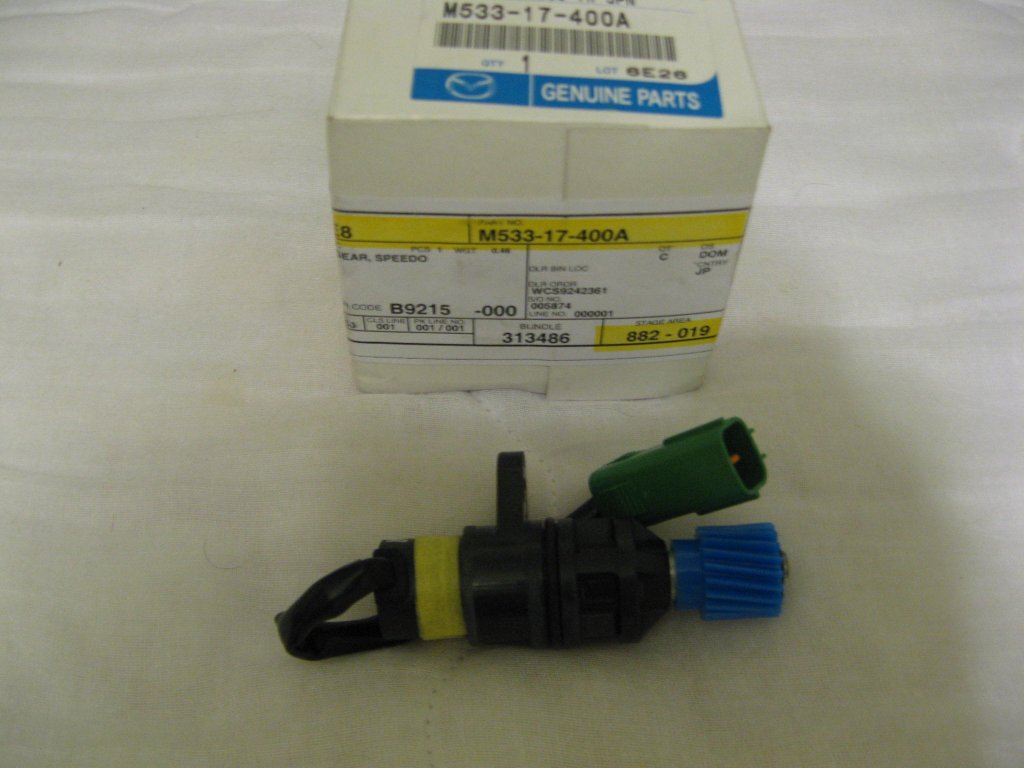

Purchased it thinking I was going to use it with my 6-speed and 3.63 diff gears, then realized it was electronic, but too late to return to Mazda. Part number M533-17-400A. $30 obo plus shipping.
Attached Thumbnails
Electronic speedo gear for 6-speed-img_0241.jpg
soflarick is offline   Reply With Quote
Old 05-08-2009, 11:46 PM   #2
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Sorry, I just reread your post. I also have a 6 speed with 3.63 gears. I take it by your post, it won't fit my transmission either.
Rafa is offline   Reply With Quote
Old 05-08-2009, 11:59 PM   #3
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Apparently the years the 6-speed came in used electronic speedo gears. NA's use mechanical, so I had to purchase another speedo gear assembly. As a matter of fact, I think I have a complete mechanical assembly if you are interested.
soflarick is offline   Reply With Quote
Old 05-09-2009, 12:04 AM   #4
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Omaha, NE
Posts: 619
Total Cats: 0
Default

So what combo is this for? I have a 5 speed with the 3.9 rear. I was about to buy one of the dakota digital units to fix the speedo.
posidon42 is offline   Reply With Quote
Old 05-09-2009, 12:08 AM   #5
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

This is an OEM Mazda electronic speedo gear that is used with the 6-speed for the NB model cars, and the gear is sized for 3.63 diff gears. I don't know what the Dakota unit is.
soflarick is offline   Reply With Quote
Old 05-09-2009, 09:00 AM   #6
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by soflarick View Post
Apparently the years the 6-speed came in used electronic speedo gears. NA's use mechanical, so I had to purchase another speedo gear assembly. As a matter of fact, I think I have a complete mechanical assembly if you are interested.
I'm definitely interested.

Thanks
Rafa is offline   Reply With Quote
Old 05-09-2009, 09:08 AM   #7
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I just checked my stash, and I have 1 speedo gear housing for mechanical gear, 1011-17-442A, and the o-ring that goes on it, 1011-17-443. I don't have any other parts for it. I thought I had a gear lying around, but I didn't see it. Both parts are new. I'd have to check Mazda Comp to see what I paid, but I have to check on a couple other items anyway.
soflarick is offline   Reply With Quote
Old 05-09-2009, 01:48 PM   #8
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by soflarick View Post
I just checked my stash, and I have 1 speedo gear housing for mechanical gear, 1011-17-442A, and the o-ring that goes on it, 1011-17-443. I don't have any other parts for it. I thought I had a gear lying around, but I didn't see it. Both parts are new. I'd have to check Mazda Comp to see what I paid, but I have to check on a couple other items anyway.
Cool. I'll take it when you have the price. If you can point me to where I can buy the gear and the part number, I'd be thankful.

Thanks
Rafa is offline   Reply With Quote
Old 05-09-2009, 02:03 PM   #9
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

Just checked my account, and I paid $60+ for the electronic speedo. If I can't sell it, I wonder if I can try to return it to a local dealer.
soflarick is offline   Reply With Quote
Old 05-09-2009, 02:07 PM   #10
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by soflarick View Post
Just checked my account, and I paid $60+ for the electronic speedo. If I can't sell it, I wonder if I can try to return it to a local dealer.
I just pmed you. If they can exchange it for the mechanical one; I'd be more than happy to pay for it.

I'll pm you my email so we can keep in touch.

Thanks,
Rafa is offline   Reply With Quote
Old 05-09-2009, 08:14 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

This is for NB's only.
Mazda never offered a NA mechanical drive for 3.63.

(edit) after reading again and actually paying attention the second time, I see everyone is on the same page. carry on.
Ben is offline   Reply With Quote
Old 05-09-2009, 08:26 PM   #12
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by Ben View Post
This is for NB's only.
Mazda never offered a NA mechanical drive for 3.63.

(edit) after reading again and actually paying attention the second time, I see everyone is on the same page. carry on.
Thanks. BTW, I'm going to need your or Eric's assistance to get the parts I'm missing.
Rafa is offline   Reply With Quote
Old 05-09-2009, 09:03 PM   #13
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I remember on the "other site" a thread about the gear part number. Heck, I may have posted to it, but it's been quite a while.
soflarick is offline   Reply With Quote
Old 05-10-2009, 12:35 AM   #14
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by soflarick View Post
I remember on the "other site" a thread about the gear part number. Heck, I may have posted to it, but it's been quite a while.
Thanks for the tip.

I'll look it up.
Rafa is offline   Reply With Quote
Old 05-10-2009, 01:56 AM   #15
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

So what do you need to make the 6 speed work? the mechanical **** since all the NB's are electronic could we just swap out our NA speedo units etc? I think randy stockers site had collor cordinated chart on speedo gears and there ratios.
magnamx-5 is offline   Reply With Quote
Old 05-10-2009, 09:22 AM   #16
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

The gear housing, an o-ring, an internal seal, the gear, and a little pin complete the mechanical speedo gear.
soflarick is offline   Reply With Quote
Old 05-10-2009, 01:38 PM   #17
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

^ Yup.

Mazda Part #:
1011-17-443 - O-Ring
9958-60-8166 - Oil Seal
9922-20-214 - Spring Pin
1011-17-442A - Gear Housing Sleeve
M502-17-441 - Drive Gear
RotorNutFD3S is offline   Reply With Quote
Old 05-10-2009, 01:49 PM   #18
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by RotorNutFD3S View Post
^ Yup.

Mazda Part #:
1011-17-443 - O-Ring
9958-60-8166 - Oil Seal
9922-20-214 - Spring Pin
1011-17-442A - Gear Housing Sleeve
M502-17-441 - Drive Gear
As always Eric; many thanks!

Can you point me to where I can order the parts I'm missing?

I still need:

9958-60-8166 - Oil Seal
9922-20-214 - Spring Pin
M502-17-441 - Drive Gear
Rafa is offline   Reply With Quote
Old 05-10-2009, 02:04 PM   #19
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by Rafa View Post
As always Eric; many thanks!

Can you point me to where I can order the parts I'm missing?

I still need:

9958-60-8166 - Oil Seal
9922-20-214 - Spring Pin
M502-17-441 - Drive Gear
Do you ever order any OEM parts? Any Mazda dealer? Just anywhere that can get you OEM stuff is where you need to go, I've not seen these parts listed online anywhere.
RotorNutFD3S is offline   Reply With Quote
Old 05-10-2009, 03:48 PM   #20
Senior Member
Thread Starter
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

I think I need to order another gear. I can't find the one I purchased.
soflarick is offline   Reply With Quote
