Default FS: BEGI S2 Turbo System - USED

Corky is upgrading his turbo kit. For sale is a used S2 BEGI turbo system. See link for more details and photos.

http://www.bellengineering.net/Pages/sale_items.html

Complete 1996-1997 S2 system for sale. The system was used for approx. 20K miles and two years.

Sale Kit includes:
GT2554 - not ceramic coated
Exhaust Manifold - not ceramic coated, not divided pulse
Cool Air system - Air Box, radiator cover, and air scooper
Stainless Separated Gases Downpipe
All Stainless Oil and Coolant Lines
Heat-shields
Intercooler # 2
Intercooler Tubes
Bypass Valve
Hoses, clamps and fasteners!

Modifications can be made for a fee. Otherwise the kit is for a 1996-1997 system with EGR, A/C, & PWS.

$1900.00 Includes 6 month warranty. As is w/ no modification.

Stephanie
Attached Thumbnails

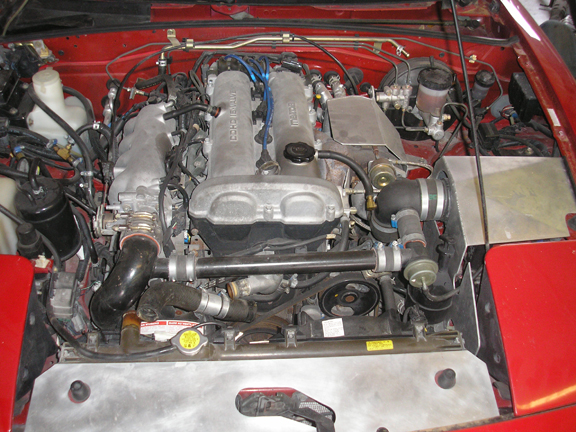

FS: BEGI S2 Turbo System - USED-p4023663.jpg
Stephanie Turner is offline
Old 04-03-2008, 05:52 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Parting out?
Saml01 is offline
Old 04-03-2008, 05:58 PM   #3
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

wow, nice deal...anyone who was waiting to buy the S1 kit should jump on this asap!
Zabac is offline
Old 04-03-2008, 06:57 PM   #4
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

dibs for a friend...
UrbanSoot is offline
Old 04-03-2008, 07:23 PM   #5
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Okay, maybe i am bat **** crazy but, either that is a different bypass valve than i got with my s1 or it's installed backwards.

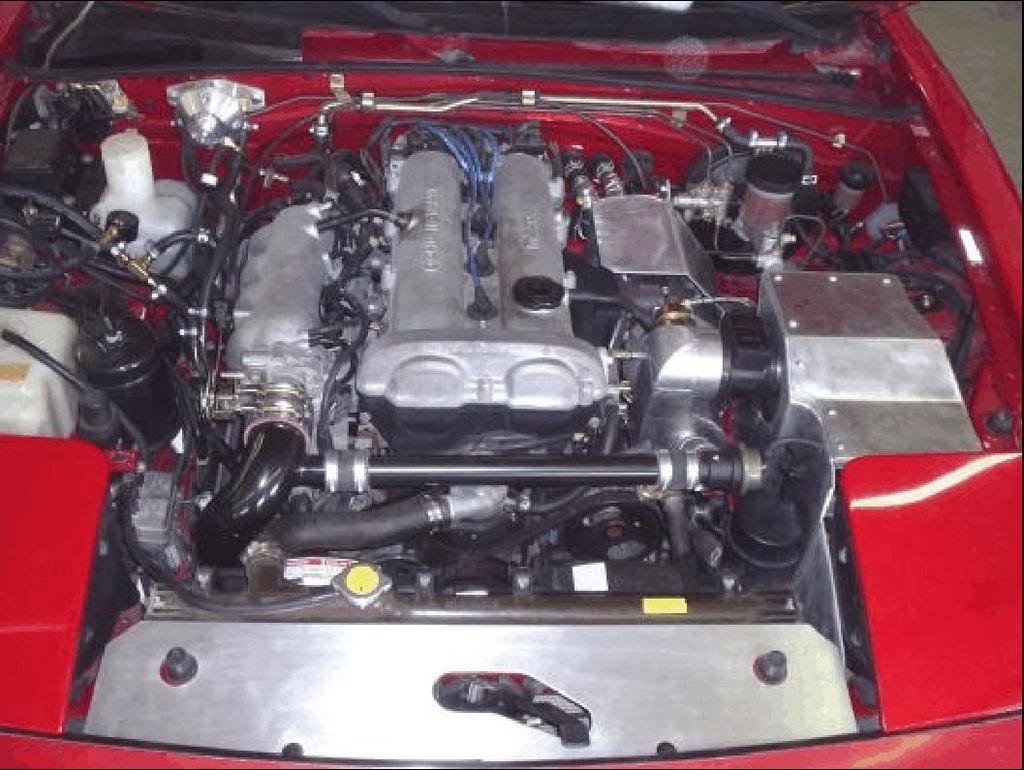

Name:  begi.jpg
Views: 3
Size:  111.5 KB

Last edited by wes65; 04-03-2008 at 07:44 PM.
wes65 is offline
Old 04-04-2008, 12:58 AM   #6
Former Vendor
Thread Starter

Join Date: Jun 2006
Location: Bell Tuning & Performance
Posts: 1,338
Total Cats: -78
Default

We are not going to part it out, sorry. We have a few offers, so it may be sold.
Stephanie
Stephanie Turner is offline
Old 04-04-2008, 01:47 AM   #7
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Quote:
Originally Posted by wes65 View Post
Okay, maybe i am bat **** crazy but, either that is a different bypass valve than i got with my s1 or it's installed backwards.
EPIC FAIL

Hehe, you're backwards.
Bryce is offline
Old 04-04-2008, 02:01 AM   #8
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by Bryce View Post
EPIC FAIL

Hehe, you're backwards.
That picture is not of my car. It is out of the instruction manual with the s1 kit thank you very much.

EDIT: to illustrate my point more clearly

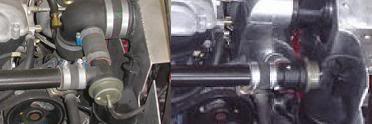

Name:  save.jpg
Views: 4
Size:  10.2 KB
on the left we have the bypass valve pictured. On the right, we have the bypass valve that is pictured in the s1 installation manual. See the difference?

Last edited by wes65; 04-04-2008 at 02:13 AM.
wes65 is offline
Old 04-04-2008, 02:07 AM   #9
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

That's weird, maybe they weren't thinking when they put the kit together for the picture or it works both ways. All my sources on the internet show that pic is wrong.
Bryce is offline
Old 04-04-2008, 02:15 AM   #10
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by The BEGi 1.8L Mazda Miata Turbocharger System Series 1,2 & 3 Installation and operations manual Applicable to all 1994 to1997 1.8 liter mazda miata
Caution: Do not to install the valve backwards. The white arrow needs to facing upwards and point towards the throttle body inlet tube.
From the manual.
wes65 is offline
Old 04-04-2008, 02:27 AM   #11
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Hmmm, do note that there are 2 white arrows. I'd seriously throw it on my car right now and try it both ways but there's a Porsche behind it. I'm curious now.
Here's a pic I was referencing.
http://www.supras.com/sogidb/techcen...es/9653bov.gif

But then I found this..
http://www.thedodgegarage.com/turbo/bov_6.jpg

I want to go try it now and find out. :(
Bryce is offline
Old 04-04-2008, 02:33 AM   #12
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Maybe tomorrow Stephanie will see that i crapped on her thread and chime in with a definite answer. Sorry Stephanie!
wes65 is offline
Old 04-04-2008, 02:34 AM   #13
Elite Member
iTrader: (24)

Join Date: Jul 2007
Location: Cypress, TX
Posts: 3,778
Total Cats: 35
Default

Ditto! :P
Bryce is offline
Old 04-04-2008, 03:03 AM   #14
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

****. my S kit came in last week. that's a great deal
paul is offline
Old 04-04-2008, 03:15 AM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

The bosch valve can be used either way. The way it is installed on Corky's car is correct but it will work the other way. Some people use it the other way because it will supposedly hold more boost that way. Whereas at higher boost levels they tend to leak. Quit your pissing and moaning, if you're not buying then
cjernigan is offline
Old 04-04-2008, 03:31 AM   #16
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by cjernigan View Post
The bosch valve can be used either way. The way it is installed on Corky's car is correct but it will work the other way. Some people use it the other way because it will supposedly hold more boost that way. Whereas at higher boost levels they tend to leak. Quit your pissing and moaning, if you're not buying then
Sounds good, it just kind of scared me when i saw it the opposite from mine and the manual says specifically not to install it backwards.
wes65 is offline
Old 04-04-2008, 03:49 AM   #17
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

If yours is backwards of what Corky's looks like then you might want to try it the other way, it might just work better. 5 minutes and two hoseclamps later you could have a better working BOV.
cjernigan is offline
Old 04-04-2008, 09:51 AM   #18
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sorry in advance for the thread jack but, Stephanie do you guys sell that air box and heat shield seperately. I couldnt find them on the site.


Thanks!
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline
Old 04-04-2008, 10:38 AM   #19
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

They work better when oriented as the one in Wes' photo from the instruction manual. The pressurized charge air is thus pushing against the sealed base of the valve rather than the side of it (which would offer it the chance to scoot sideways on its seat and likely reduce the life of the diaphragm).
bripab007 is offline
Old 04-04-2008, 11:31 AM   #20
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Quote:
Originally Posted by levnubhin View Post
Sorry in advance for the thread jack but, Stephanie do you guys sell that air box and heat shield seperately. I couldnt find them on the site.


Thanks!
They do sell them, just give them a call to order them. IIRC the heatshield is $75, not sure what the airbox is anymore.
