FS: Built "99" Race Head with Integral Cams - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Miata parts for sale/trade Buy, trade or sell your Miata parts here.

Closed Thread



LinkBack Thread Tools Search this Thread
Old 04-04-2015, 11:22 PM   #1
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default FS: Built "99" Race Head with Integral Cams

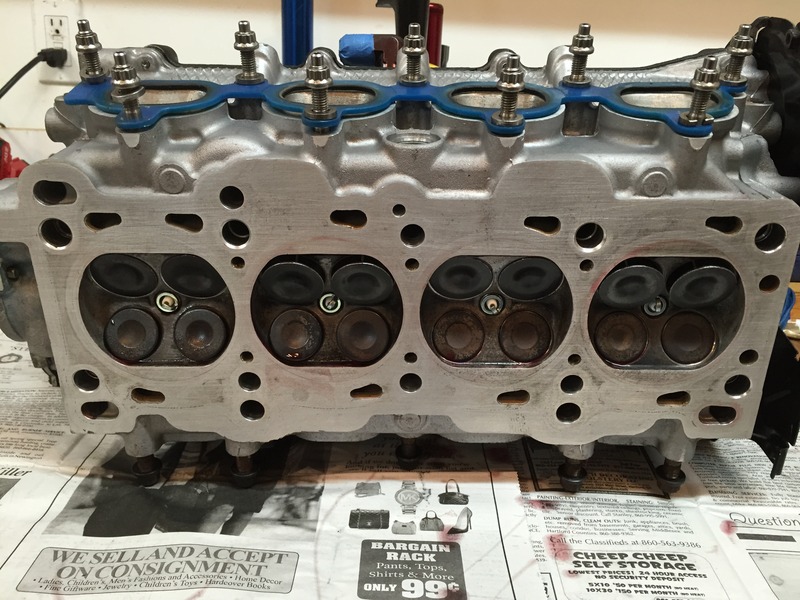

Selling a Built 1999 Cylinder Head , Fresh Valve Job


Ported + Polished and flow tested
Clearanced Lifter Bores For Big Cams
Bronze Guides
Supertech +1mm Stainless Intake & Exhaust Valves
Supertech Dual Valve Springs + Titanium Retainers
Mazda Comp Shim Under Bucket Lifters
Supertech Lash Caps

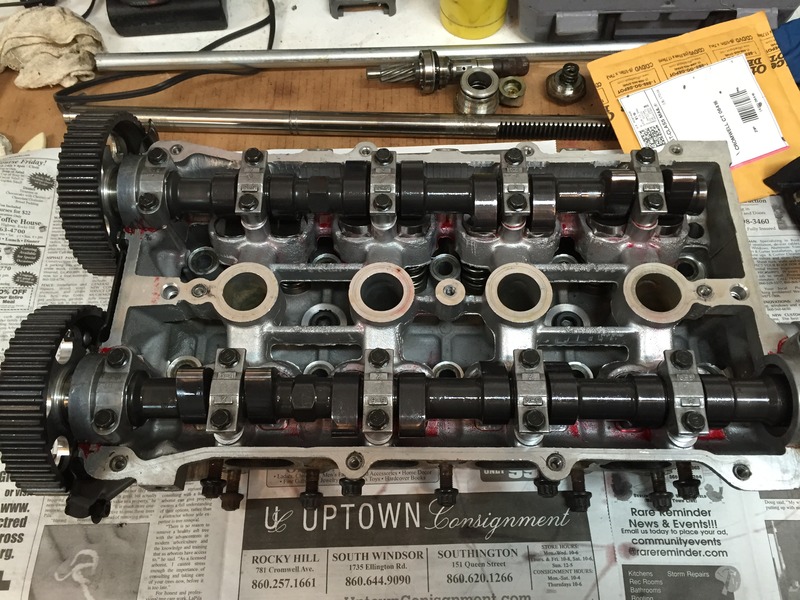

Integral R3 Intake Cam
Integral R1 Exhaust Cam

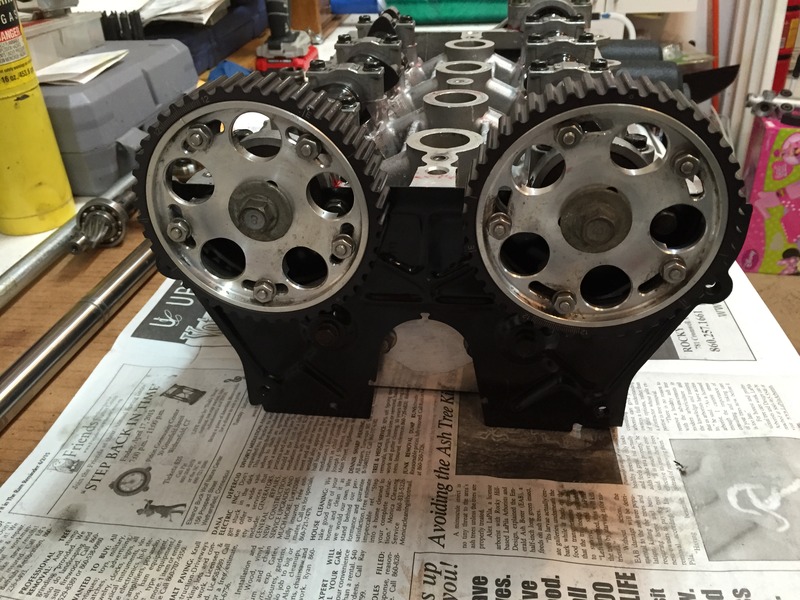

Fidanza Cam Gears
Gates Racing Timing Belt

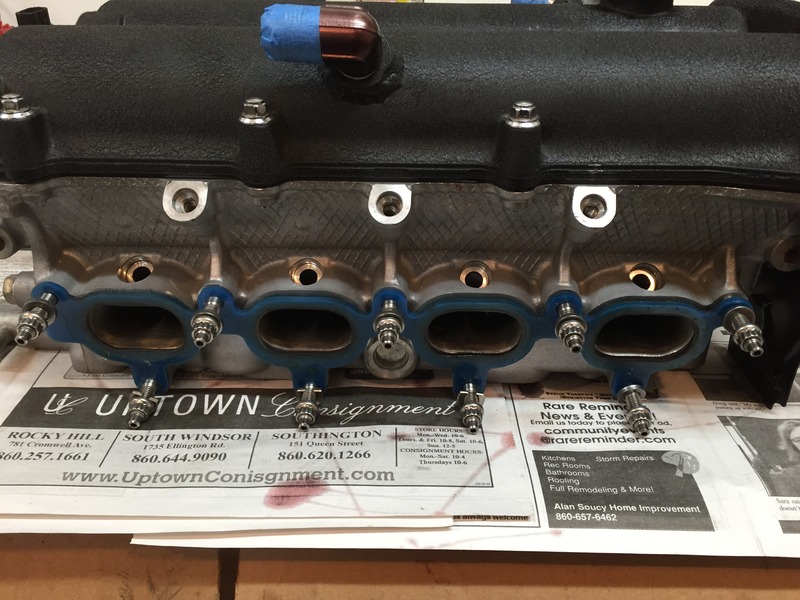

ARP Stainless 12pt Intake Manifold Studs
ARP 12pt Exhaust Nuts
Hondata Thermal Gasket

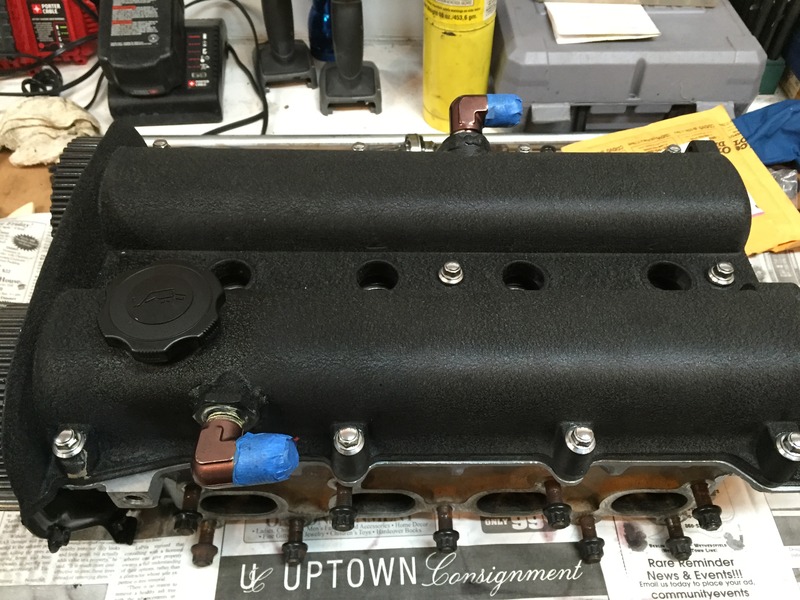

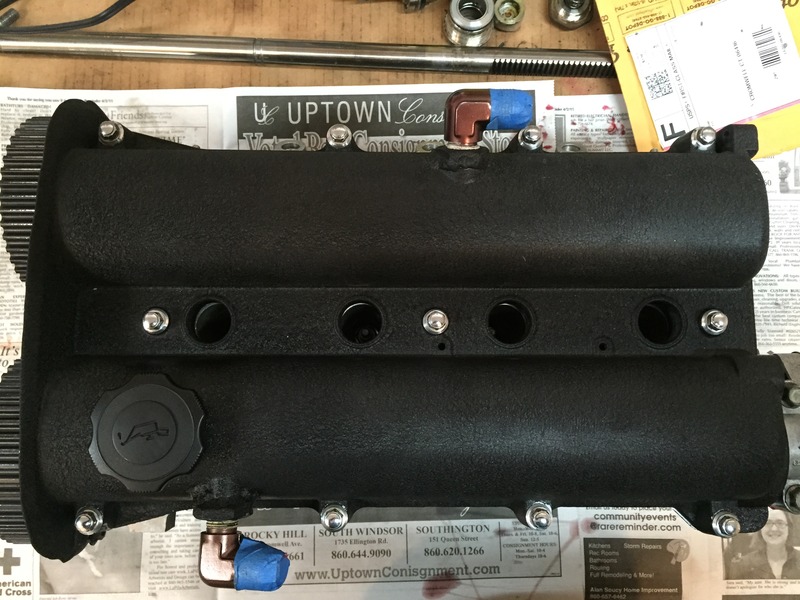

Black Wrinkle Valve Cover w/ -10AN Breather Ports

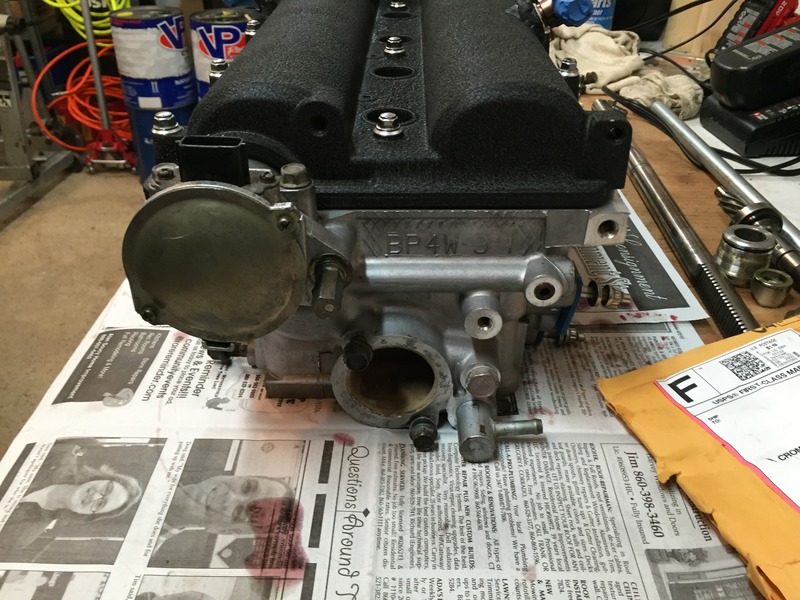

"94" Cam Angle Sensor
Water Neck Block Off Plate

$2000 complete + Paypal fee's + Shipping
Will separate Head and Cams ($1500/$500)
Located in CT

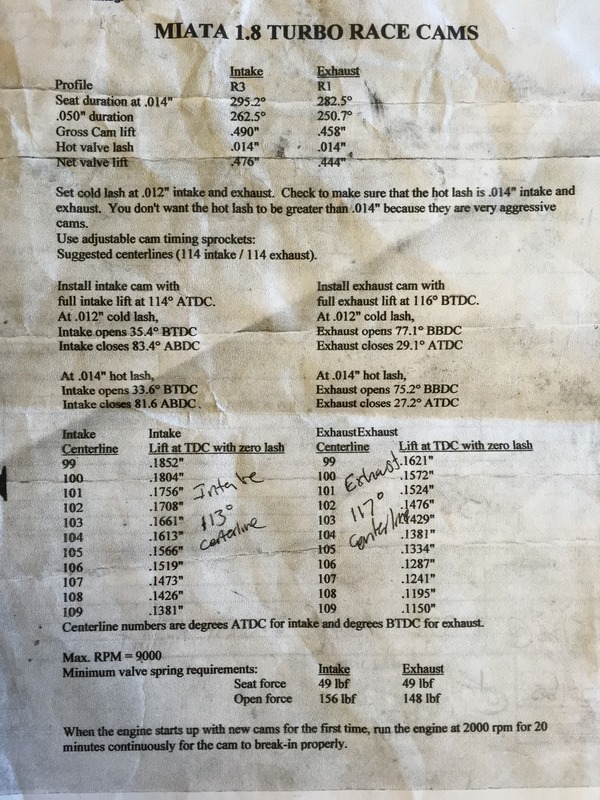

Please do you homework , I have posted the cam specs. I can't tell you if they are your dream cam or how they will work for your motor. Yes they sound badass.
















Attached Thumbnails
FS: Built "99" Race Head with Integral Cams-img_1401_zpsf7wytokl.jpg   FS: Built "99" Race Head with Integral Cams-img_1402_zps8u6l8hrd.jpg   FS: Built "99" Race Head with Integral Cams-img_1403_zps21ue2cgc.jpg   FS: Built "99" Race Head with Integral Cams-img_1404_zpswkempk3x.jpg   FS: Built "99" Race Head with Integral Cams-img_1405_zpsn17hhowu.jpg

FS: Built "99" Race Head with Integral Cams-img_1406_zpse8xdq2vi.jpg   FS: Built "99" Race Head with Integral Cams-img_1408_zpsqqitrxtb.jpg   FS: Built "99" Race Head with Integral Cams-img_1396_zpsu8oqwul4.jpg
ctdrftna is offline
Old 04-05-2015, 06:47 AM   #2
Senior Member
iTrader: (1)

Join Date: Jan 2011
Location: Chattanooga, Tn
Posts: 1,038
Total Cats: 157
Default

I'm seriously hoping you didn't set that head flat on the mating surface with the cam caps torqued.

I've see stock heads bend valves that way.....less long cams with 10mm lift.
TNTUBA is offline
Old 04-05-2015, 08:04 AM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

The head is sitting on thick cardboard. I gently placed it there for the sake of taking a few pictures then set it back up on end. The cams are obviously not at max lift. Thank you for your concern though.
ctdrftna is offline
Old 04-06-2015, 11:47 AM   #4
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

To clarify, 1.) have the cams been run in, and 2.) who did the port work, and do you have flow numbers and pics of the ports?
vehicular is offline
Old 04-06-2015, 12:10 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

Cams have been run in and look great, head was ported by my old boss at the engine shop I worked at, and flow tested on a super flow flow bench. Pm me for more details
ctdrftna is offline
Old 04-06-2015, 05:23 PM   #6
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

How's the idle with these cams? Was it choppy at all? I've been looking for a good set of cams to swap out my factory 99 I&E...
Der_Idiot is offline
Old 04-06-2015, 06:01 PM   #7
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

I'll tell you what I have told every one else that asks.

They are aggressive, they have a mean lumpy idle that sounds spectacular.
I had them idle at 1200.

BUT...
I had a big throttle body and custom fabricated intake manifold, I had no idle control other than a screw on the throttle plate. So I ran it higher to keep it from stalling so much when it was cold (no cold idle)

These cams will idle at 1000rpm.
I can't tell you if they are right for you and your motor. It's for you to decide what you want.

I drove them on the street, I passed CT emissions twice with no cat on 880cc old style peak and hold injectors.
ctdrftna is offline
Old 04-07-2015, 12:46 PM   #8
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

Let me check my account when I get home, but I'm interested. Did the lift make the car interference? I've got 9:1 comp wiseco pistons right now, what were you running for pistons? How much for both cams and gears shipped to 55104?
Der_Idiot is offline
Old 04-09-2015, 02:31 PM   #9
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

bump
ctdrftna is offline
Old 04-10-2015, 12:49 PM   #10
Junior Member
iTrader: (6)

Evergreen's Avatar

Join Date: Apr 2012
Location: Washington
Posts: 158
Total Cats: 0
Default

I'm curious about the piston clearance too
Evergreen is offline
Old 04-10-2015, 01:03 PM   #11
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

Well i never broke a timing belt to find out, I would think its safe to assume yes it is now interference. On a side note, someone please buy at least the cams, all i need is money for a clutch to get the K24 into my car.
ctdrftna is offline
Old 04-13-2015, 05:58 AM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

up
ctdrftna is offline
Old 04-16-2015, 12:05 AM   #13
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

This is a really nice deal. Just finished my cam + SUB project and ended up with about this much money in my head, and this one has much more $$$ parts. Way better deal than starting from scratch.
Stealth97 is offline
Old 04-16-2015, 06:03 AM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

Thanks!!
ctdrftna is offline
Old 04-19-2015, 08:43 PM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

ttt
ctdrftna is offline
Old 04-20-2015, 10:55 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,107
Total Cats: 48
Default

SOLD
ctdrftna is offline
