Default FS:Heavily modified JR Supercharger for 99 Miata

I've decided to sell the JRSC kit in favor of a turbo. I would like to line up a buyer/give someone time to get the money together.

The s/c has ~60k on it and makes no bearing/vibration noise. The base kit has been modified to be unthrottled, which makes the s/c boost much faster and be significantly louder. Due to this , i also added on a Greddy Type-S bov to make the setup work the way it should. The kit also includes a 150mm crank overlay and 62.5mm s/c pulley. Good for about ~8-9psi depending on intake temps.

Cool stuff.....

Insta-boost Kit. This was kinda experimental, and turned out to work great. It works by leaving the throttle body in the stock location (or if you never had a s/c kit, you DO NOT have to move the throttle body...which makes install times much less). When you blip the throttle , boost is right there and ready to go. I know we have heard the response of the stock JRSC is fast, but this is even faster. Due to having the tb after the s/c, i added a blow off valve to vent the air between shifts. It does not sound like a typical turbo car, it's just a quick sneeze until the supercharger's bypass valve takes actioin to recirculate the air.

Im also including a 4-2-1 OBX header. These tend to be hit or miss on quality. This is one that they got right, fits with no problems (no vibrations, to rattles). I had the header out back in June while i changed the clutch and inspected it for any damage. Was just fine, so i re-wraped it with header wrap and put it back in.

The kit *DOES NOT INCLUDE* the intercooler setup, but it will come with the JR crossover pipe and all the vacuum lines needed (as well as a diagram for all the routing).

-M45 supercharger
-cast crossover pipe
-All mounting hardware
-dummy throttlebody
-intake tract and filter
-stock s/c pulley
-62.5mm TDR s/c pulley
-150mm crank overlay pulley
-Greddy Type-S bov
-Belt for use with the 150/62.5mm pulleys
-OBX 4-2-1 header
-all needed vacuum lines
-idler/tensioner pulleys


I suggest having some kind of fuel control (FM Voodoo Box, JR Powercard) BEFORE installing the s/c.

$2200 firm.

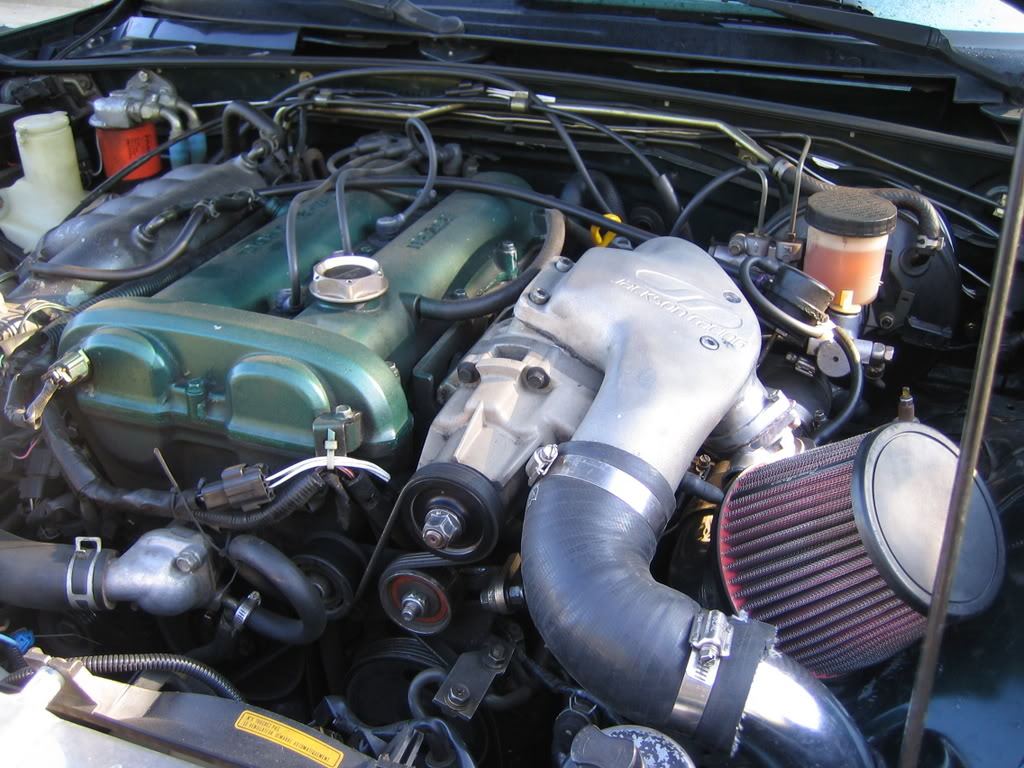

Name:  IMG_3936.jpg
Views: 6
Size:  150.8 KB

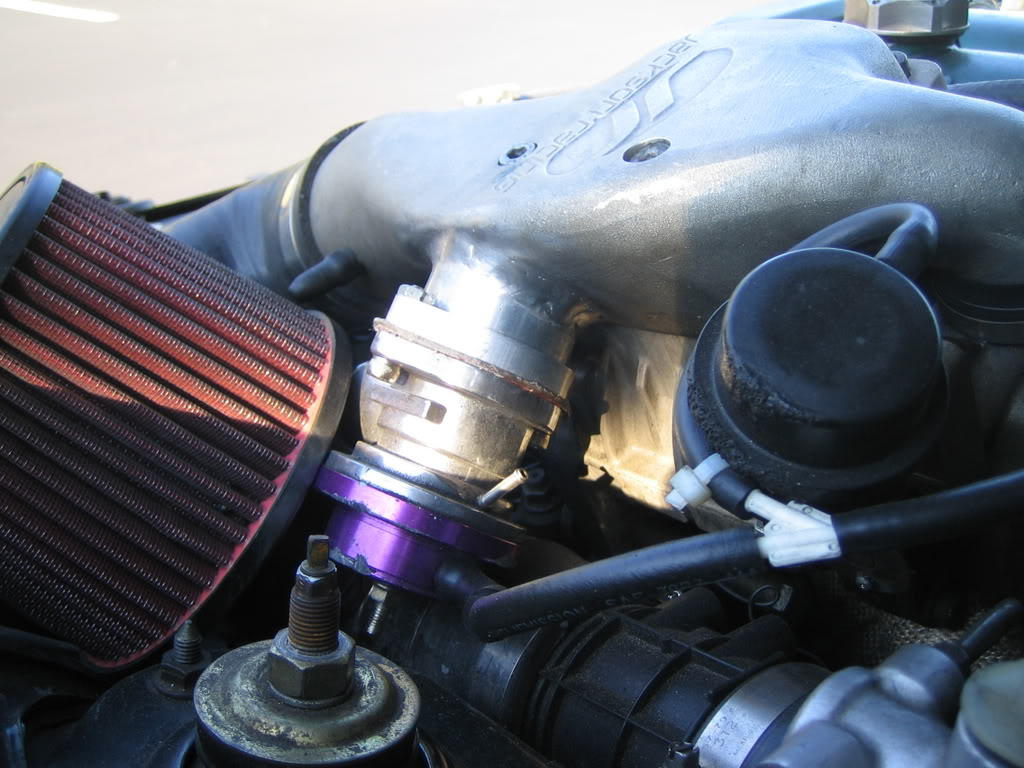

Name:  IMG_3937.jpg
Views: 10
Size:  127.7 KB




Last edited by Doppelgänger; 11-02-2007 at 03:01 PM.
Doppelgänger is offline   Reply With Quote
Old 10-27-2007, 01:19 PM   #2
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

thats pretty friggin cool.
Saml01 is offline   Reply With Quote
Old 10-27-2007, 01:39 PM   #3
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

I've seen it in person. It is a very solid setup.

Like I told you before Mike, have to talk to my g/f's dad about possibly getting this for her '02... What were you using for fuel control? I have to be sure to give him a complete price list.
RotorNutFD3S is offline   Reply With Quote
Old 10-27-2007, 05:06 PM   #4
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

im using a voodoo box
Doppelgänger is offline   Reply With Quote
Old 10-27-2007, 06:35 PM   #5
Junior Member
iTrader: (4)

Join Date: Sep 2006
Location: Bakersfield, Ca
Posts: 154
Total Cats: 0
Default

any problems fitting this to a 97 1.8L??
leshok is offline   Reply With Quote
Old 10-27-2007, 10:51 PM   #6
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

I cannot exactly say yes or know as i do not know what the differences are in mounting between a 99 and a 97. I had a 96 and knew it quite well and i dont see any notable difference between it and my 99. But a quick search in hell.net (lol... i hope you get this!) might give you more insight.
