Default FS: NJ Parallel Twin turbo 1.8 setup

Just for laughs I'll post this to see if there's any interest.

$1800 for:
* two garrett GT1548's a little more than a year old. Maybe ~10xxx miles? I have to check my mileage log.
* mild steel manifold w/EGT probe fitting for rear turbo
* Stainless downpipe (two 2.25" into one 3") w/3" flex joint, straight/open ended (no OEM type flange @ cat), 1 O2 sensor bung
* First intercooler pipe (two 2" into one 2.5") points towards fender
* two silicone 90's for first intercooler pipe
* oil supply lines/fittings from #4an Y-fitting to turbo (supply line from engine to y fitting probably won't be included)
* #8AN oil drain lines
* Banjo bolt water fittings & hoses I used
* K&N air filters and silicone 90's

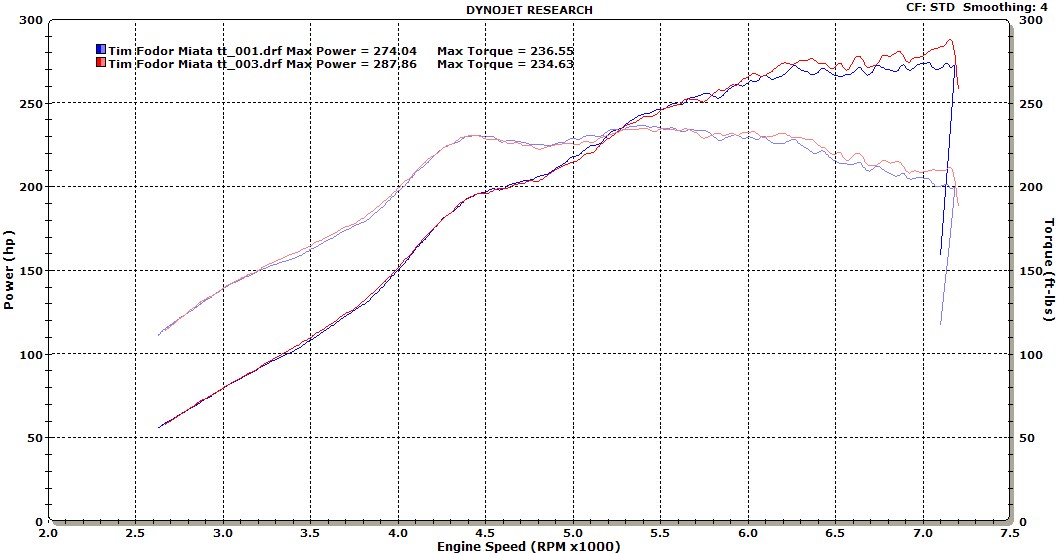

This made 287 rwhp/235fl-lbs @ 14psi on my '94 1.8. Dyno graph of this setup (14psi) compared to my shorty Absurdflow/BEGI FM replacement tubular manifold (12psi, gt2560):
http://www.miatamx5.com/dynoruns/timtwinsvstim2560.jpg

Laggier than my other manifolds/2560 setups but spool is on par with the typical BEGI/FM turbo kits.

Build thread:
https://www.miataturbo.net/forum/t17065/

This setup will require two drain fittings on your oil pan and probably a few other things in order to install it. It's a lot of money compared to one of my other single setups but it is the only TT miata setup that works.
Attached Thumbnails
FS: NJ Parallel Twin turbo 1.8 setup-tttwo2%5B1%5D.jpg
TurboTim is online now
Old 08-06-2009, 02:38 PM   #2
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,480
Total Cats: 3
Default

do want!
UrbanSoot is offline
Old 11-11-2009, 12:23 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

good price.
Braineack is online now
Old 12-03-2009, 10:46 PM   #4
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

"bump". haha.
TurboTim is online now
Old 12-03-2009, 10:47 PM   #5
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

jesus, stop with the necro
neogenesis2004 is offline
Old 12-03-2009, 10:51 PM   #6
I EAT CUM
iTrader: (6)

Join Date: Sep 2008
Location: Redneck, Texas
Posts: 1,218
Total Cats: -1
Default

Holy ****
Turbo_4 is offline
Old 12-03-2009, 11:59 PM   #7
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

All all the mani builds going on lately giving you the itch to build something new?? Free bump.
Gotpsi? is offline
Old 12-05-2009, 11:07 PM   #8
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Quote:
Originally Posted by neogenesis2004 View Post
jesus, stop with the necro
What do you mean?

Quote:
Originally Posted by Gotpsi? View Post
All all the mani builds going on lately giving you the itch to build something new?? Free bump.
Thanks for the bump.

The biggest reason I want to sell it are to fund a turbo kit for my new daily driver. '05 Outback XT.

Taking this TT kit in and out of the car everytime I have to build a turbo kit is no fun. It has been sitting in a box in my utility room since I first built Sav's vband kit, I'd rather see it being used on someone's car, I think. In my car I may go with something simple to get to like my BEGI/FM tubular replacement mani might be smarter to run. Or I may go V8 in the miata.
TurboTim is online now
Old 12-05-2009, 11:23 PM   #9
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Was a joke, don't do drugs!
neogenesis2004 is offline
Old 01-04-2010, 08:50 AM   #10
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

New year bump
TurboTim is online now
Old 01-04-2010, 11:10 AM   #11
Junior Member
iTrader: (7)

Join Date: Nov 2006
Location: Makakilo
Posts: 444
Total Cats: 0
Default

If I didn't already have a bunch of turbo parts I'd jump on this. Amazing nobody has bought it yet.
r808 is offline
Old 01-04-2010, 11:35 AM   #12
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

I should add the following, which gets emailed to people who ask about it:

The manifold and downpipe was originally made about 3 years ago when first used with two Garrett GT1544's. In Feb 2008 I changed the configuration to use two Garrett GT1548's (larger and water cooled); these are the turbos that are currently used with this setup. So there's less than 2 years on the turbos and about 3 years on the manifold & downpipe. There's just under 8000 miles on the new turbos. The end of the downpipe is a straight 3" pipe, no flange. It slides into my 3" metal core cat which is part of my exhaust. The downpipe is actually two pieces, an upper Y section (two 2.25" pipes into one 3" pipe) then a straight section of 3", to facilitate installation as I remove/install this setup often anytime I make a turbo kit for customers and need my car to build a downpipe on.

I would take $1800 shipped for it. It does require modification to various parts so you have to be good with wrenches and have a sawzall, etc. There's a tab on the transmission that needs to be removed, and the firewall "tray" needs trimming, at the least. I've had so many different turbo setups on my car I do not remember everything I've done in the past 10 years, but I know you'd need to do at least that stuff. And the heater core return hard line to the mixing manifold will need to be modified/bent/rerouted. I can modify yours if you cannot do it yourself.

This is not for someone who is not mechanically inclined. IT IS SOLD AS-IS BECAUSE IT IS A USED SETUP.

The turbos are all good, do not leak oil into the turbine/compressor, have as-new specs on axial and radial endplay, but if you destroy the turbos due to misuse or improper installation I will not refund any money. I will not refund any money for any reason. IT IS SOLD AS-IS BECAUSE IT IS A USED SETUP.

These are sleeve bearing turbos and need to be primed before installation (I squeeze new synthetic oil into each before attaching my pressure line, and start it up within a day or two). Synthetic oil needs to be run.
Dyno plots of when this setup made 287rwhp on my '94 1.8 are located here:
Index of /dynoruns/11-15-08
It is labeled as "Tim Fodor Miata tt". As you can see it does not have the spool/low end torque of the single turbo ABSURDflow/'99 head & intake setups.

You will need to source the oil feed line from the block to the #4AN Y fitting (I am keeping the lower half of my oil feed line for my single turbo setups). You will also need to create intercooler plumbing. The Y pipe from the turbos are included, but it points towards the fender where I have routed my intercooler pipes. You will need to redo this pipe or run your I/C plumbing thru your fender like I did, which is also difficult to do. You will need to put two #8AN oil drain fittings on your oil pan, I can provide pictures of mine for location reference.

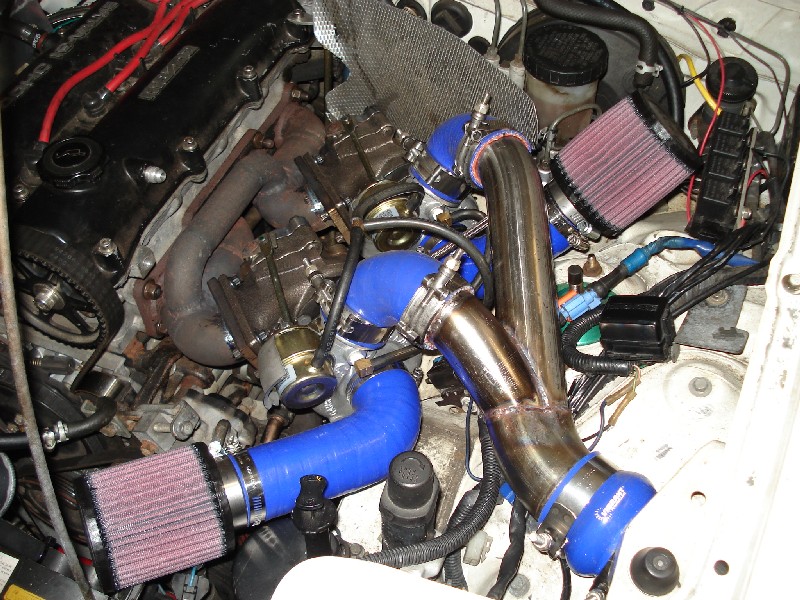

I have uploaded more pictures here. NOT included is the little fitting for my EGT gauge; it will be replaced with a 1/8NPT pipe plug:
Low Mount with A/C & P/S

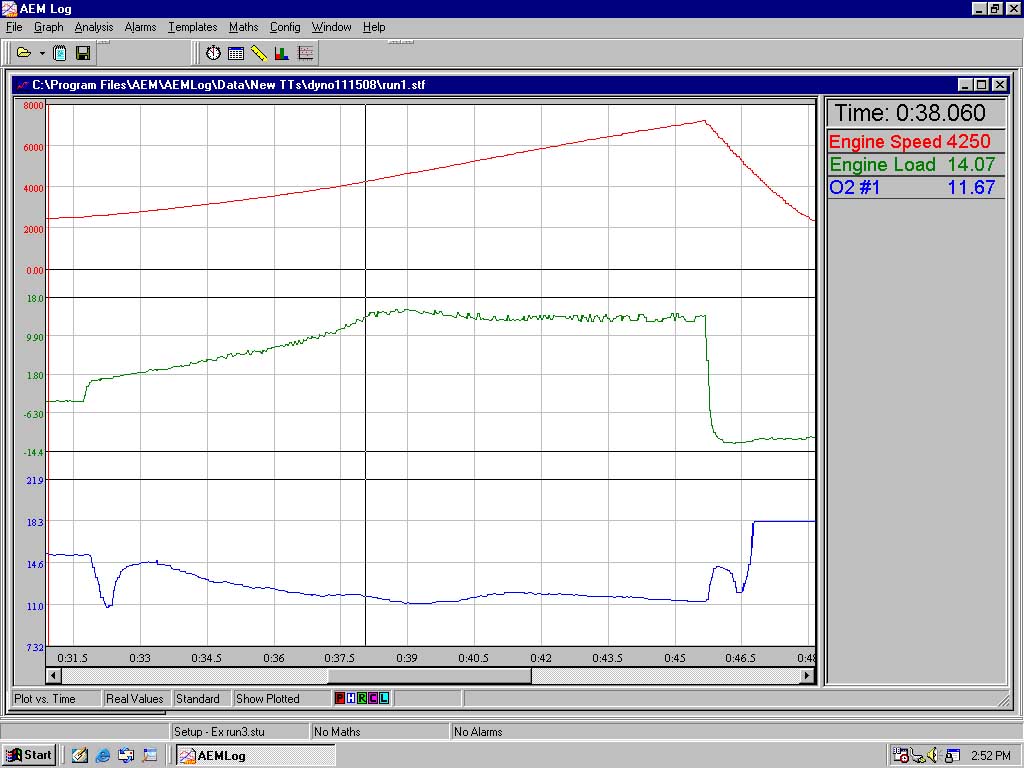

I have attached a .jpg of the last dyno day the car was run on, May 2 of this year. Also attached is the dyno graph from that dyno day with the 287rwhp plot. Car peaked at 15psi at 4400rpm, tapered to 14psi at peak hp. The difference between run 1 @ 274rwhp and run 3 @ 287rwhp was I was able to get the EBC to hold 14psi to redline, run 1 tapered to just under 13psi.

It looks to hit 14psi at 4250 on the dyno. It spools quicker on the street but that's really just hearsay. Single turbo absurdflow GT2560R setups spool much faster.

There's only one O2 bung on the downpipe.
Attached Thumbnails
FS: NJ Parallel Twin turbo 1.8 setup-ttdynoplot.jpg   FS: NJ Parallel Twin turbo 1.8 setup-ttspool.jpg
TurboTim is online now
Old 02-09-2010, 04:45 PM   #13
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Ka-POW! ttt!
TurboTim is online now
Old 02-09-2010, 09:14 PM   #14
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Windsor, Ontario, Canada
Posts: 84
Total Cats: 0
Default

do you think there is any chance i could put this on my mx-3 with a bp since my engine is mounted the wrong way i could use the extra power for my awd setup
projectmx is offline
Old 02-09-2010, 09:39 PM   #15
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

No chance the downpipe would fit unless you want it to just dump in front of the driver's front tire. Possible the turbos/manifold will fit.
TurboTim is online now
Old 02-09-2010, 11:04 PM   #16
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Windsor, Ontario, Canada
Posts: 84
Total Cats: 0
Default

any chance you could estimate how how far the turbos stick out from the cylinder head? if they do fit in the space i have they would be pretty sweet to have.
projectmx is offline
Old 02-10-2010, 12:14 AM   #17
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

about 12 inches.
TurboTim is online now
Old 02-12-2010, 12:30 AM   #18
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Windsor, Ontario, Canada
Posts: 84
Total Cats: 0
Default

i'm going to try to go up monday and make a few measurements on the car see if it will fit
projectmx is offline
Old 04-08-2010, 11:07 AM   #19
Elite Member
Thread Starter
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

Bump.
TurboTim is online now
Old 04-08-2010, 11:13 AM   #20
Junior Member
iTrader: (1)

Join Date: Nov 2006
Location: Windsor, Ontario, Canada
Posts: 84
Total Cats: 0
Default

tim is there a way to make them not stick out quite so far? I don't have 12 inches between my cylinder head and radiator... i may look into a smaller radiator or some other option
