HellaFab 1.6L T2 manifold. Fits EFR turbo! - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



Miata parts for sale/trade Buy, trade or sell your Miata parts here.

Closed Thread



LinkBack Thread Tools Search this Thread
Old 10-16-2014, 06:32 PM   #1
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

I have for sale a manifold for 1.6L Miata.

Fits Borg Warner EFR turbos and Garrett T2 turbos.

Details:
Full stainless construction.
Heavy walled pipe for prolonged life.
Backpurged TIG welds throughout
Low angle merge collector for best performance
Oversized bolt thread in the T2 flange to reduce hardware issues associated with track cars. This works with Trackspeed M10 Inconel studs.

$775 for the manifold plus shipping.

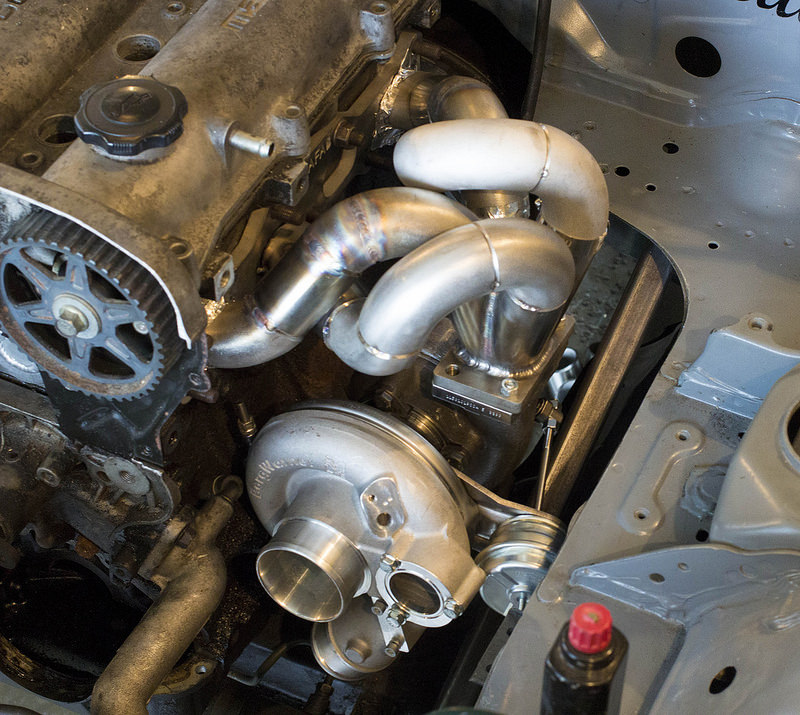

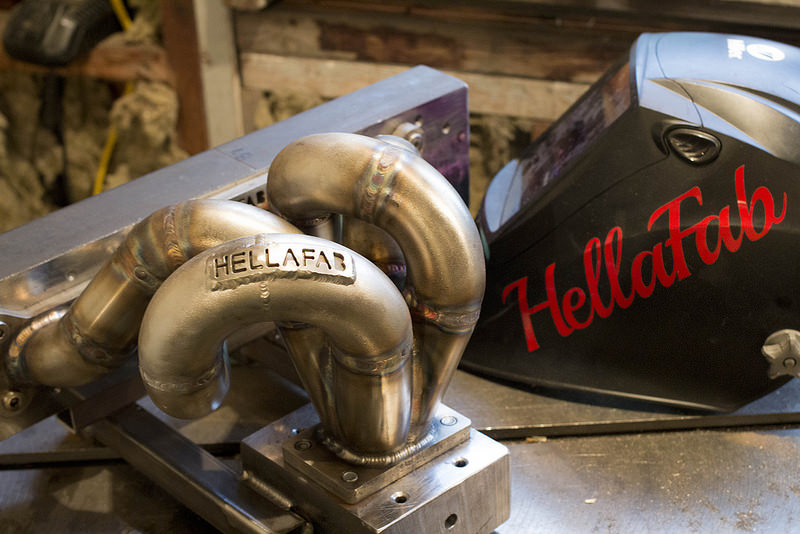

1.6L Miata EFR Manifold by HellaFab, on Flickr

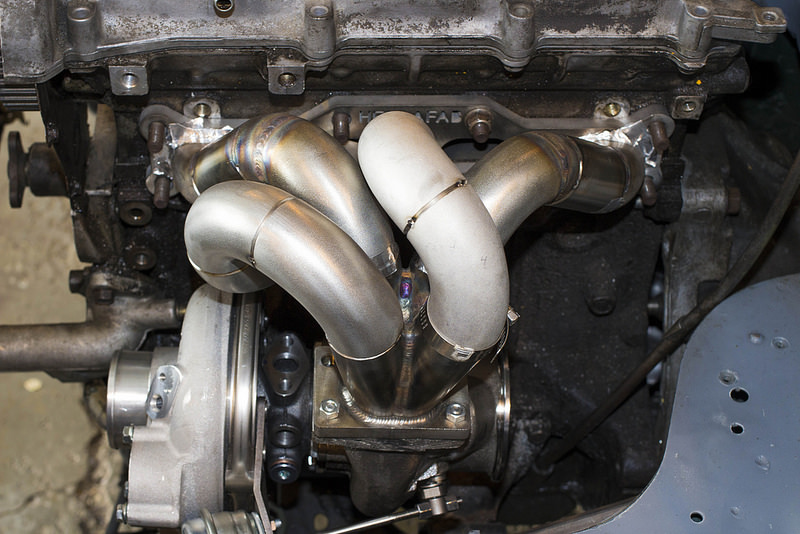

HellaFabrication 1.6L EFR Manifold Prototype by HellaFab, on Flickr

HellaFabrication 1.6L EFR Manifold Prototype by HellaFab, on Flickr



I will be building a downpipe for this with an EFR turbo as a part of a kit, so the manifold will be approximately 3 weeks to ship.

PM or email [email protected]
Matt
Attached Thumbnails
HellaFab 1.6L T2 manifold.  Fits EFR turbo!-15549306281_3ea2b51469_c.jpg   HellaFab 1.6L T2 manifold.  Fits EFR turbo!-14912224897_a28737b69e_c.jpg   HellaFab 1.6L T2 manifold.  Fits EFR turbo!-14912221247_4411fcf5d5_c.jpg   HellaFab 1.6L T2 manifold.  Fits EFR turbo!-14912088669_77ceac3e0c_c.jpg

Last edited by shlammed; 10-16-2014 at 08:05 PM.
shlammed is offline
Old 10-16-2014, 11:47 PM   #2
Junior Member
iTrader: (4)

Join Date: Nov 2010
Location: Long Island
Posts: 108
Total Cats: 9
Default

That first pic is now my wallpaper - lol
JustinOMGWTF is offline
Old 11-26-2014, 02:32 PM   #3
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Black Friday Deal: $675 for the manifold plus shipping.
Will ship next day after payment.

Deal ends Noon, December 1st.
shlammed is offline
Old 11-26-2014, 02:57 PM   #4
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

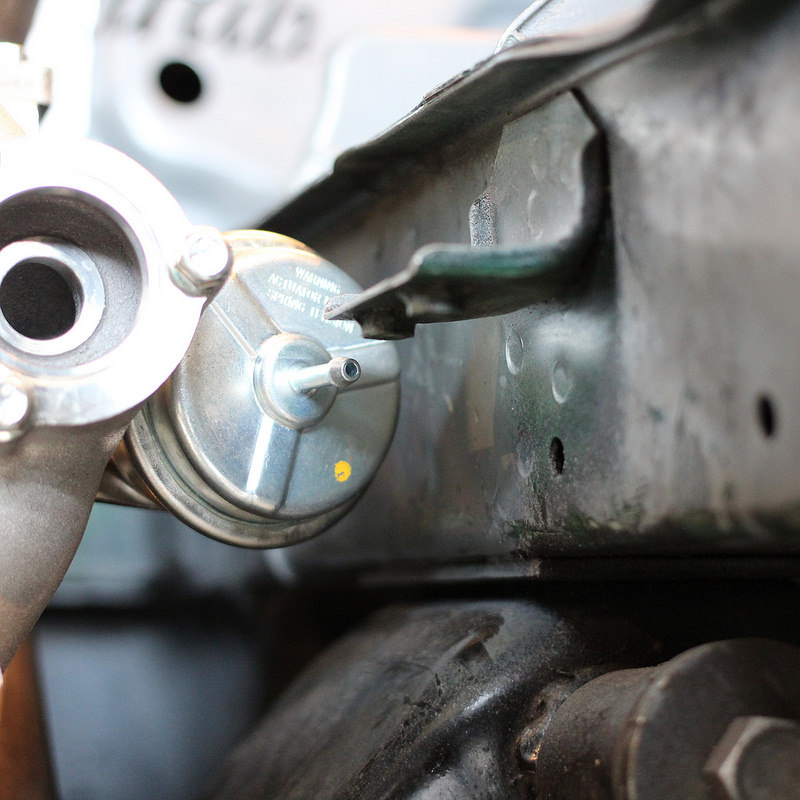

has this set up been tested at all? I'm curious if it's possible for the wastegate to contact the chassis under heavy loading due to engine movement

Very nice design tho.
cyotani is offline
Old 11-26-2014, 03:02 PM   #5
Junior Member
iTrader: (3)

Join Date: Dec 2011
Posts: 380
Total Cats: -17
Default

Quote:
Originally Posted by cyotani View Post
has this set up been tested at all? I'm curious if it's possible for the wastegate to contact the chassis under heavy loading due to engine movement

Very nice design tho.
I'm also curious. We'll have to see when I put mine on with the solid motor mounts.

Quote:
Originally Posted by shlammed View Post
Black Friday Deal: $675 for the manifold plus shipping.
Will ship next day after payment.

Deal ends Noon, December 1st.
Whoohoo, excited for mine!
AdoboMiata is offline
Old 11-26-2014, 03:44 PM   #6
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by cyotani View Post
has this set up been tested at all? I'm curious if it's possible for the wastegate to contact the chassis under heavy loading due to engine movement

Very nice design tho.
Thanks!
If your engine mounts are in reasonable shape there is no contact. if your using old tattered and ripped engine mounts, I cant comment on that.
shlammed is offline
Old 11-26-2014, 04:59 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,353
Total Cats: 1,319
Default

Quote:
Originally Posted by cyotani View Post
has this set up been tested at all? I'm curious if it's possible for the wastegate to contact the chassis under heavy loading due to engine movement
The engine twists the other way.
Savington is offline
Old 11-26-2014, 08:26 PM   #8
Newb

Join Date: Apr 2010
Location: NJ
Posts: 14
Total Cats: 1
Default

Gorgeous work, man.
Scott@USRT is offline
Old 11-27-2014, 03:04 PM   #9
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Quote:
Originally Posted by Savington View Post
The engine twists the other way.
It will twist the other way in reverse. but unless you gun it in reverse not very far so touche sir. clearance probably won't be an issue.
cyotani is offline
Old 11-28-2014, 11:30 AM   #10
Newb
iTrader: (2)

Join Date: Apr 2012
Posts: 20
Total Cats: 0
Default

Wish this had a dp with it id buy the pair great looking manifold
Jevans100 is offline
Old 11-28-2014, 12:55 PM   #11
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by Jevans100 View Post
Wish this had a dp with it id buy the pair great looking manifold
Jevans,

If you want it with a downpipe, I can build one for you. I welded the whole manifold.

I will send you a PM.
shlammed is offline
Old 11-28-2014, 03:44 PM   #12
Newb
iTrader: (2)

Join Date: Apr 2012
Posts: 20
Total Cats: 0
Default

Ok man I'm trying to buy a t series turbo but if that guy doesn't get back with me in a day i will totally buy this
Thanks for the quick reply this manifold is a piece of art btw congrats
Jevans100 is offline
Old 11-28-2014, 04:51 PM   #13
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Jevans,

This manifold will fit almost all T2 flanged turbos. Garrett T2, Borg Warner T2, etc. I just need to know the turbo type to build a downpipe for this setup.
shlammed is offline
Old 11-28-2014, 05:33 PM   #14
Newb
iTrader: (2)

Join Date: Apr 2012
Posts: 20
Total Cats: 0
Default

Downpipe needs to be for a 5 bolt t25/28 iwg preferably separated gases and if you could make a baffle for the wg gases id pay extra
Jevans100 is offline
Old 11-28-2014, 09:20 PM   #15
Newb
iTrader: (2)

Join Date: Apr 2012
Posts: 20
Total Cats: 0
Default

This is my 15th post so i can pm u
Jevans100 is offline
Old 12-04-2014, 03:12 PM   #16
Elite Member
Thread Starter
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Jevans bought the manifold, and added a downpipe.

Thanks all.

M
shlammed is offline
