Thumbs up LC1 with XD16 Gauge

I got this when I purchased my kit but I'm using an older gauge and sensor I had. Used but in good shape. $100 shipped OBO.

This is in fact not the XD16, it is a Red DB gauge. I'll post some more current photos tonight.


Attached Thumbnails

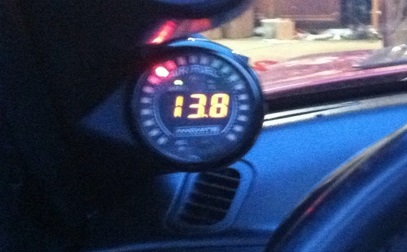

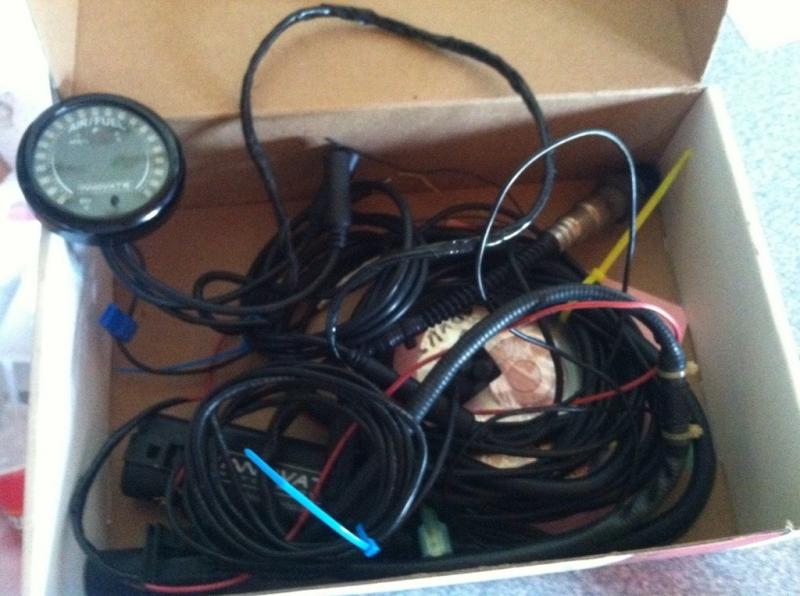

LC1 with XD16 Gauge-8393a036_zpsb94e916f.jpg   LC1 with XD16 Gauge-6d91a07d_zpsc7f48d0a.jpg

Last edited by AlexL; 05-17-2013 at 04:04 PM.
AlexL is offline
Old 04-24-2013, 01:38 PM   #2
Junior Member
iTrader: (1)

Join Date: Feb 2011
Posts: 229
Total Cats: 0
Default

is that entire box of wires required to hook it up??? seems like a lot.
KasbeKZ is offline
Old 04-24-2013, 01:59 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

It's an old picture so no I don't think it needs "all" of that. But yes, the LC1 uses a separate controller with separate wiring than the gauge. So there is a fair bit of wiring. Everything required will be included of course.
AlexL is offline
Old 04-24-2013, 06:05 PM   #4
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

hey alex, unless you bought an xd16 along the way, the one that came with it was a red db gauge. i didnt like the xd so i sold it and picked up the db
redturbomiata is offline
Old 04-25-2013, 10:10 AM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

Nope, it is as you gave it to me. I'll change my post thanks.
AlexL is offline
Old 04-27-2013, 02:37 PM   #6
Junior Member
iTrader: (4)

Join Date: Sep 2007
Location: Hampton Roads, VA
Posts: 398
Total Cats: 0
Default

Interested! You've been pm'd
gompers is offline
Old 04-28-2013, 06:26 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

PM Replied. One question asked was whether the LC1 was a pain to wire. I've read mixed reviews but I've priced it what I think is fair. If wired correctly they seem to work well.

Here are some recent photos. No instructions or anything included, what you see is what you get. I never had this hooked up but it seems to be in decent shape.



Attached Thumbnails

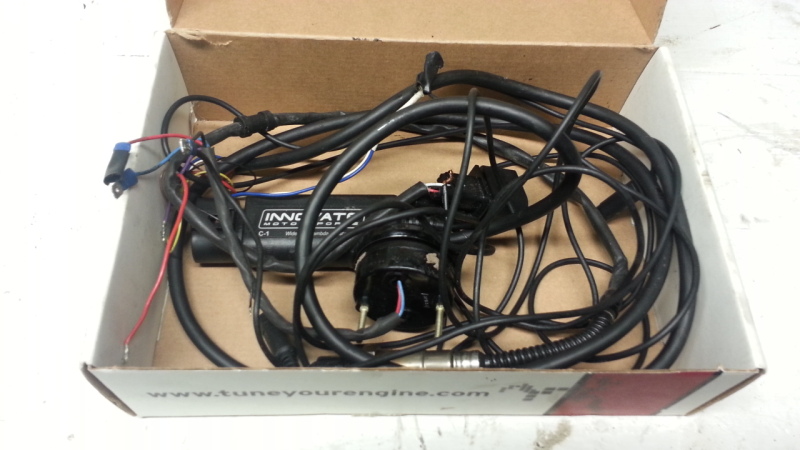

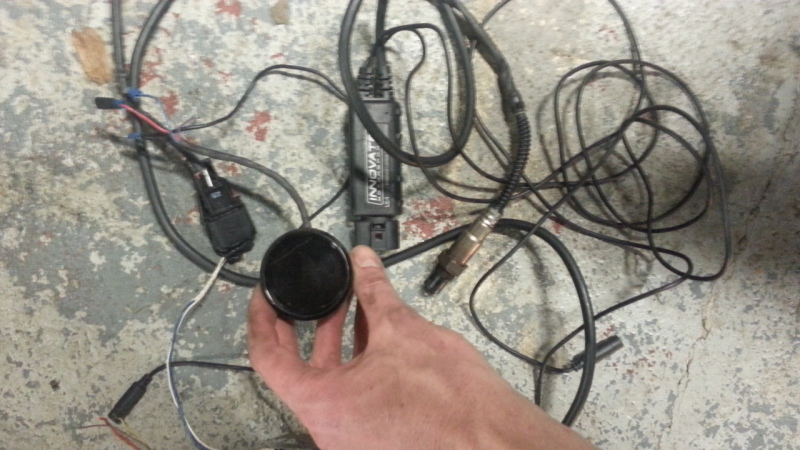

LC1 with XD16 Gauge-20130427_185653_zps4792c416.jpg   LC1 with XD16 Gauge-20130427_193259_zps0841cbf2.jpg   LC1 with XD16 Gauge-20130427_1933190_zps447dc7c2.jpg
AlexL is offline
Old 05-01-2013, 01:05 PM   #8
Junior Member
iTrader: (1)

Join Date: Jul 2007
Location: Arvada, CO
Posts: 118
Total Cats: 0
Default

If this can work with a standalone mspnp setup, I'm definitely interested.
I'll PM as well.
honeydesean is offline
Old 05-01-2013, 01:51 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

I think some of the wiring here was tied into some shared grounds and power for other gauges which is why it looks the way it does. I'll take better pictures of the colors but the LC1 has a wideband output for standalone and a narrowband output for gauge.

From the user guide: http://www.innovatemotorsports.com/s...C-1_Manual.pdf
"6. Optionally, the YELLOW (Analog out 1) and/or BROWN (Analog out 2) can be connected to the analog inputs of other devices such as data loggers, ECUs, or gauges. If either one or both of these wires are not being used isolate and tape the wire(s) out of the way. The default analog outputs are as follows: Analog output one is 1.1V = 14 AFR and .1V = 15 AFR. This is a simulated narrowband signal. Analog output two is setup as 0V = 7.35 AFR and 5V = 22.39"
AlexL is offline
Old 05-02-2013, 09:37 PM   #10
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

$120 shipped?
AlexL is offline
Old 05-02-2013, 10:04 PM   #11
Junior Member
iTrader: (1)

Join Date: Feb 2013
Posts: 72
Total Cats: -12
Default

Willing to ship to Toronto?
Saionara is offline
Old 05-02-2013, 10:49 PM   #12
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Stamford, CT
Posts: 212
Total Cats: 3
Default

Quote:
Originally Posted by Saionara View Post
Willing to ship to Toronto?
I'd rather not? I don't know how much that would be, I'll check.

Things not included with this: The software CD, The "serial program cable", Innovate Motor Sports On-Line Store
AlexL is offline
