Old 07-03-2015, 12:51 AM   #1
Newb
Thread Starter

Join Date: May 2015
Location: San Antonio
Posts: 5
Total Cats: 0
Default LINK Piggyback ECU, PS Delete Pulley, ETC...

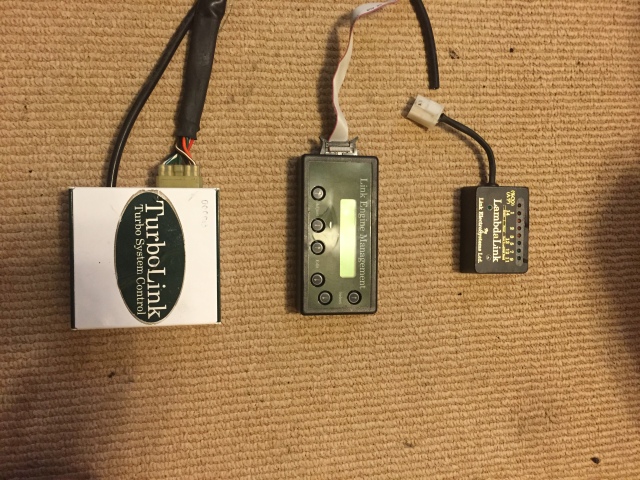

I purchased an old FM/BEGI kit for an NB that came with this LINK system, I honestly know damn near nothing about it, other than I wont be using it. Asking $200 shipped

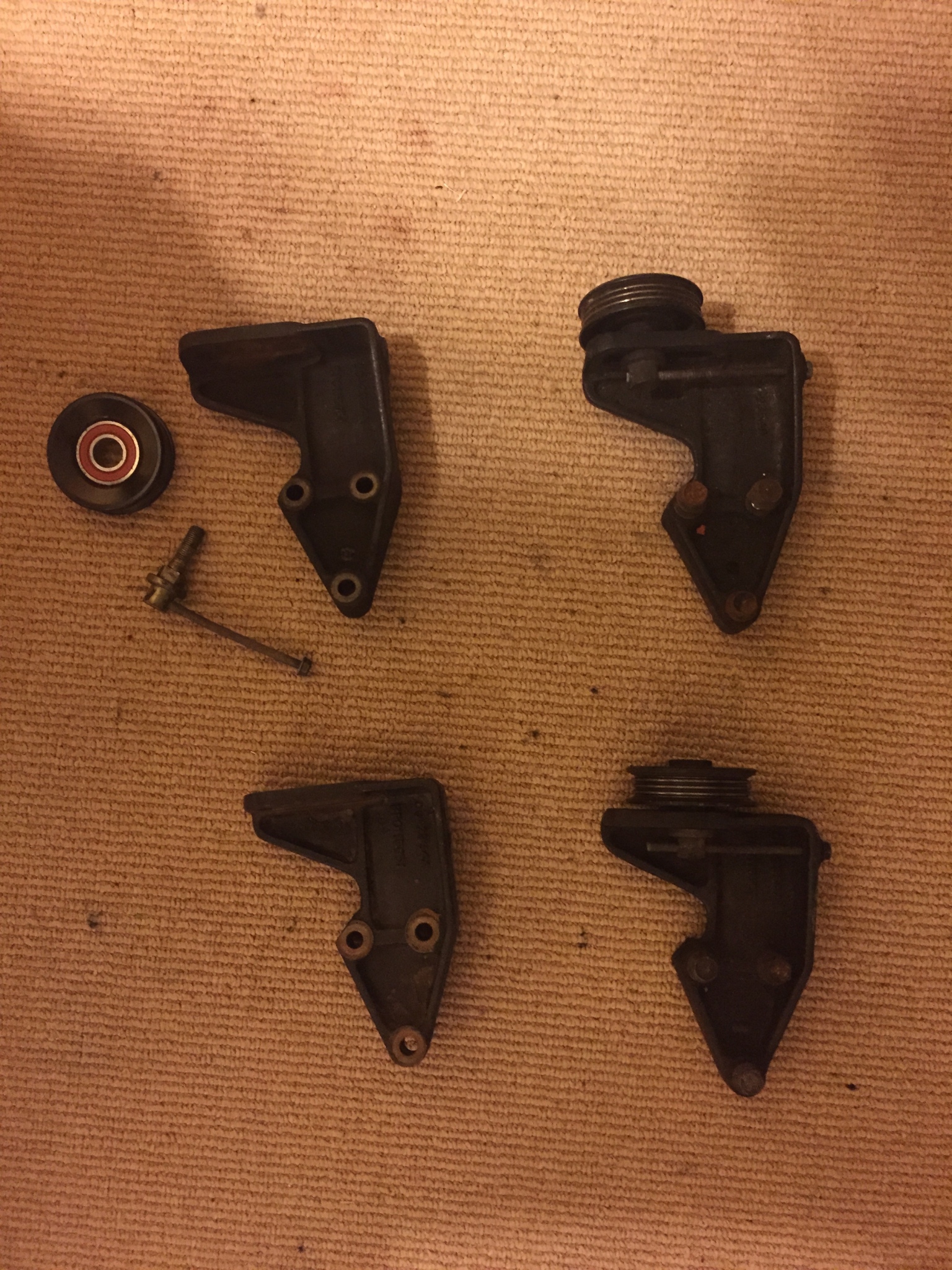

I also have 4 PS delete pulleys, 2 of which are complete, 1 is missing the bolt for the pulley and the spacer that goes behind it, the other is just the bracket.
Asking $200 for the complete ones, $150 for the partial, and $100 for the bracket. All prices include shipping.

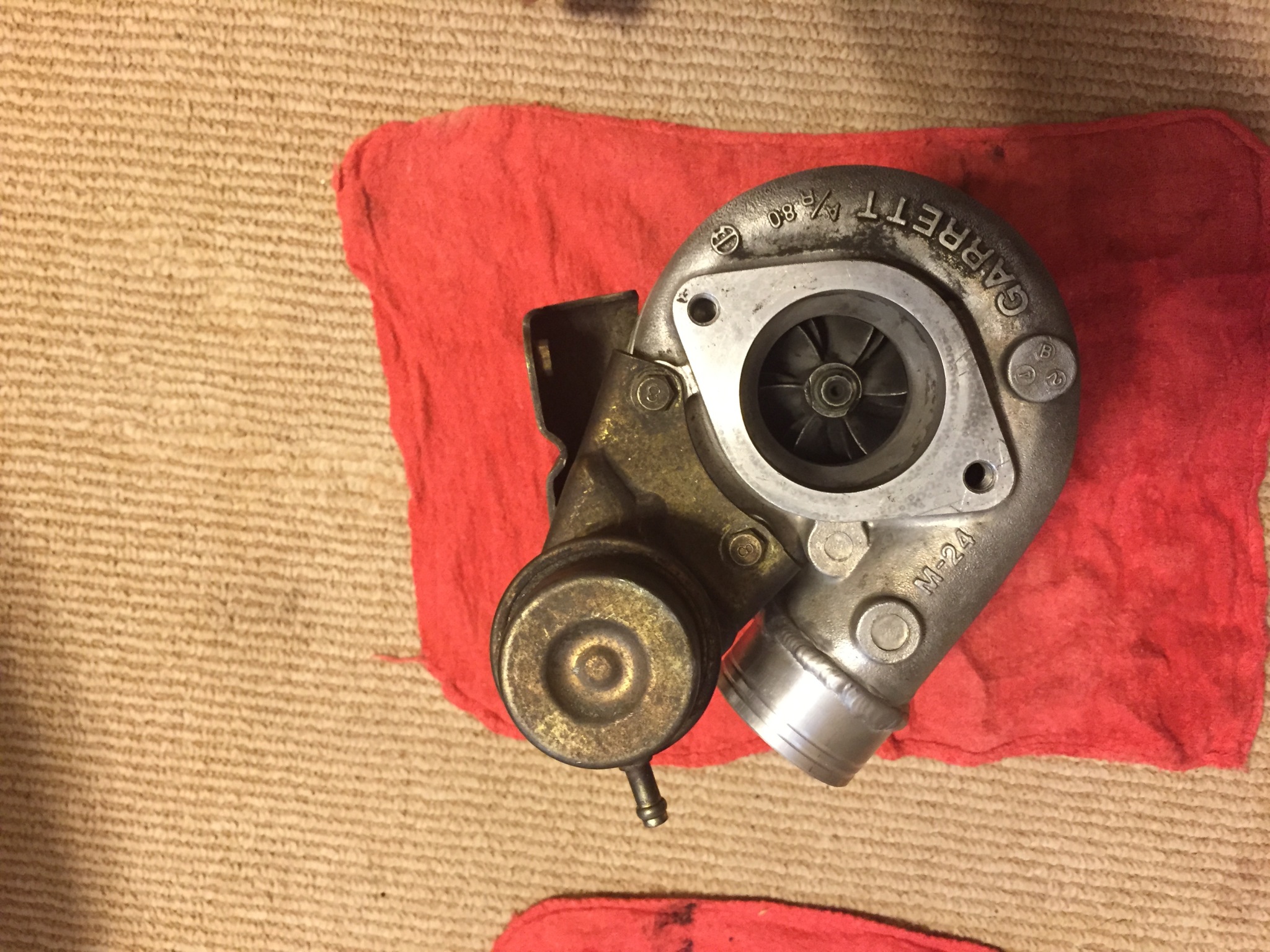

Garrett T25 SR20 Turbo, clocked and modified to work on a side mount manifold. The folks at BEGI chopped off the 3 bolt manifold and welded on an aluminum tube for me, decided to run a T28 that I have instead. Asking $200 shipped

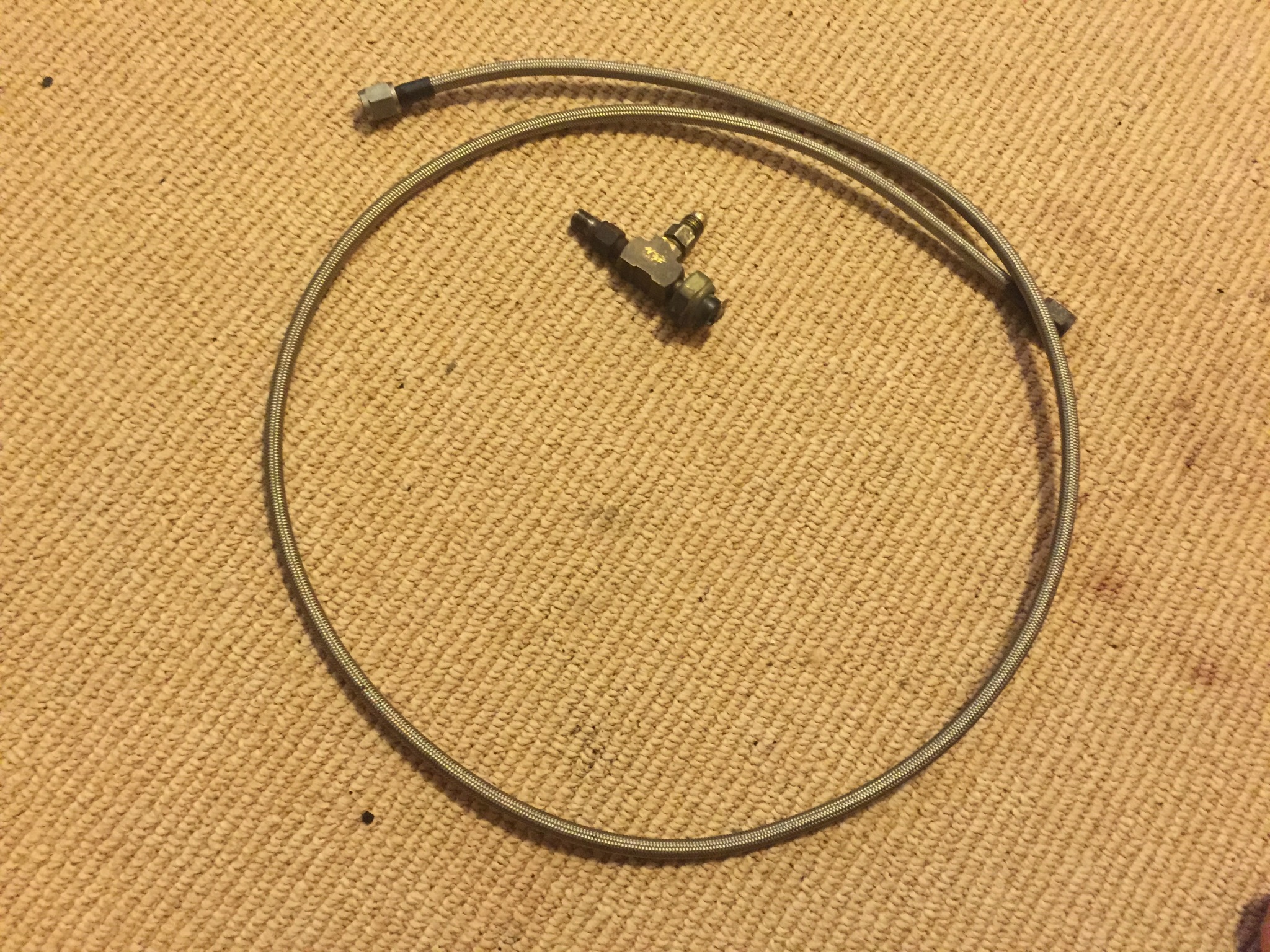

Oil feed line for 95+ including tee and oil pressure sender. $30 shipped







Attached Thumbnails
LINK Piggyback ECU, PS Delete Pulley, ETC...-34j6o8i.jpg   LINK Piggyback ECU, PS Delete Pulley, ETC...-1yv86o.jpg   LINK Piggyback ECU, PS Delete Pulley, ETC...-308yuy9.jpg   LINK Piggyback ECU, PS Delete Pulley, ETC...-2lmv1cl.jpg
Laughlin is offline   Reply With Quote
Old 07-03-2015, 08:57 AM   #2
Junior Member

Join Date: Jul 2010
Posts: 62
Total Cats: 0
Default

Damn it, I just paid $60+ for that same line.... lol

Any idea on what year the link is for?
Heyitsryan is offline   Reply With Quote
Old 07-03-2015, 01:23 PM   #3
Newb
Thread Starter

Join Date: May 2015
Location: San Antonio
Posts: 5
Total Cats: 0
Default

Quote:
Originally Posted by Heyitsryan View Post
Damn it, I just paid $60+ for that same line.... lol

Any idea on what year the link is for?
I'm honestly not sure, the kit that it came with was for an NB, I can't find a part number or serial number or anything on it. The only real possibility is the faint 000013 that it has stamped on it. I'll call FM today and see what they can tell me.
Laughlin is offline   Reply With Quote
Old 07-03-2015, 02:43 PM   #4
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

I had one of these for a while. The Link piggyback itself isn't year-specific, but all it does it control 4 auxiliary injectors, retard timing from whatever the stock ECU put it to (it can't add timing, only remove it) and drive a boost control solenoid (badly). It has no wideband input, just RPM and a MAP sensor. There's a model-year-specific wiring harness that FM sold with them. AFAIK they only ever sold it for NBs, and I'm not even sure if there was a 2001+ version.

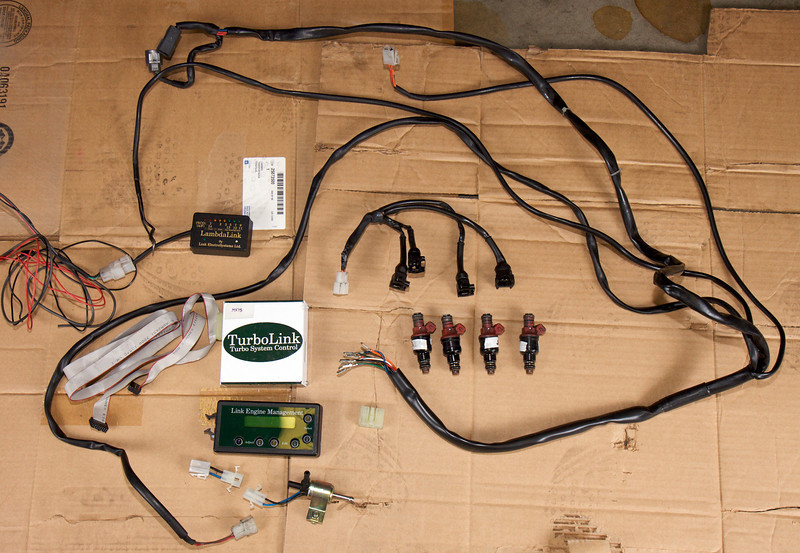

The harness looks like this:


(This photo is from the kit I sold several years ago, obviously i'm not the seller on this thread )

To use this piggyback, you need four additional injectors mounted somewhere for it to control. The FM2 kit that used it included a modified lower intake manifold with four additional injector ports and a bracket for a second fuel rail.

--Ian
Attached Thumbnails
LINK Piggyback ECU, PS Delete Pulley, ETC...-i-hwmpdk9-l.jpg
codrus is online now   Reply With Quote
Old 07-03-2015, 03:14 PM   #5
Newb
Thread Starter

Join Date: May 2015
Location: San Antonio
Posts: 5
Total Cats: 0
Default

Awesome! Thanks for the info! I definitely appear to be missing a few things. Specifically the injectors, injector harness, and the lower intake manifold. I do have the main harness for it though, and a birds nest of other miscellaneous wires. I shot a text to the guy I bought it from to see if he still has any of it laying around. If so I'll obviously include it, if not I'm certainly willing to come down on price. I just hate to throw it away.
Laughlin is offline   Reply With Quote
