Default Miata 1.8 BP and Mazdaspeed Engine oil pan baffles

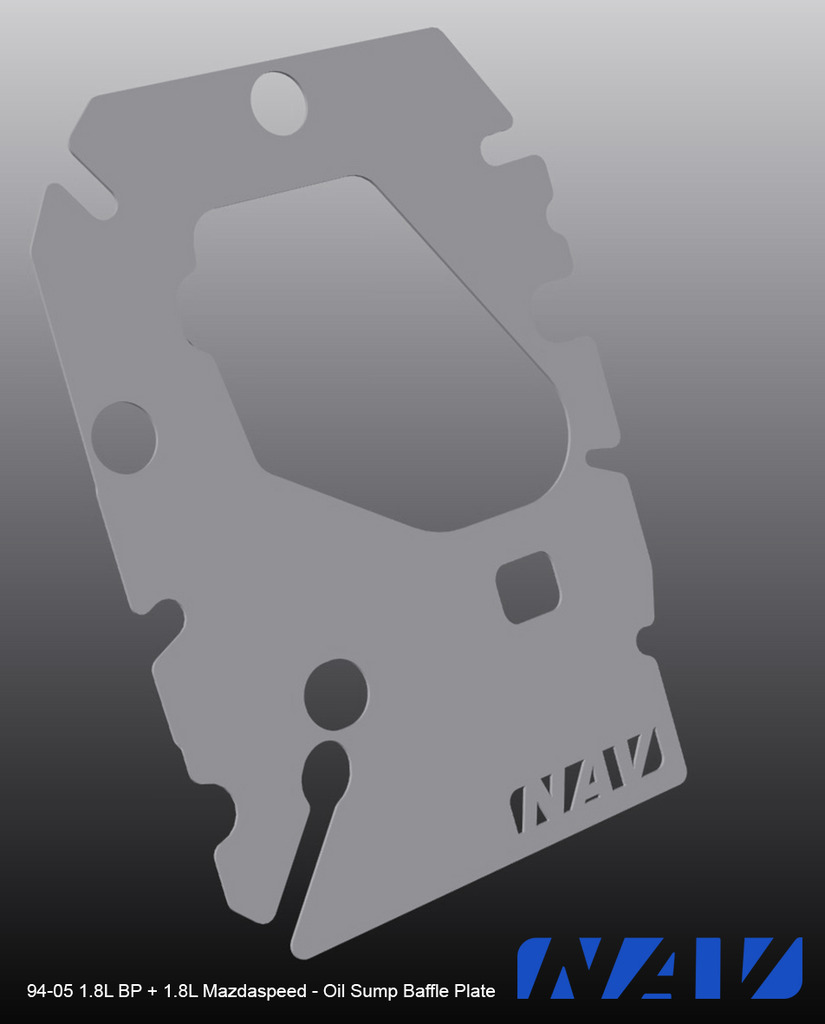

Engine oil baffle plates for the Mazda Miata BP 1.8 and Mazdaspeed engines. T304 Stainless steel, CAD designed and laser cut. Simple direct drop-in pieces. Eliminates oil starvation during acceleration, braking and turning. Ideal for track guys with turbos, Wilwood's and meaty tires but cheap insurance for street cars as well.




$40 usd

Located in Ontario, Canada
Attached Thumbnails
Miata 1.8 BP and Mazdaspeed Engine oil pan baffles-fillet%2520plate_zpslxia5zkk.jpg
Neilv is offline   Reply With Quote
Old 06-28-2016, 03:55 PM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

are you just selling one of these?
18psi is offline   Reply With Quote
Old 06-28-2016, 03:59 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

I had 3 made for my own personal cars and a few extras because I figured I cannot be the only one who wanted one of these. I can also have more made if the demand is greater.

I am not a business but if this is a breach of the FS rules please let me know so I can change/update.
Neilv is offline   Reply With Quote
Old 06-28-2016, 04:05 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

I just don't want our vendors to get upset. If they are ok with it, then I don't care. I guess we'll see.
18psi is offline   Reply With Quote
Old 06-28-2016, 05:50 PM   #5
Senior Member

mmmjesse's Avatar

Join Date: Aug 2007
Posts: 568
Total Cats: 43
Default

pic of it installed? i am interested
mmmjesse is offline   Reply With Quote
Old 06-28-2016, 06:08 PM   #6
Junior Member

Join Date: May 2010
Posts: 75
Total Cats: -4
Default

Interested in one of these.
M2Ken is offline   Reply With Quote
Old 06-28-2016, 06:24 PM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

Here is a quick installed photo in my spare Mazdaspeed pan. Only real differences are a few rib changes and the oil separator drain tube. Will get some better pictures as soon as I can.

Attached Thumbnails
Miata 1.8 BP and Mazdaspeed Engine oil pan baffles-20160628_170410_zpspdkphu22.jpg
Neilv is offline   Reply With Quote
Old 07-06-2016, 10:47 AM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

1 left from the first batch
Neilv is offline   Reply With Quote
Old 11-14-2016, 09:23 PM   #9
Newb

Join Date: Jan 2016
Location: Dallas
Posts: 28
Total Cats: 0
Default

Quote:
Originally Posted by Neilv View Post
1 left from the first batch
do you happen to be able to sell me that extra mazdaspeed Miata oil pan with the baffle. Really in need. 😭
Cmplxbewst is offline   Reply With Quote
Old 05-04-2017, 11:16 PM   #10
Newb

Join Date: Feb 2010
Location: Hayward, Ca
Posts: 23
Total Cats: 2
Default Interested in one of your baffles

Quote:
Originally Posted by Neilv View Post
Engine oil baffle plates for the Mazda Miata BP 1.8 and Mazdaspeed engines. T304 Stainless steel, CAD designed and laser cut. Simple direct drop-in pieces. Eliminates oil starvation during acceleration, braking and turning. Ideal for track guys with turbos, Wilwood's and meaty tires but cheap insurance for street cars as well.




$40 usd

Located in Ontario, Canada
Hey I was wondering if you have any more baffles left. If you do I can PayPal you payment for one. Look forward to hearing back from you!
-Chris
mauisurf2003 is offline   Reply With Quote
Old 05-12-2017, 07:07 AM   #11
Newb

Join Date: Sep 2010
Posts: 13
Total Cats: -1
Default

Are there any problem between T304 Stainless steel and Aluminum?
Gn0m4 is offline   Reply With Quote
Old 05-12-2017, 08:59 AM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

Quote:
Originally Posted by Gn0m4 View Post
Are there any problem between T304 Stainless steel and Aluminum?
Honestly not sure what youre referring to. Factory plate is just mild steel and this get sandwiched between that and the aluminum pan with stock bolts. No welding required.
Neilv is offline   Reply With Quote
Old 05-12-2017, 10:33 AM   #13
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,460
Total Cats: 782
Default

I'm in for one if you make more.
concealer404 is online now   Reply With Quote
Old 05-12-2017, 11:40 AM   #14
Newb

Join Date: Sep 2010
Posts: 13
Total Cats: -1
Default

Quote:
Originally Posted by Neilv View Post
Honestly not sure what youre referring to. Factory plate is just mild steel and this get sandwiched between that and the aluminum pan with stock bolts. No welding required.
I think stainless steel reacts with aluminum and causes corrosion.

Article: Bimetallic (galvanic) corrosion risks from contact with galvanised steel or aluminium

Does stainless react with aluminium?
Gn0m4 is offline   Reply With Quote
Old 05-12-2017, 11:47 AM   #15
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,400
Total Cats: 200
Default

I would also be interested in one. .094- .125" aluminum would be my choice.
ryansmoneypit is offline   Reply With Quote
Old 05-12-2017, 06:33 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2010
Location: Niagara Falls NY/ Ontario, CA
Posts: 76
Total Cats: 2
Default

Quote:
Originally Posted by Gn0m4 View Post
I think stainless steel reacts with aluminum and causes corrosion.<br /><br /><a href="http://www.bssa.org.uk/topics.php?article=89">Article: Bimetallic (galvanic) corrosion risks from contact with galvanised steel or aluminium</a><br /><br /><a href="http://weldingweb.com/showthread.php?43880-Does-stainless-react-with-aluminium&amp;p=413297#post413297">Does stainless react with aluminium?</a>
<br /><br />Nope no issues. Factory plate is mild steel as well as the bolts. Steel is worse for corrosion with aluminum than 304 is and no one seems to have ever had an issue. Plus, both are covered in oil at all times so that would eliminate any corrosion.
Neilv is offline   Reply With Quote
Old 05-16-2017, 12:43 AM   #17
Newb

Join Date: Feb 2010
Location: Hayward, Ca
Posts: 23
Total Cats: 2
Default

Got my baffle in the mail today! Thank you very much, excited to put this in my pan tomorrow and finally put my pan on the engine.
​​​​​​
​​
mauisurf2003 is offline   Reply With Quote
Old 05-16-2017, 04:58 AM   #18
ʎpunq qoq

Join Date: Jan 2014
Location: Western Australia
Posts: 502
Total Cats: 100
Default

just FYI, I think the baffle will work far better if there is next to no gap around the sides, especially at the front of the baffle. When the oil is at temp it actually flows fairly well so under sustained braking you need it to stop the oil from flowing out of the pan to the front of the sump. If there is a gap on either side you'll lose lots of oil from the pan in a few seconds of braking.

This is mine... it was cut by hand but made for a sung fit. I have datalogged this under brakes and it does prevent oil starvation under sustained high G braking.

Madjak is offline   Reply With Quote
Old 05-19-2017, 11:03 PM   #19
Newb

Join Date: Feb 2010
Location: Hayward, Ca
Posts: 23
Total Cats: 2
Default

Yee!
mauisurf2003 is offline   Reply With Quote
Old 10-27-2017, 01:07 PM   #20
Junior Member

matrussell122's Avatar

Join Date: Sep 2016
Location: Seattle
Posts: 244
Total Cats: 15
Default

These are nice. Do you have any more? Also need a spare oil pan if you have one for a 1.8 from 94
