Default MP62 TDR Style Intercooler Setup

I have a lightly used over-the-top intercooler setup that I had on my 2000 before I sold it. It was used for no more than 1500km. I tinkered more than I drove the car. This setup was created by me and is similar to the TDR setup. The TDR installation files can be found online but basically you relocate the existing radiator brackets down to where the sway bar brackets are located.

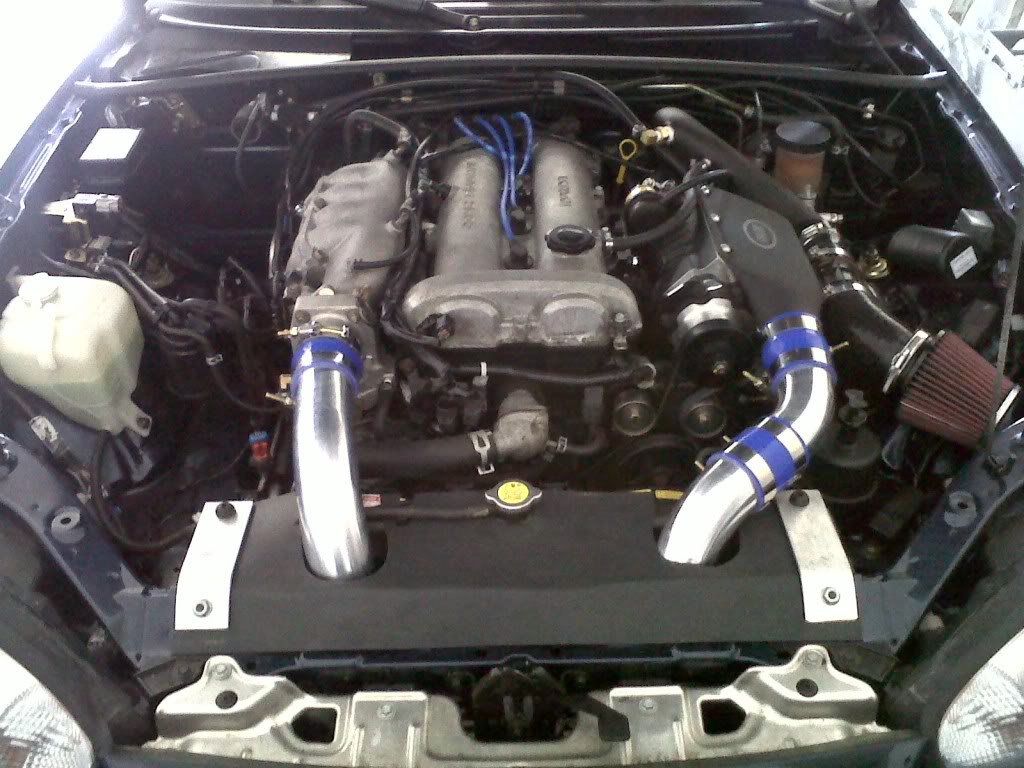

Name:  IMG00001-20100807-0910.jpg
Views: 25
Size:  128.2 KB

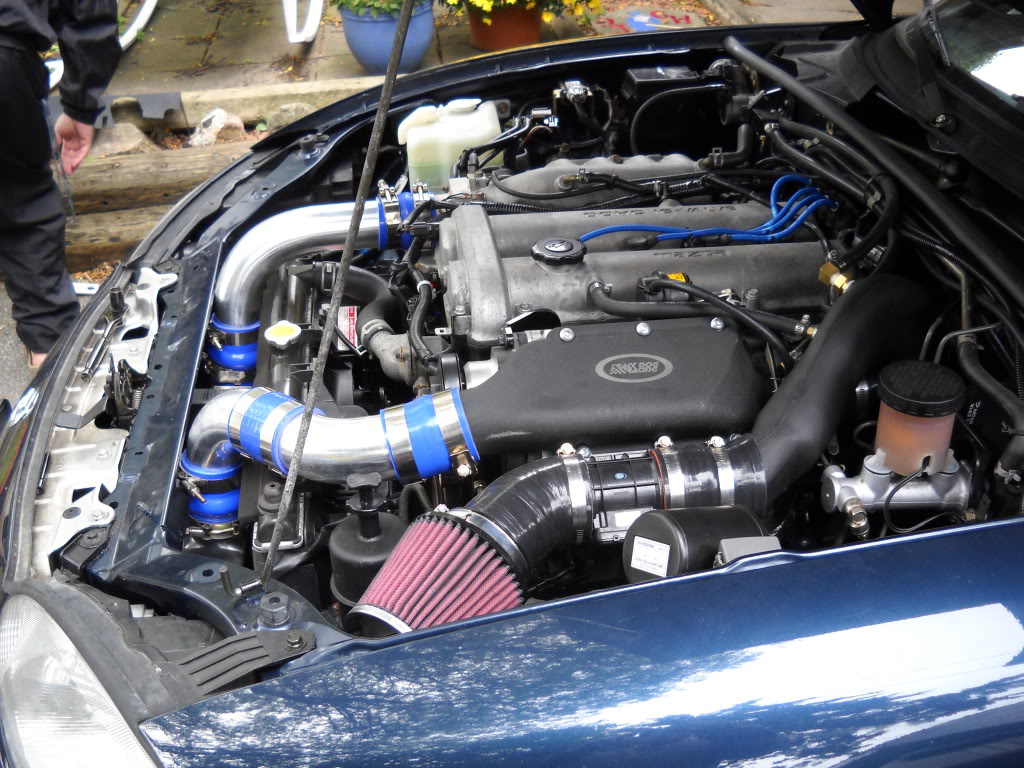

Name:  DSCN0792.jpg
Views: 18
Size:  189.0 KB

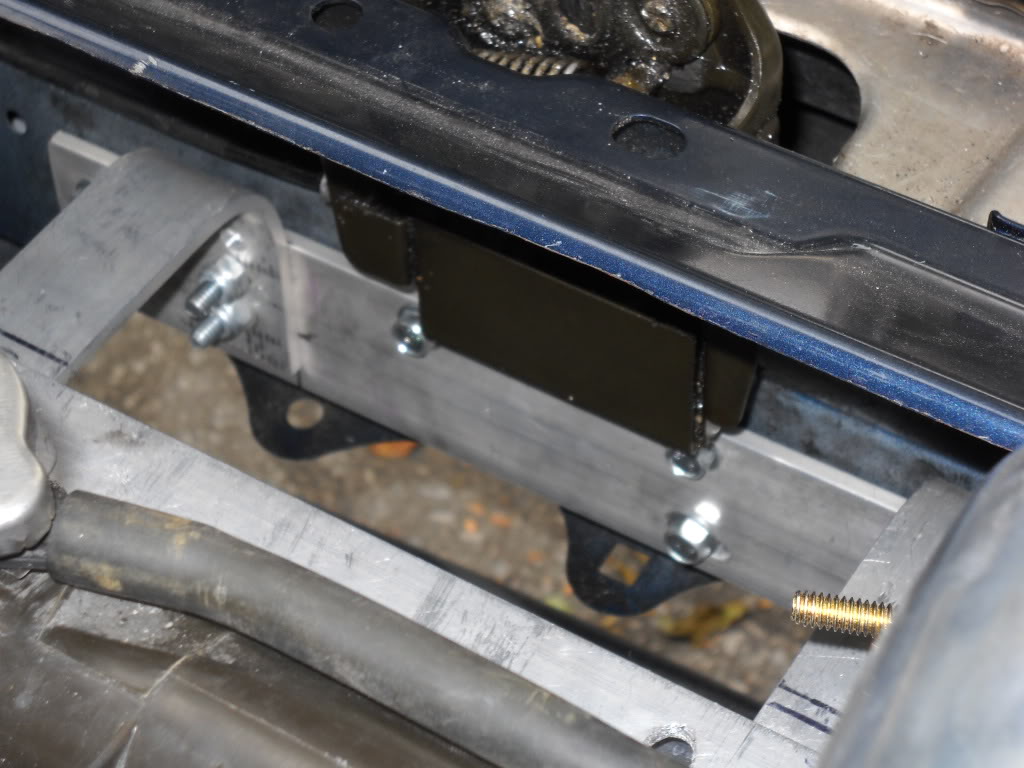

Name:  DSCN0790.jpg
Views: 8
Size:  101.1 KB

Includes:

- Cxracing intercooler
- Ducting made of ABS (sides, bottom, top)
- Piping as pictured (have a couple other bends I can include)
- Main mounting bracket which bolts on without drilling.
- Custom Radiator brackets.

$300 + shipping

Last edited by Staffah; 06-30-2011 at 07:03 AM.
Staffah is offline   Reply With Quote
Old 06-30-2011, 01:49 AM   #2
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Edit your post, highlight the image links, one at a time, and push the little button.
curly is offline   Reply With Quote
Old 06-30-2011, 07:04 AM   #3
Junior Member
Thread Starter

Join Date: Dec 2009
Location: ON, Canada
Posts: 106
Total Cats: 2
Default

pictures links updated
Staffah is offline   Reply With Quote
Old 06-30-2011, 10:22 AM   #4
Newb

Join Date: Feb 2011
Location: Dallas, TX
Posts: 25
Total Cats: 1
Default

I was going to do exactly what you already did! thats cool.
mingle1158 is offline   Reply With Quote
Old 06-30-2011, 12:56 PM   #5
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

Size of intercooler? And have any pictures of it mounted from the front?

Edit: Also what diameter of IC pipes are those?
chokeasphyxia is offline   Reply With Quote
Old 07-01-2011, 07:48 AM   #6
Junior Member
Thread Starter

Join Date: Dec 2009
Location: ON, Canada
Posts: 106
Total Cats: 2
Default

PM Box now empty....it is their 16.5x11x3" intercooler.
Staffah is offline   Reply With Quote
Old 07-01-2011, 10:38 AM   #7
Newb

Join Date: Feb 2011
Location: Dallas, TX
Posts: 25
Total Cats: 1
Default

Damn Canadians and their ingenuity.
Its probably more of that cheap Canadian aluminium, that stuff is all over the internet.

:P
mingle1158 is offline   Reply With Quote
Old 07-01-2011, 04:13 PM   #8
Senior Member
iTrader: (13)

Join Date: Jul 2008
Location: Macon, Ga
Posts: 826
Total Cats: 0
Default

I'd buy this right now if it'd fit my NA.
Sam Amporful is offline   Reply With Quote
Old 07-01-2011, 05:05 PM   #9
Newb

Join Date: Feb 2011
Location: Dallas, TX
Posts: 25
Total Cats: 1
Default

I bet it would. everything is basically the same.
mingle1158 is offline   Reply With Quote
Old 07-01-2011, 05:22 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2009
Location: ON, Canada
Posts: 106
Total Cats: 2
Default

I have never seen the inside of an NA bumper/frame so I don't know if would bolt up like pictured.
Staffah is offline   Reply With Quote
Old 07-02-2011, 02:41 PM   #11
Senior Member
iTrader: (1)

Join Date: Oct 2009
Posts: 1,436
Total Cats: 58
Default

Quote:
Originally Posted by mingle1158 View Post
I bet it would. everything is basically the same.
No, it's not. I've had the discussion with TDR before. It's completely different, save the exchanger.

You can make it work, but there is no guarantee that any of it will fit other than the exchanger. The tubes I use were from another DIY NB setup, and I had to hack up the tubes and make all new mounting brackets.
Enginerd is offline   Reply With Quote
Old 07-07-2011, 05:00 PM   #12
Junior Member
iTrader: (8)

Join Date: Mar 2007
Location: Sarasota, FL
Posts: 334
Total Cats: 0
Default

Quote:
Originally Posted by chokeasphyxia View Post
Edit: Also what diameter of IC pipes are those?
chokeasphyxia is offline   Reply With Quote
Old 08-13-2011, 03:07 PM   #13
Junior Member

Join Date: Nov 2010
Location: Netherlands
Posts: 78
Total Cats: 0
Default

Is it still available?
Simonvkasteren is offline   Reply With Quote
