Default NB control arm set w/ AWR Racing Delrin bushings/RC Engineering 750cc fuel injectors


Located in Southern California - willing to ship.

RC Engineering 750cc saturated fuel injectors. Comes wiith plug adapters, very low run time. SOLD

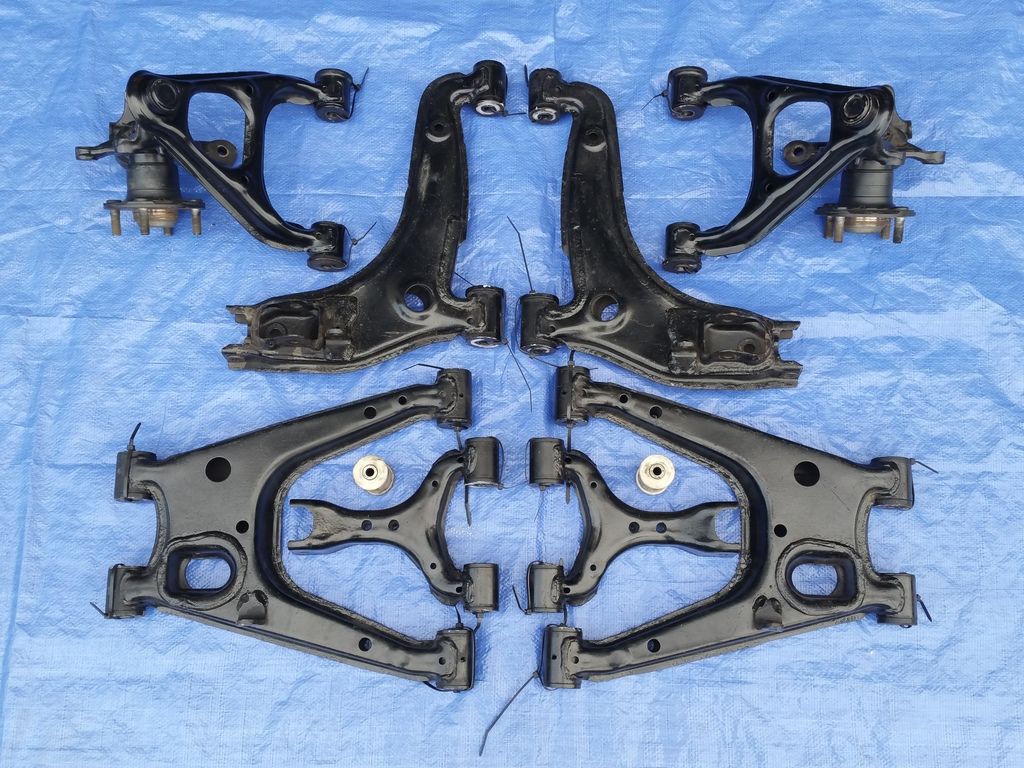

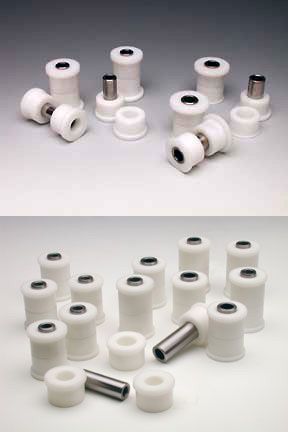

2003 Miata control arm set and front uprights/knuckles/hubs with AWR Racing Delrin Bushing kit installed - SOLD
Attached Thumbnails
NB control arm set w/ AWR Racing Delrin bushings/RC Engineering 750cc fuel injectors-80-20160110_152608_17b16913a0bc666972ab17038c95cf11fcab67d2.jpg   NB control arm set w/ AWR Racing Delrin bushings/RC Engineering 750cc fuel injectors-80-bushkit_64444_1276108697_1280_1280_3fb11f96a41c1cf2939af4dcf290a20bf91614c9.jpg   NB control arm set w/ AWR Racing Delrin bushings/RC Engineering 750cc fuel injectors-80-20160110_153532_a4f40fc80245b3a56eb6308d1e20404ccf254f9d.jpg

Last edited by graexodus; 01-27-2016 at 12:53 PM.
graexodus is offline   Reply With Quote
Old 01-14-2016, 05:31 PM   #2
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

What is the advantage of Delrin over the more common polyurethane bushings?
Chilicharger665 is offline   Reply With Quote
Old 01-14-2016, 06:29 PM   #3
Junior Member
iTrader: (2)

Join Date: Apr 2010
Location: albion, mi
Posts: 303
Total Cats: 17
Default

Will the na rack fit the upgraded arms, or must an NB rack be sourced?
glade is offline   Reply With Quote
Old 01-14-2016, 06:51 PM   #4
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,777
Total Cats: 1,106
Default

Quote:
Originally Posted by glade View Post
Will the na rack fit the upgraded arms, or must an NB rack be sourced?
To swap the NB control arms into a NA you have to also swap front subframe and the steering rack.
shuiend is online now   Reply With Quote
Old 01-14-2016, 07:14 PM   #5
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by Chilicharger665 View Post
What is the advantage of Delrin over the more common polyurethane bushings?
Moar stiffness
aidandj is offline   Reply With Quote
Old 01-15-2016, 03:51 PM   #6
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Quote:
Originally Posted by aidandj View Post
Moar stiffness
And no binding, which is the larger benefit.
hi_im_sean is offline   Reply With Quote
Old 01-15-2016, 03:52 PM   #7
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

although i belive the awr bushings will bind
aidandj is offline   Reply With Quote
Old 01-15-2016, 04:01 PM   #8
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,904
Total Cats: 613
Default

Well yes, the LCAs inners will if you install them both.
hi_im_sean is offline   Reply With Quote
Old 01-15-2016, 04:34 PM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

Quote:
Originally Posted by Chilicharger665 View Post
What is the advantage of Delrin over the more common polyurethane bushings?
Less deflection and frictional resistance than poly - more precise suspension movement at the cost of NVH.

Quote:
Originally Posted by glade View Post
Will the na rack fit the upgraded arms, or must an NB rack be sourced?
The 1990-2005 Miata control arms are the same external dimension, just various bracing and endlink configurations over the years. the 1999+ upper ball joint has a slightly different taper so it'll need to stay paired with an NB upright/knuckle. The geometry is a bit different for the NB upright but will get along with any tie rod end 90-05. There is an advantage to be gained with a 99-05 subframe and rack however everything should interchange between generations.


Quote:
Originally Posted by aidandj View Post
although i belive the awr bushings will bind
I believe there were reports of the early variants of AWR having binding issues, but I've had no problems with these. with shocks removed and all control arm bolts tight they move freely through their motion sweep. I've been very happy with this setup, only changing because V8R.
graexodus is offline   Reply With Quote
Old 01-18-2016, 04:54 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2009
Posts: 168
Total Cats: 7
Default

Control arm set sold.
