Default NB Link Piggyback ECU - OBDII Emissions Legal

After 2 years of boosted fun I've finally gone to a Rev Built MS3. Up for sale is my FM Link Piggy Back ECU. It's run the car fantastically for the last 3 years, including passing OBDII emissions several times.

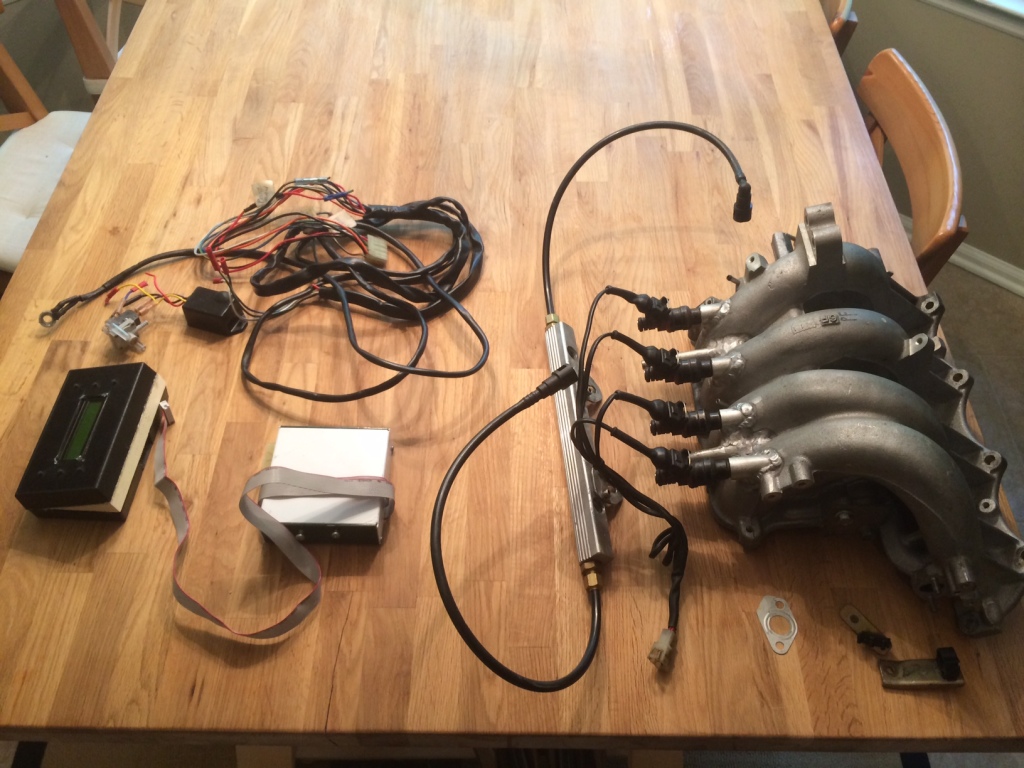

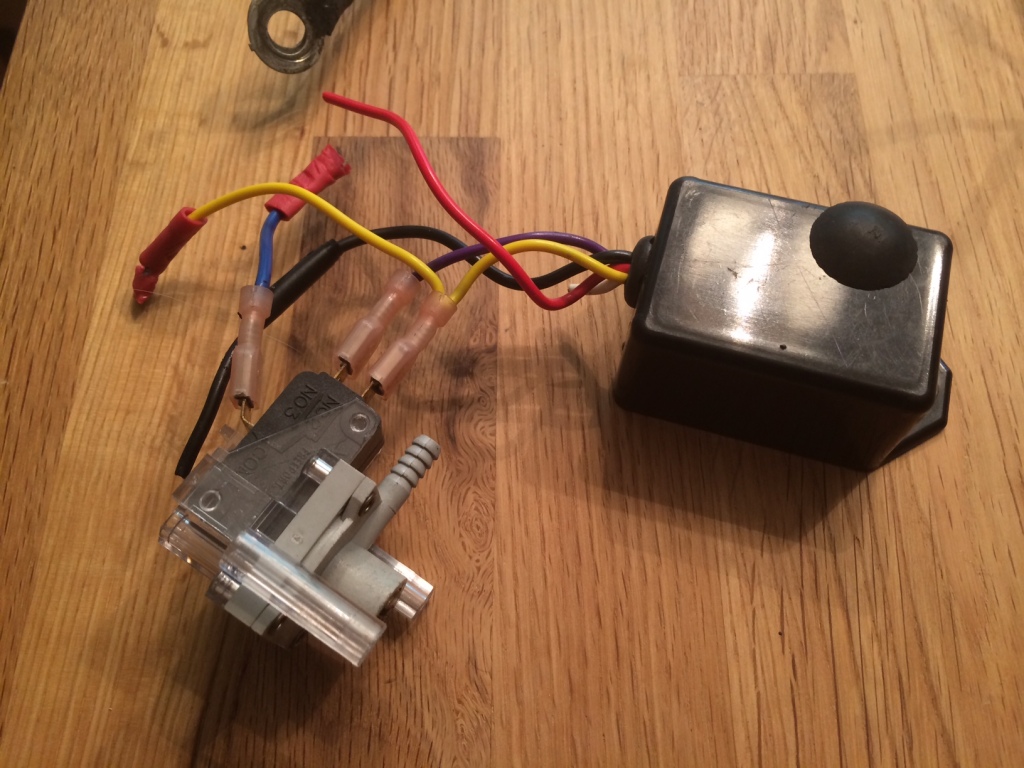

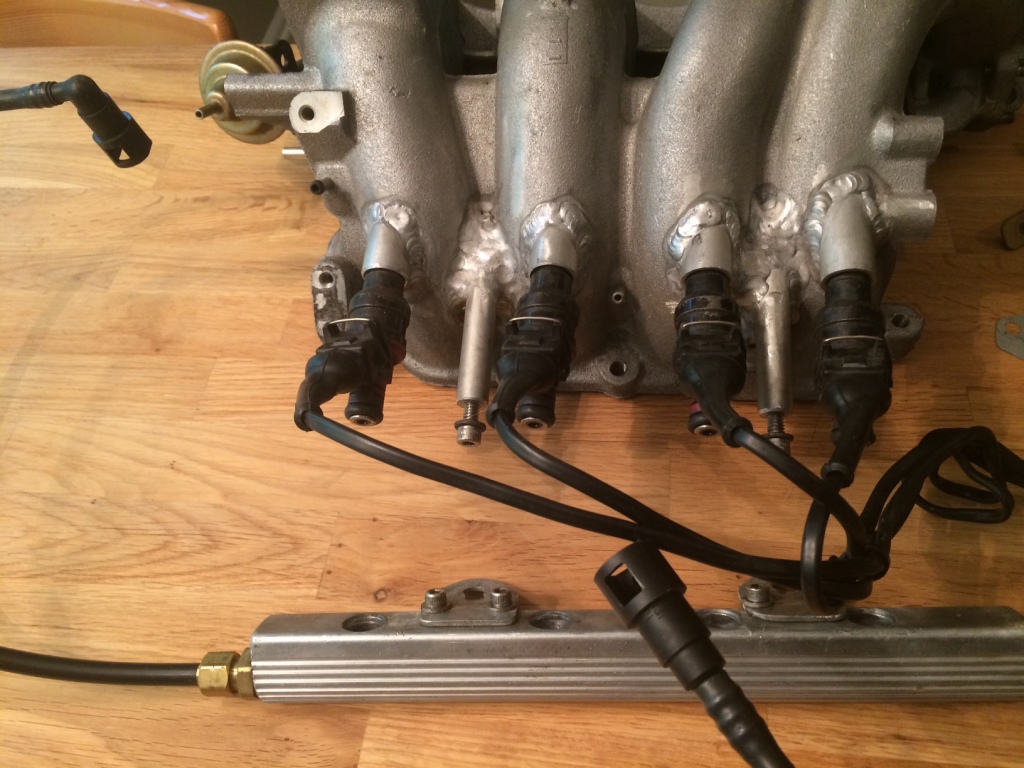

This will fit any NB2 car (2001 and up) and includes control for fuel and timing once in boost. I have everything you need including the extra fuel rail, lines (setup to plug right into stock locations with stock clips), injectors (Rx7 Red Top?), special intake manifold (to hold the extra 4 injectors), wiring harness, O2 clamp and ECU / keypad. (**This will also fit a 1999/2000 but you'll need a different intake manifold. Pretty sure FM still has the 1999 manifold I sent as an exchange for the 2002 one I needed)

I've run this setup for over 2 years and many track days with great success. I've run it with 6-14 PSI of boost (though 10 seems to be the real sweet spot). The timing and fuel are fully adjustable and includes a very conservative Flyin' Miata factory tune. There are not a whole lot of these NB piggy back setups around and it's the only fully integrated Fuel & Timing ECU that I'm aware of that is also OBDII emissions legal.

It's definitely not a MegaSquirt, but for no hassle, emissions friendly boost, it can't be beat.

I guess I'll start with an asking price of $450 (+ shipping from Atlanta) and see where things go. I paid more for the setup originally without the fuel rail or keypad.







Attached Thumbnails
NB Link Piggyback ECU - OBDII Emissions Legal-124bwc8.jpg   NB Link Piggyback ECU - OBDII Emissions Legal-b6wuh4.jpg   NB Link Piggyback ECU - OBDII Emissions Legal-2mpzc60.jpg   NB Link Piggyback ECU - OBDII Emissions Legal-i5dt7r.jpg
Rick02R is offline   Reply With Quote
Old 07-07-2014, 01:01 PM   #2
Junior Member
iTrader: (3)

Join Date: Oct 2010
Posts: 100
Total Cats: -11
Default

This looks unique, Do you have any pics of this all assembled under the hood? Did you run a strut bar and did it clear?
apalac01 is offline   Reply With Quote
Old 07-07-2014, 02:20 PM   #3
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 71
Total Cats: 3
Default

It is fairly unique. It's an FM kit that's out of production.

It may fit with a strut bar, but it'll be close over the fuel rail. My car does not have a bar.

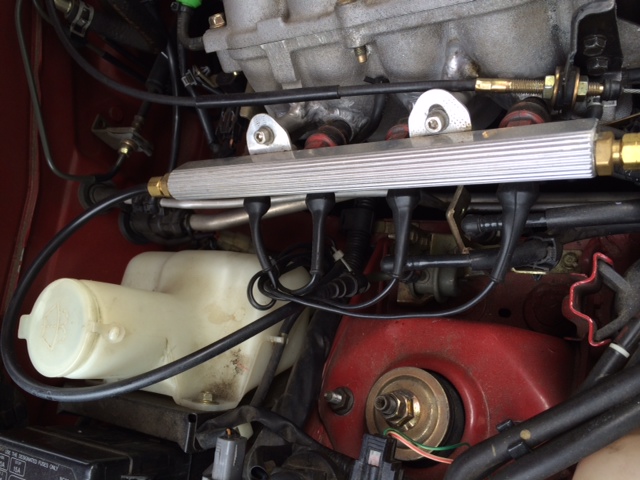

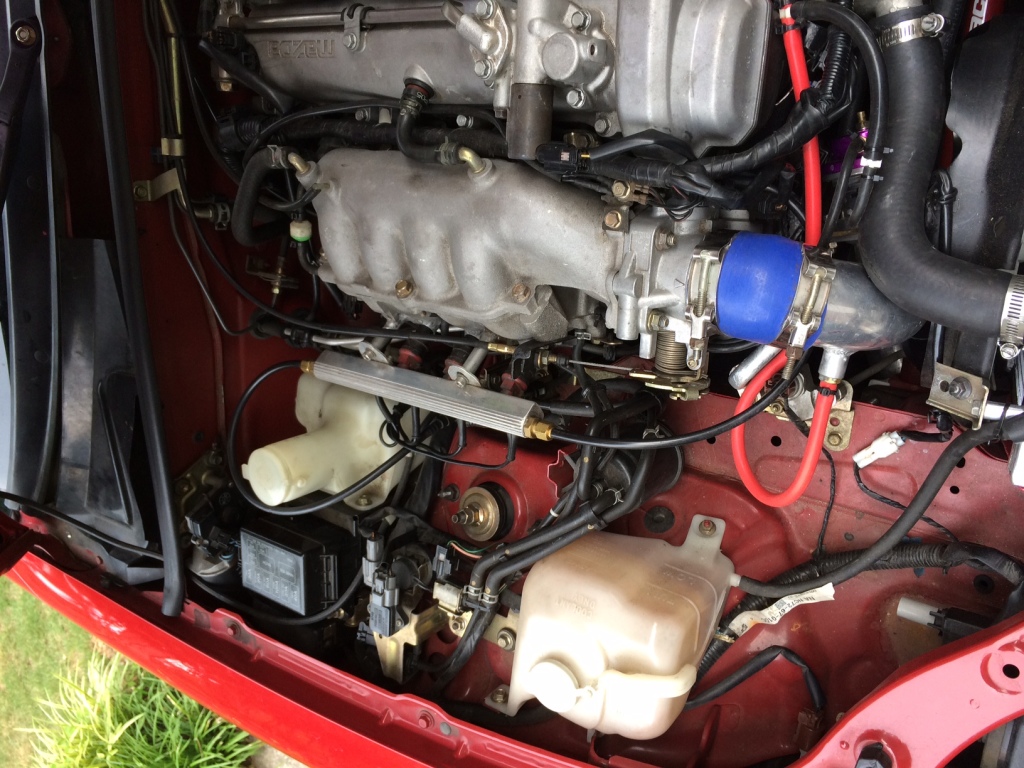

Here's a picture under the hood. The fuel rail replaced the stock line that runs under the lower intake manifold.



Attached Thumbnails
NB Link Piggyback ECU - OBDII Emissions Legal-2cqk8zk.jpg   NB Link Piggyback ECU - OBDII Emissions Legal-f59bx3.jpg
Rick02R is offline   Reply With Quote
Old 07-07-2014, 04:07 PM   #4
Junior Member
iTrader: (3)

Join Date: Oct 2010
Posts: 100
Total Cats: -11
Default set up

Whoa the fuel rail is out there, yea I don't think this will work for me. The strut bar and catch can will definitely hit. Looks amazing though glws.
apalac01 is offline   Reply With Quote
Old 08-03-2014, 11:14 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 71
Total Cats: 3
Default

bump...
Rick02R is offline   Reply With Quote
Old 01-09-2015, 10:40 PM   #6
Newb

Join Date: Jan 2015
Posts: 6
Total Cats: 0
Default keypad

Are you willing to part with the keypad to the ecu?
b6turbo is offline   Reply With Quote
Old 01-10-2015, 09:50 AM   #7
Newb

Join Date: Jan 2015
Posts: 6
Total Cats: 0
Default keypad

Quote:
Originally Posted by Rick02R View Post
bump...
Are you willing to part with the kaypad? Maybe we can work a deal on the whole thing..
b6turbo is offline   Reply With Quote
Old 01-10-2015, 05:08 PM   #8
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

was the case redone?
Pitlab77 is offline   Reply With Quote
Old 01-12-2015, 12:17 PM   #9
Junior Member
Thread Starter

Join Date: Oct 2013
Posts: 71
Total Cats: 3
Default

Sorry, not willing to part with the keypad since the '99 and up ECU doesn't support the serial link.

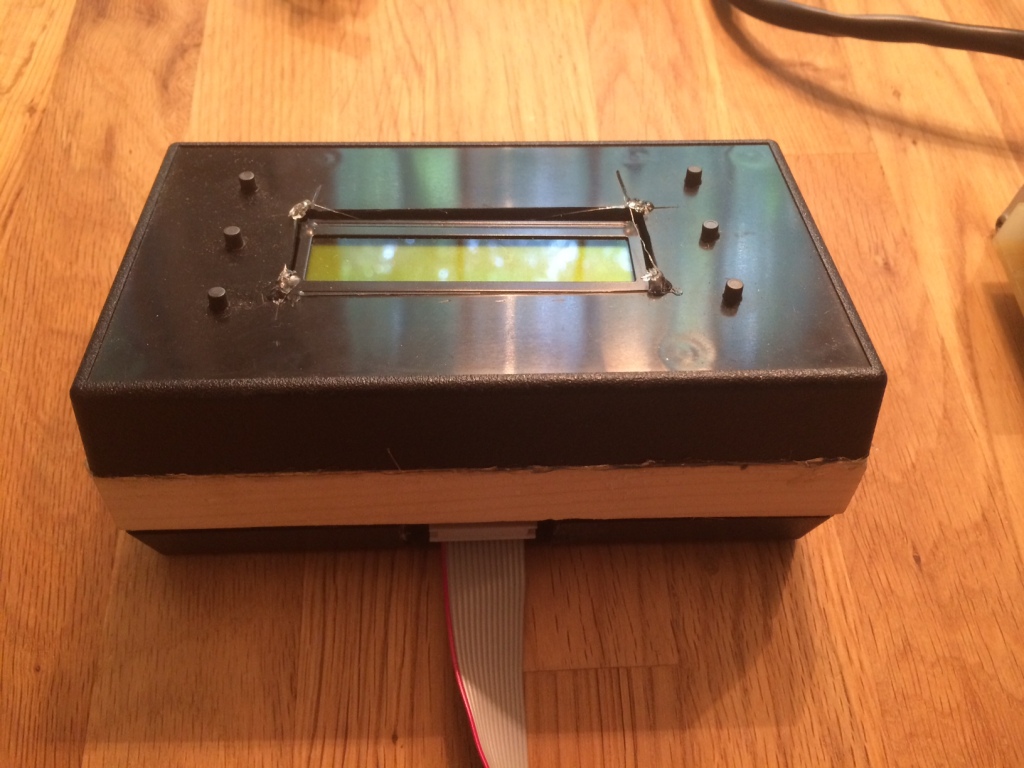

I actually built the keypad from scratch since I couldn't find an affordable one. I have some details on building a Link Keypad in the Link ECU section of MT.net. It wasn't terribly hard and I'm no electronics guru.
Rick02R is offline   Reply With Quote
