Default Ported 99' BP-4W head and Gutted Intake

I ported these over the winter for my track car project. But I have since decided to stick with the 1.6 shortblock, therefore I no longer have any use for these.

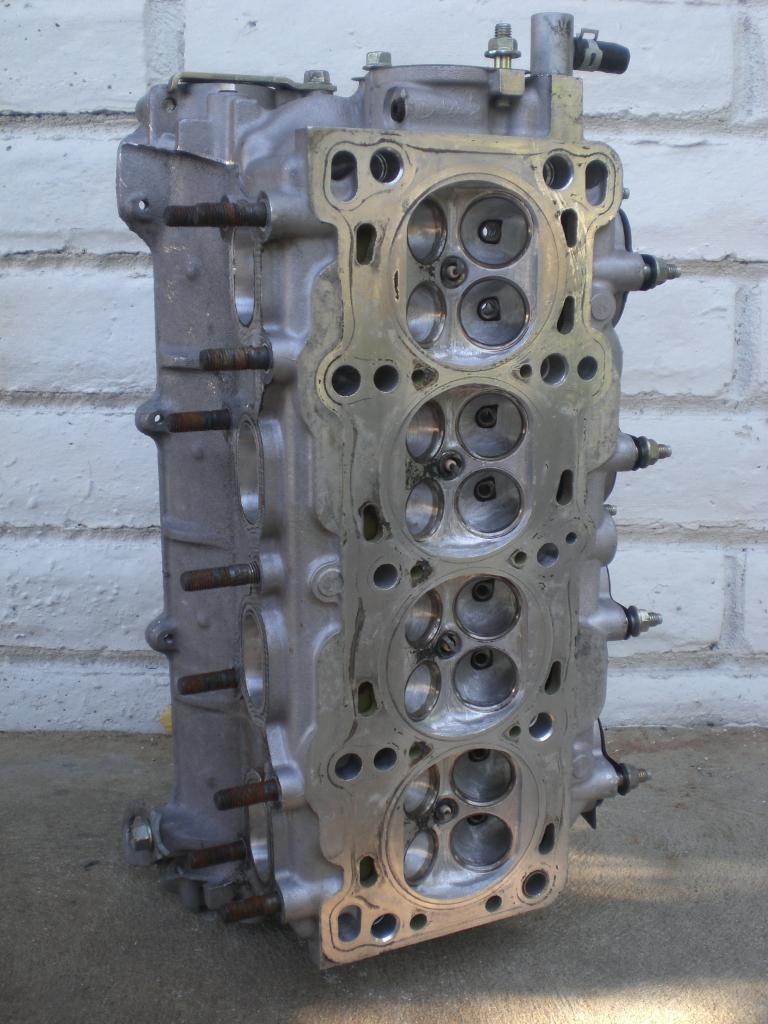

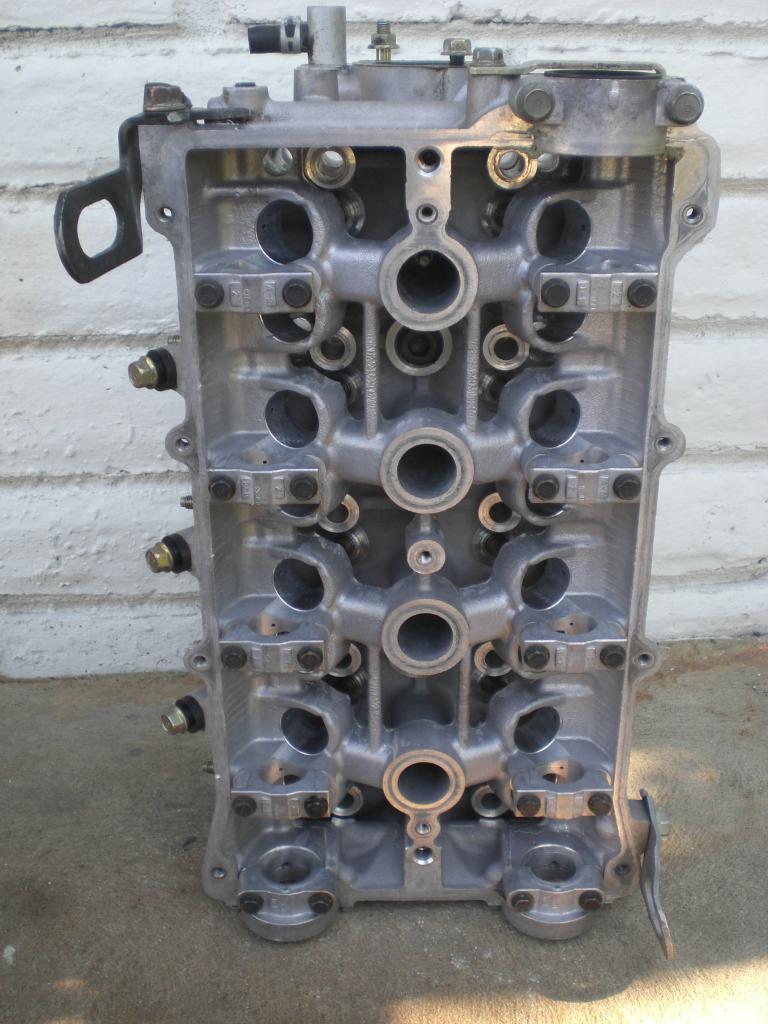

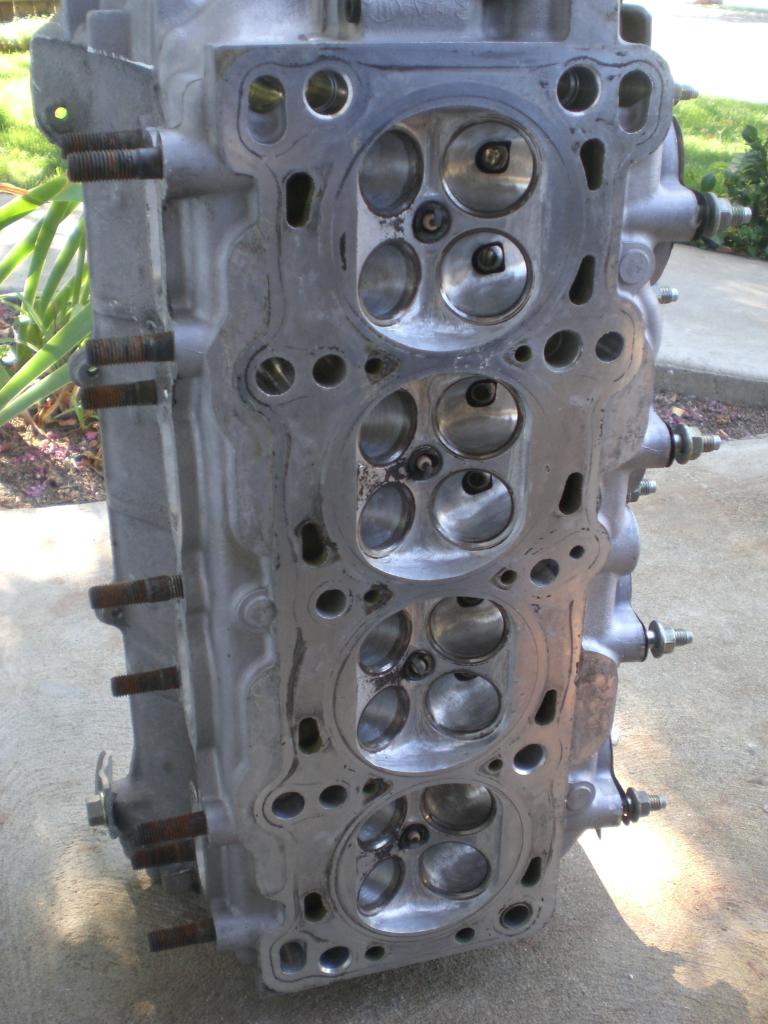

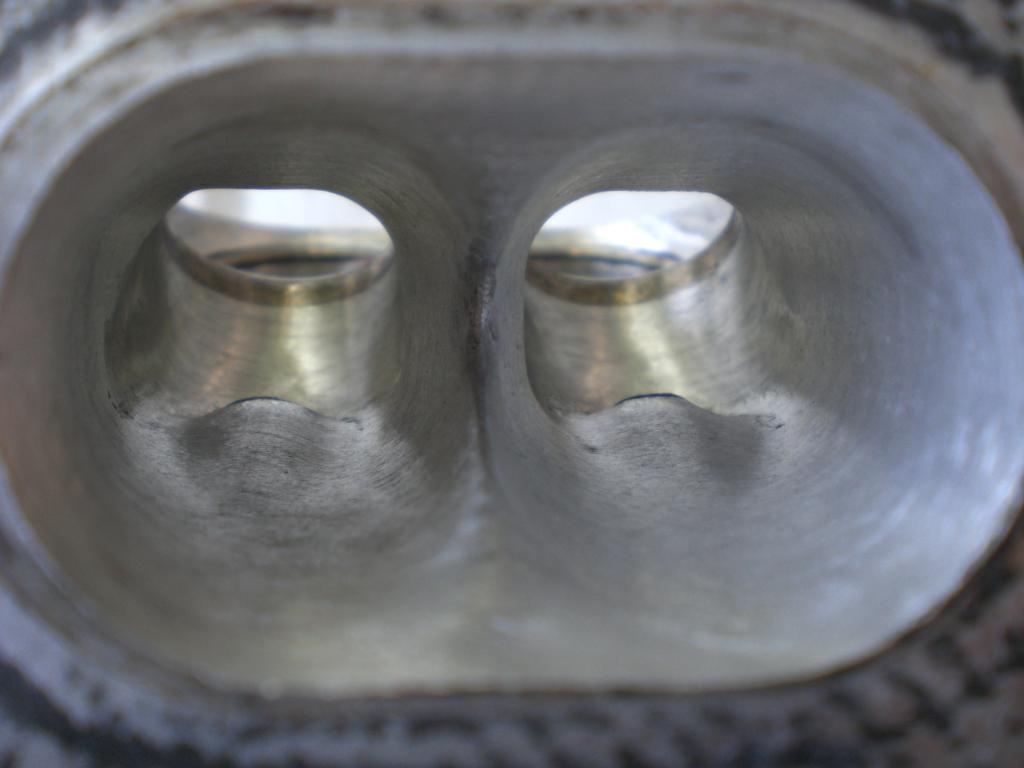

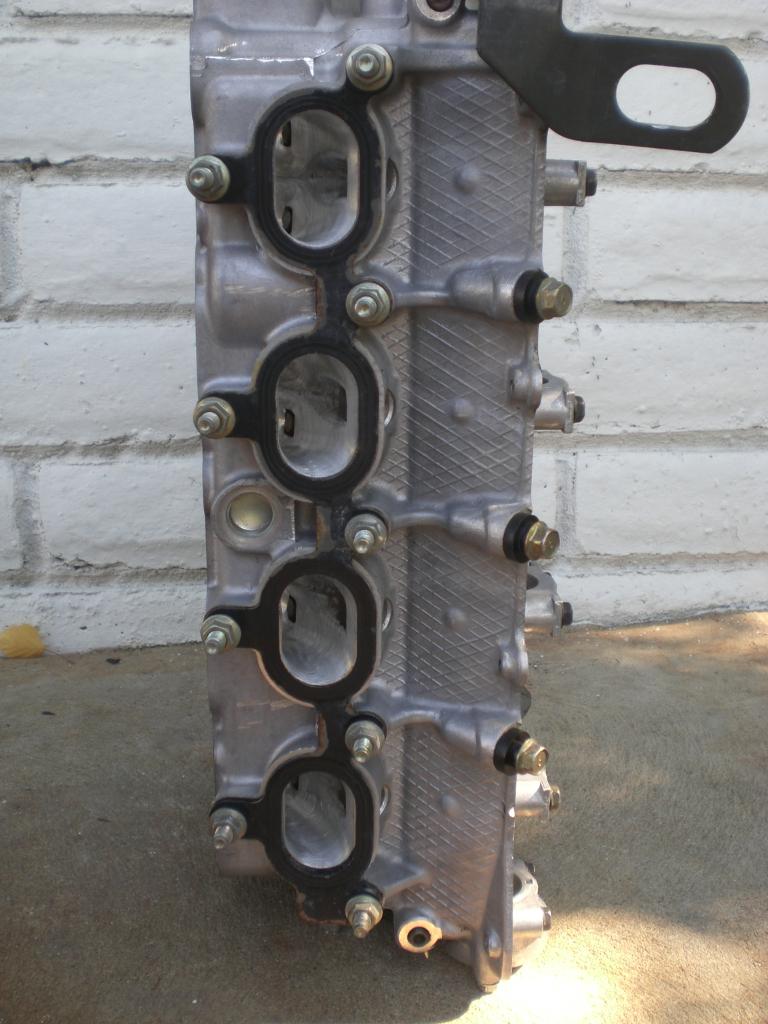

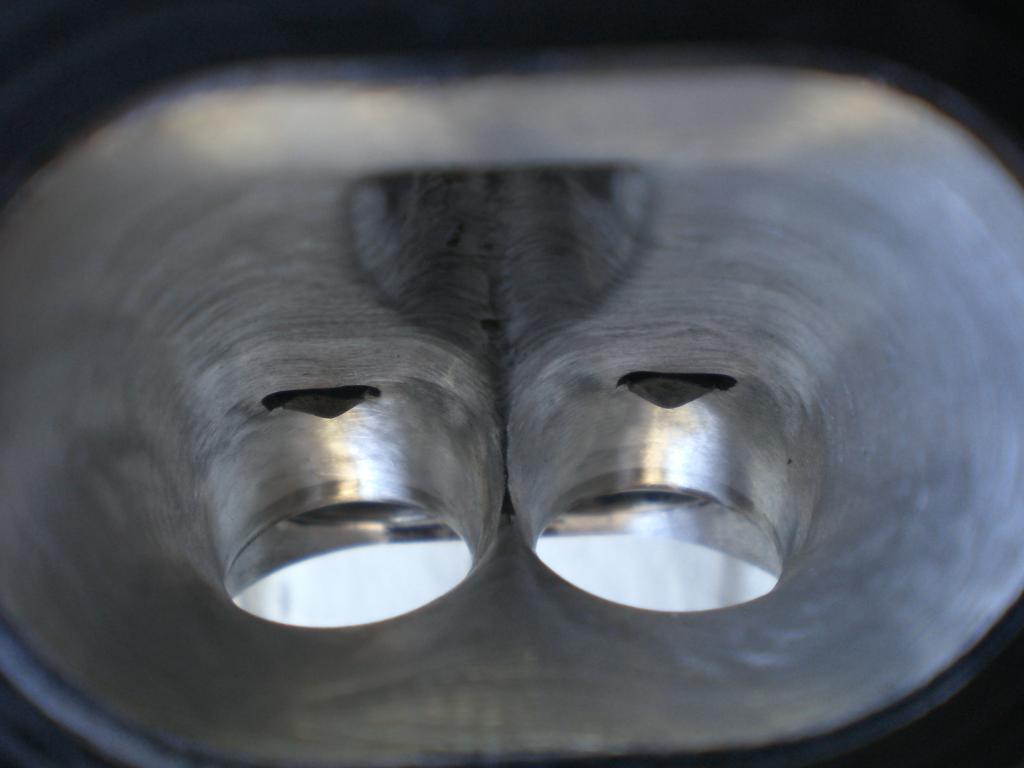

The head has a mild port job consisting of a gasket match, bowl blending, and de-shrouded/polished chambers. The oil drain passages have also be radiused to improve oil drain-back.

The head needs the seats touched-up and the deck surfaced while it is apart. I can have this done locally for an additional $140

(I also strongly suggest installing +1mm valves, this would greatly improve the bowl to valve seat transition which is really poor on the BP/B6 engines - let me know if you are interested)

The head comes complete with valves/springs/cams/lifters/etc.

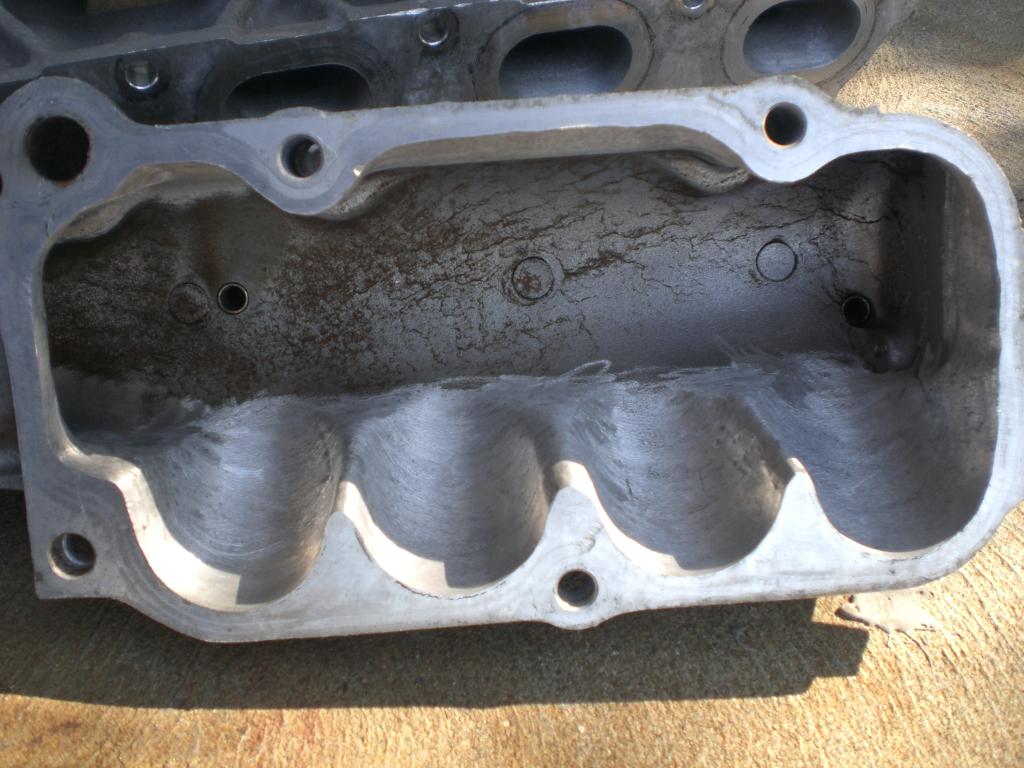

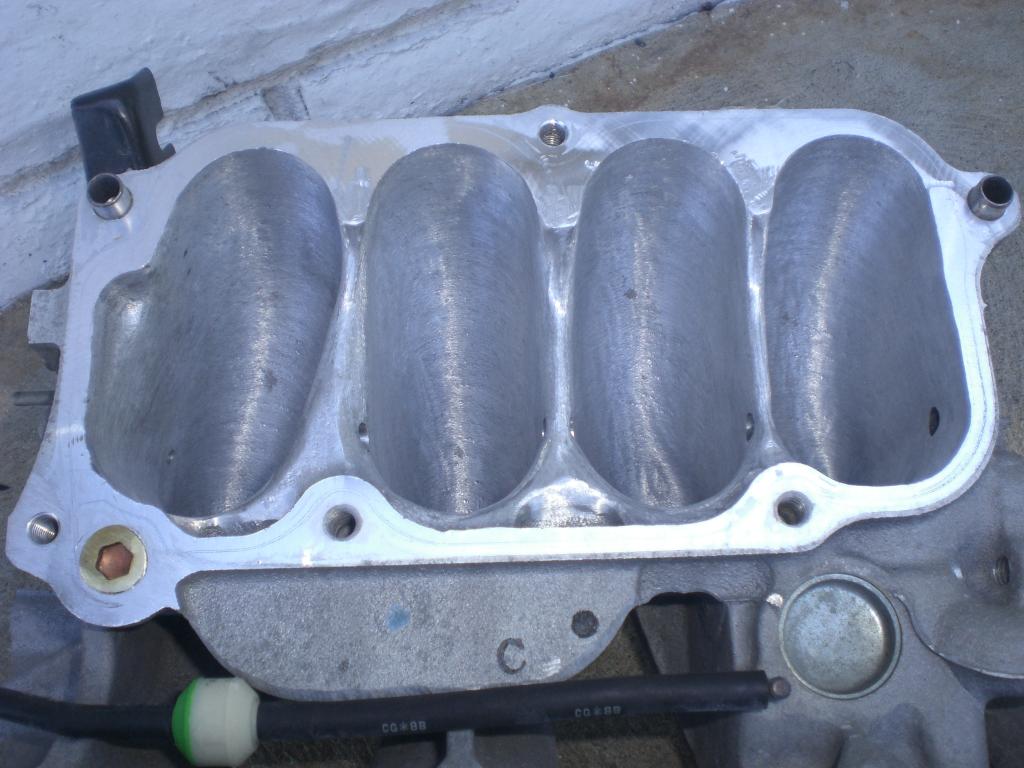

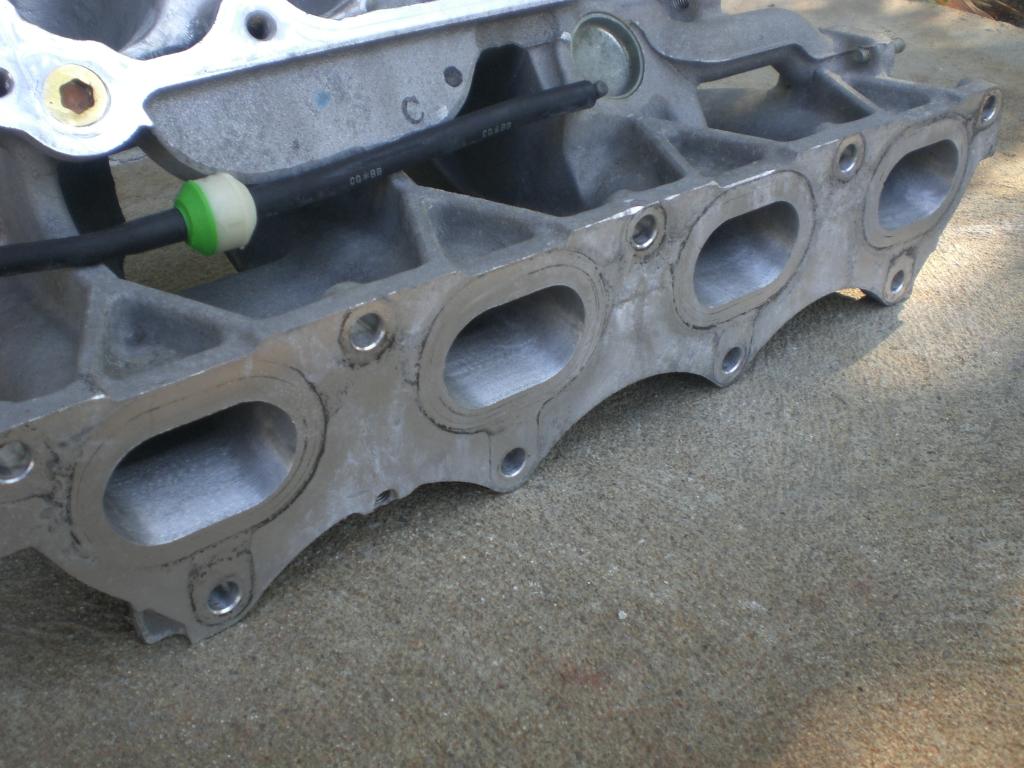

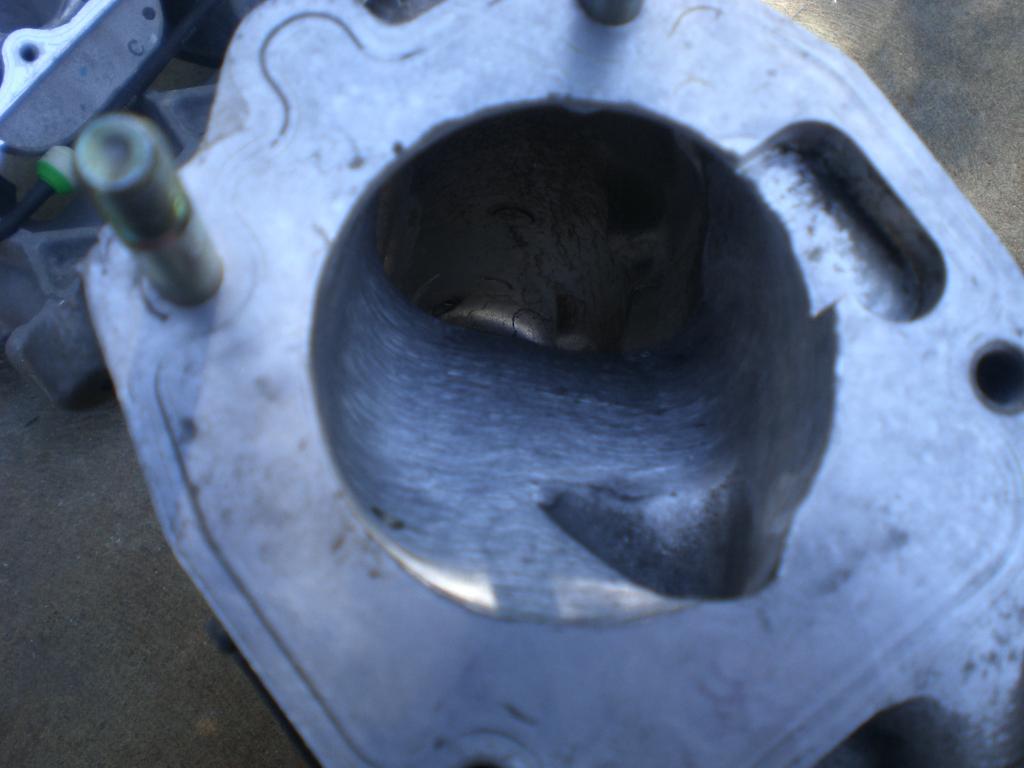

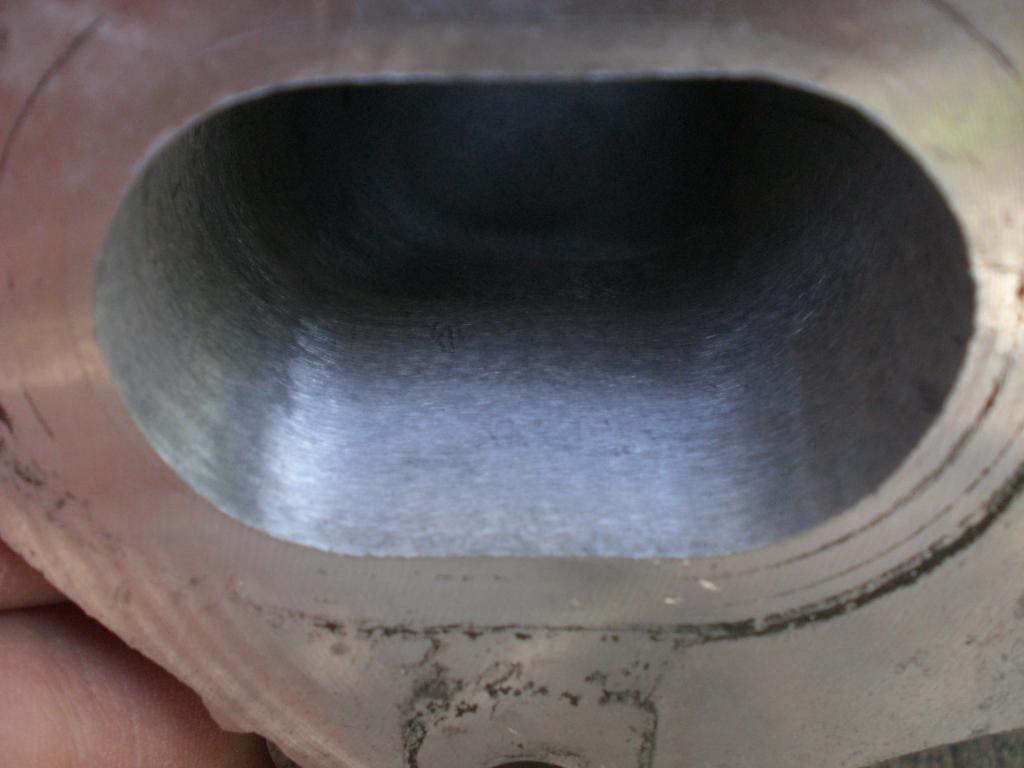

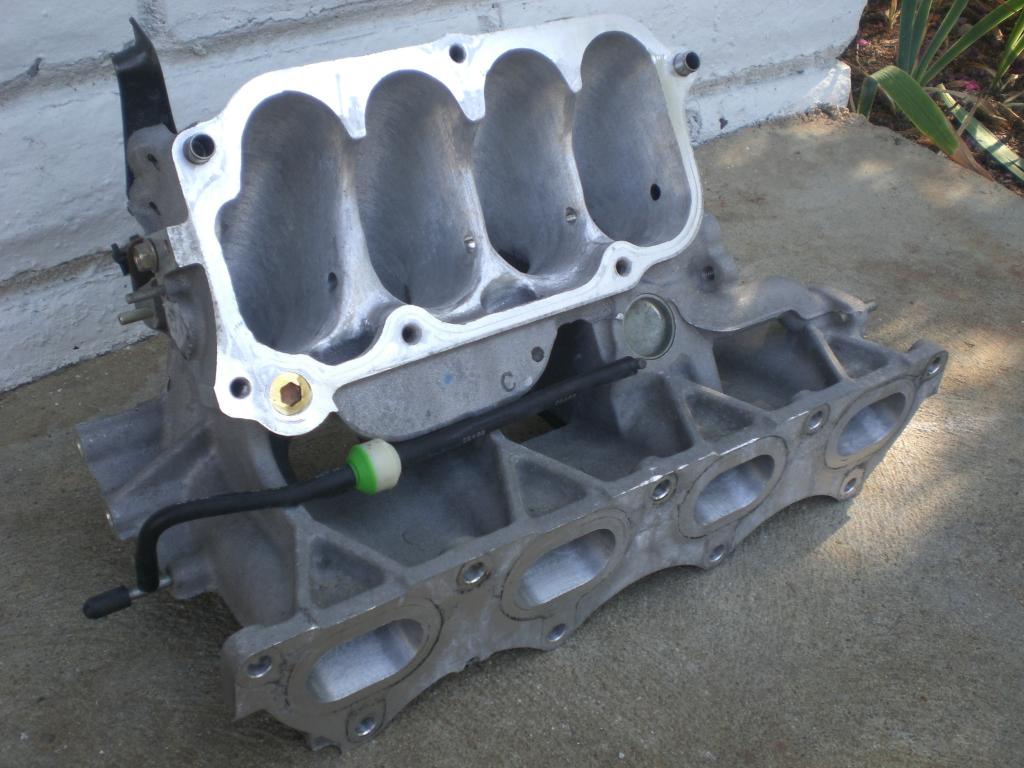

The both portions of intake have been gutted, including the EGR passages through the upper half near the TB. The EGR passage in the lower was treaded and plugged, so you can keep the EGR valve located on the back of the intake (stock appearing for those who live in states like California)

intake includes the fuel rail/FPR and miscellaneous brackets.

asking:

$500 for the cylinder head
$300 for the intake manifold























Attached Thumbnails
Ported 99' BP-4W head and Gutted Intake-cimg4991.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4989.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4995.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4998.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4997.jpg

Ported 99' BP-4W head and Gutted Intake-cimg4988.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4968.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4973.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4972.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4971.jpg

Ported 99' BP-4W head and Gutted Intake-cimg4978.jpg   Ported 99' BP-4W head and Gutted Intake-cimg4979.jpg
crowder92 is offline   Reply With Quote
Old 07-23-2012, 06:34 AM   #2
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

If I had the cash, I'd be all over this ---- like white on rice. Unfortunately this is just a free bump. Good luck with the sale. I'm sure it will go quickly.
NA6C-Guy is offline   Reply With Quote
Old 07-23-2012, 03:34 PM   #3
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Edit: NM - I didn't read properly. Not interested. Sorry.

Last edited by stefanst; 07-23-2012 at 05:43 PM.
stefanst is offline   Reply With Quote
Old 08-13-2012, 07:30 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

I have a complete stock BP-4W head and intake manifold that I am also putting up for sale as well...
Both are in good condition.

$350 obo for the head.
$100 for the intake manifold.

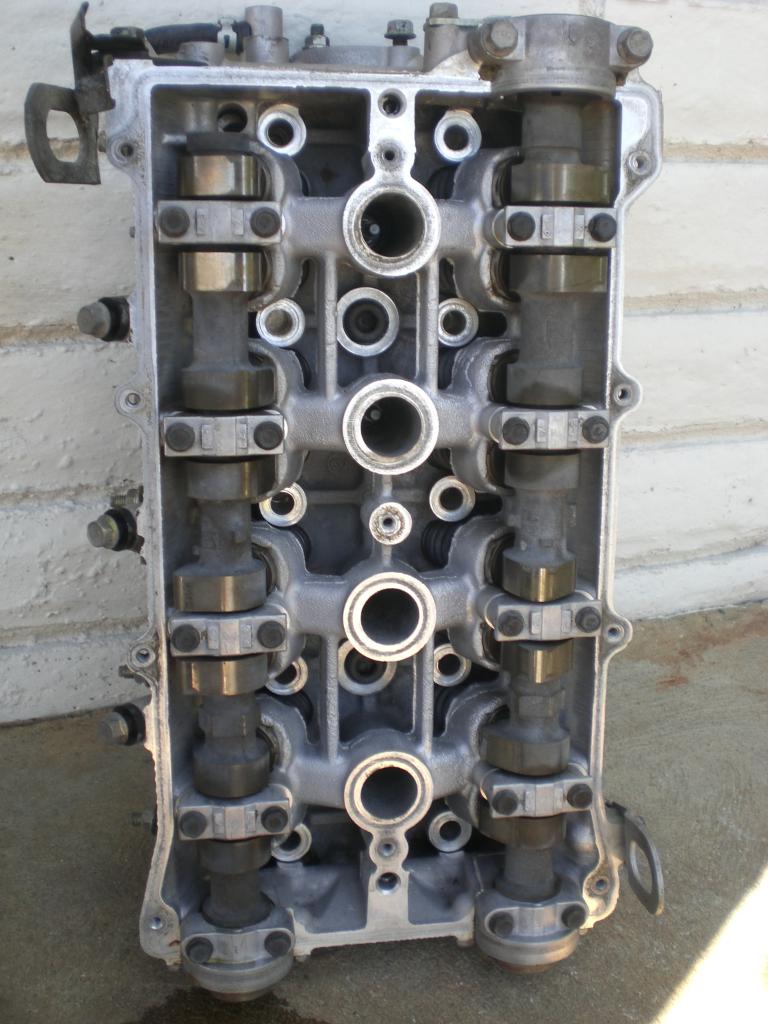

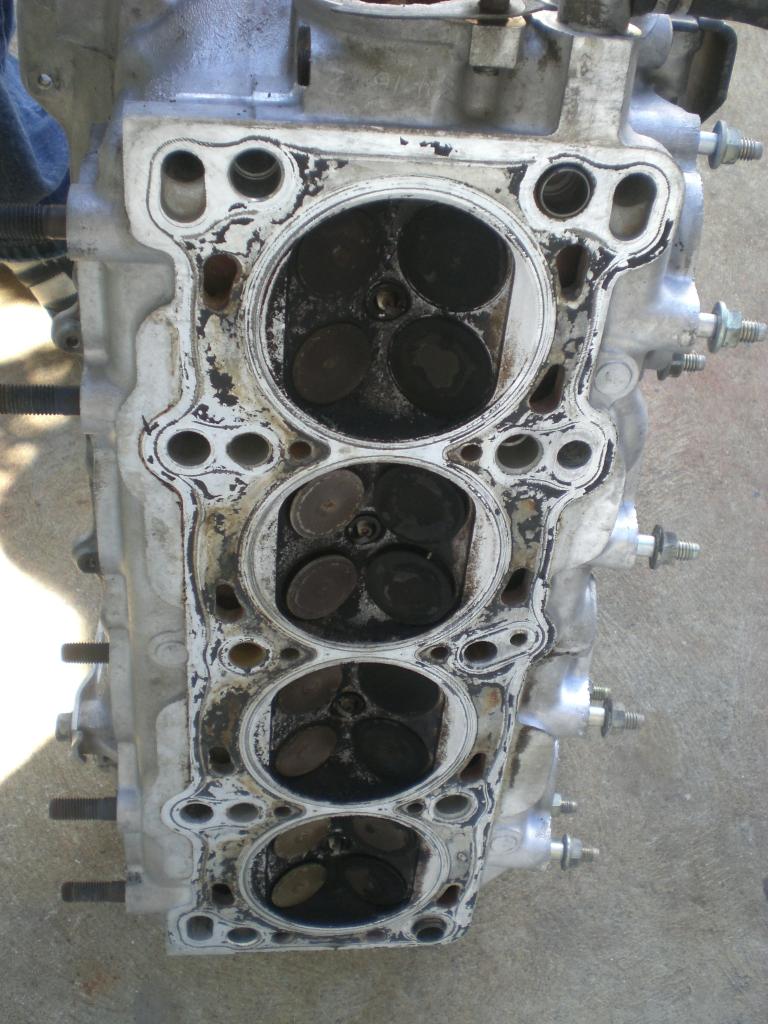

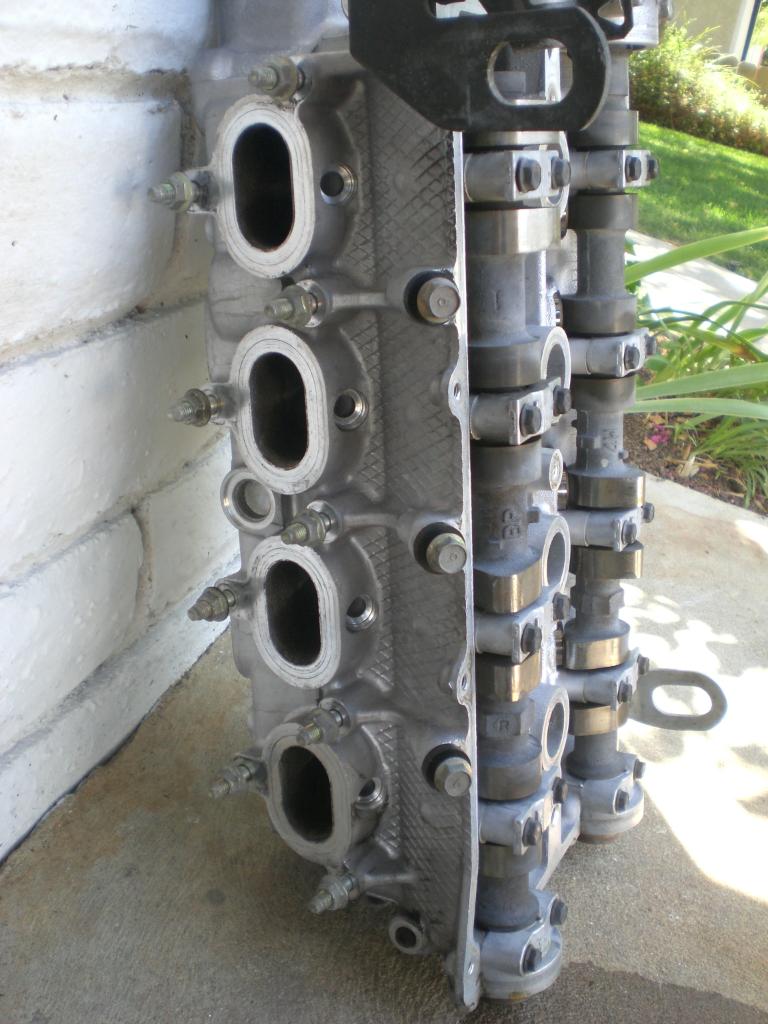

Here is a photo of the stock head.





Attached Thumbnails
Ported 99' BP-4W head and Gutted Intake-cimg5026.jpg   Ported 99' BP-4W head and Gutted Intake-cimg5025.jpg   Ported 99' BP-4W head and Gutted Intake-cimg5027.jpg
crowder92 is offline   Reply With Quote
Old 08-13-2012, 08:46 PM   #5
Junior Member
iTrader: (2)

Join Date: Jul 2009
Posts: 113
Total Cats: 0
Default

So the ported head comes with the factory valvetrain but your recommending going with 1mm over sized . PM me what is the best price you could do with the extra work needed .
Venice is offline   Reply With Quote
Old 08-14-2012, 11:18 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

PM sent.
crowder92 is offline   Reply With Quote
Old 08-15-2012, 12:13 AM   #7
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Nice gut. Doing that is a real pain in the ***. Worth something.
Faeflora is offline   Reply With Quote
Old 08-16-2012, 12:47 AM   #8
Junior Member
iTrader: (1)

Join Date: Aug 2011
Location: Queens, NYC
Posts: 139
Total Cats: 5
Default

Will the polished IM work well with an oem head or is it pointless?
Kinavo is offline   Reply With Quote
Old 08-16-2012, 02:24 AM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Kinavo View Post
Will the polished IM work well with an oem head or is it pointless?

Yes it would.
Faeflora is offline   Reply With Quote
Old 08-16-2012, 09:20 PM   #10
Newb

Join Date: Aug 2012
Location: Winter springs, Fl
Posts: 5
Total Cats: 0
Default Stock bp4w head

I'm interested in the stock head. I can't pm you cause I'm a new member. Need a shipping quote. I have PayPal. Thanks, Mike.
Flyin4stroke is offline   Reply With Quote
Old 08-17-2012, 06:08 PM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

Quote:
Originally posted by Faeflora
Nice gut. Doing that is a real pain in the ***. Worth something.
Gutting the intake was a PITA! It took a solid 8 hours. This is the last one I will ever do (unless someone is willing to pay me $800 for it)

There are some results that show a HP gain a higher RPMS, so it is a worthwhile mod for some people. Take a look at the link below:
https://www.miataturbo.net/general-m...testing-66901/

In my opinion BP intake manifold design is crap, especially these... but what better options are there, aside from going to a JDM/Euro Square Top or fabricated manifold.

Performing the gutt essentially turns this manifold into a short runner intake that has a huge plenum, the short runners are good for high rpms but it hurts spool. The increase plenum volume should decrease flow variations from cylinder-to-cylinder and improve VE especially in the #1 cylinder.
crowder92 is offline   Reply With Quote
Old 08-17-2012, 06:21 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

Quote:
Originally Posted by Flyin4stroke View Post
I'm interested in the stock head. I can't pm you cause I'm a new member. Need a shipping quote. I have PayPal. Thanks, Mike.
USPS says it is approximately $100 for Priority mail to 32719 zip. They have a "Parcel Post" for $60 but I have never used this method, so I am not sure if there are restrictions that would exclude shipping a large/heavy package or how long it would take.
crowder92 is offline   Reply With Quote
Old 08-17-2012, 07:03 PM   #13
Newb

Join Date: Aug 2012
Location: Winter springs, Fl
Posts: 5
Total Cats: 0
Default

Shoot me a pm I'll give you my info then I can send the monies. Thanks.
Flyin4stroke is offline   Reply With Quote
Old 10-01-2012, 02:56 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Dec 2010
Location: California
Posts: 53
Total Cats: 15
Default

Ported Head, Stock head + intake are SOLD.

Gutted Intake is still available!
crowder92 is offline   Reply With Quote
Old 10-08-2012, 04:40 PM   #15
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

God that porting on the intake is clean, very nice work.
