Default T2 1.6 Turbo kit 304L, everything you need to turbo

GO TO LAST PAGE TO SEE WHAT'S LEFT FOR PART OUT

It is an NA Miata Turbo kit that I made to use a T2 turbo. Clears AC and P/S.

Everything you would need to take a stock NA Miata and turbo it.

I am using an SR20 T25 turbo with this setup. All you would need is to add oil return to the oil pan for the turbo… Unless you would like to swap oil pans with me.

Included in the package:
• Less than 500 miles on rebuilt SR20 T25 turbo
• Variable TPS Vishnay 971-0002 with aluminum/nylon 3D printed bracket
• Homebrew 304L stainless turbo manifold with carbon steel flange, decked flat
• Full 3” exhaust with v-bands all the way and muffler
• All aluminum intercooler + 2.5" AL piping and silicone couplers
• Top of the line Braineack built MS3X ECU and a PNP harness
• GM EBC wired to a toggle switch for hi/low boost

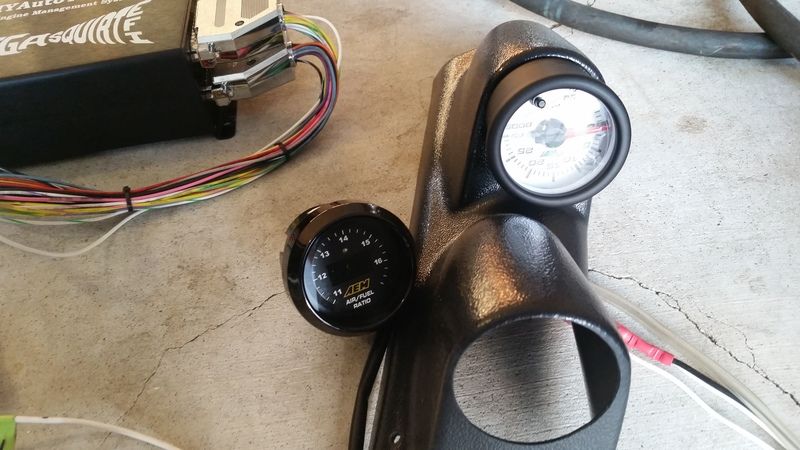

• A-pillar gauge pod with Glowshift boost gauge/ AEM wideband gauge
• AEM wideband
• Fully sequential injection/ignition with LS1 coilpacks Duestche DT connectors with MSD spark plug wires
• RX-8 Yellow top 440cc injectors
• All AN fittings for turbo plumbing with oil restrictor .062" -3an, 7/16 -24 and PTFE SS braided AN lines

Asking $2500 for it all to have basically a turn key turbo kit.


























• Could possibly include a sub 500 mile 949 Organic clutch also, but trying to avoid pulling the engine
• I have tuned where it drives nice, never put on a dyno though, so not sure about the power levels

I probably forgot some things, once I pull it all off the car I will have a better idea, but you get everything needed for it to run correctly.

Also having it off the car I can provide more pictures of everything.

Separating it from this car: https://www.miataturbo.net/cars-sale...x-title-83211/

Contact me if interested for pricing for the car as well.
Attached Thumbnails
T2 1.6 Turbo kit 304L, everything you need to turbo-80-133865_1990_white_turbo_miata_clean_tx_title_20150220_000610_zpskcf5lmkf_a3036647648f36359624.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20140604_133806_zps8f0b0937_8b9902a132e861c6f02e9d9c786ba7f514f7ab55.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-121392_project_ultimate_diy_high_mpg_commuter_2014_08_22215653_zpse0db9f09_b1f634918491cb0045.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-121447_project_ultimate_diy_high_mpg_commuter_20140823_230816_zps0uem5551_302a198b34ee5def180.jpg

Last edited by carbon; 10-26-2015 at 01:18 AM.
carbon is offline
Old 10-11-2015, 11:30 PM   #2
Newb

Join Date: Oct 2015
Posts: 25
Total Cats: 1
Default

How much if you take out the ECU, wideband, and exhaust?
Jorge Ruiz is offline
Old 10-12-2015, 12:01 AM   #3
Junior Member

Join Date: Aug 2015
Location: Mass
Posts: 302
Total Cats: 17
Default

interested in ecu if you part it, pm me
Colipto is offline
Old 10-12-2015, 12:33 AM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

PM's sent to both of you.
carbon is offline
Old 10-12-2015, 03:19 AM   #5
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Can that ecu run a vvt 1.8 on a 1.6 chassis?
konmo is offline
Old 10-12-2015, 08:55 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Quote:
Originally Posted by konmo View Post
Can that ecu run a vvt 1.8 on a 1.6 chassis?
I don't see why it couldn't. Some minor wiring may be required.
carbon is offline
Old 10-12-2015, 09:54 PM   #7
Junior Member
iTrader: (2)

Join Date: Dec 2014
Location: Salinas, CA
Posts: 263
Total Cats: 18
Default

Quote:
Originally Posted by carbon View Post
I don't see why it couldn't. Some minor wiring may be required.
Can you please pm me? Interested in it. Thank you

David
konmo is offline
Old 10-13-2015, 12:49 AM   #8
Junior Member
iTrader: (1)

Join Date: Oct 2014
Location: College Station, TX
Posts: 56
Total Cats: -2
Default

GLWS!
BrandonL is offline
Old 10-13-2015, 01:58 AM   #9
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Quote:
Originally Posted by BrandonL View Post
GLWS!
Thanks!

PM's replied to.

Whole kit still for sale before parting... for a short while. It is still on the car. Going to remove it all when I have some time before/this weekend.
carbon is offline
Old 10-13-2015, 08:42 PM   #10
Newb

Join Date: Jun 2015
Posts: 11
Total Cats: 0
Default

Gauge pod and wideband interested in. Does it come with the sensor too?
Gregcg2 is offline
Old 10-13-2015, 09:24 PM   #11
Newb

Join Date: Oct 2015
Posts: 25
Total Cats: 1
Default

Interested in injectors, intercooler, manifold + dp
Jorge Ruiz is offline
Old 10-16-2015, 01:01 PM   #12
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Just a note on my turbo cooling lines... for them to work best, your block would need to have the plugs on the driver's side.





Taking everything off, started last night. Progress is as follows.

Nothing is sold yet.

Not committing to selling anything until I have everything off. The MS3x/wideband/boost gauge/VTPS comes out today so I can take time labeling everything.

I also have all the paperwork and wiring diagrams I made.

Attached Thumbnails
T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151015_233042_zpsdwwuy9ja_7b141cf93ef86a7affb4217d69ade0f685335793.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151015_232908_zpsxykhps2n_076116fcb5593cd3dad3ec366c1b13dd51136cb9.jpg
carbon is offline
Old 10-17-2015, 09:36 PM   #13
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

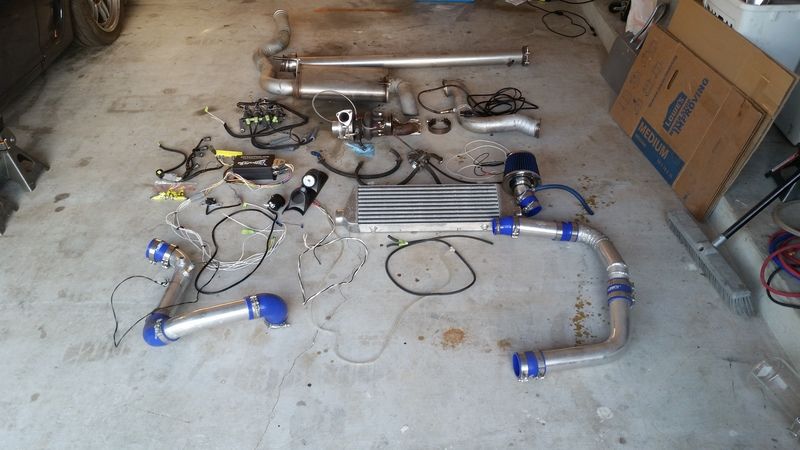

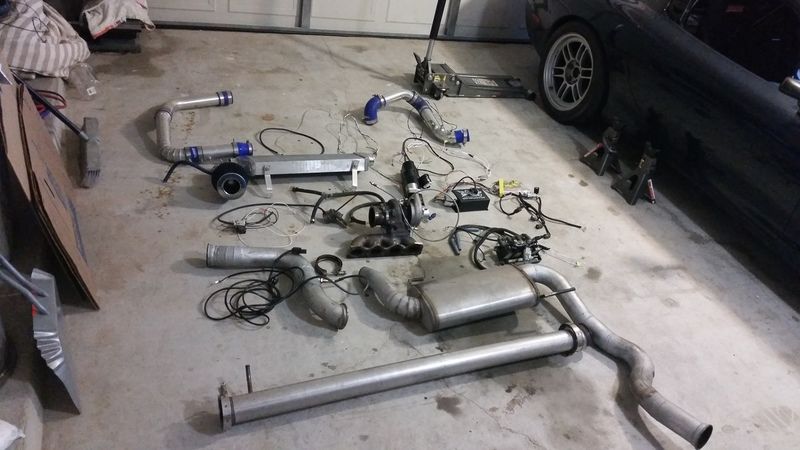

The whole kit. When wiring is said to be done, all that is needed for you to do is to use a butt connector to tie into your harness. Figuring out what goes where is already done.

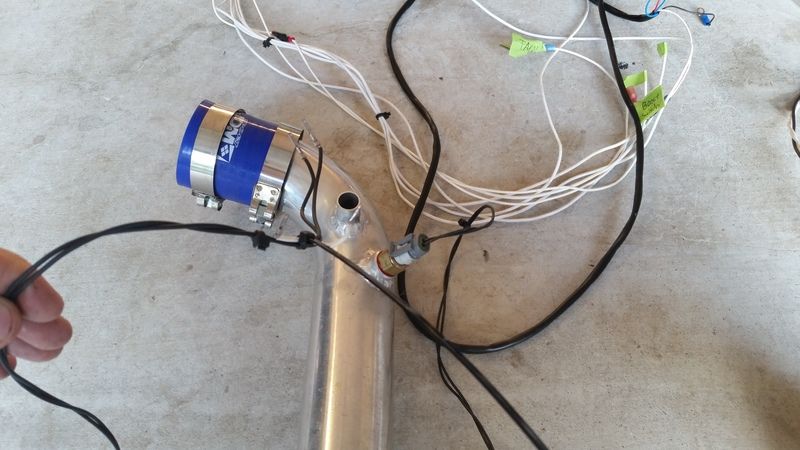

IAT on Cold pipe, wired and ready to go. Even included jumper wire for MAF plug.





2 gauge A pillar pod with Boost gauge and AEM UEGO wideband

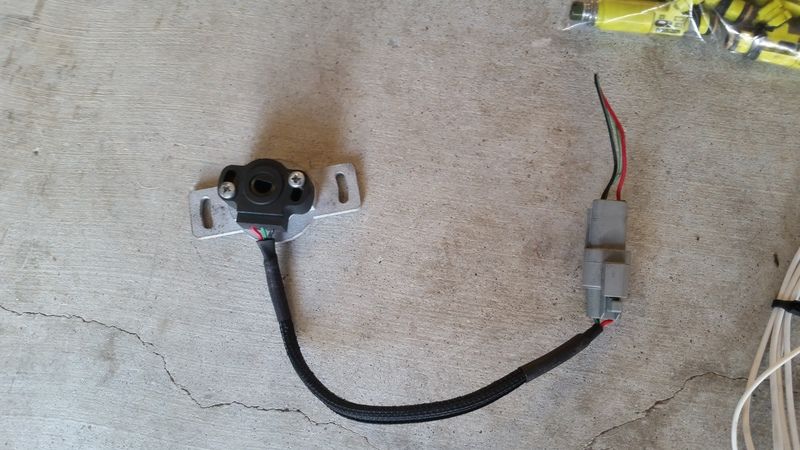

Aluminum/Nylon 3D printed adapter for VTPS along with Deustch DT connector with wiring cut to shown where to wire into your stock harness.

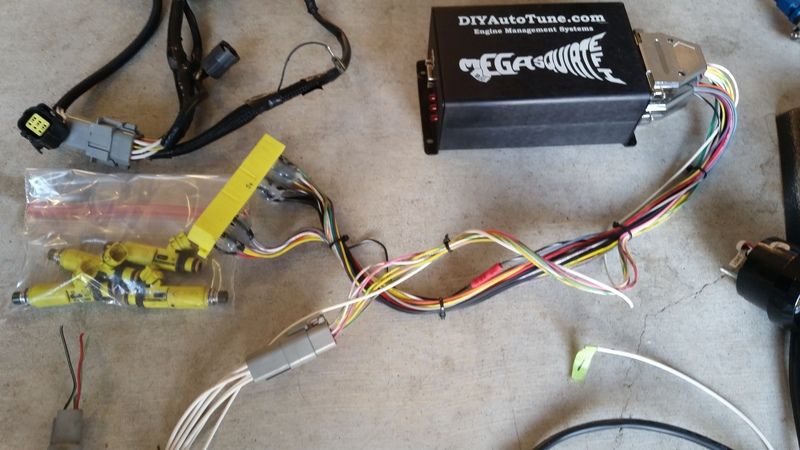

MS3X with Plug and Play harness with full INJ/IGN sequential capabilities also wired for a PNP with a Deustch DT connector with wiring already done.

Also RX8 440cc yellow injectors.





Fuel rail harness with another Deutch DT connector along with the stock connector for running sequential injection.

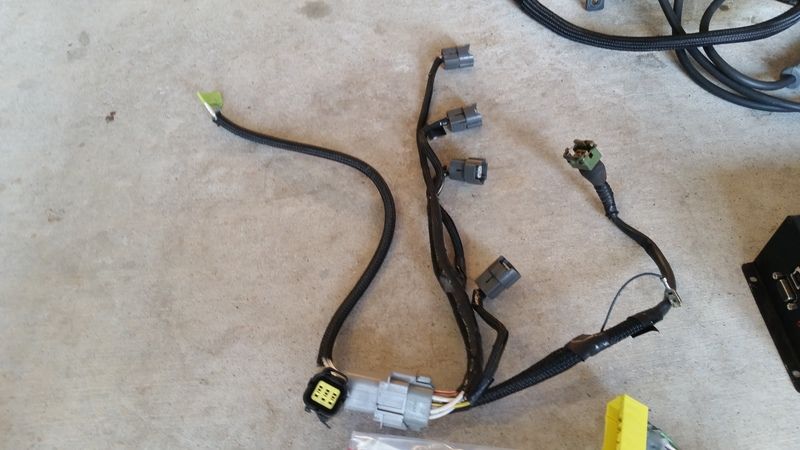

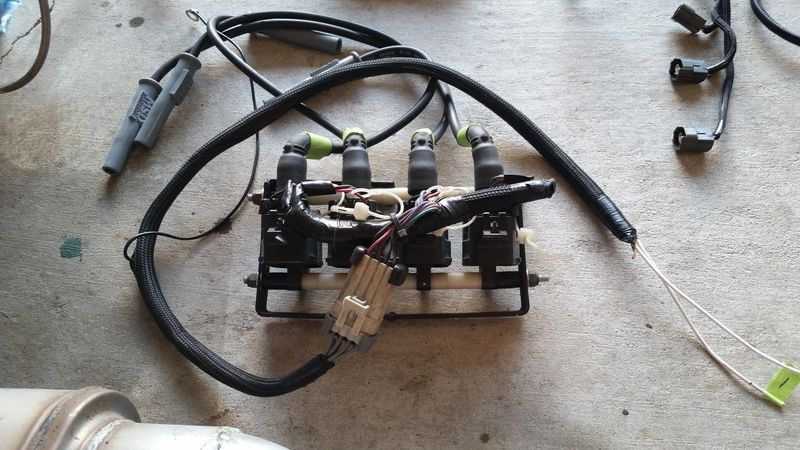

LS1 coil packs wired for full sequential with a new OEM GM connector. MSD 8.5mm super conductor spark plug wires. With OEM Mazda colors left in the harness... so you just butt connector each wire color to your wire color.

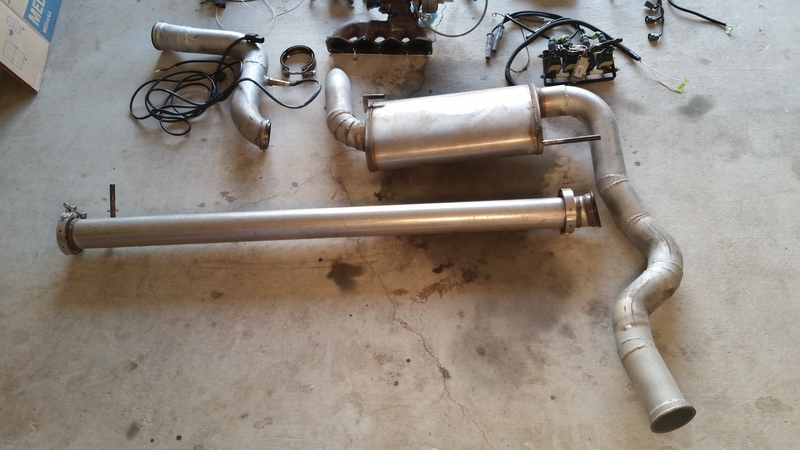

Full 3" exhaust/Down pipe with V-bands and wideband O2

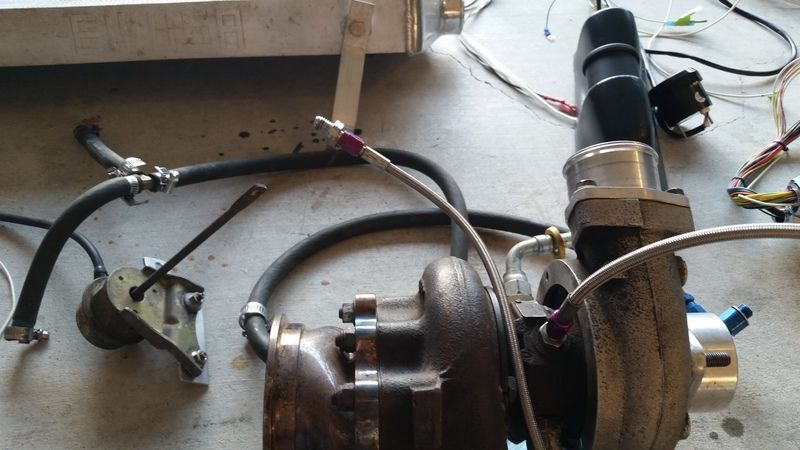

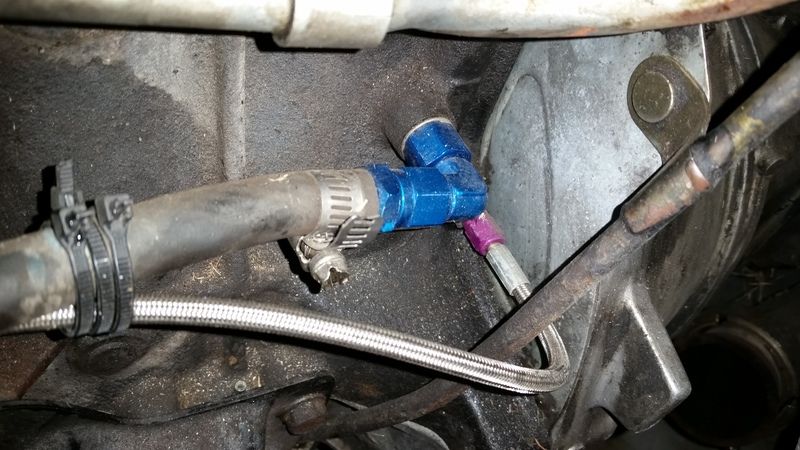

Oil fitting for block to -3 AN fitting + PTFE hose.

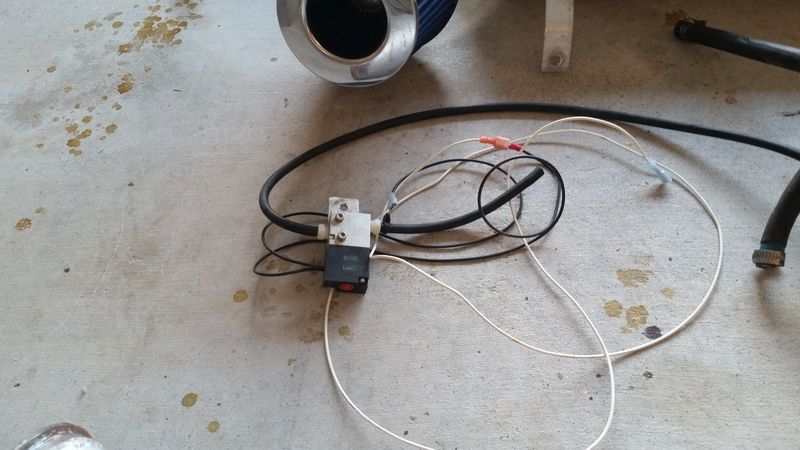

GM EBC boost control solenoid wired for MS3X.



Water AN fitting for block for water cooling turbo.



Turbo



Air filter/water hoses/worm clamps... EVERYTHING you need to go from STOCK -> TURBO!
Attached Thumbnails
T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_180939_zpslho2yjxo_7e231ee8a57fa5bea0ac2c017d873834c5693f51.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181421_zpsqlhhn3cv_482730e33b9289cd13b5f708a6377224f8fe34aa.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_180955_zpsp8xxuezy_ffe014d2bf78442a578d1659a84d3e068f375446.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181029_zpszthnctx2_f1b83f7486a6083b1addca117eaa3be92d86dfee.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181103_zpsdnpy7eia_c1452f1632eff6d781277a4045969a533fcbc7bb.jpg

T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181202_zps0jsbcmpo_07feea5e6c1b4208d7d6272e21152a79e5bb6c9a.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181208_zpscit6csyn_87a184a8b0bca907c90b9fb332b8f14580900348.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_180939_zpslho2yjxo_30c2ed8dd8e9ca23a74593ac0b42eb949f8dddc4.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_002325_zpspyv8a0ur_31e5f799ec53aea6620934066d66be7cd94ae759.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181044_zpsejewiw3w_0ae8d979fd683266ce6bbe2e0ab91e78d3ab280f.jpg

T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181128_zpsy9kheolr_d66995ff56399fa9bbbbf633b4f78e8538d4210e.jpg
carbon is offline
Old 10-17-2015, 09:39 PM   #14
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Some pictures are not wanting to show up for me... Trying again.





Attached Thumbnails
T2 1.6 Turbo kit 304L, everything you need to turbo-80-20151017_181012_zpsncusam3t_59c648d2876b4475961b9ba803fbb9d2a3f31502.jpg   T2 1.6 Turbo kit 304L, everything you need to turbo-20151017_181135_zpscrk4djaq.jpg
carbon is offline
Old 10-18-2015, 02:46 PM   #15
Newb

Join Date: Oct 2015
Posts: 25
Total Cats: 1
Default

I want the turbo stuff (manifold +dp +turbo + lines) and intercooler + piping and injectors
Price?
Jorge Ruiz is offline
Old 10-19-2015, 05:40 PM   #16
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Pending sale of full kit... taking backup offers
carbon is offline
Old 10-19-2015, 11:43 PM   #17
Newb

Join Date: Jun 2015
Posts: 11
Total Cats: 0
Default

I'm still interested in wideband and sensor also the gauge pod.
Gregcg2 is offline
Old 10-20-2015, 10:39 PM   #18
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

Fell through. Whole kit still for sale.
carbon is offline
Old 10-22-2015, 11:23 PM   #19
Junior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2013
Posts: 186
Total Cats: 10
Default

bump
carbon is offline
Old 10-23-2015, 04:21 PM   #20
Junior Member

Join Date: Apr 2015
Location: salt lake city UTAH
Posts: 70
Total Cats: -2
Default

How much for all and water lines and fitings
Utefan66 is offline
